Emission-Related Diagnostic Information

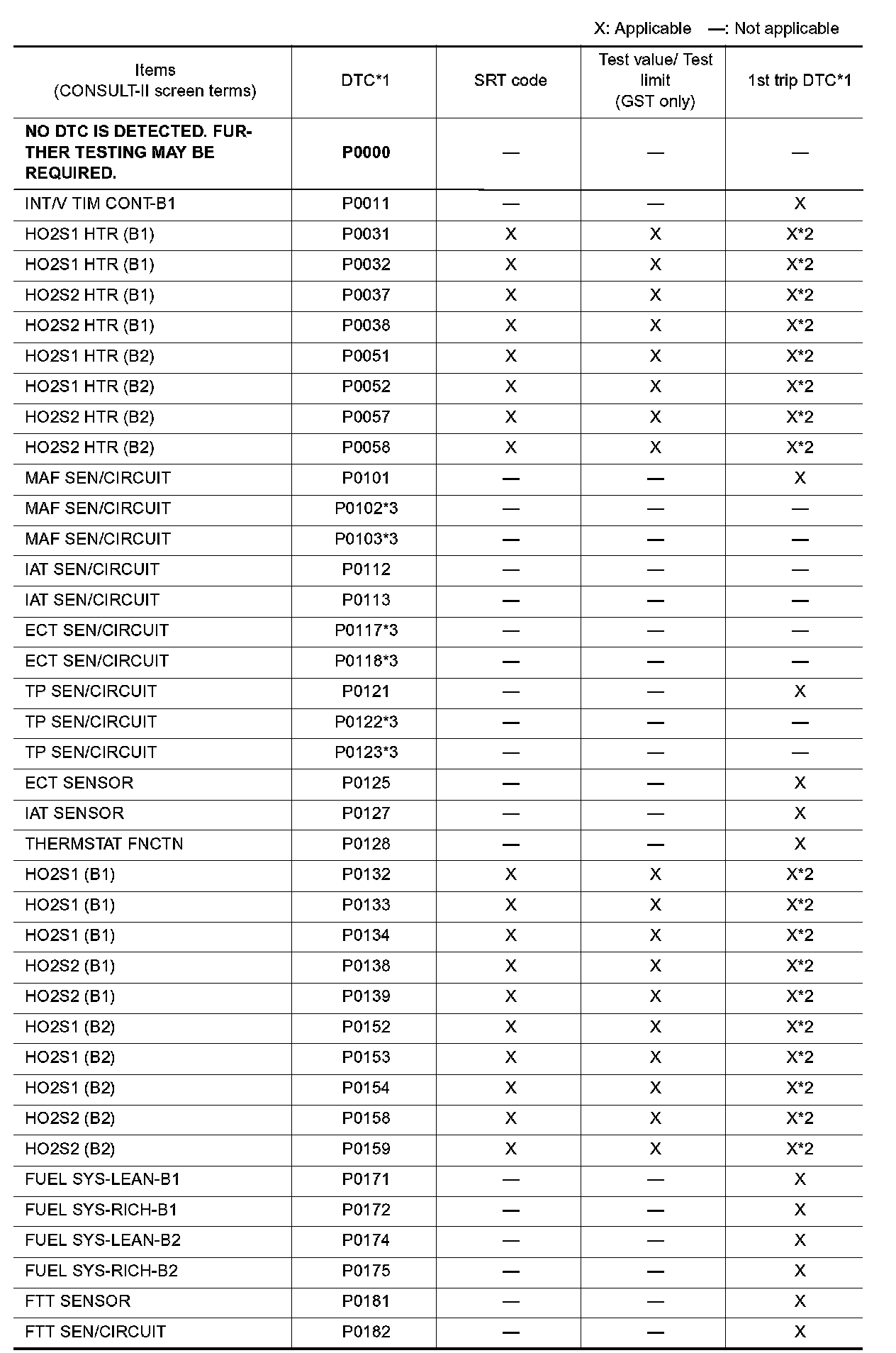

Emission-Related Diagnostic Information Items Part 1:

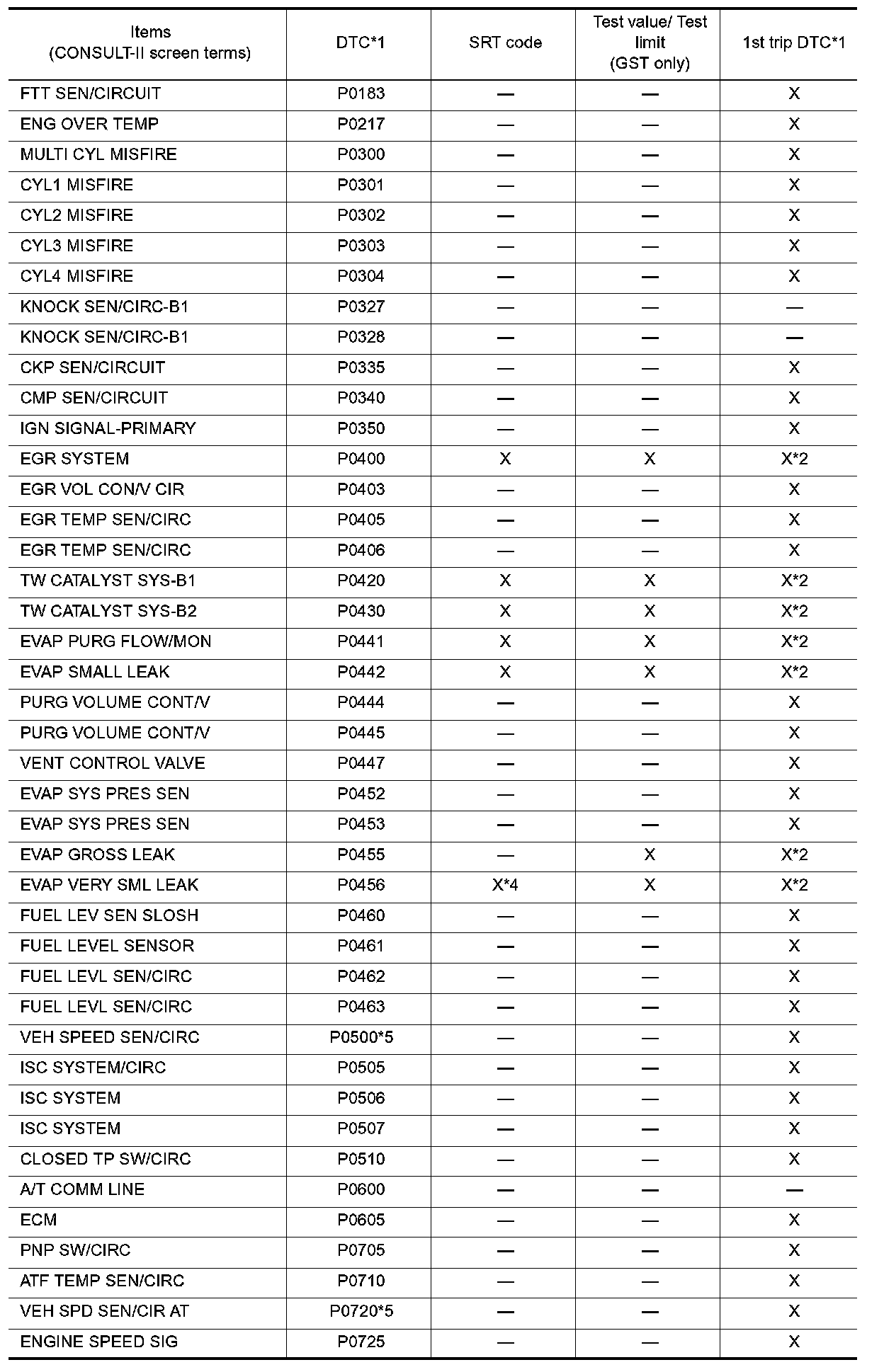

Emission-Related Diagnostic Information Items Part 2:

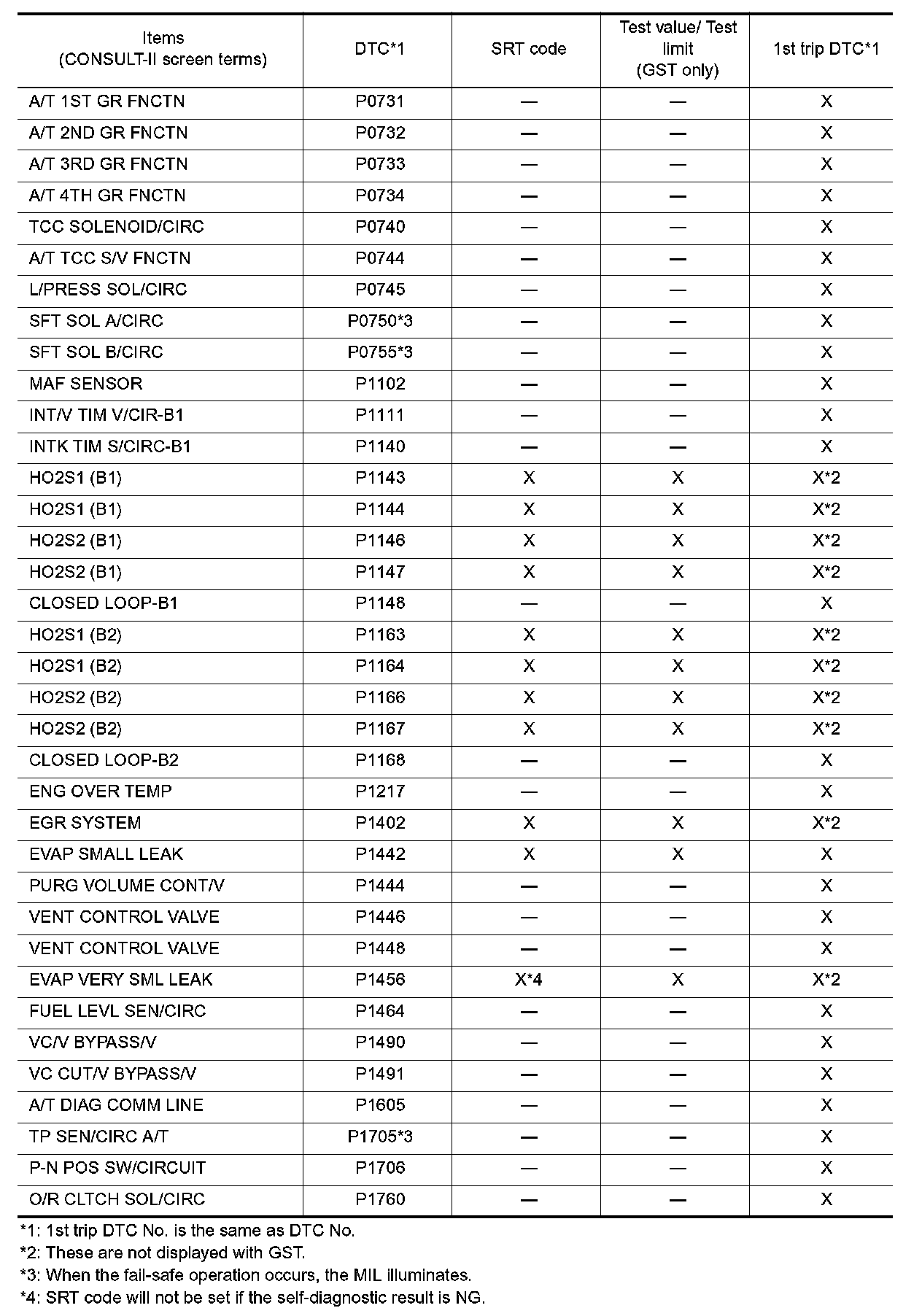

Emission-Related Diagnostic Information Items Part 3:

*1: 1st trip DTC No. is the same as DTC No.
*2: These are not displayed with GST.
*3: When the fail-safe operation occurs, the MIL illuminates.
*4: The SRT code will not be set if the self-diagnostic result is NG.
