Initial Inspection (Basic Inspection)

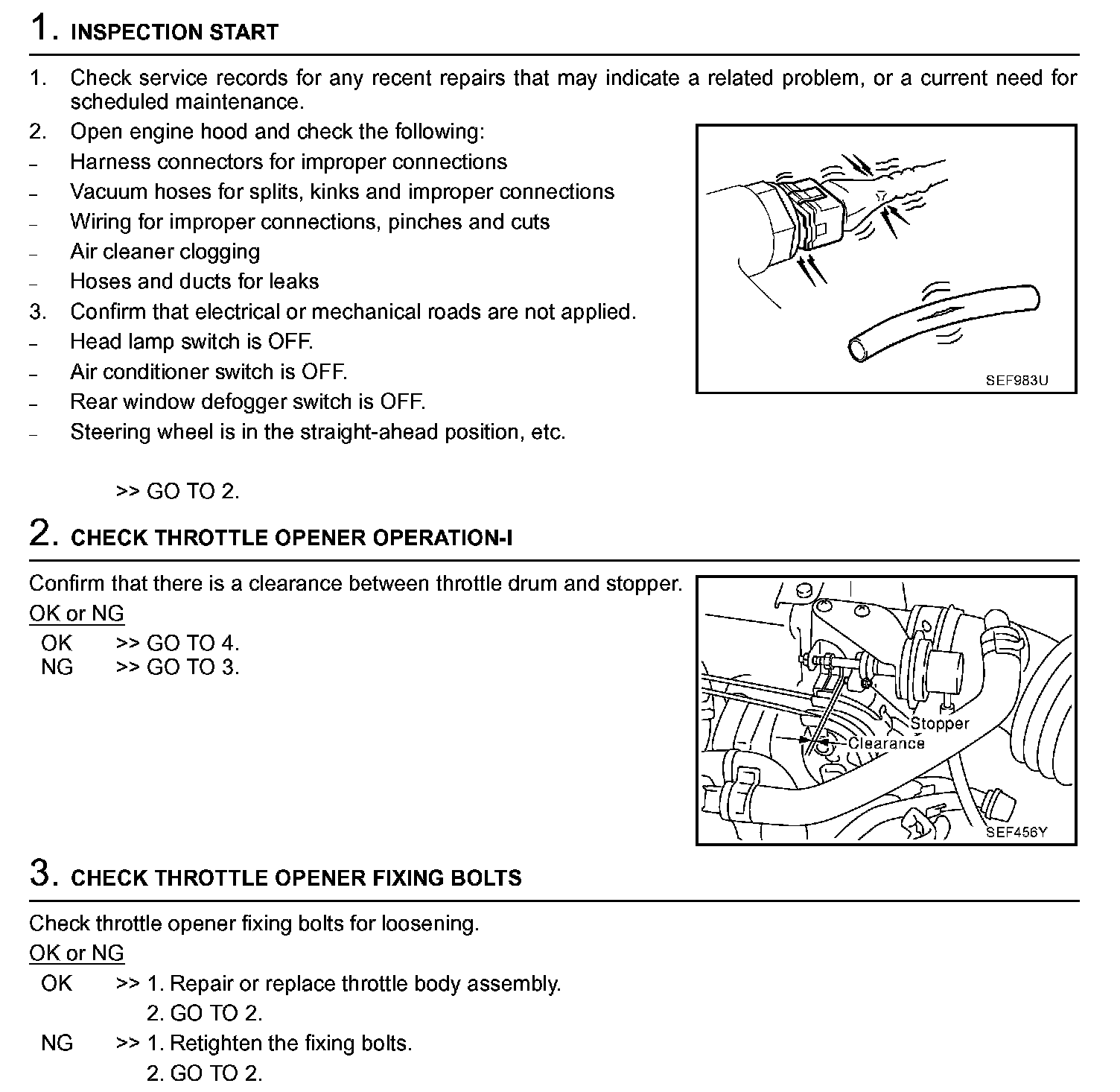

Step 1 - 3:

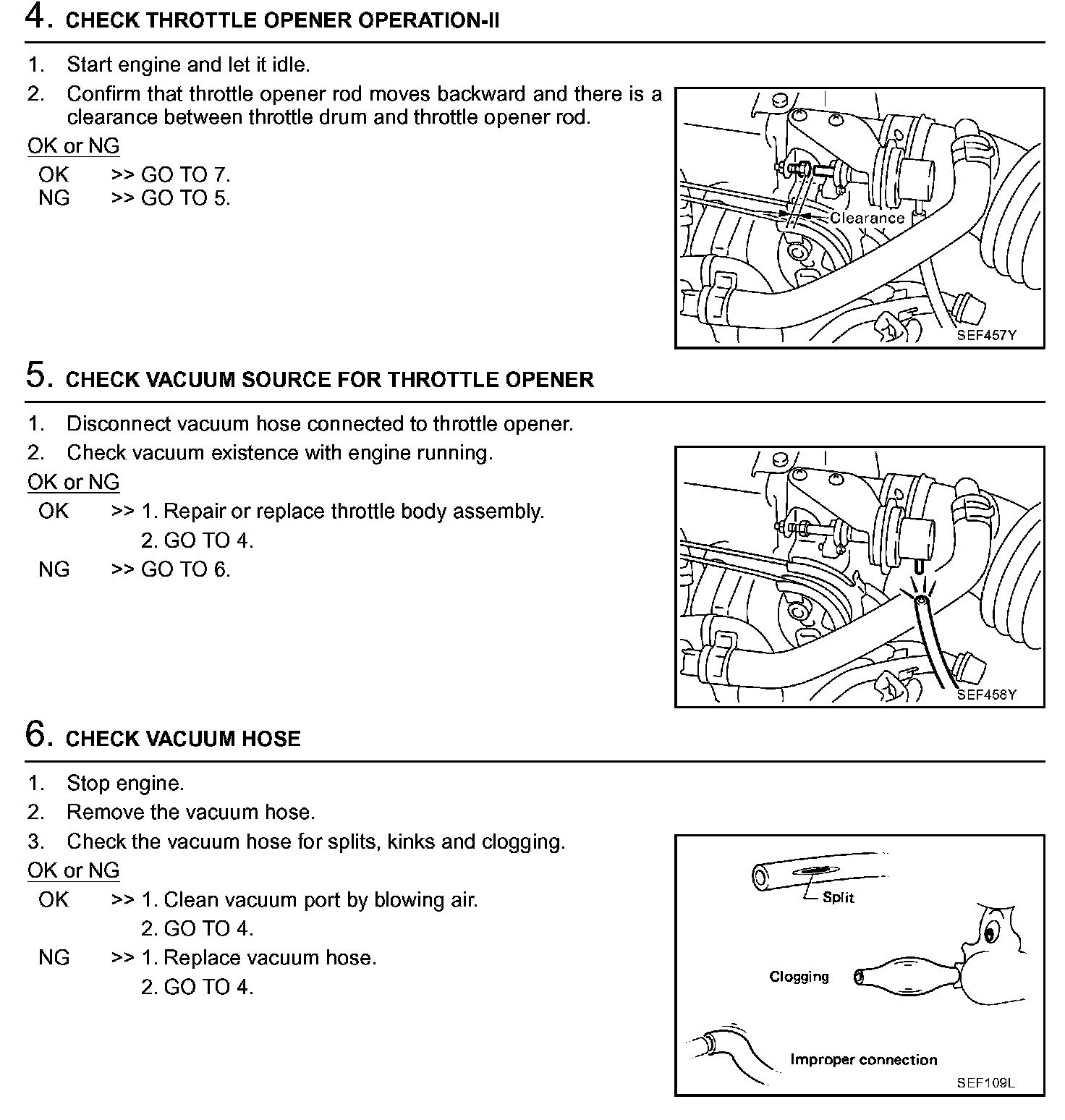

Step 4 - 6:

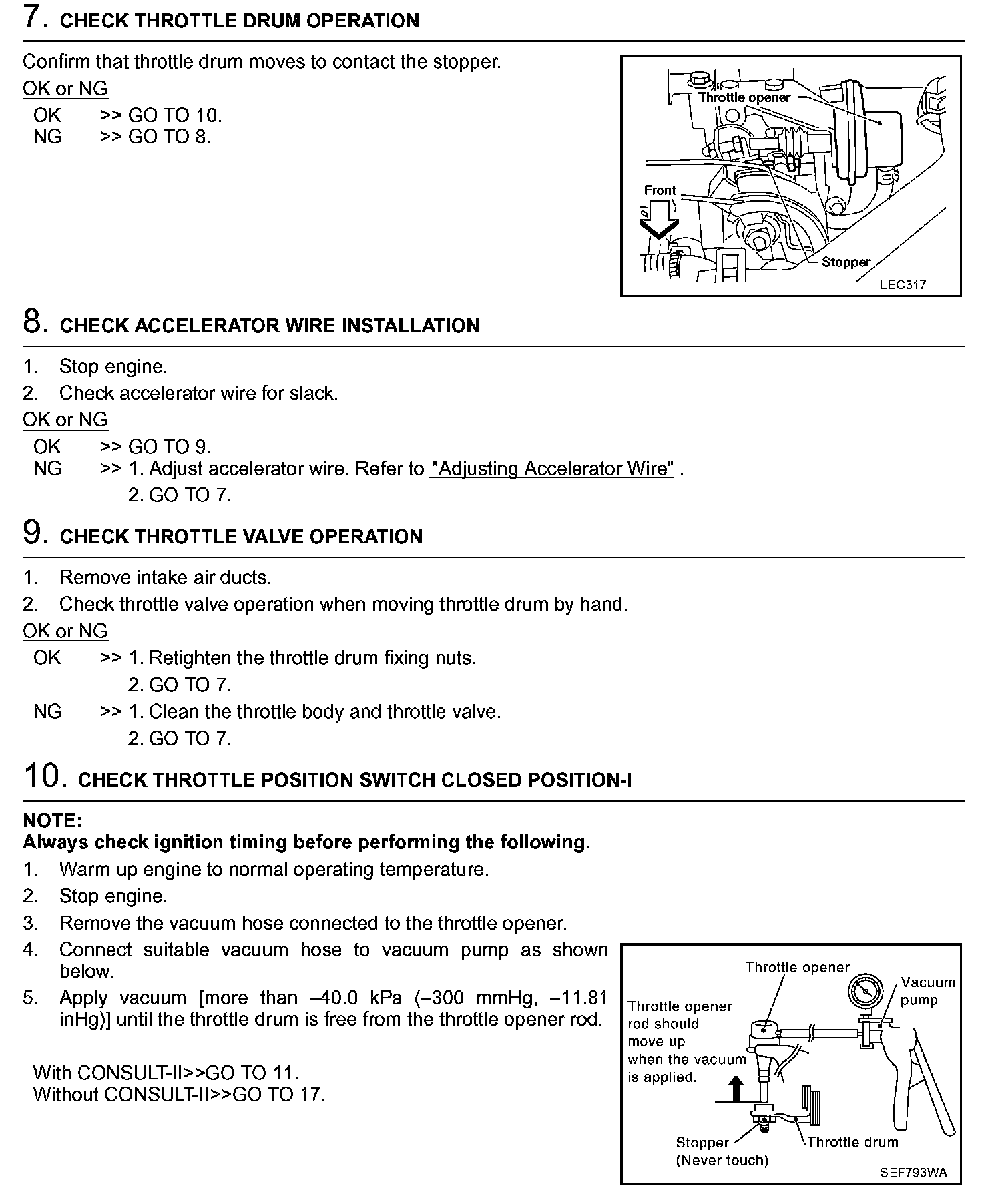

Step 7 - 10:

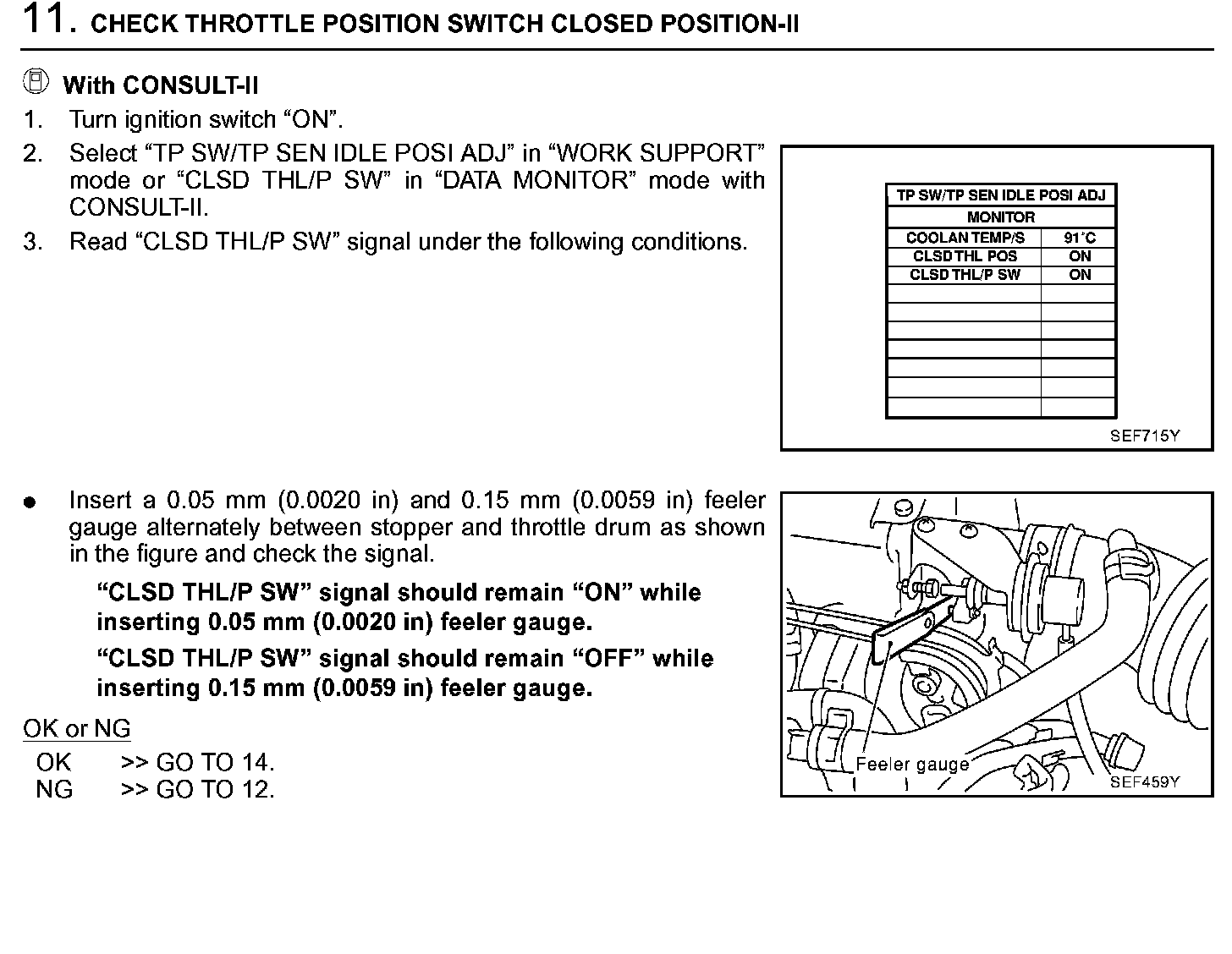

Step 11:

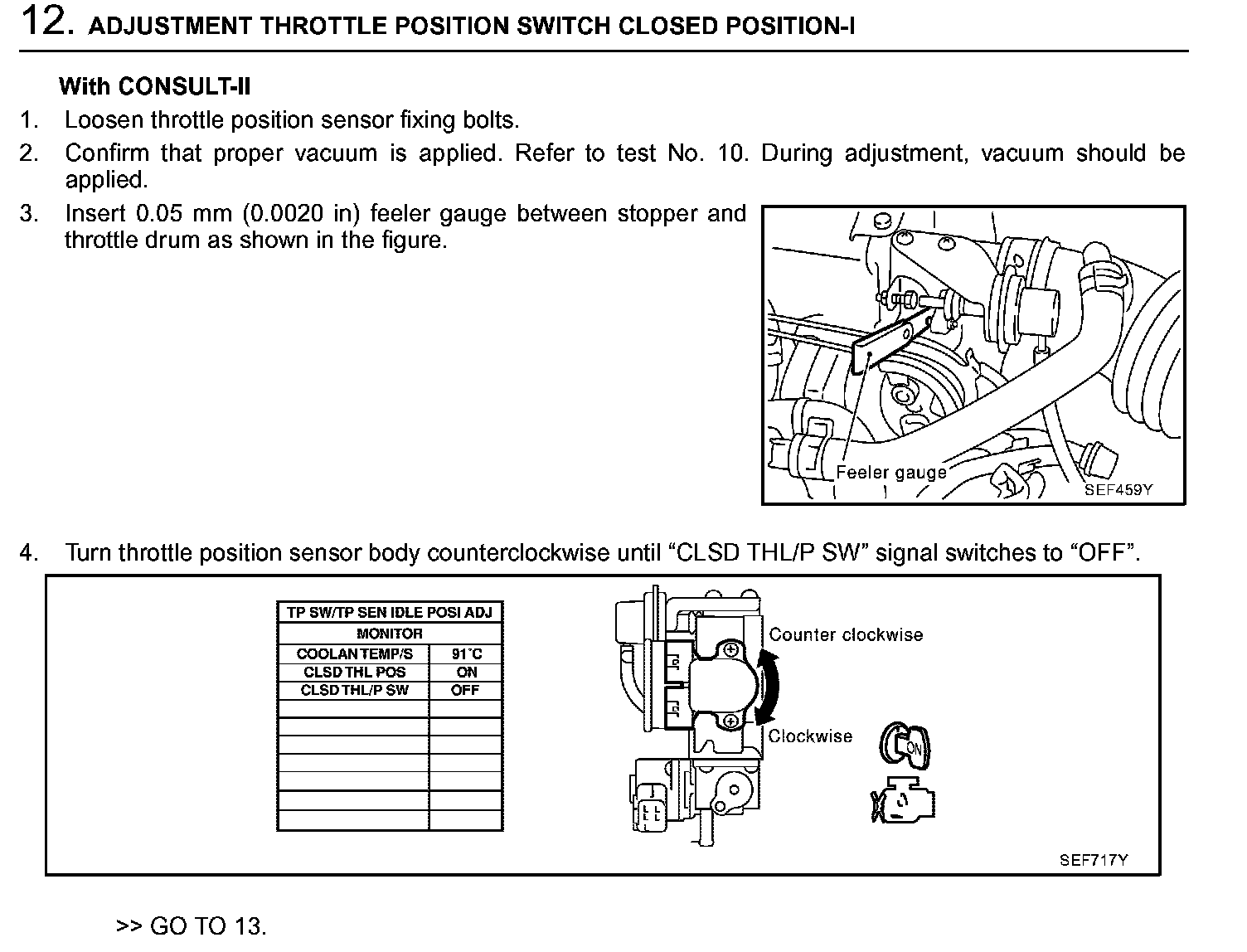

Step 12:

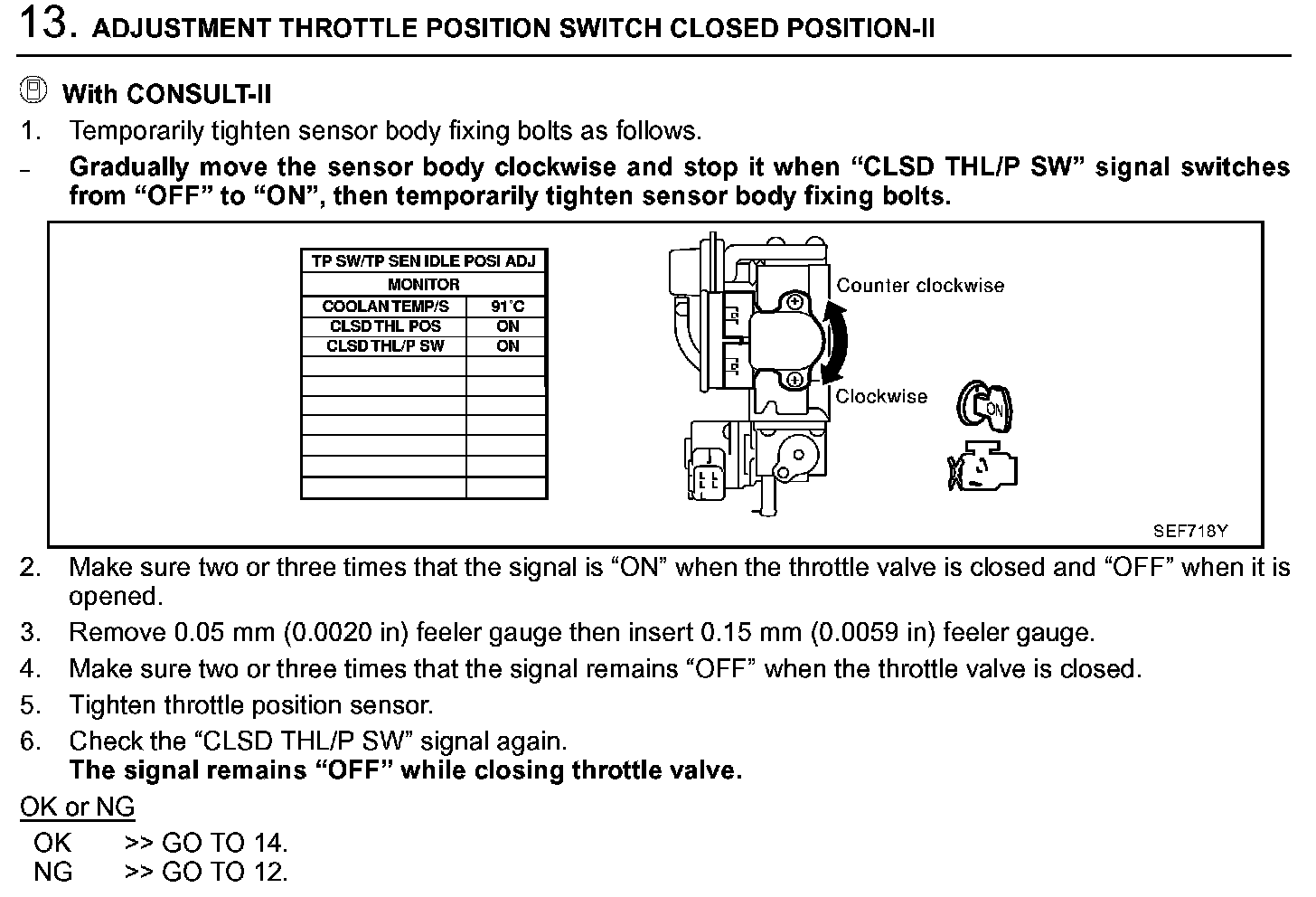

Step 13:

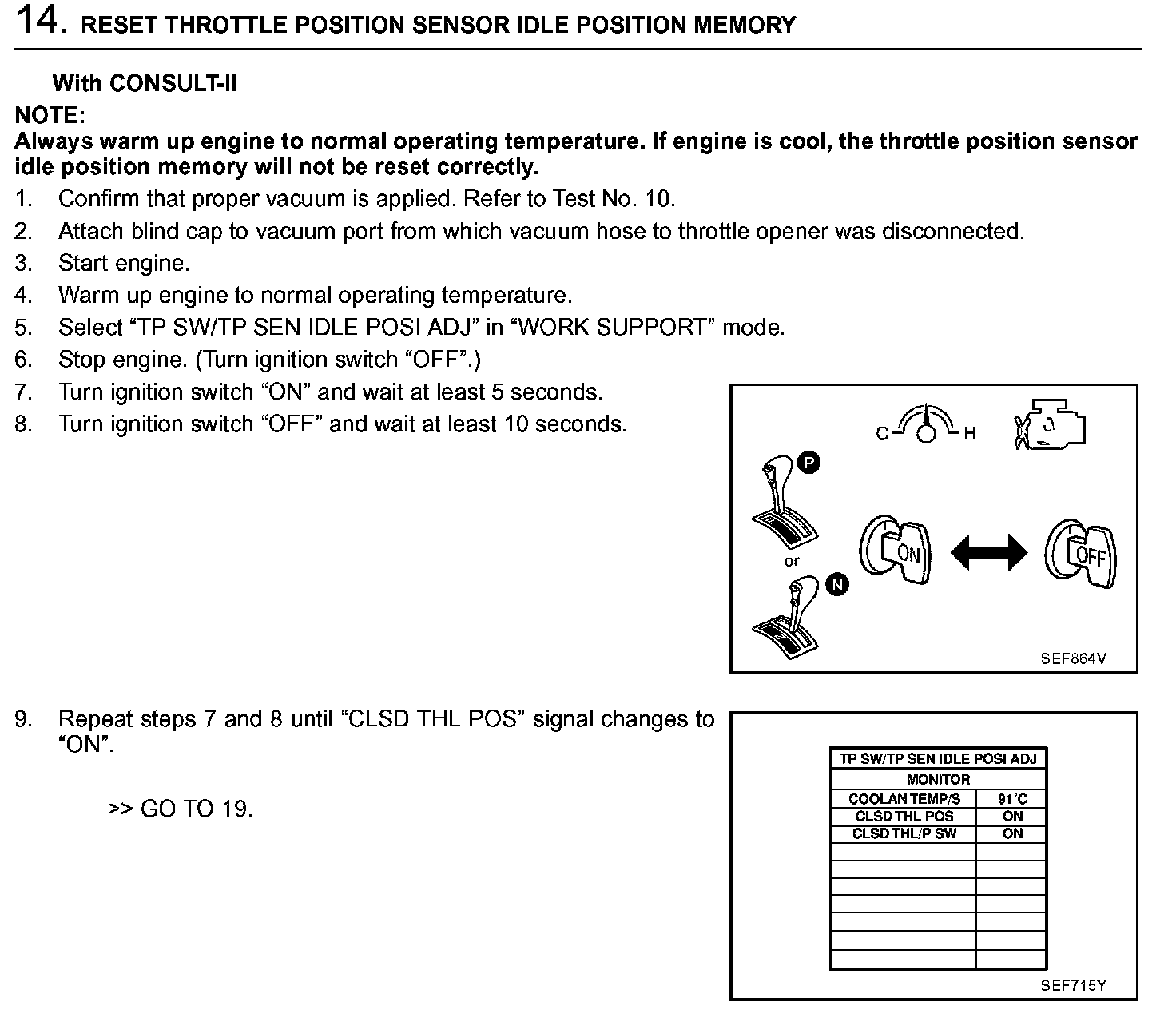

Step 14:

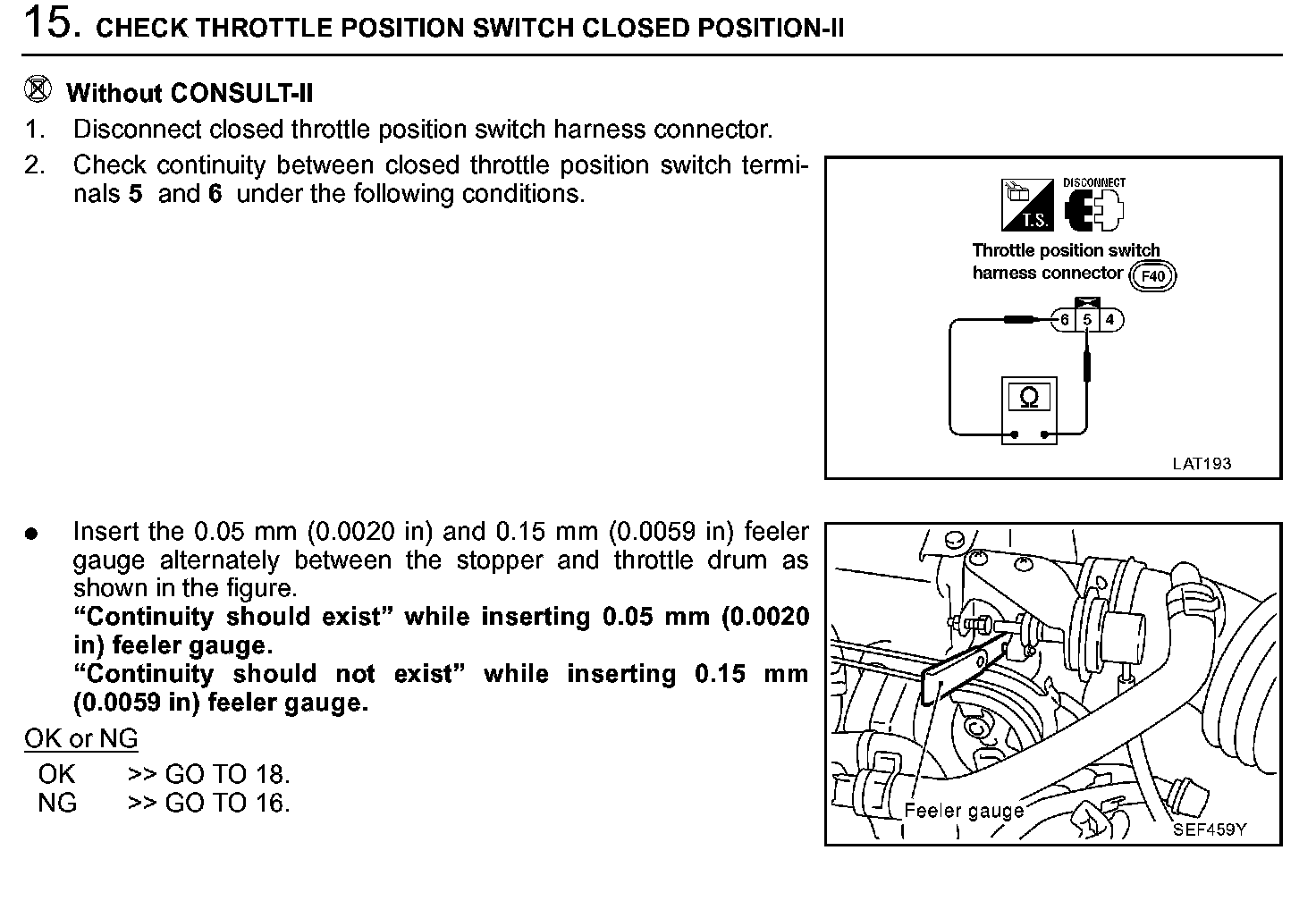

Step 15:

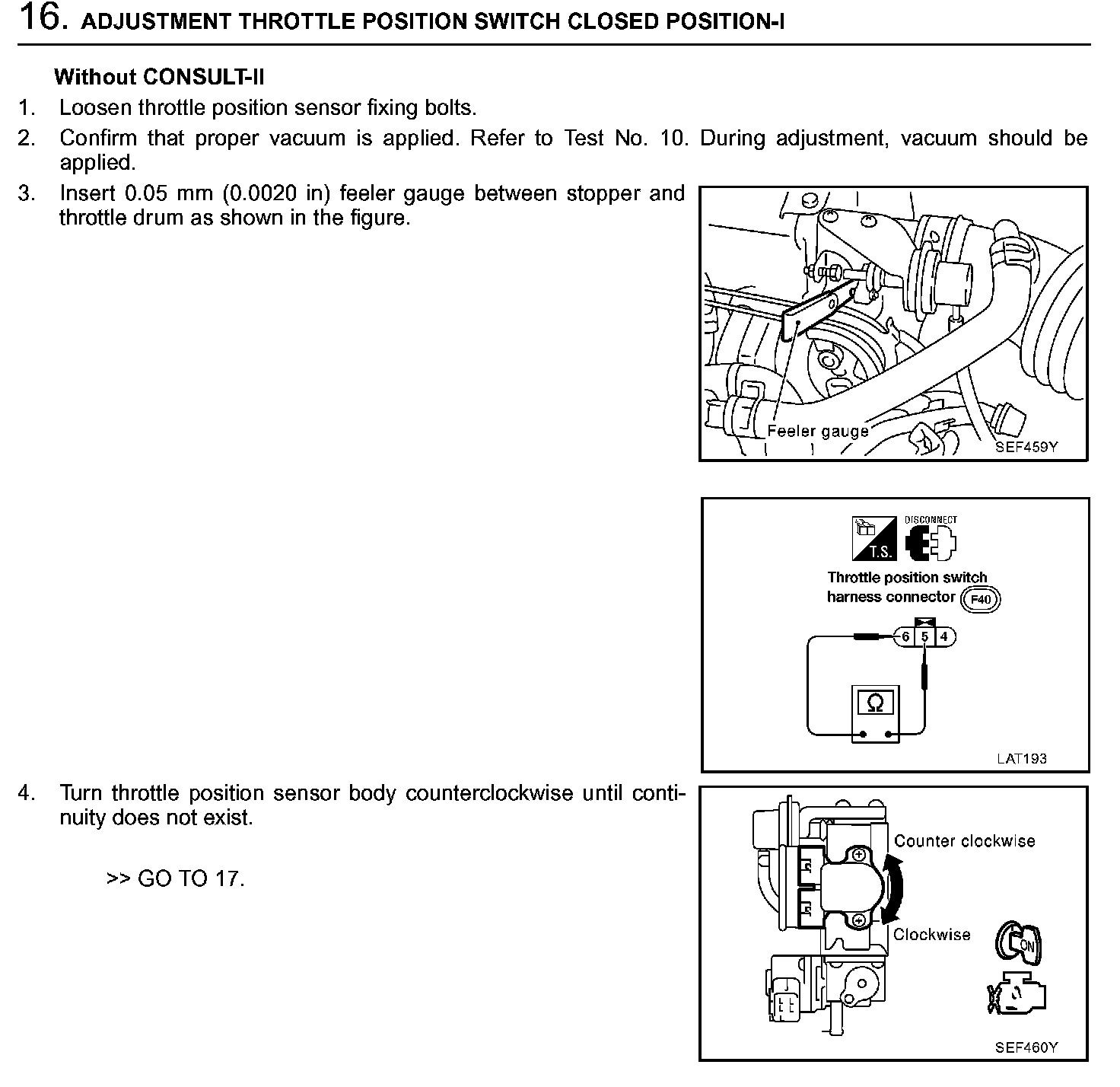

Step 16:

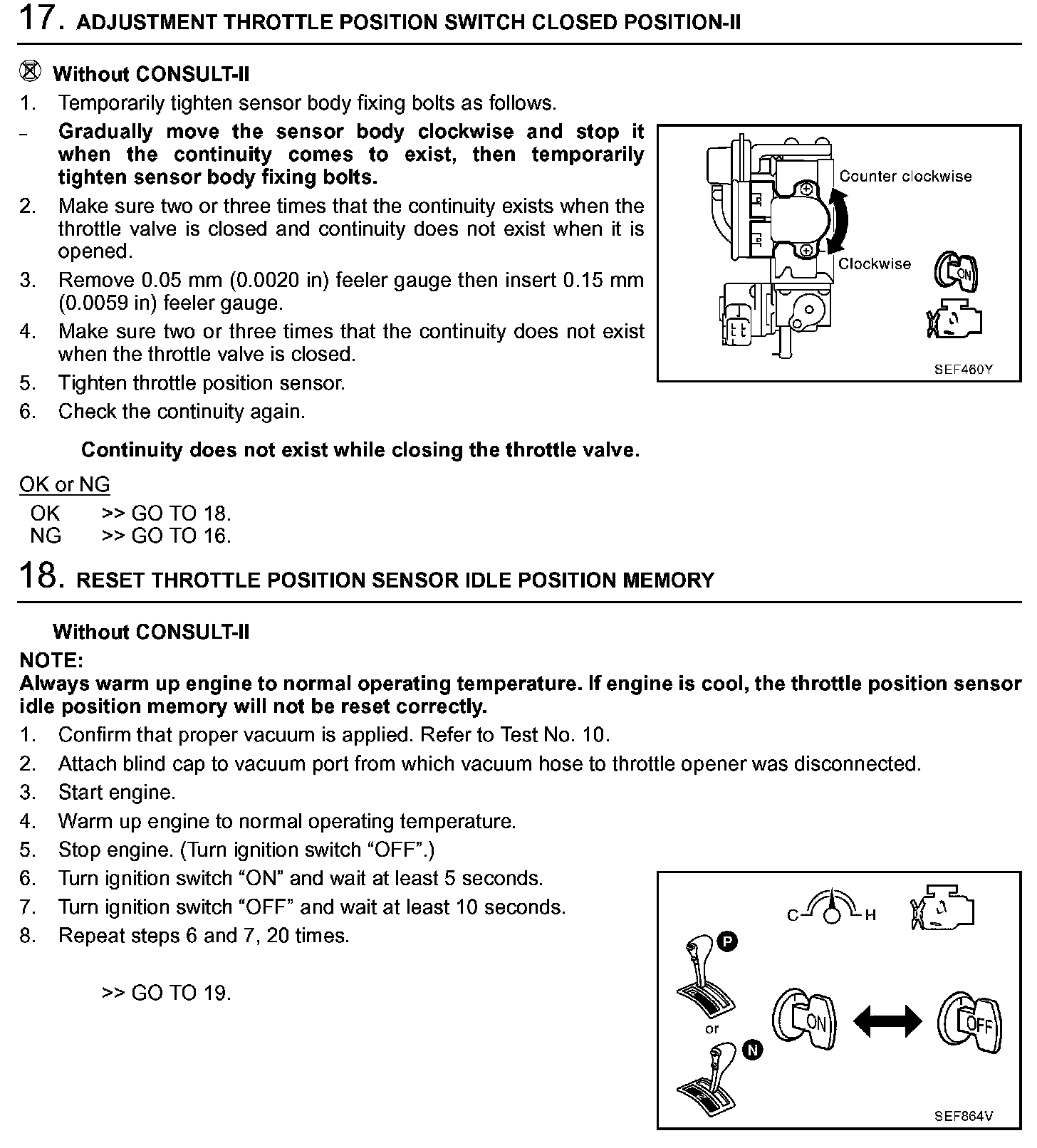

Step 17 - 18:

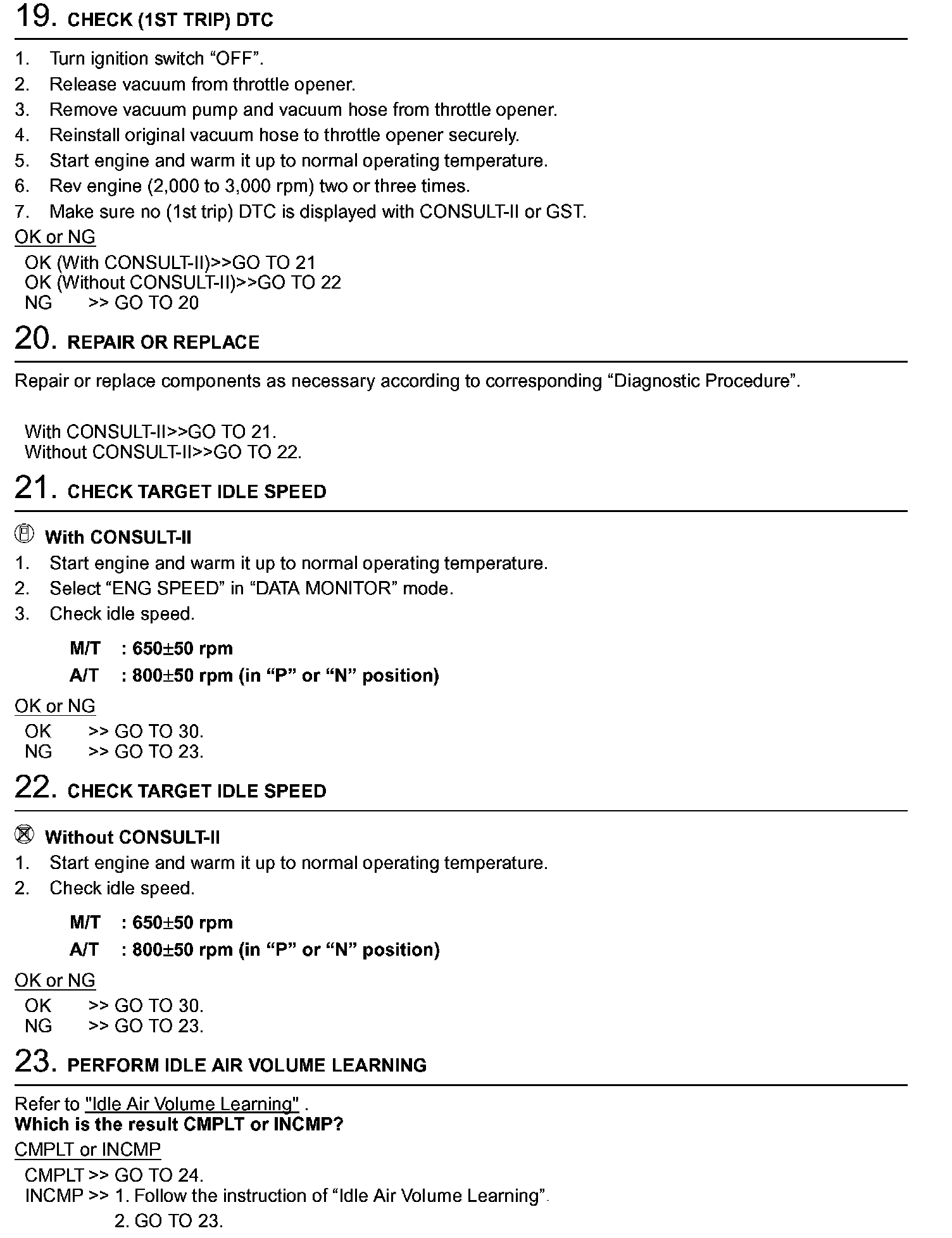

Step 19 - 23:

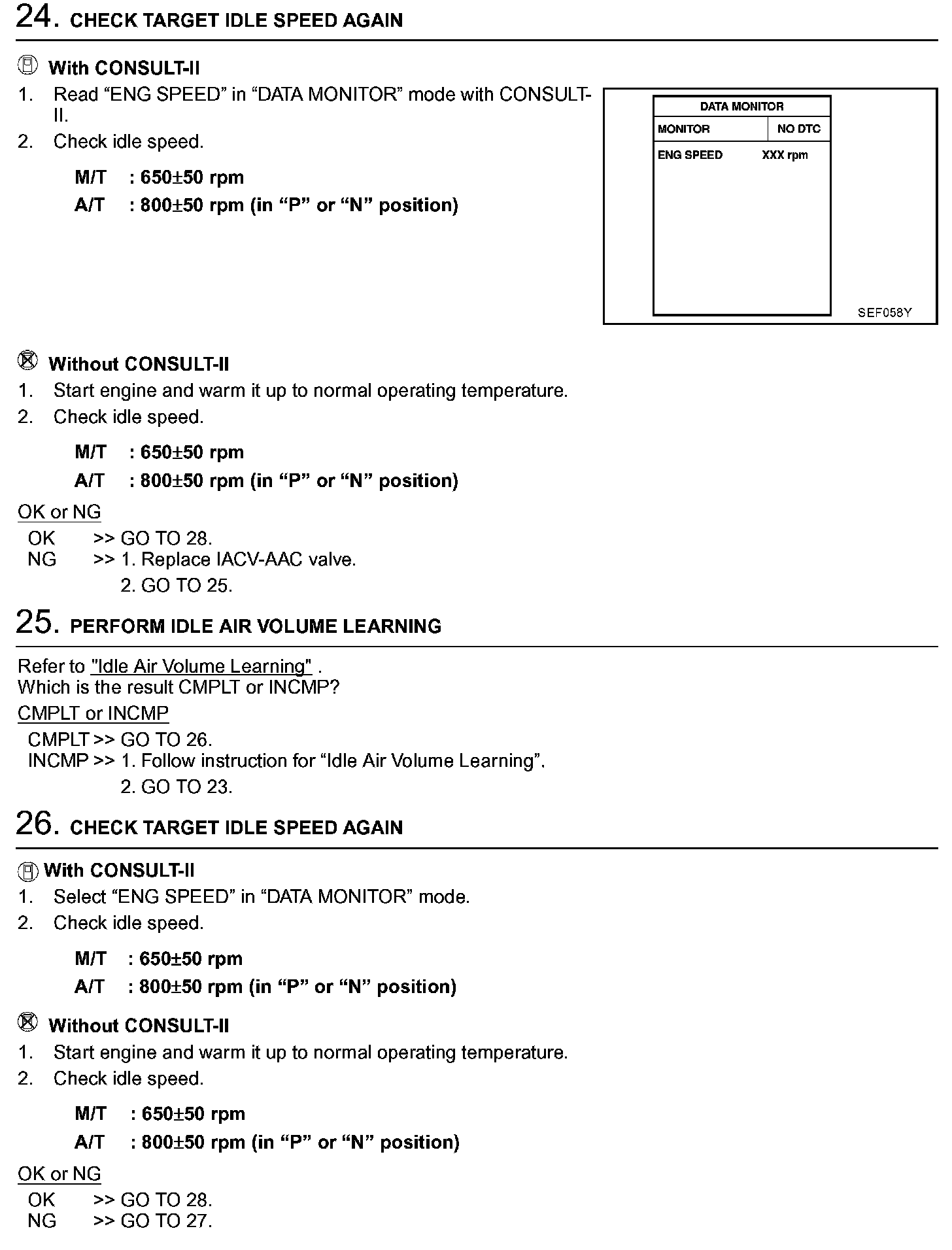

Step 24 - 26:

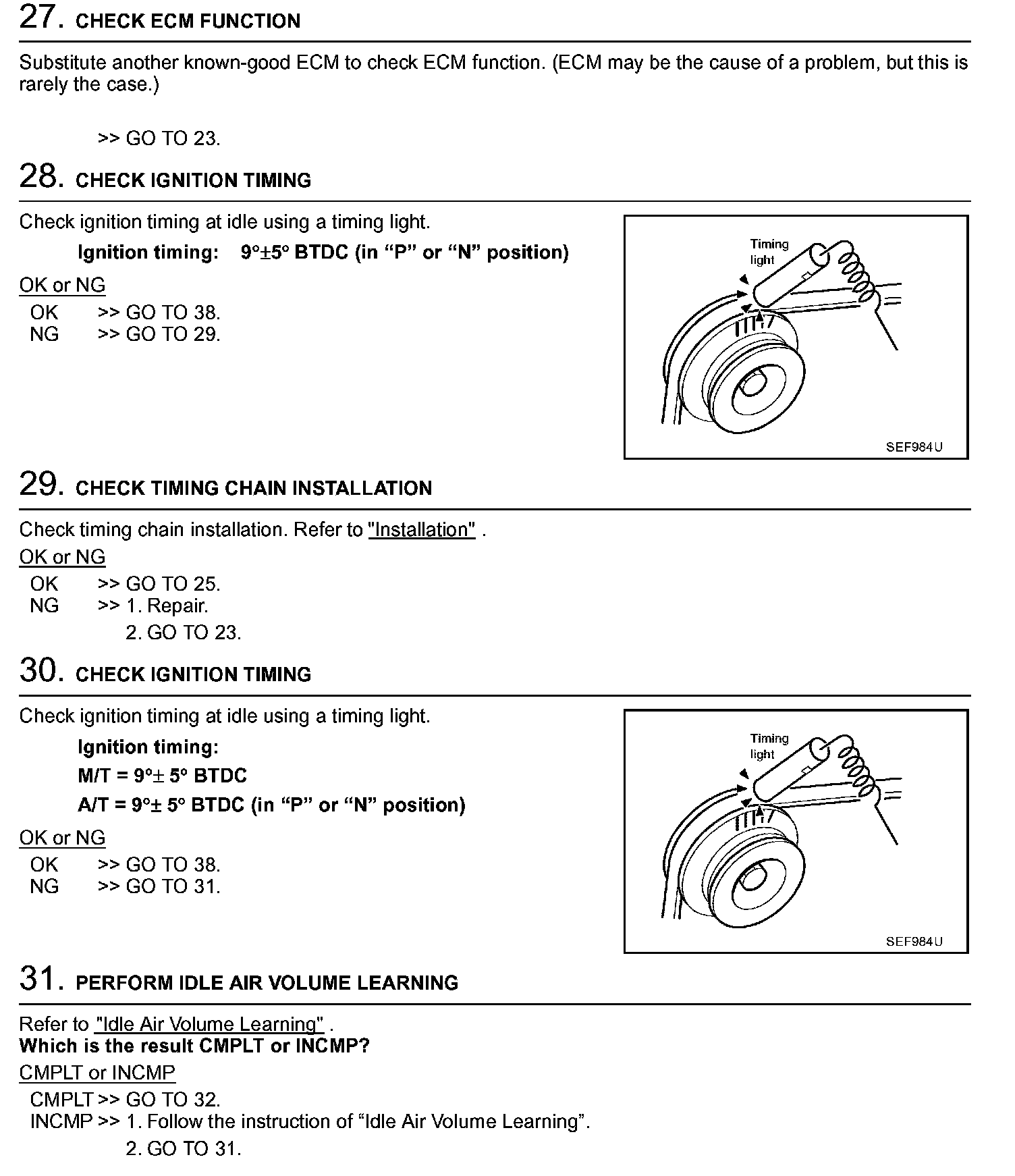

Step 27 - 31:




Step 32 - 34:

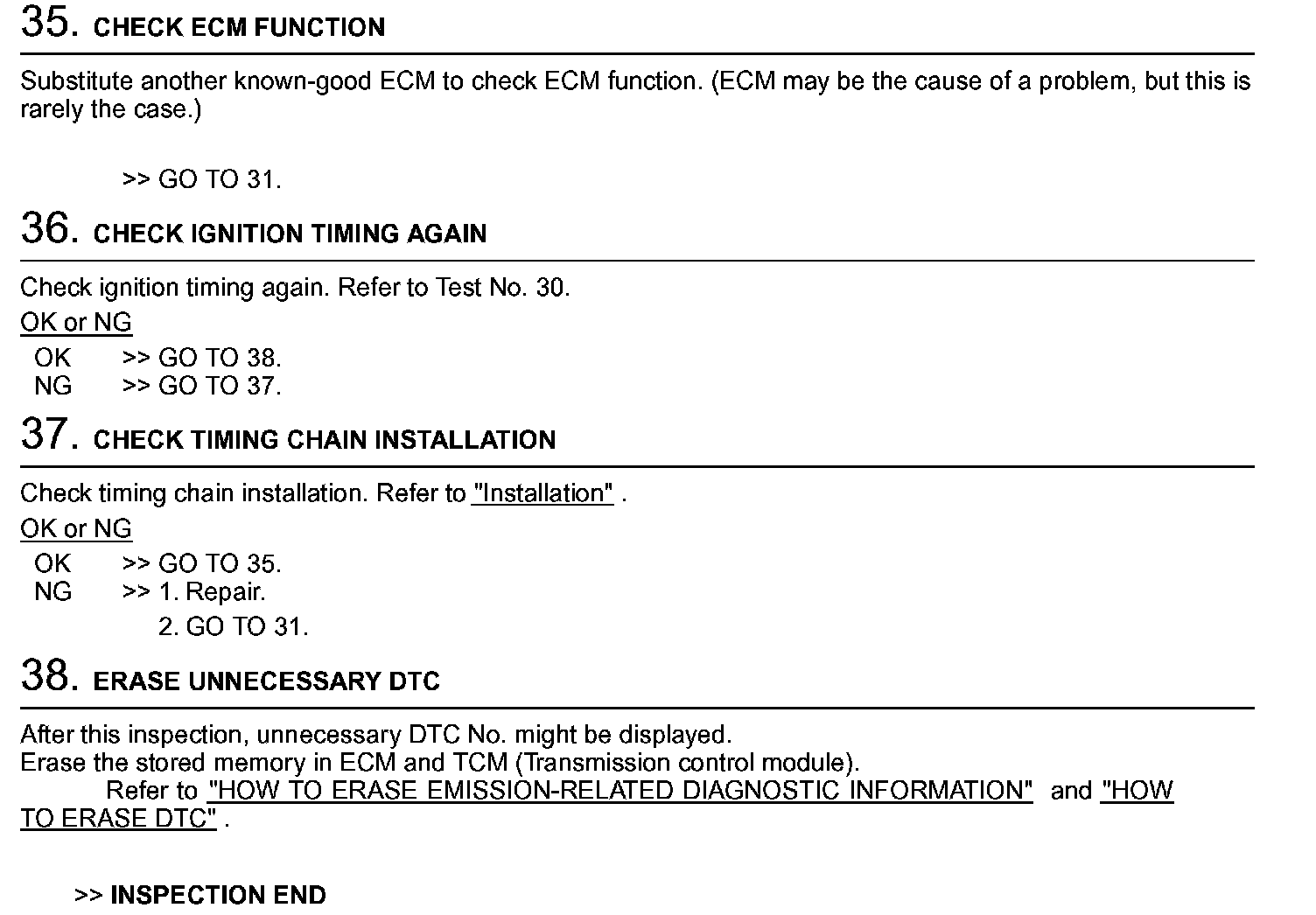

Step 35 - 38:
