Data Monitor Mode

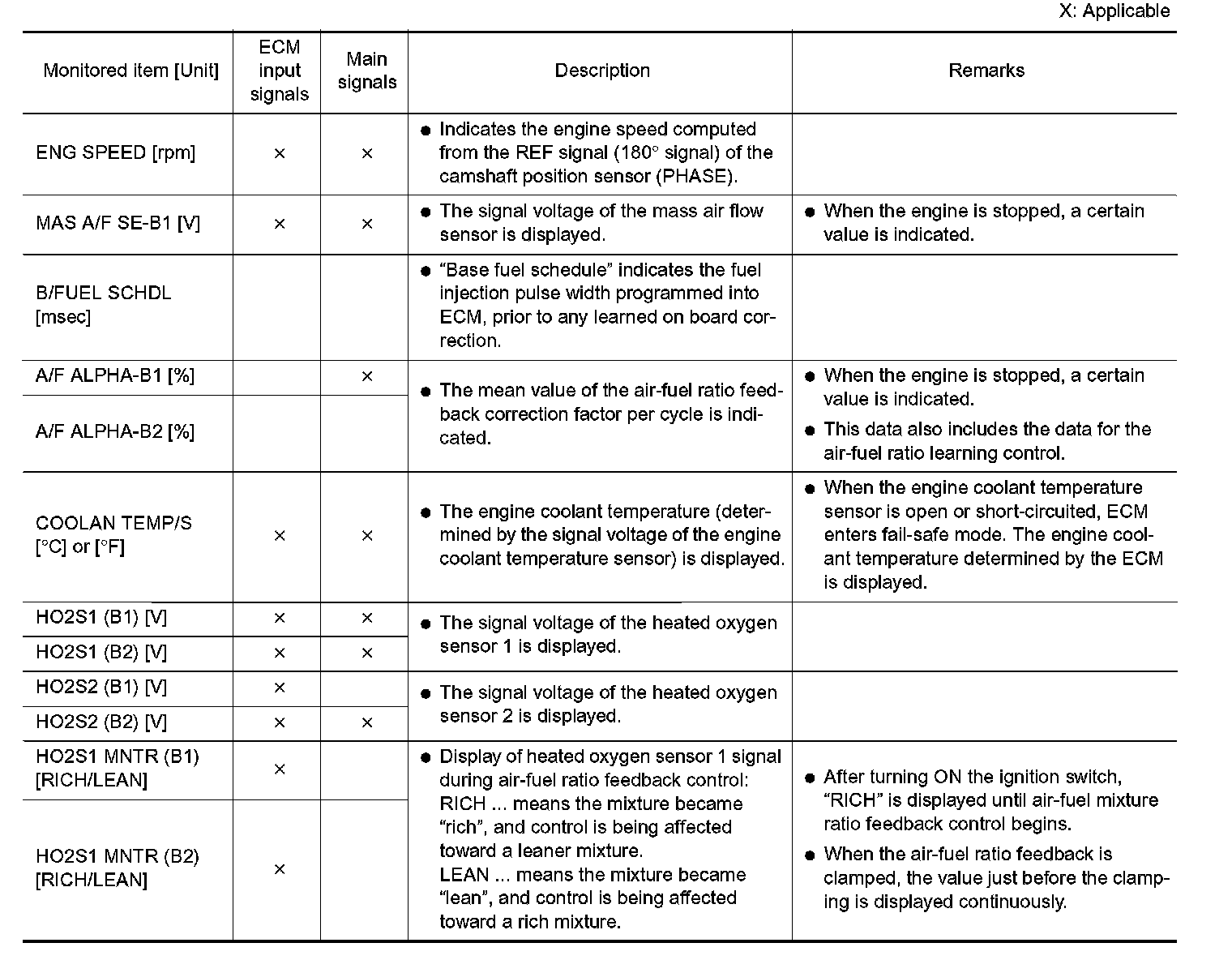

Data Monitor Mode - Monitored Item Part 1:

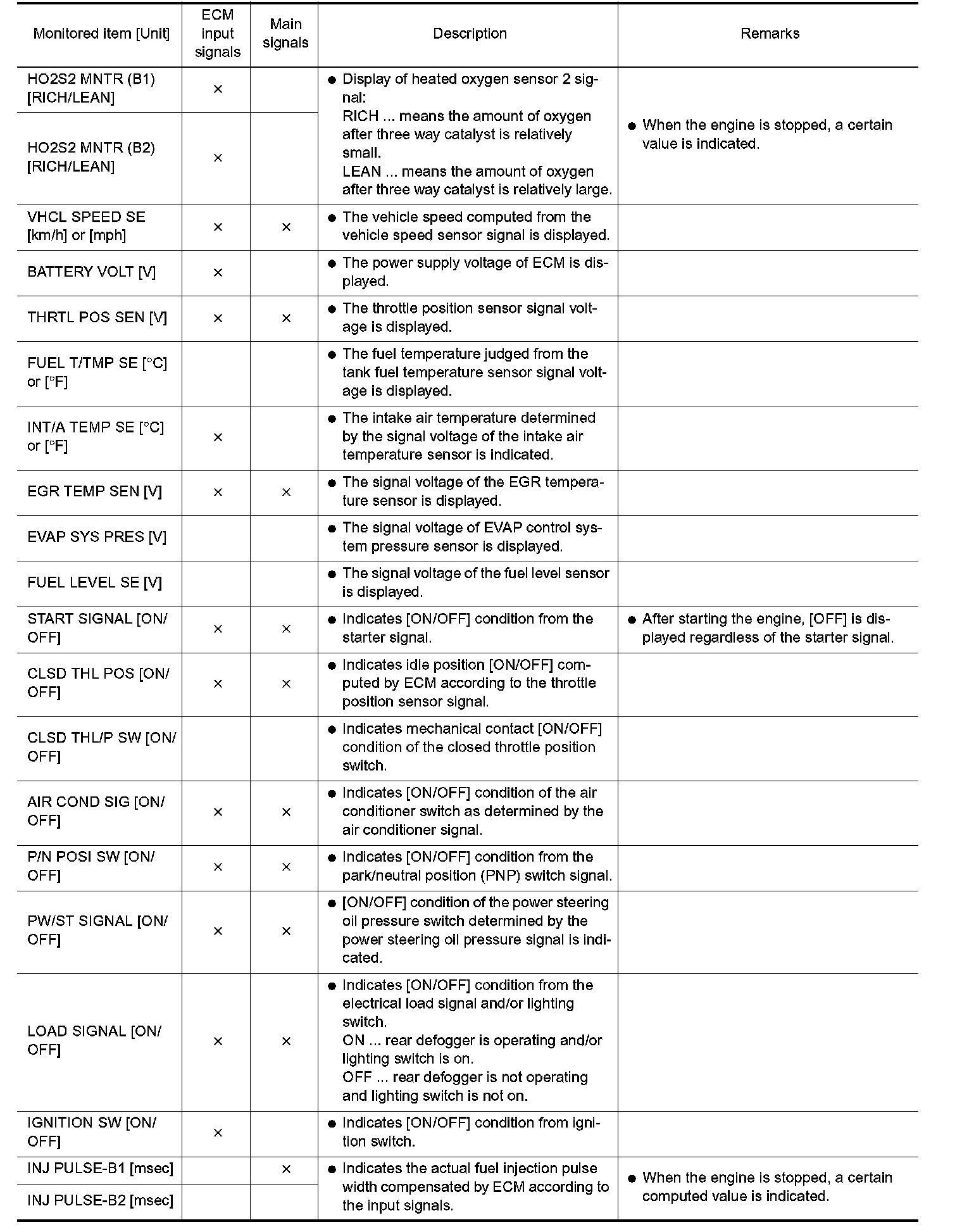

Data Monitor Mode - Monitored Item Part 2:

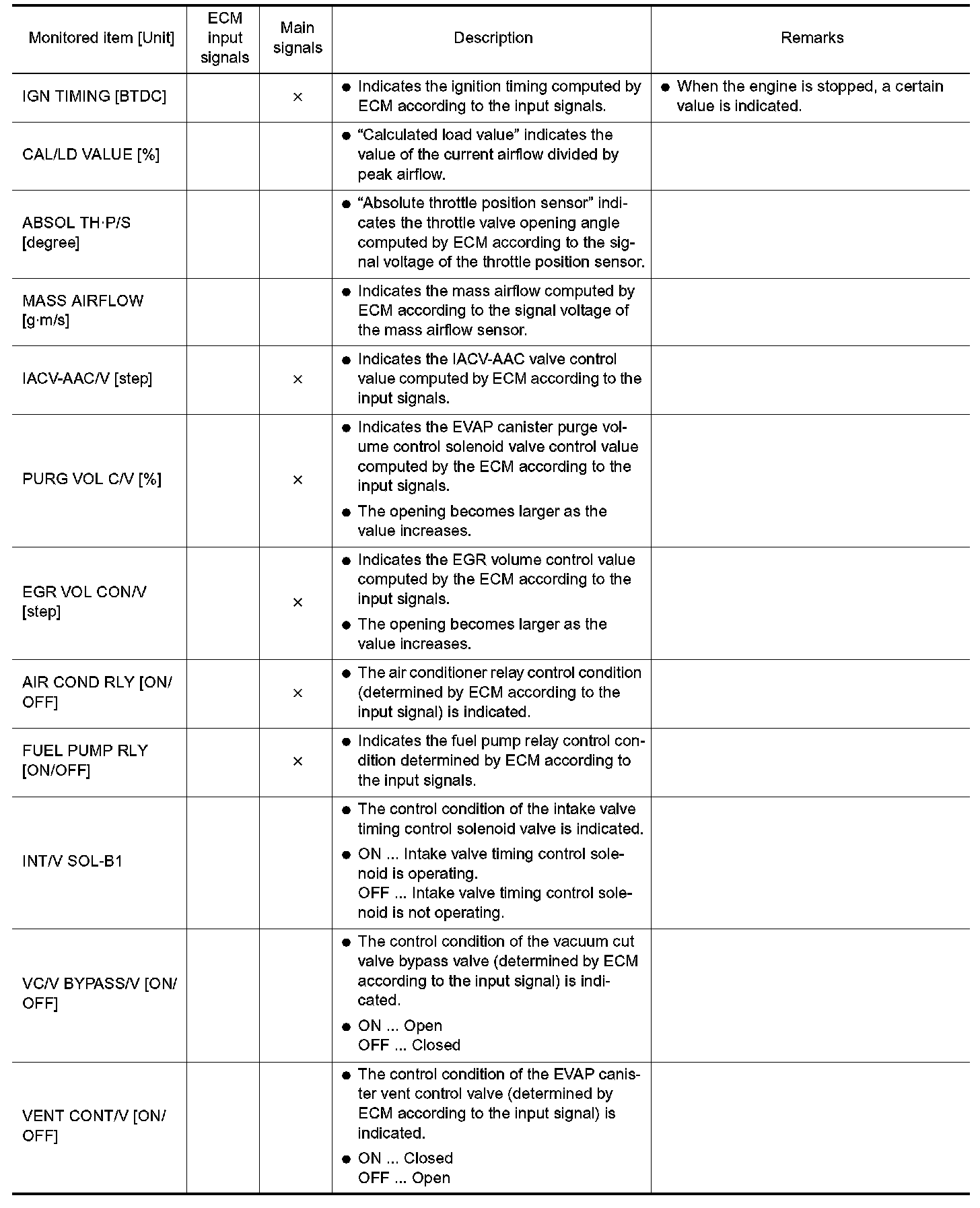

Data Monitor Mode - Monitored Item Part 3:

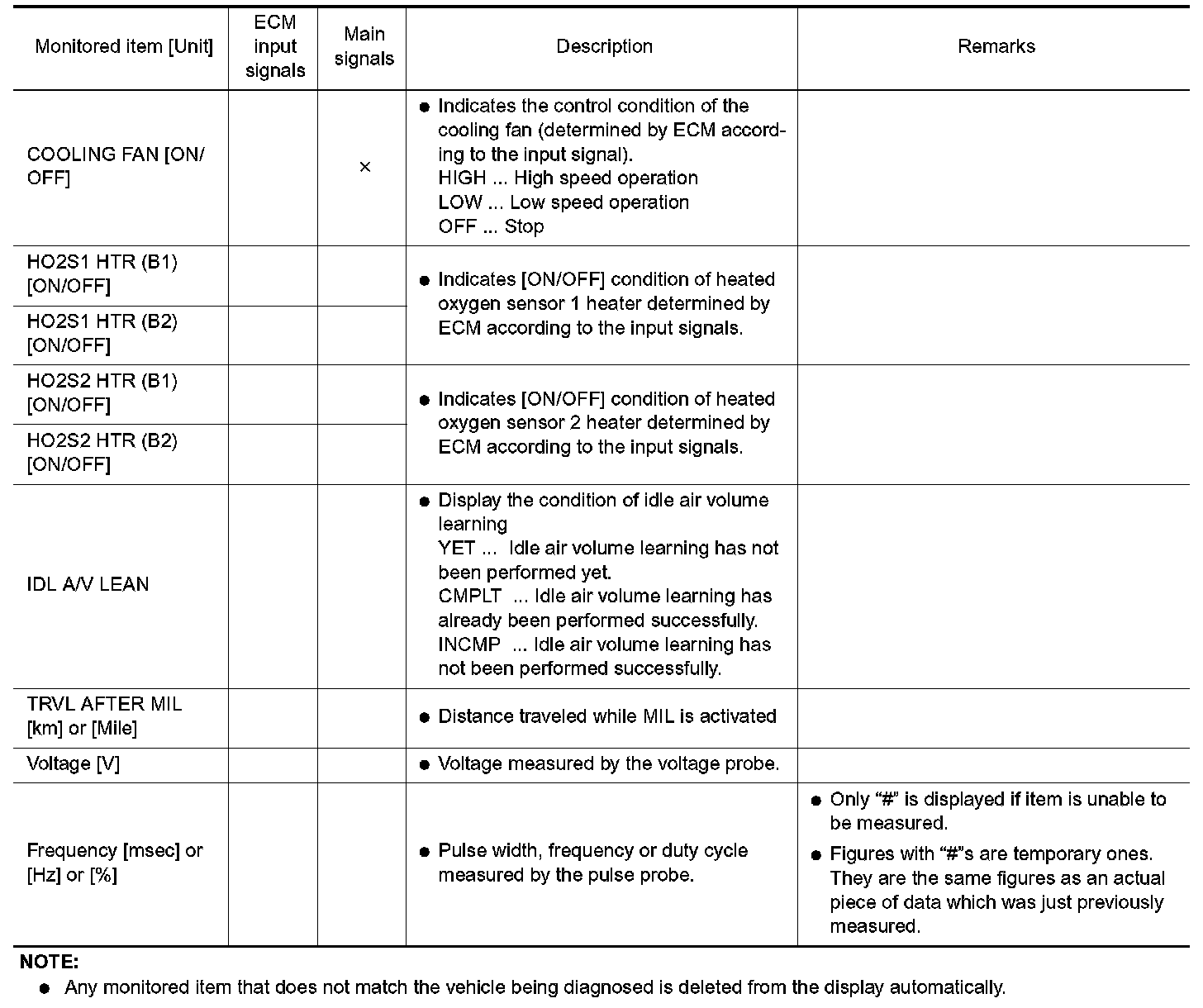

Data Monitor Mode - Monitored Item Part 4:
