Engine Control Module: Locations

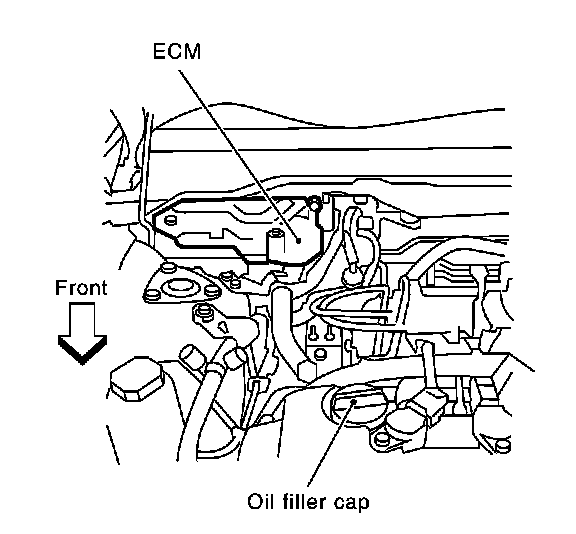

ECM / Oil Filler Cap:

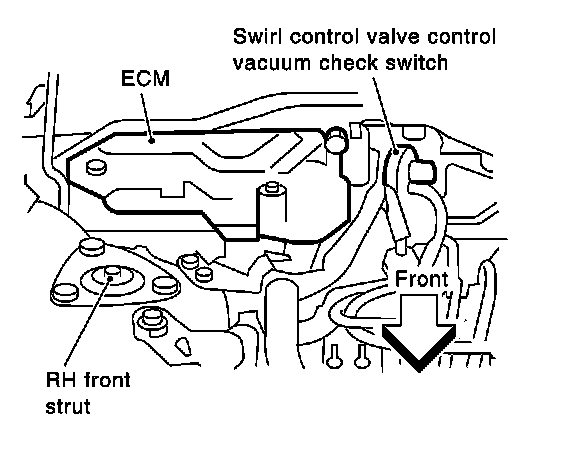

ECM / Swirl Control Valve Control Vacuum Check Switch / RH Front Strut:

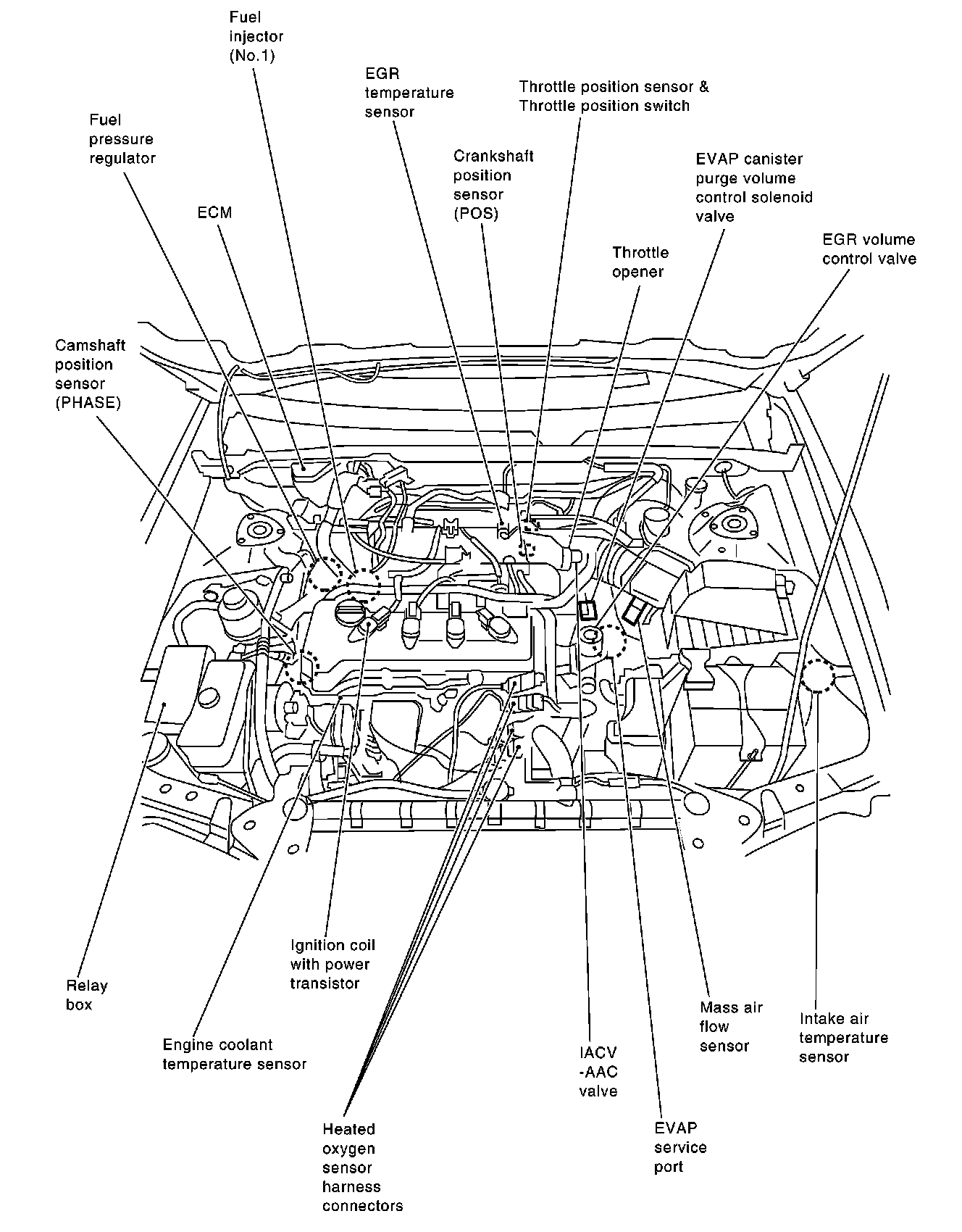

Engine Control Component Parts Location Part 1:

ECM:

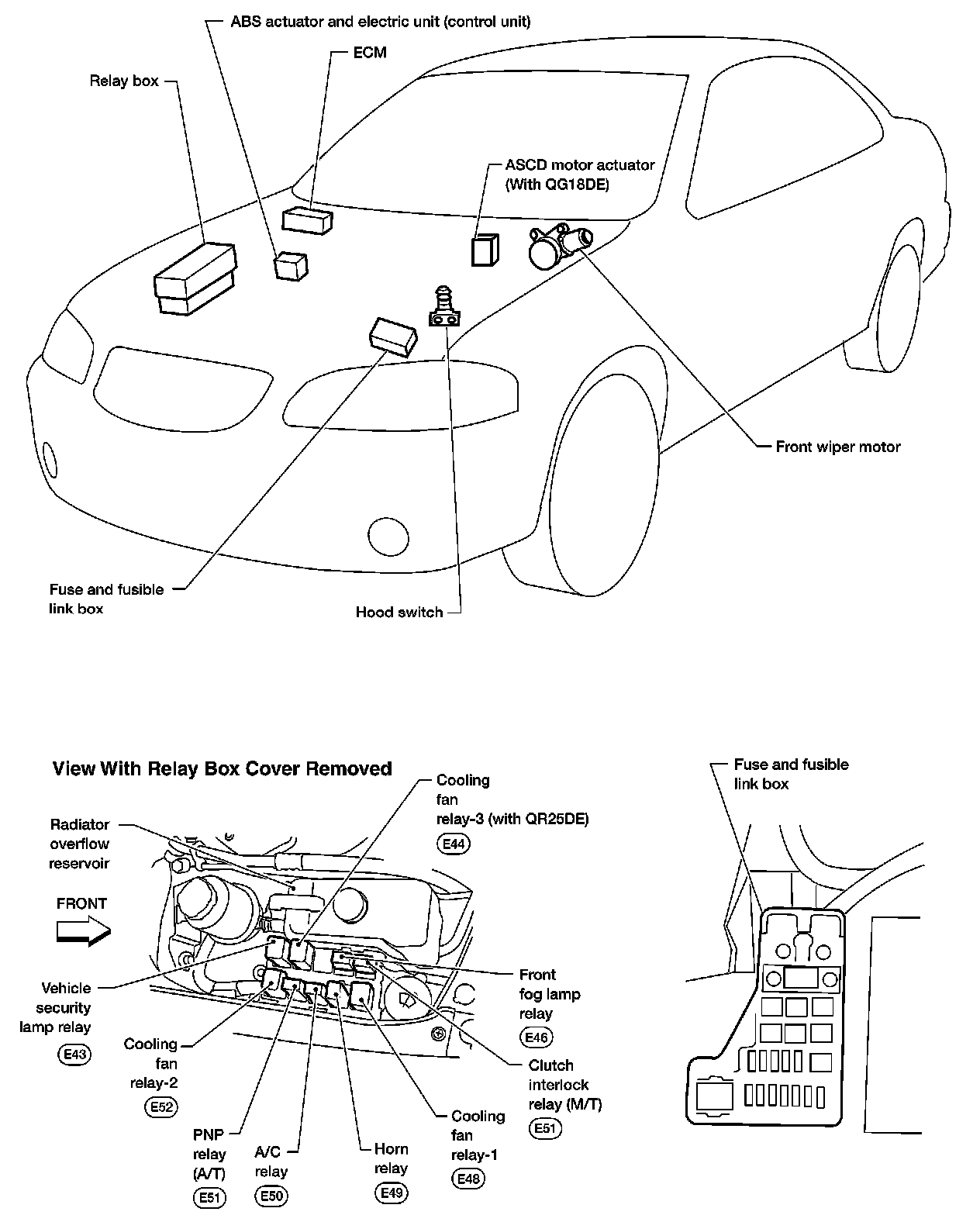

Engine Compartment Component Locations Overview:

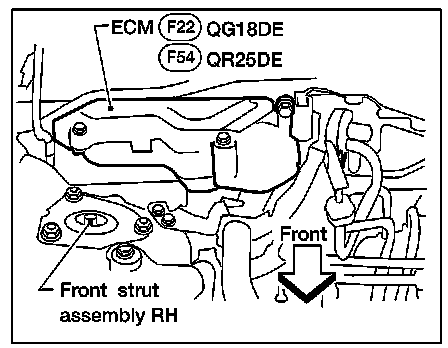

ECM / Front Strut Assembly RH:
