RS6F51H

Replacement
DRAINING
1. Start the engine and let it run to warm up the transaxle.
2. Stop the engine. Remove drain plug and drain oil.
3. Set a gasket on the drain plug and install it on the transaxle.
Drain plug: 30 - 39 Nm (3.1 - 4.0 kgf-m, 23 - 28 ft. lbs.)

CAUTION: Do not reuse gasket.

FILLING
1. Remove filler plug. Fill with new oil until oil level reaches the specified limit near filler plug mounting hole.
Oil grade: API GL-4
Capacity (reference): Approximately 2.3 Ohms (2 3/8 qt.)
2. After refilling oil, check oil level. Assemble gasket on to filler plug, then install it on the transaxle body.
Filler plug: 30 - 39 Nm (3.1 - 4.0 kgf-m, 23 - 28 ft. lbs.)

CAUTION: Do not reuse gasket.

Checking
OIL LEAKAGE AND OIL LEVEL





- Check that oil is not leaking from transaxle.

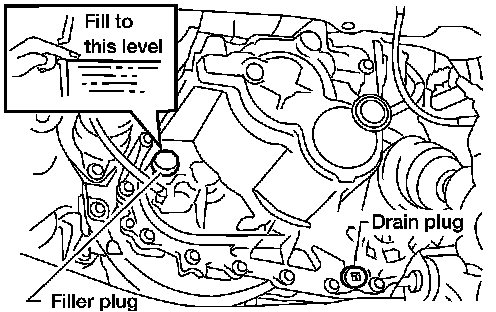

- Check oil level from filler plug mounting hole as shown in the figure.

CAUTION: Never start engine while checking oil level.

- Set a new gasket on the filler plug and install it on the transaxle.
Filler plug: 30 - 39 Nm (3.1 - 4.0 kgf-m, 23 - 28 ft. lbs.)

CAUTION: Do not reuse gasket.
