Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2003
>>
Altima L4-2.5L (QR25DE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Power Door Lock System
>>
Non-Trouble Code Diagnostic Procedures
>>
F- Dr. Key Cyl. Sw. Ck. (W/LF and RF Pwr. Win.Anti-Pinch Sys)
F- Dr. Key Cyl. Sw. Ck. (W/LF and RF Pwr. Win.Anti-Pinch Sys)

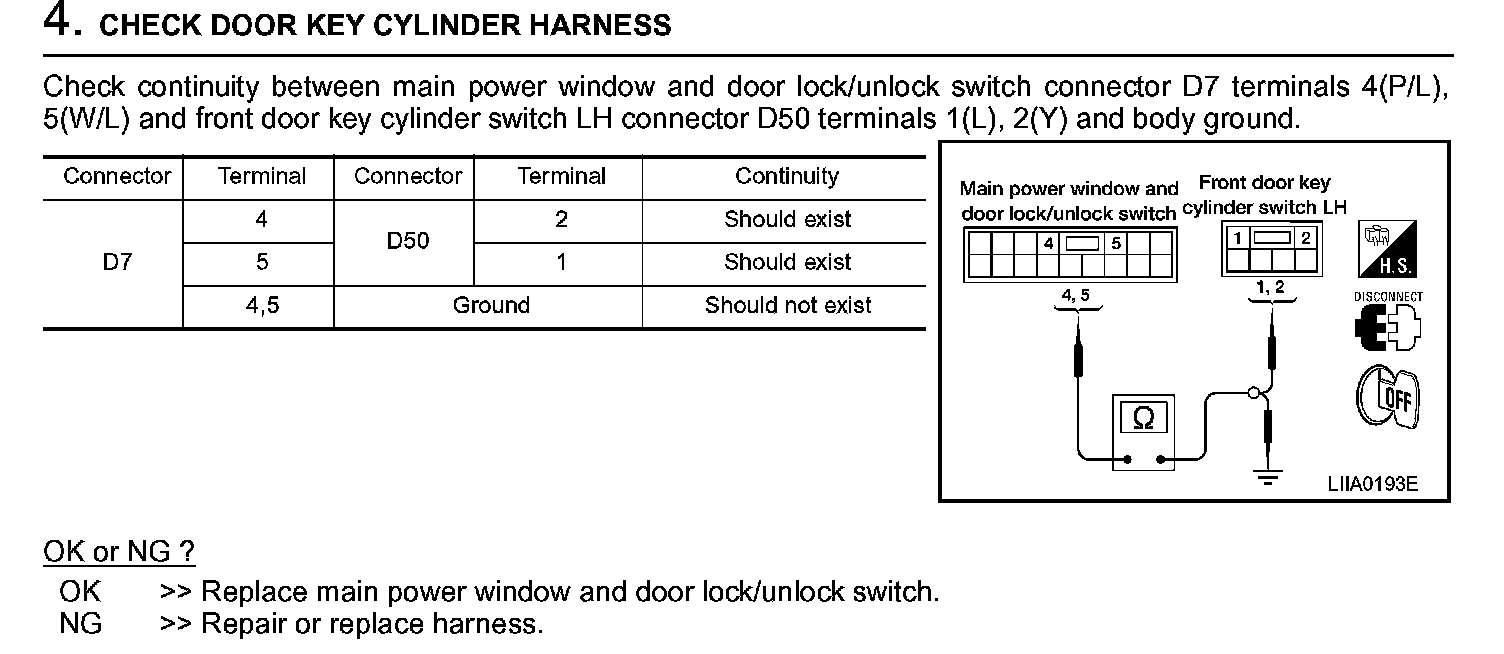

Step 1 - 3:
Step 4:
