Starting Diagnosis Mode For CONSULT-II

STARTING DIAGNOSIS MODE FOR CONSULT-II
1. Turn ignition switch "OFF".

2. Connect CONSULT-II to data link connector.

3. Turn ignition switch "ON".






4. Touch "START".






5. Touch "AIR BAG".







6. For "SELF-DIAG [CURRENT]".






a. Touch "SELF-DIAG [CURRENT]".

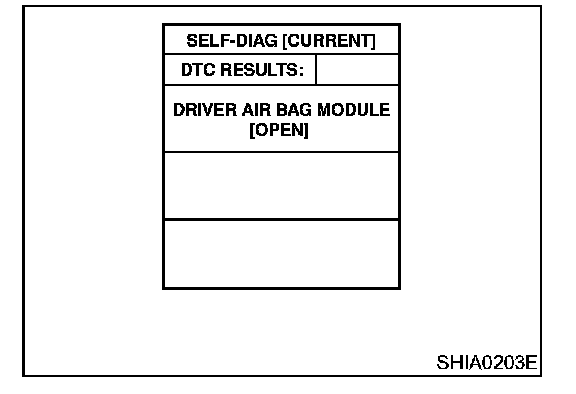

b. Diagnostic codes are displayed on "SELF-DIAG [CURRENT]".


7. For "SELF-DIAG [PAST]".






a. Touch "SELF-DIAG [PAST]".






b. If diagnostic codes are displayed on "SELF-DIAG [PAST]", go to step "d".






c. If no malfunction is detected on "SELF-DIAG [PAST]", touch "BACK" and go back to "SELECT DIAG MODE".






d. Touch "TROUBLE DIAG RECORD".

NOTE: With "TROUBLE DIAG RECORD", diagnosis results previously erased by a reset operation can be displayed.


8. Touch "COPY".

9. Compare diagnostic codes to "CONSULT-II Diagnostic Code Chart".
Air Bag System

10. Touch "BACK" key of CONSULT-II until "SELECT SYSTEM" appears in order to return to User mode from Diagnosis mode.

11. Turn ignition switch "OFF", then turn off and disconnect CONSULT-II, and disconnect both battery cables.

12. Repair the system as outlined by the "Repair order" in "CONSULT-II Diagnostic Code Chart", that corresponds to the self-diagnostic result. For replacement procedure of component parts, refer to the applicable Removal and Installation procedure.

13. After repairing the system, refer to "DIAGNOSTIC PROCEDURE 3" for final checking.
