With Manufacturer's Scan Tool

CONSULT-II
After performing "SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)", place check marks for results on the "Diagnostic Worksheet". Reference pages are provide following the items.

NOTICE:
1. The CONSULT-II electrically displays shift timing and lock-up timing (that is, operation timing of each solenoid).
Check for time difference between actual shift timing and the CONSULT-II display. If the difference is noticeable, mechanical parts (except solenoids, sensors, etc.) may be malfunctioning. Check mechanical parts using applicable diagnostic procedures.
2. Shift
- Actual shift schedule has more or less tolerance or allowance,
- Shift
- Gear position displayed on CONSULT-II indicates the point where shifts are completed.
3. Shift
4. Additional CONSULT-II information can be found in the Operation Manual supplied with the CONSULT-II unit.

SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)





1. Touch on CONSULT-II, touch "START", and touch "ENGINE" for OBD-II detected items or touch "A/T" for TCM self-diagnosis.
If A/T is not displayed, check TCM power supply and ground circuit. Refer to "TROUBLE DIAGNOSIS FOR POWER SUPPLY". If result is NG, refer "POWER SUPPLY ROUTING CIRCUIT".





2. Touch "SELF DIAG RESULTS". Display shows malfunction experienced since the last erasing operation. CONSULT-II performs "Real Time Diagnosis". Also, any malfunction detected while in this mode will be displayed at real time.








SELF-DIAGNOSTIC RESULT TEST MODE

X: Applicable
-: Not applicable
Y: Option
*1: These malfunctions cannot be displayed by MIL if another malfunction is assigned to MIL.
*2: Refer to "Malfunction Indictor Lamp (MIL)".














DATA MONITOR MODE (A/T)

X: Applicable
-: Not applicable
Y: Option

DTC WORK SUPPORT MODE WITH CONSULT-II
CONSULT-II Setting Procedure





1. Turn ignition switch OFF.
2. Connect CONSULT-II to Data link connector, which is located in left side dash panel.





3. Turn ignition switch ON.
4. Touch "START".





5. Touch "A/T".





6. Touch "DTC WORK SUPPORT".





7. Touch select item menu (1ST, 2ND, etc.).





8. Touch "START".





9. Perform driving test according to "DTC CONFIRMATION PROCEDURE" in "TROUBLE DIAGNOSIS FOR DTC".

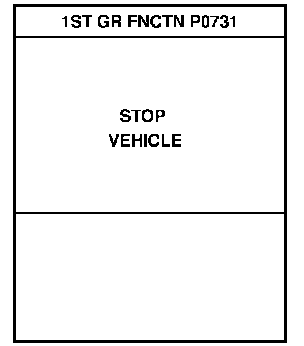

- When testing conditions are satisfied, CONSULT-II screen changes from "OUT OF CONDITION" for "TESTING".

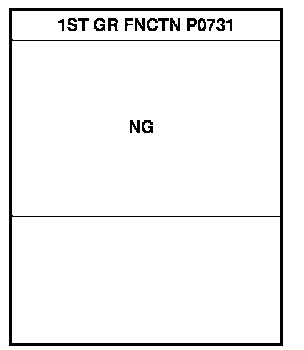

10. Stop vehicle. If "NG" appears on the screen, malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".





11. Perform test drive to check gear shift feeling in accordance with instructions displayed.





12. Touch "YES" for "NO".








13. CONSULT-II procedure ended.

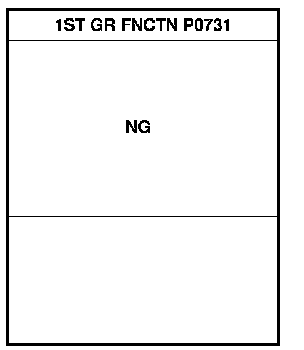

If "NG" appears on the screen, a malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".





DTC WORK SUPPORT MODE
