Symptom Matrix Chart

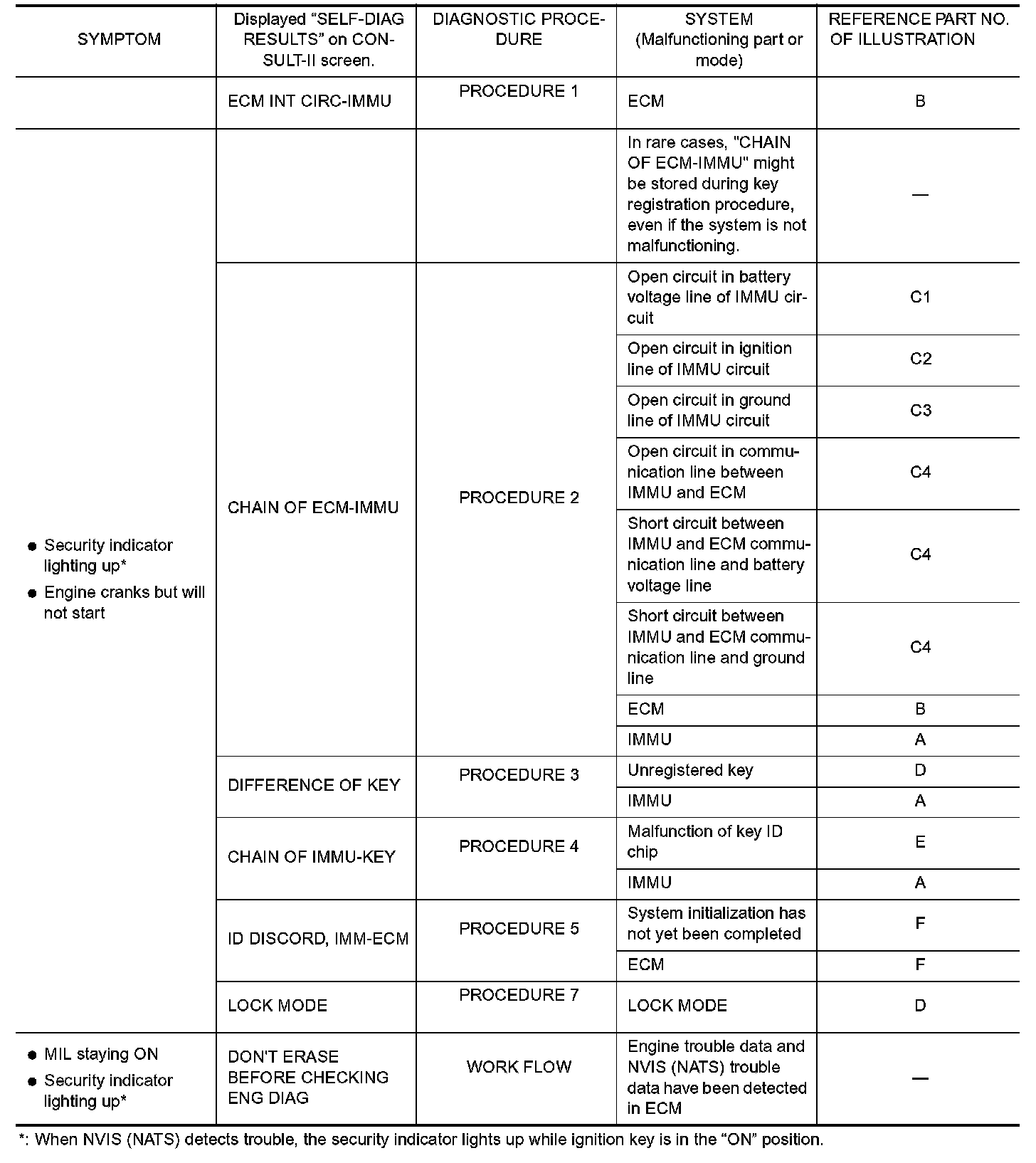

Symptom Matrix Chart 1 (Self-Diagnosis Related Item):

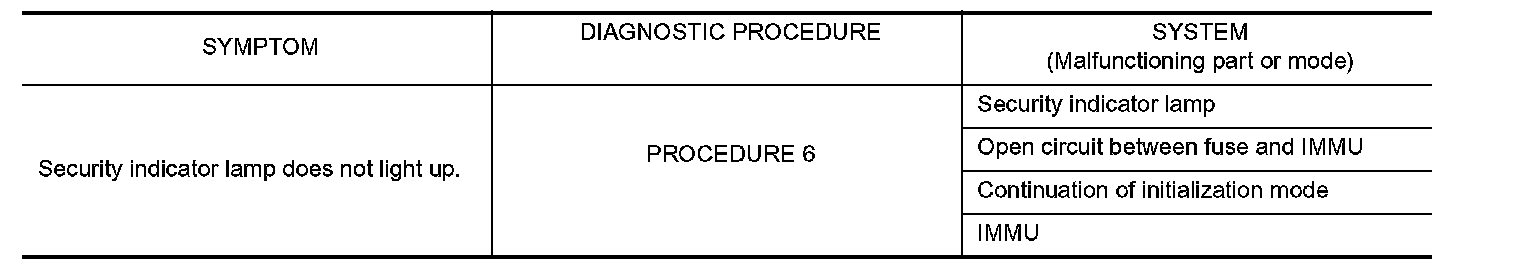

Symptom Matrix Chart 2 (Self-Diagnosis Related Item):
