Door Lock/Unlock Sw. Ck. (W/LF and RF Pwr. Win.Anti-Pinch Sys.)
Door Lock/Unlock Sw. Ck. (W/LF and RF Pwr. Win.Anti-Pinch Sys.)

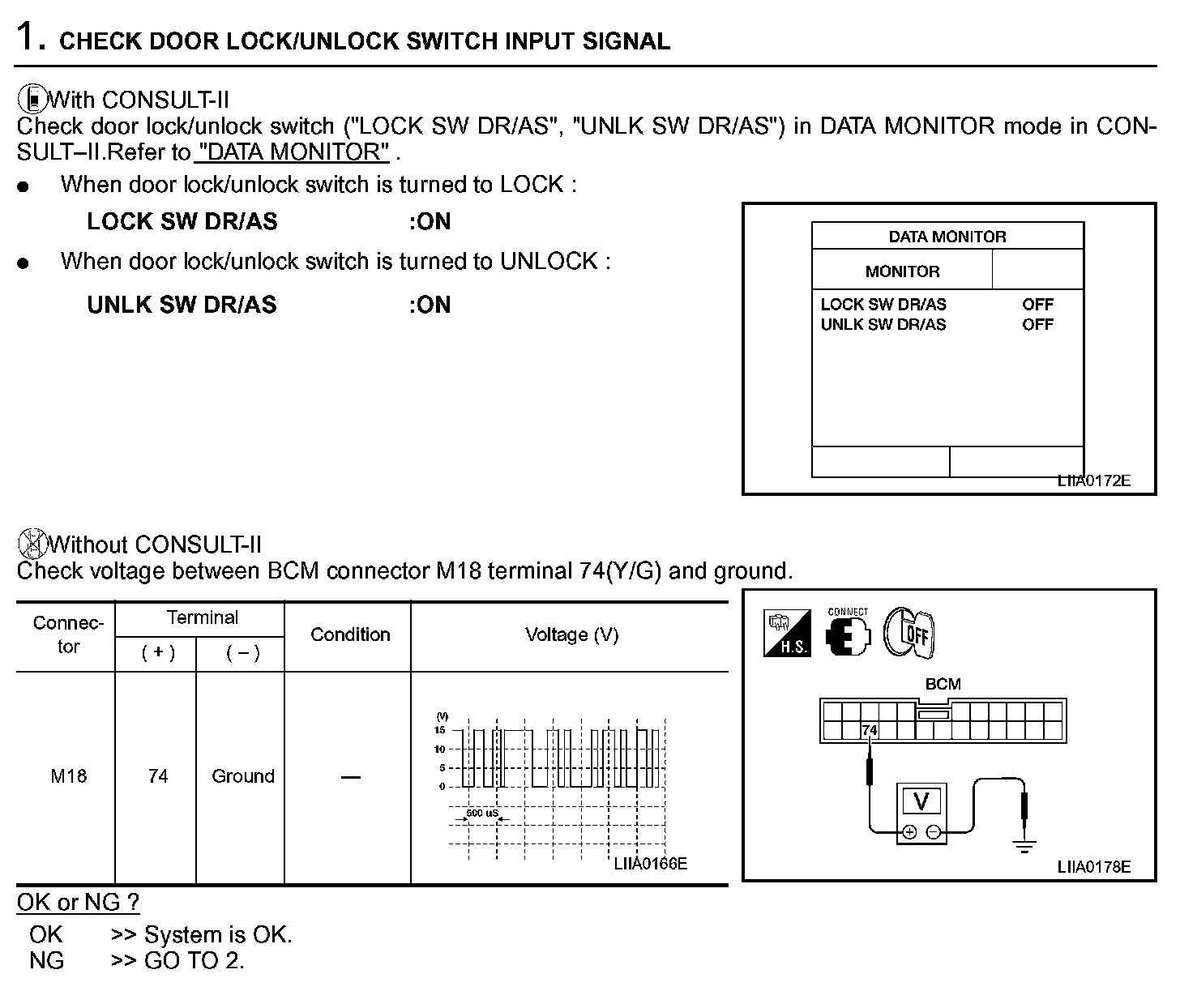

Step 1:
Step 2:
Step 3 - 4:
