Engine Control Module

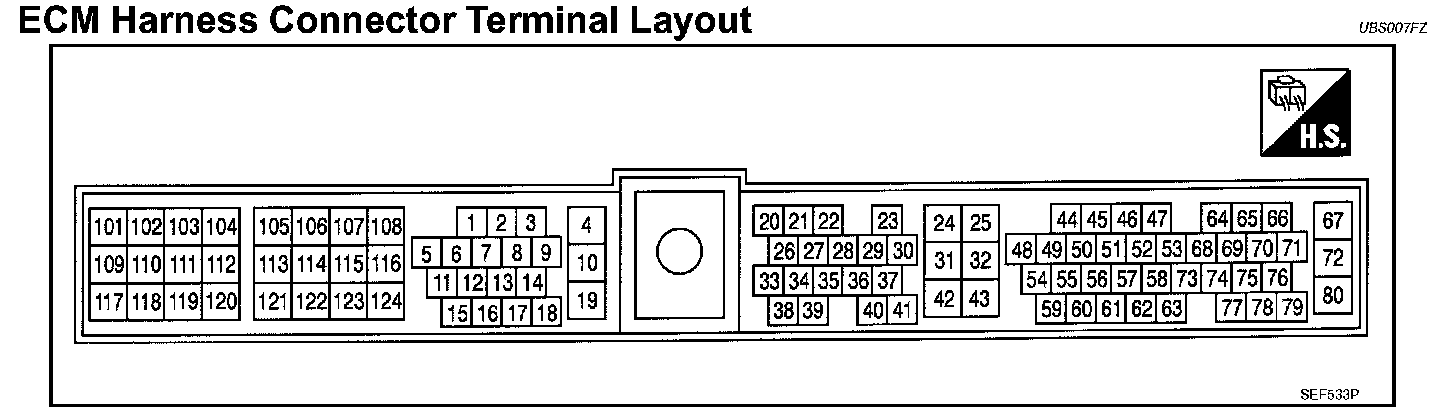

ECM Harness Connector Terminal Layout:

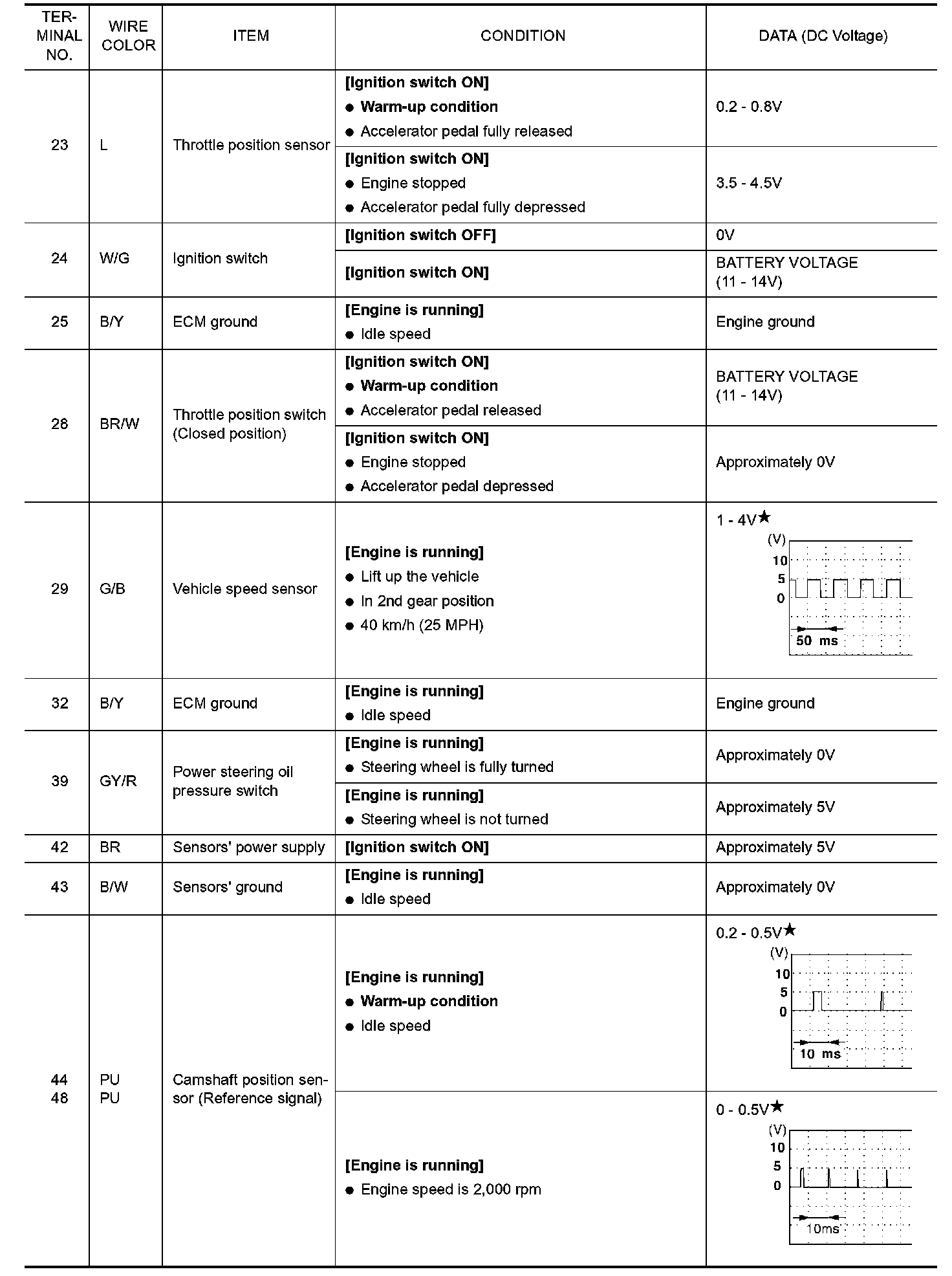

ECM Inspection Table Part 1:

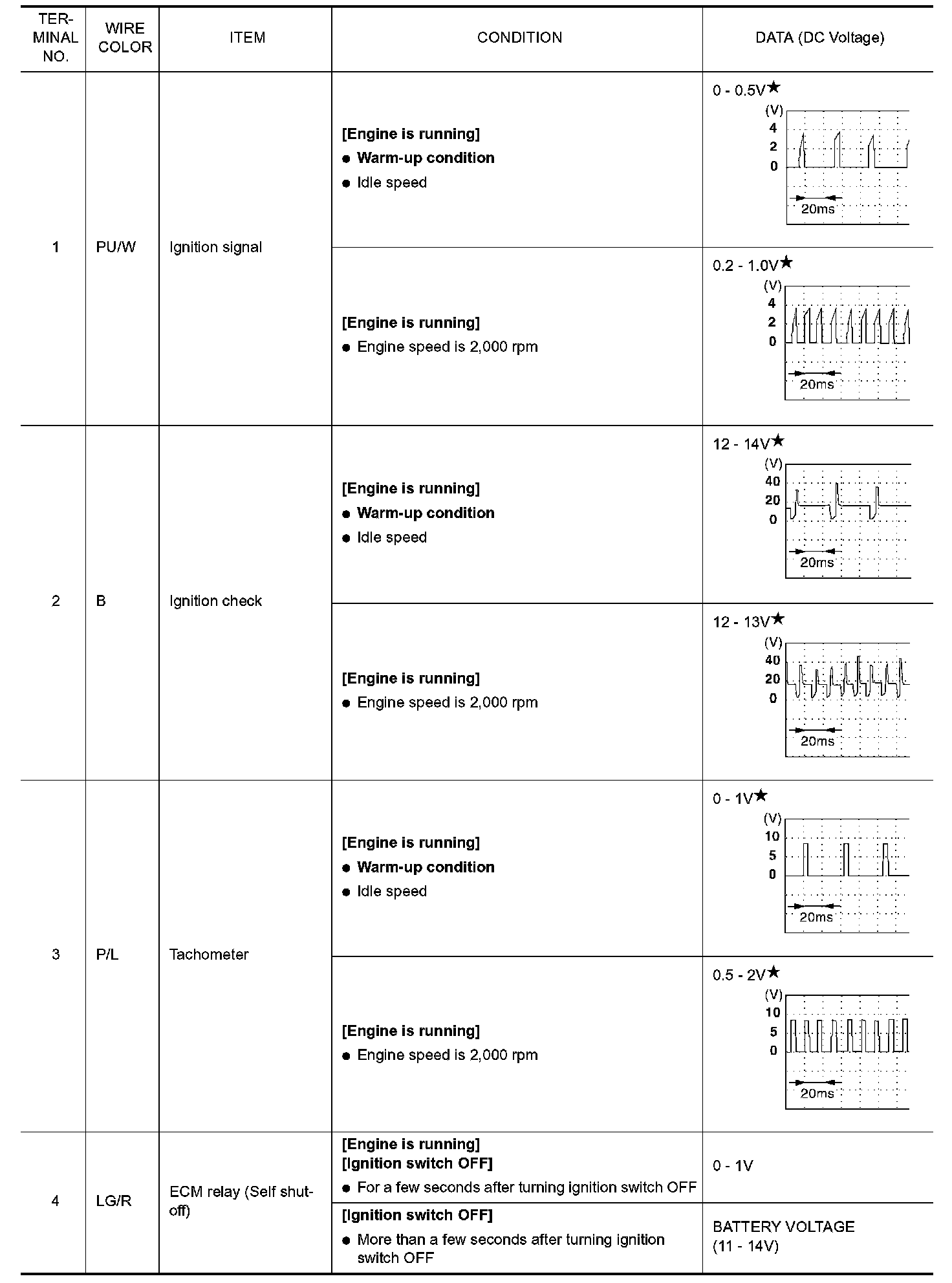

ECM Inspection Table Part 2:

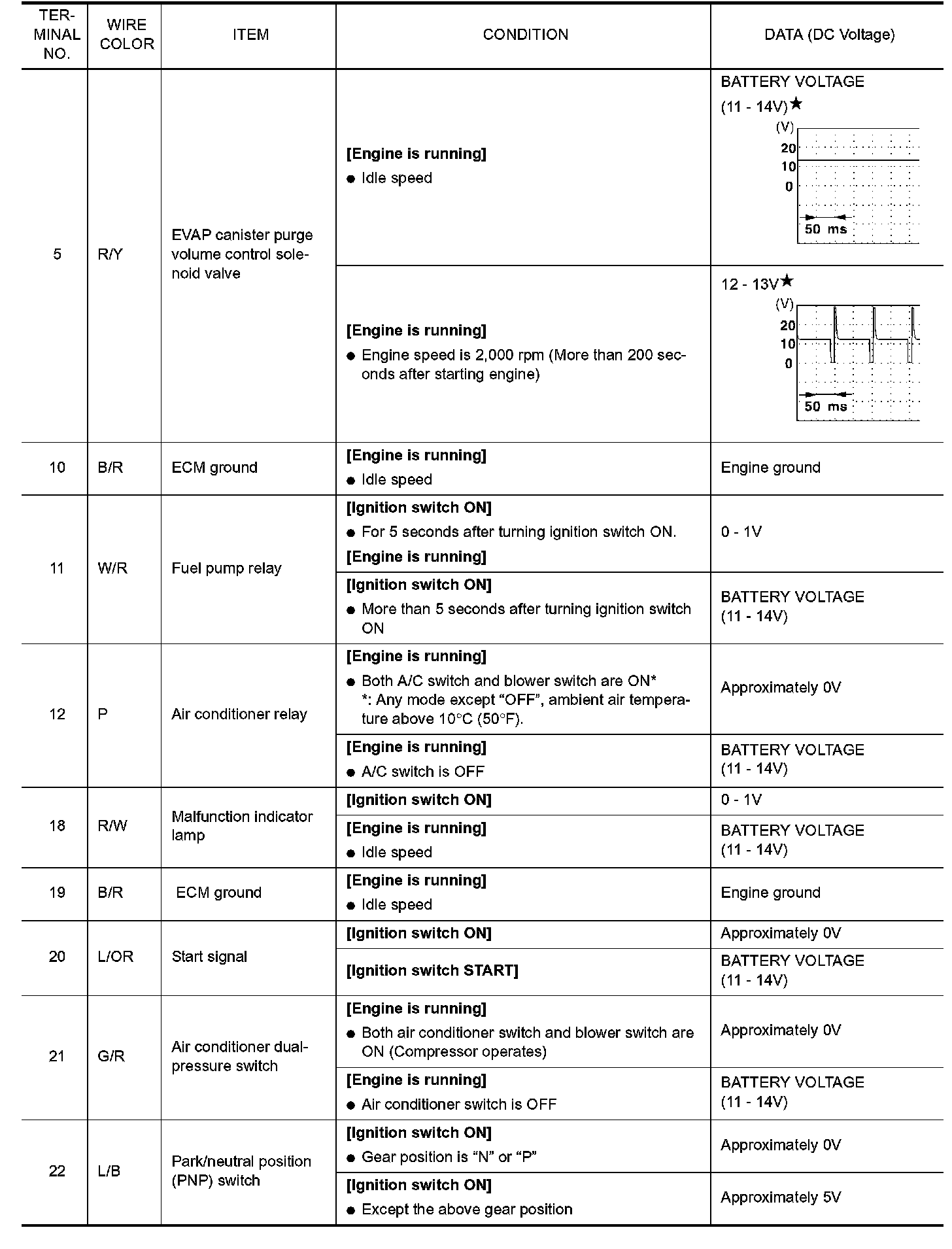

ECM Inspection Table Part 3:

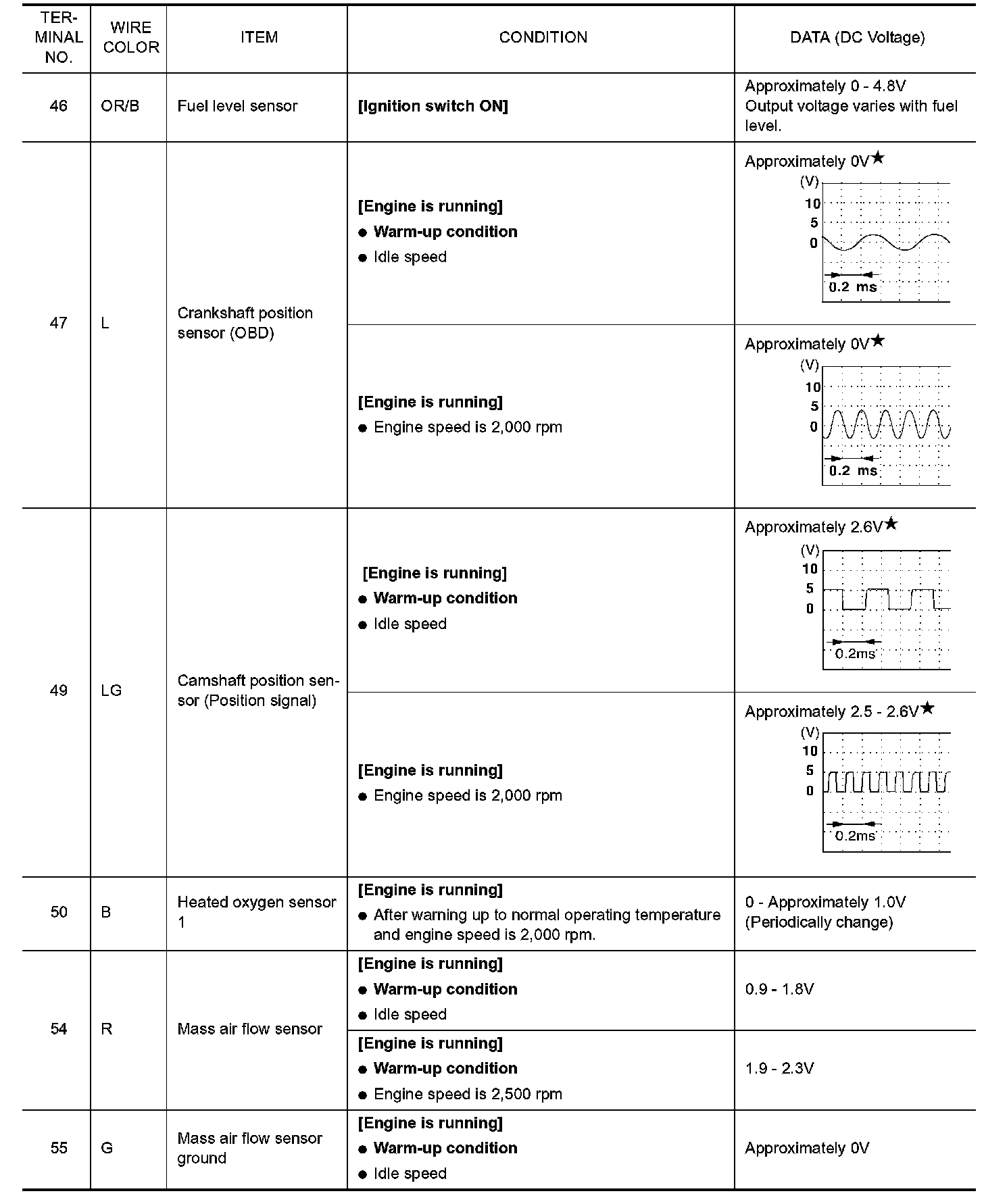

ECM Inspection Table Part 4:

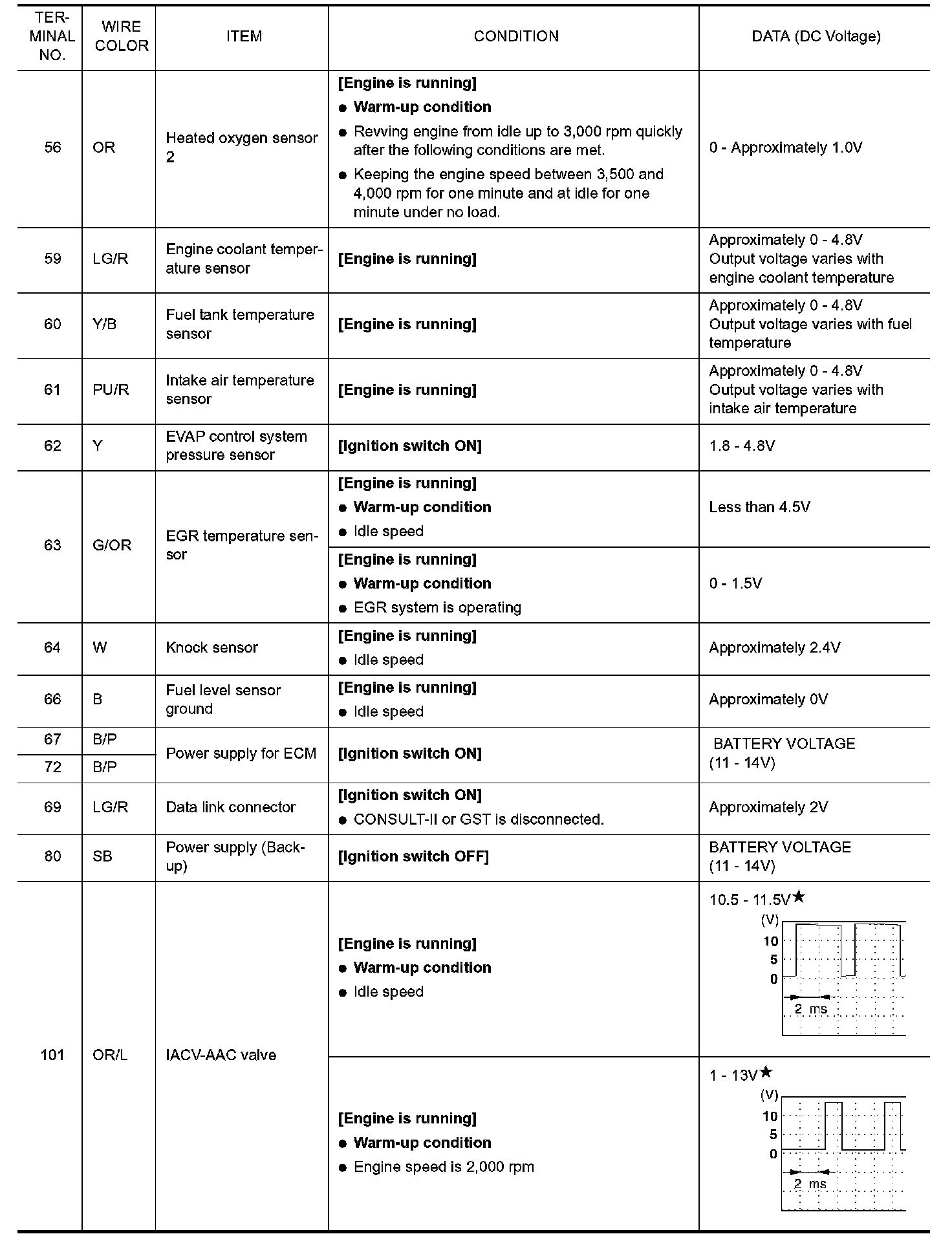

ECM Inspection Table Part 5:

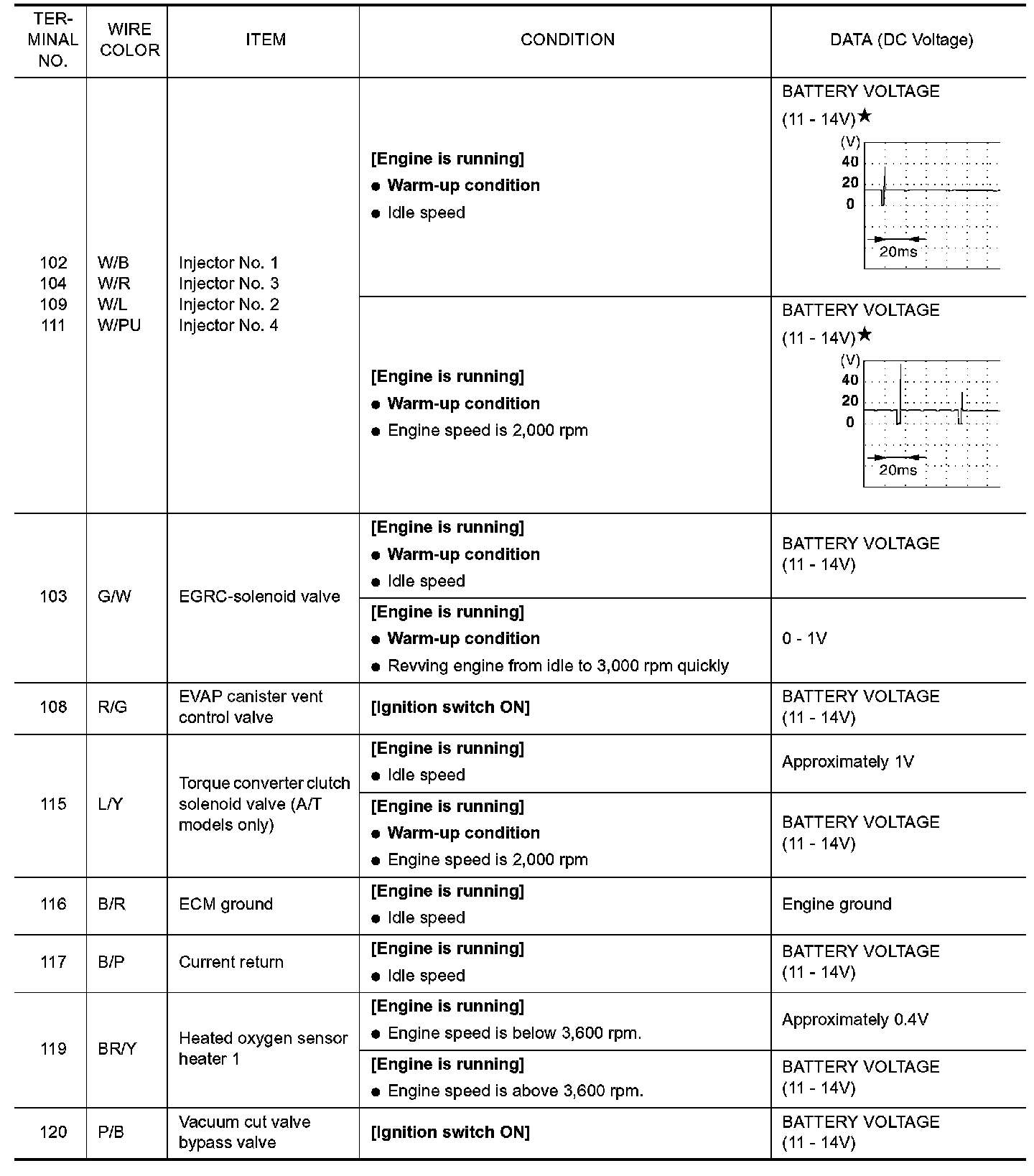

ECM Inspection Table Part 6:





ECM Inspection Table Part 7:
