Frontier 2WD L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Components
Components

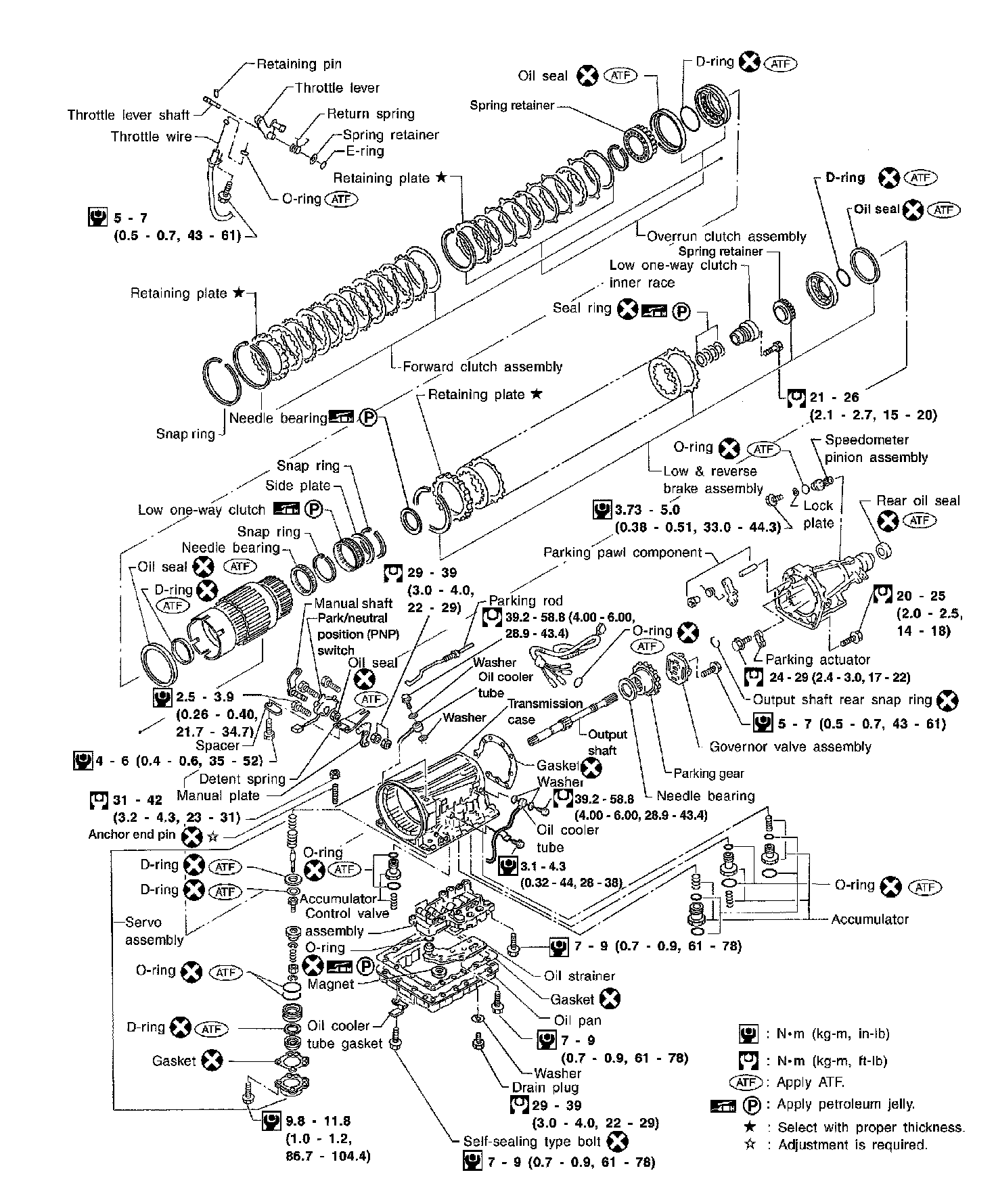

View 1 Of 2:

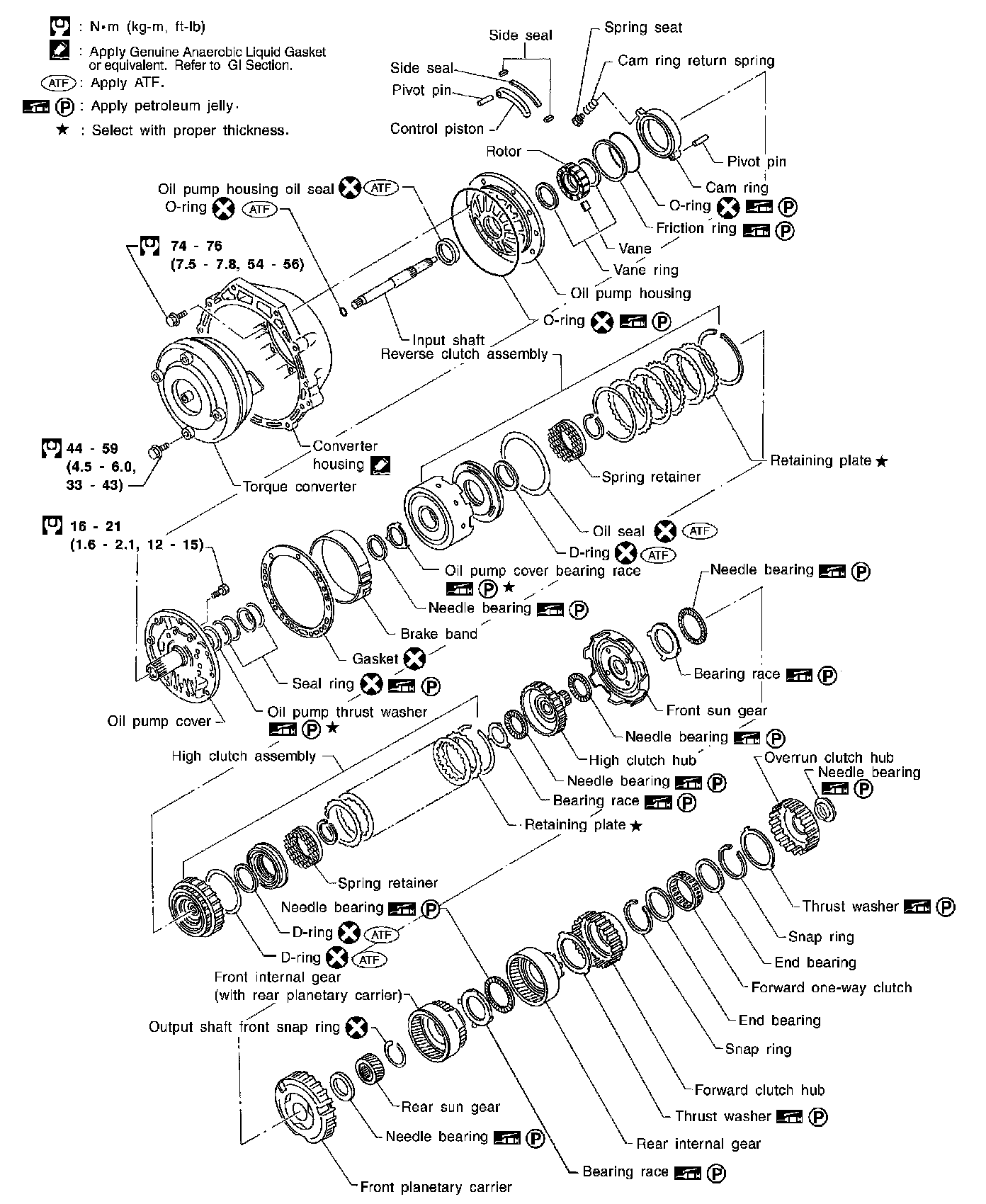

View 2 Of 2:
Components
