Coolant Temperature Sensor/Switch (For Computer): Testing and Inspection

ENGINE COOLANT TEMPERATURE SENSOR

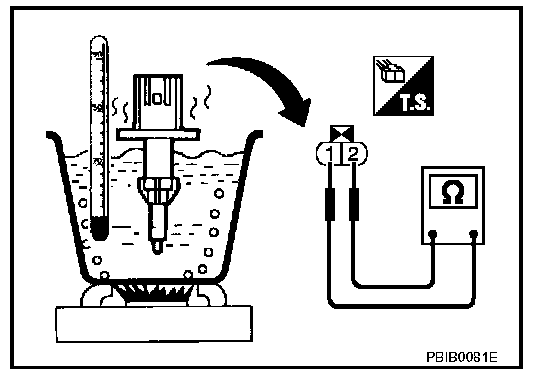

1. Check resistance between engine coolant temperature sensor terminals 1 and 2 as shown.
2. If NG, replace engine coolant temperature sensor.
