Knock Sensor: Testing and Inspection

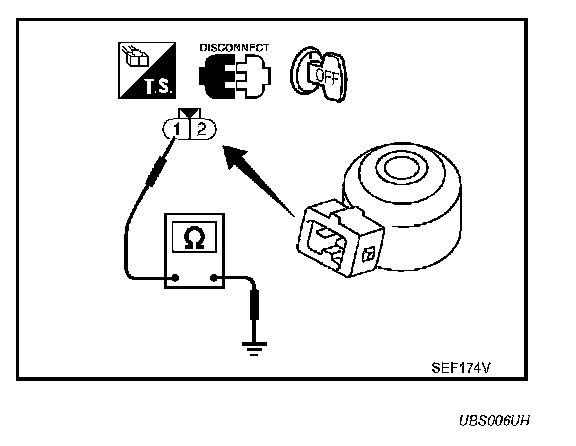

Component InspectionKNOCK SENSORUse an ohmmeter which can measure more than
10 M Ohm.
1.
Disconnect
knock sensor harness connector.
2.
Check resistance between terminal 1 and ground.
Resistance :
500 - 620 k Ohm [at 25 °C (77 °F)] CAUTION: Discard any
knock sensors that have been dropped or physically damaged. Use only new ones.
