Components

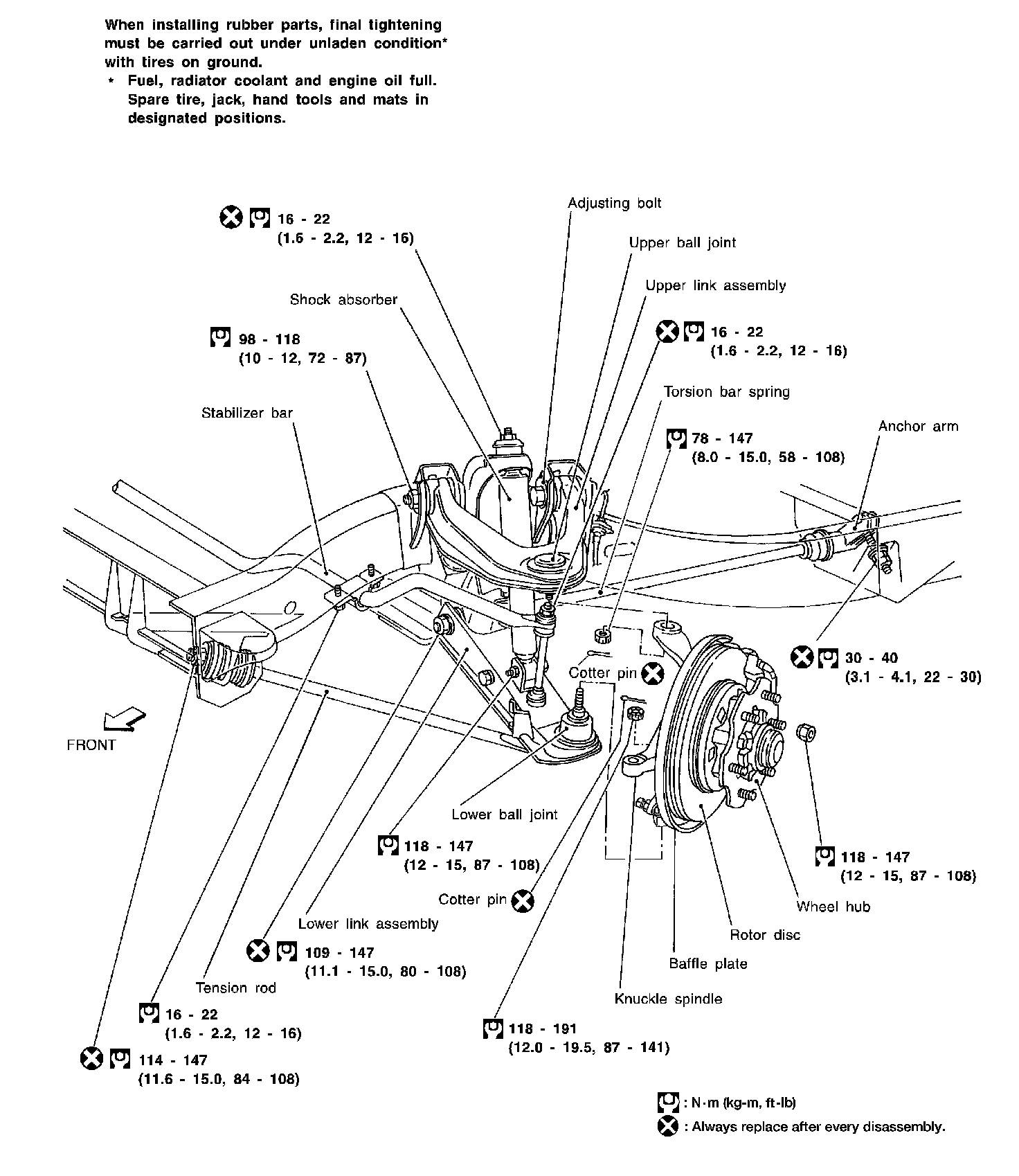

FRONT SUSPENSION ASSEMBLY (2WD 2.4L KA24DE):

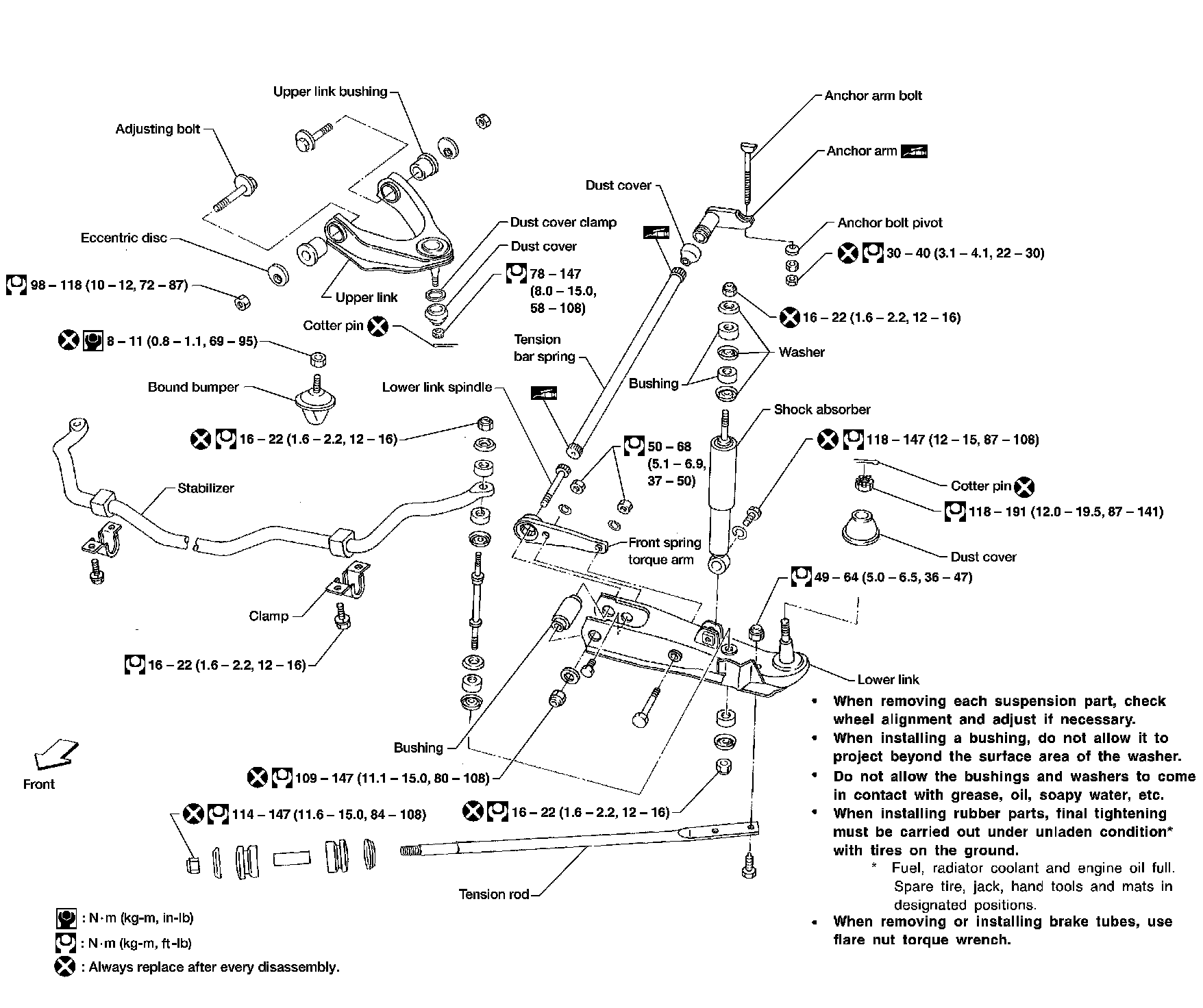

FRONT SUSPENSION ASSEMBLY (2WD 2.4L KA24DE):
