DTC P0102 MAF SENSORComponent Description
The mass air flow sensor is placed in the stream of intake air. It measures the intake flow rate by measuring a part of the entire intake flow. It consists of a hot film that is supplied with electric current from the ECM. The temperature of the hot film is controlled by the ECM a certain amount. The heat generated by the hot film is reduced as the intake air flows around it. The more air, the greater the heat loss. Therefore, the ECM must supply more electric current to maintain the temperature of the hot film as air flow increases. The ECM detects the air flow by means of this current change.
Consult-II Reference Value In Data Monitor Mode:

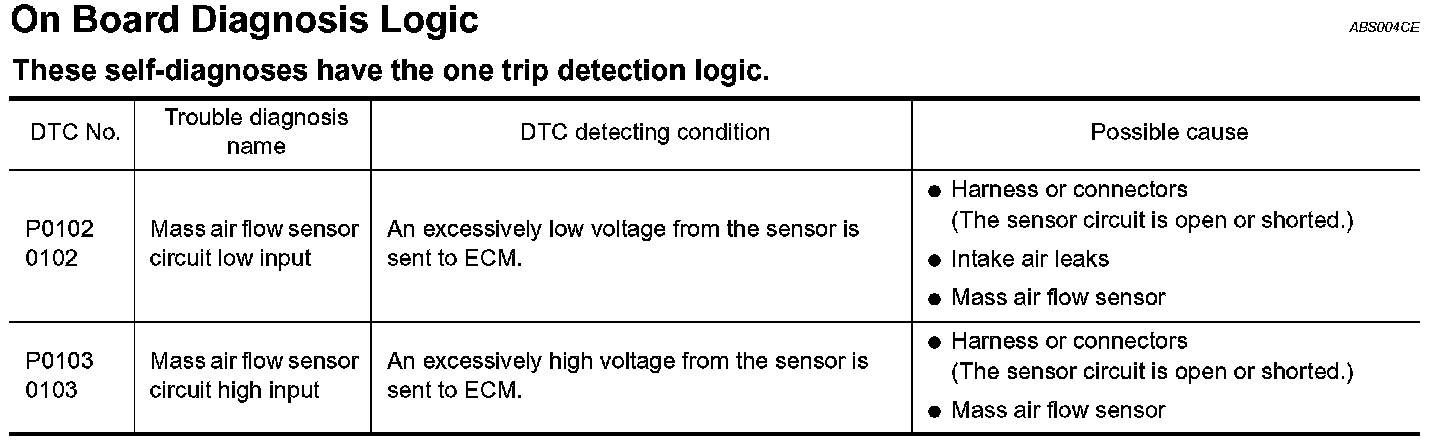

On Board Diagnosis Logic:
Fail-Safe Mode:
DTC Confirmation Procedure
NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 10 seconds before conducting the next test.
PROCEDURE FOR DTC P0102
With CONSULT-II
1. Turn ignition switch "ON".
2. Select "DATA MONITOR" mode with CONSULT-II.
3. Start engine and wait at least 5 seconds.
4. If DTC is detected, go to "Diagnostic Procedure" below.
With GST
Follow the procedure "With CONSULT-II" above.
EC-MAFS-01:
Wiring Diagram
Diagnostic Procedure Step 1 - 2:

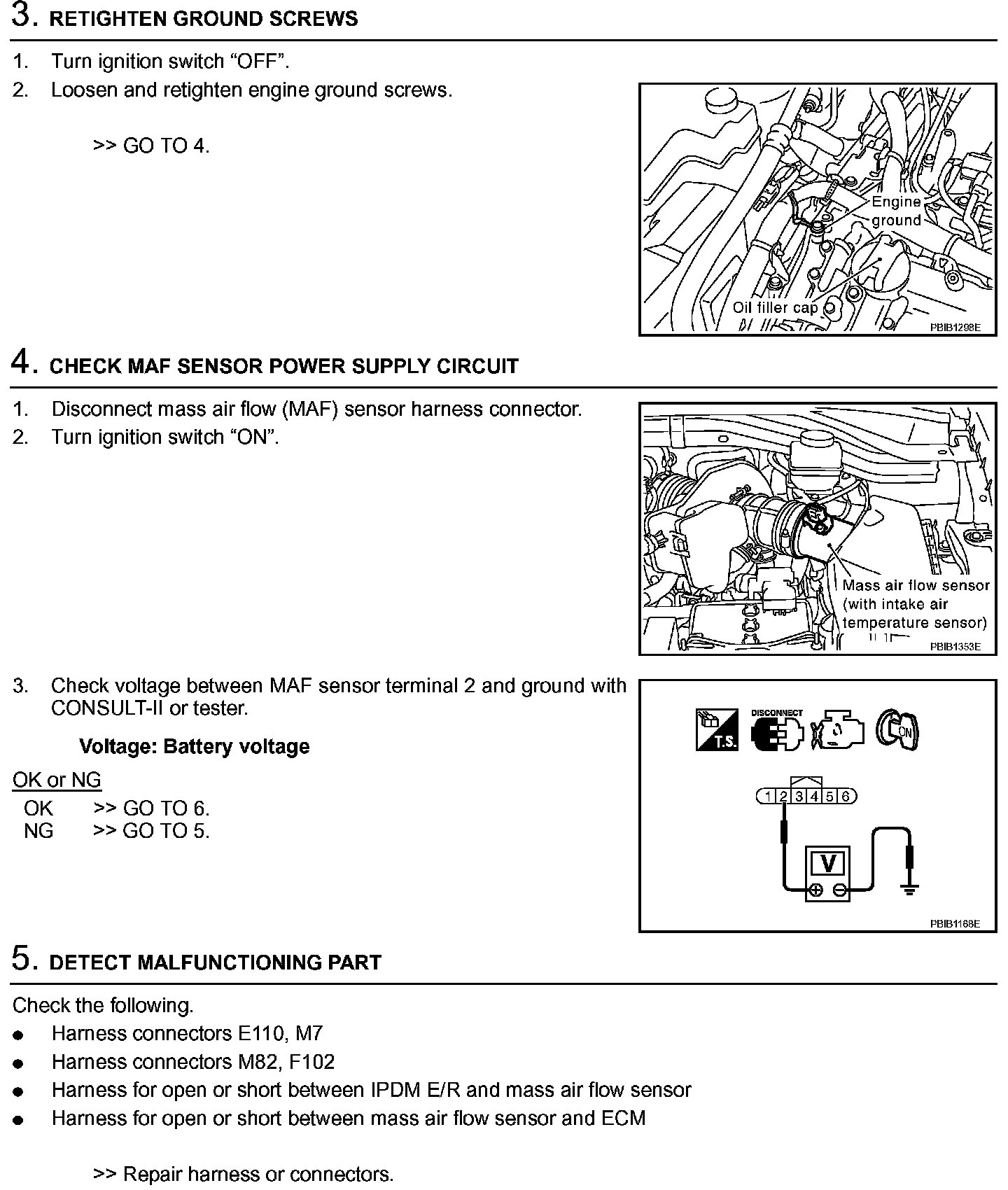

Diagnostic Procedure Step 3 - 5:
Diagnostic Procedure Step 6 - 10:
Diagnostic Procedure
Component Inspection
MASS AIR FLOW SENSOR
1. Reconnect all harness connectors disconnected.
2. Start engine and warm it up to normal operating temperature.
3. Check voltage between ECM terminal 51 (Mass air flow sensor signal) and ground.
4. If the voltage is out of specification, proceed the following.
- Turn ignition switch "OFF".
- Disconnect mass air flow sensor harness connector and reconnect it again.
- Perform steps 2 and 3 again.
5. If NG, remove mass air flow sensor from air duct. Check hot film for damage or dust.
6. If NG, clean or replace mass air flow sensor.
