P0128

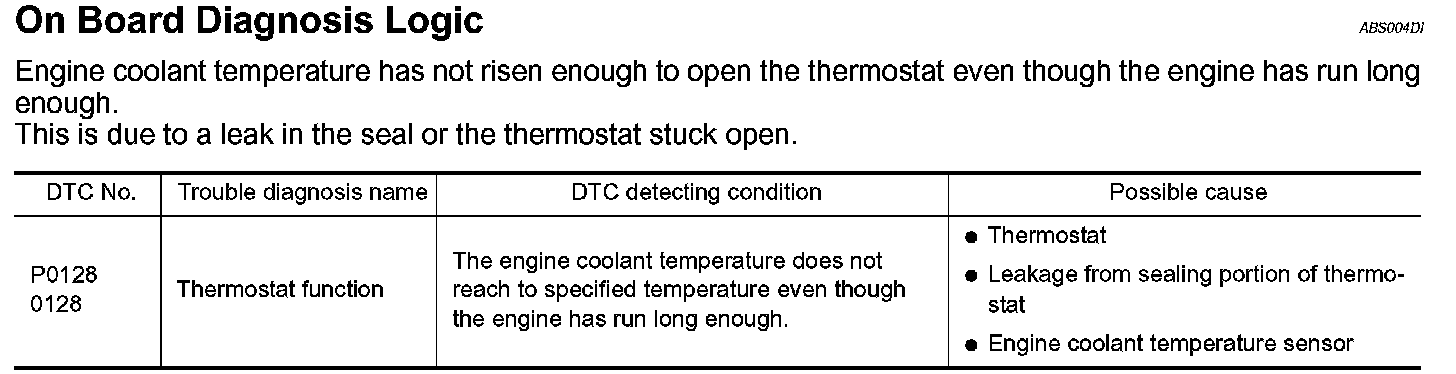

DTC P0128 THERMOSTAT FUNCTIONOn Board Diagnosis Logic:
DTC Confirmation Procedure
NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 10 seconds before conducting the next test.
TESTING CONDITION:
- For best results, perform at ambient temperature of -10 °C (14 °F) or higher.
- For best results, perform at engine coolant temperature of -10 °C (14 °F) to 60 °C (140 °F).
WITH CONSULT-II
1. Replace thermostat with new one.Use only a genuine NISSAN thermostat as a replacement. If an incorrect thermostat is used, the MIL may come on.
2. Turn ignition switch "ON".
3. Select "COOLAN TEMP/S" in "DATA MONITOR" mode with CONSULT-II.
4. Check that the "COOLAN TEMP/S" is above 60 °C (140 °F). If it is below 60 °C (140 °F), go to following step.
If it is above 60 °C (140 °F), stop engine and cool down the engine to less than 60 °C (140 °F), then retry from step 1.
5. Drive vehicle for 10 consecutive minutes under the following conditions.
VHCL SPEED SE 80 - 120 km/h (50 - 75 MPH)
If 1st trip DTC is detected, go to "Diagnostic Procedure" below.
WITH GST
1. Follow the procedure "WITH CONSULT-II" above.
Diagnostic Procedure Step 1:
Diagnostic Procedure
Component Inspection
ENGINE COOLANT TEMPERATURE SENSOR
Check resistance as shown in the figure.
