Remote Keyless Entry System Function
System DescriptionINPUTS
Power is supplied at all times
- to BCM terminal 7
- through 50 A fusible link [letter F , located in the fuse block (J/B)].
- to key switch terminal 3
- through 10 A fuse (No. 21, located in the fuse and fusible link box).
When the key switch is ON (key is inserted in ignition key cylinder), power is supplied
- to BCM terminal 62
- through key switch terminal 4.
When the ignition switch is ACC or ON, power is supplied
- to BCM terminal 36
- through 10 A fuse [No. 6, located in the fuse block (J/B)].
When the ignition switch is ON or START, power is supplied
- to BCM terminal 35
- through 10 A fuse [No. 1, located in the fuse block (J/B)].
When the front door switch (driver side) is ON (door is OPEN), ground is supplied
- to BCM terminal 14 and unified meter and A/C amp. terminal 8
- through front door switch (driver side) terminal 4 and 5
- through grounds M14 and M78.
When the front door switch (passenger side) is ON (door is OPEN), ground is supplied
- to BCM terminal 10 and unified meter and A/C amp. terminal 7
- through front door switch (passenger side) terminal 4 and 5
- through grounds M14 and M78.
When the rear door switch LH is ON (door is OPEN), ground is supplied
- to unified meter and A/C amp. terminal 18
- through rear door switch LH terminal 4 and 5
- through grounds B7 and B20.
When the rear door switch RH is ON (door is OPEN), ground is supplied
- to unified meter and A/C amp. terminal 17
- through rear door switch RH terminal 4 and 5
- through grounds B105 and B116.
Combination meter send door open signal to BCM with CAN communication system.
When the back door switch is ON (back door OPEN), ground is supplied
- to BCM terminal 18
- through back door switch terminal 1 and 3
- through grounds B7 and B20.
Key fob signal is inputted to BCM (the antenna of the system is combined with BCM).
The remote keyless entry system controls operation of the
- power door lock
- hazard and horn reminder
- auto door lock
- room lamp and ignition keyhole illumination
- panic alarm
- keyless power window down (open)
OPERATED PROCEDURE
BCM can not receive signals (except keyless power window down signal) from key fob when key switch is ON.
Power Door Lock Operation
BCM receives a LOCK signal from key fob. BCM locks all doors with input of LOCK signal from key fob.
When an UNLOCK signal is sent from key fob once, driver's door will be unlocked.
Then, if an UNLOCK signal is sent from key fob again within 5 seconds, all other door will be unlocked.
Hazard and Horn Reminder
When the doors are locked or unlocked by key fob, supply power to hazard warning lamp flashes as follows
- LOCK operation: C mode (flash twice) or S mode (flash twice)
- UNLOCK operation: C mode (flash once) or S mode (does not flash)
BCM outputs to IPDM E/R for horn reminder signal as DATA LINE (CAN H line and CAN L line).
The hazard and horn reminder has C mode (horn chirp mode) and S mode (non-horn chirp mode).

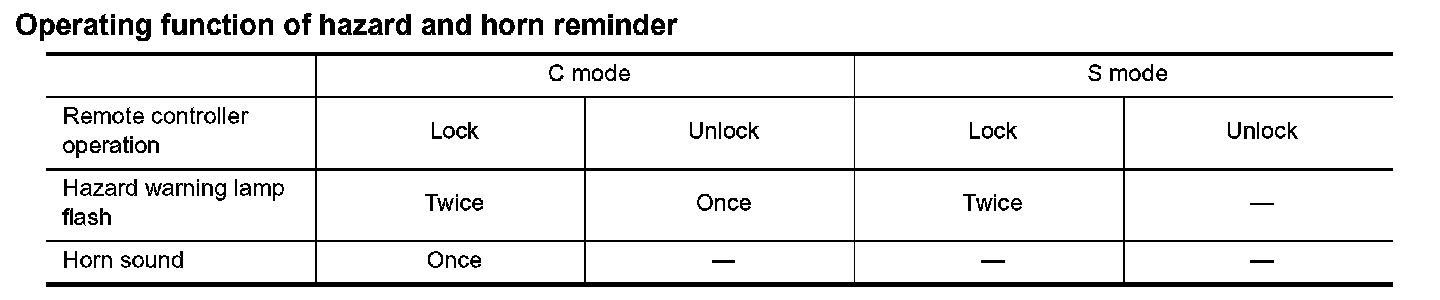

Operating function of hazard and horn reminder
Hazard and horn reminder does not operate if any door switches are ON (any doors are OPEN)
How to change hazard and horn reminder mode
With CONSULT-II
Hazard and horn reminder can be changed using "MULTI ANSWER BACK SET" mode in "WORK SUPPORT". Refer to "Work Support".
Without CONSULT-II

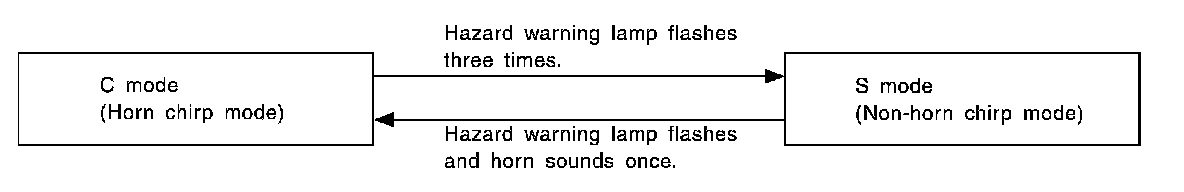

When LOCK and UNLOCK signals are sent from the key fob for more than 2 seconds at the same time, the hazard and horn reminder mode is changed and hazard warning lamp flashes and horn sounds as follows:
Auto Door Lock Operation
Auto lock function signal is sent for operation when any of the following signals are not sent within 1 minute after the unlock signal is sent from the key fob:
- when door switch is turned ON for open.
- when the key switch is turned ON.
- when the lock signal is sent from the key fob.
Auto door lock mode can be changed using "AUTO LOCK SET" mode in "WORK SUPPORT".
Refer to "Work Support".
Room Lamp and Keyhole Illumination Operation
When the following conditions come:
- condition of room lamp switch is DOOR position;
- door switch OFF (when all the doors are closed);
Remote keyless entry system turns on room lamp and key ring illumination (for 30 seconds) with input of UNLOCK signal from key fob.
For detailed description, refer to "INTERIOR ROOM LAMP".
Panic Alarm Operation
When key switch is OFF (when ignition key is not inserted in key cylinder), BCM turns on and off horn and headlamp intermittently with input of PANIC ALARM signal from key fob.
The alarm automatically turns off after 25 seconds or when BCM receives any signal from key fob.
Panic alarm operation mode can be changed using "PANIC ALARM SET" mode in "WORK SUPPORT". Refer to "Work Support".
For detailed description, refer to "VEHICLE SECURITY (THEFT WARNING) SYSTEM".
Keyless Power Window Down (open) Operation
When key fob unlock switch is turned ON with ignition switch OFF, and key fob unlock switch is detected to be on continuously for 3 seconds, the driver's door and passenger's door power windows are simultaneously opened.
Power window is operated to open and the operation continues as long as the key fob unlock switch is pressed.
Keyless power window down operation mode can be changed using "PW DOWN SET" mode in "WORK SUPPORT".
Refer to "Work Support".
