Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2003
>>
Murano AWD V6-3.5L (VQ35)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Electronic Brake Control Module
>>
Specifications
Electronic Brake Control Module: Specifications

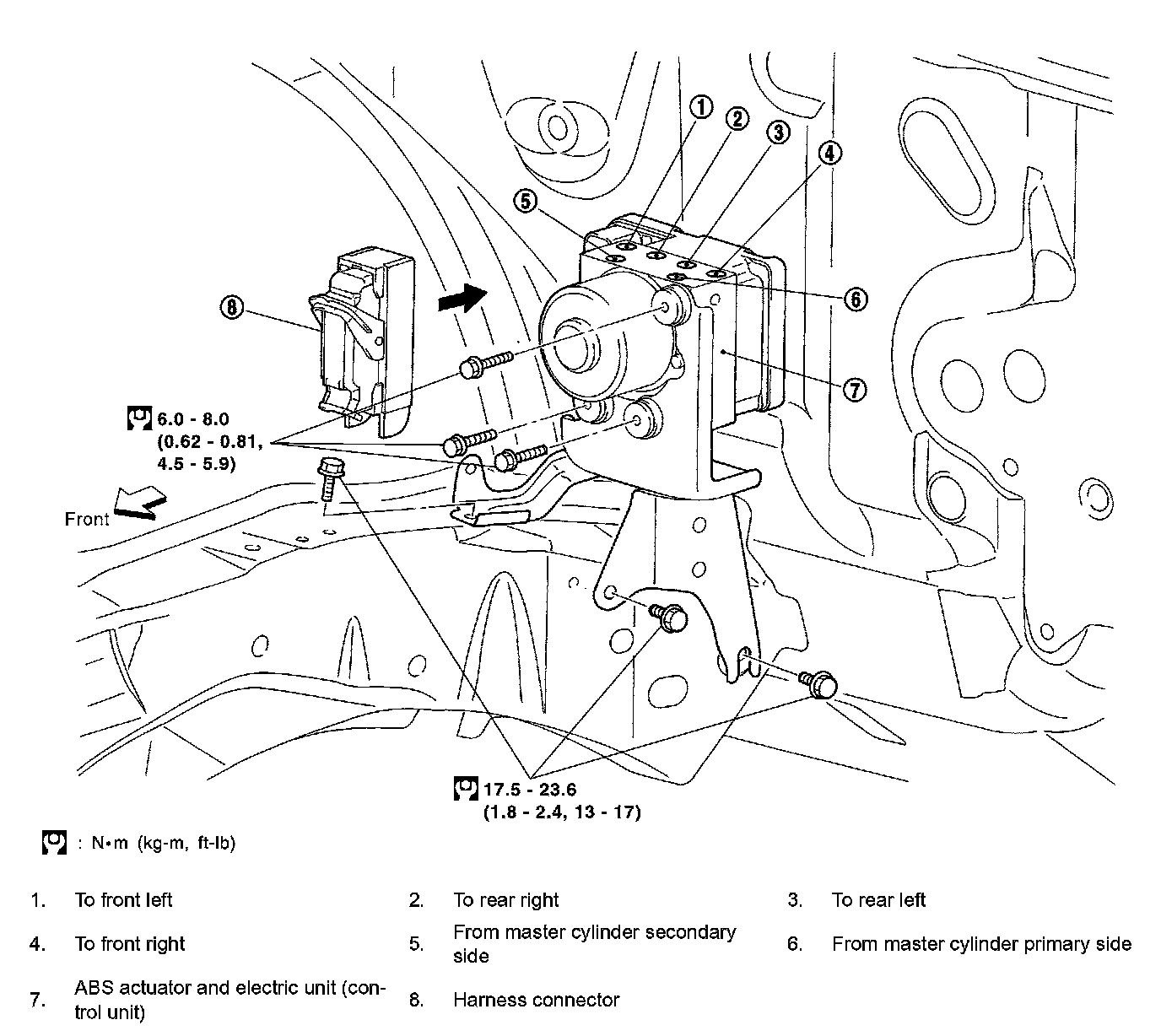

ABS/EBD/VDC/TCS ACTUATOR AND ELECTRIC UNIT (ASSEMBLY):

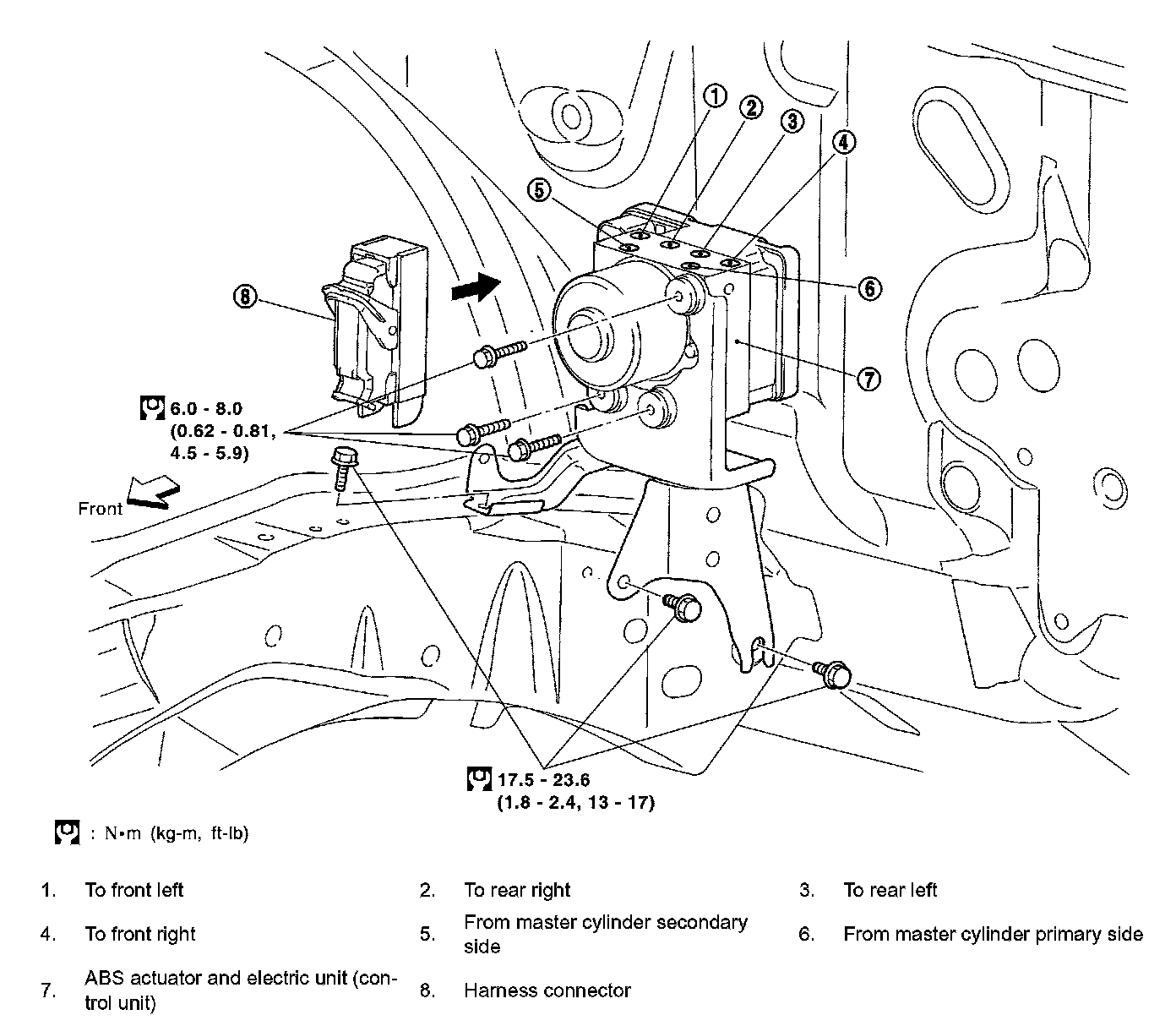

ABS/EDB ACTUATOR AND ELECTRIC UNIT (ASSEMBLY):
