Front

FRONT DRIVE SHAFT

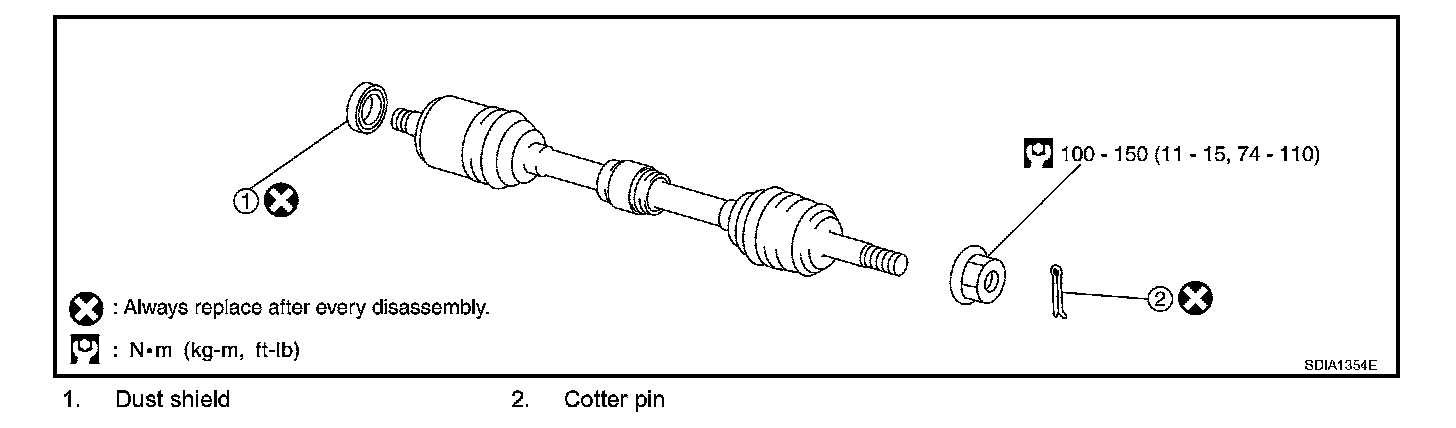

Removal and Installation (Left Side)

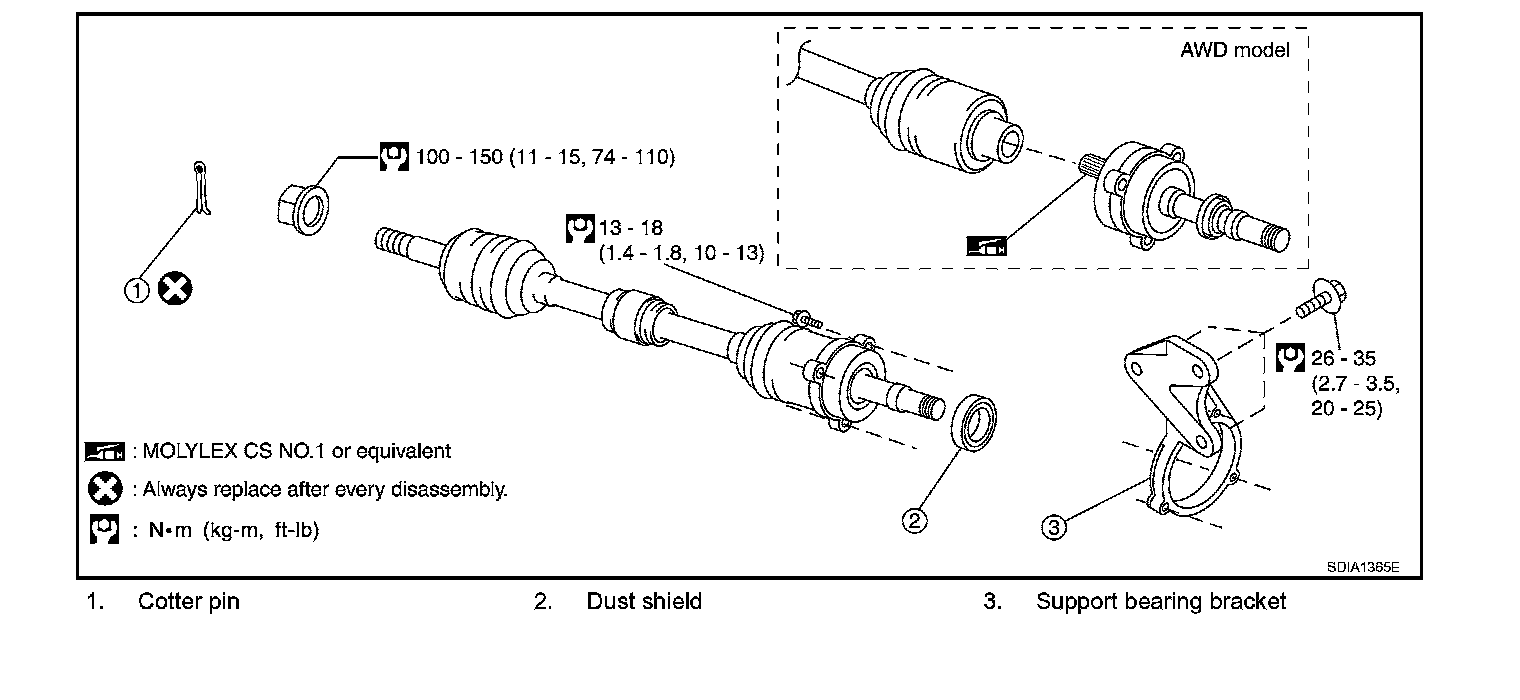

Removal and Installation (Right Side)

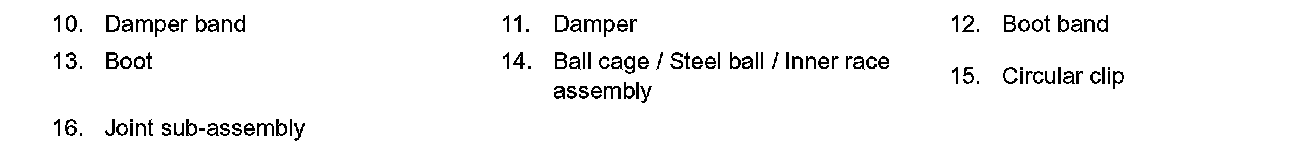

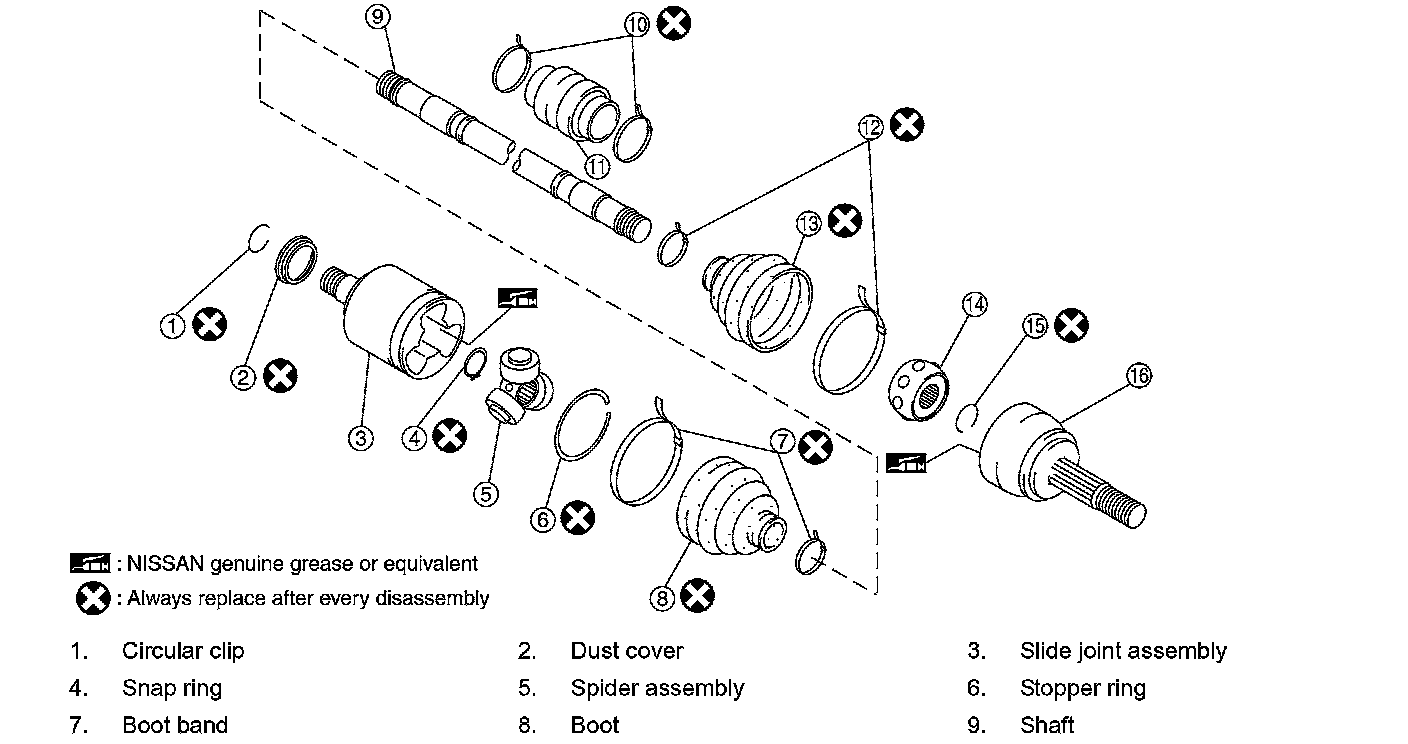

Disassembly and Assembly (Left Side)

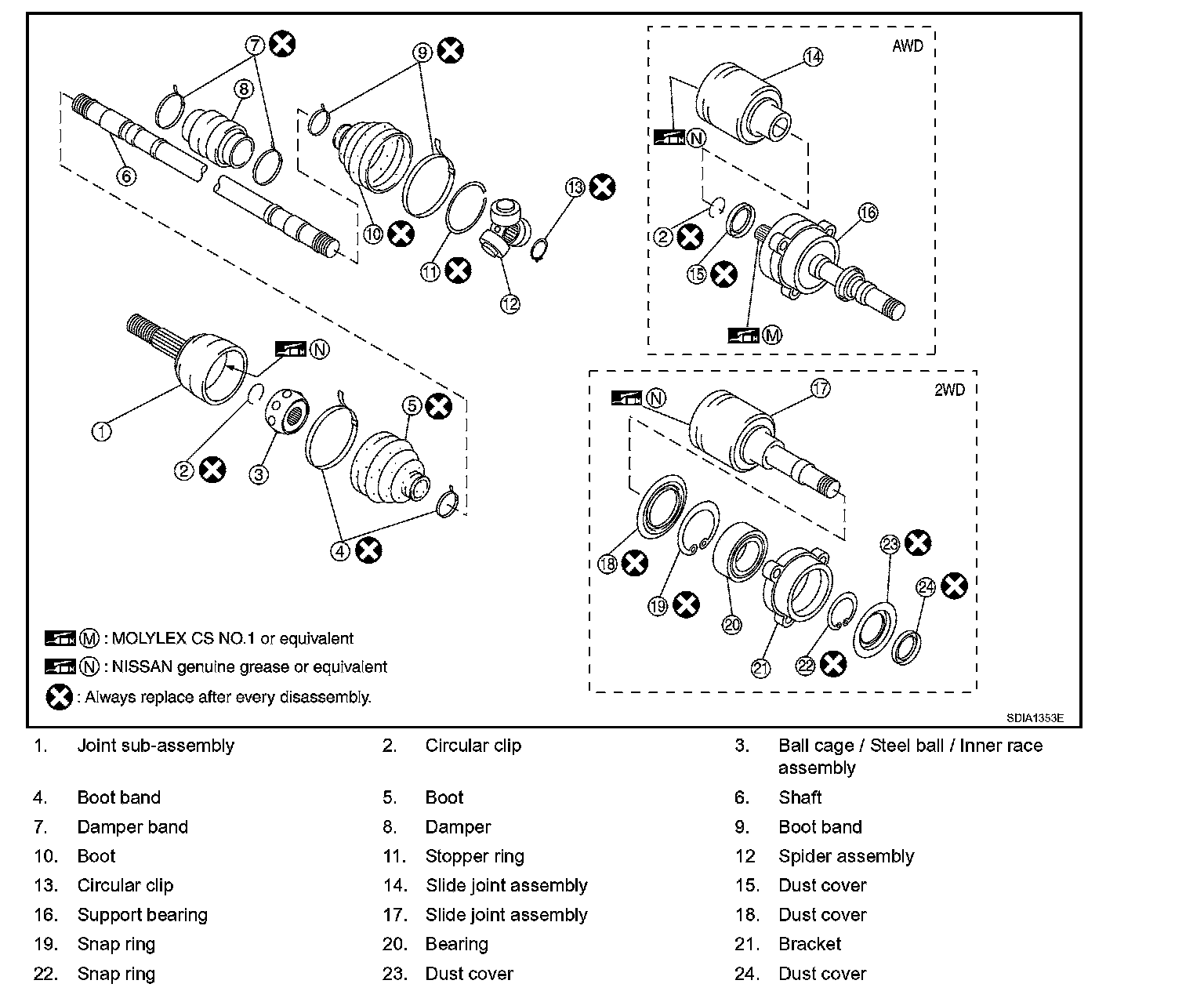

Disassembly and Assembly (Right Side)
