Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2003
>>
Murano AWD V6-3.5L (VQ35)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Differential Assembly

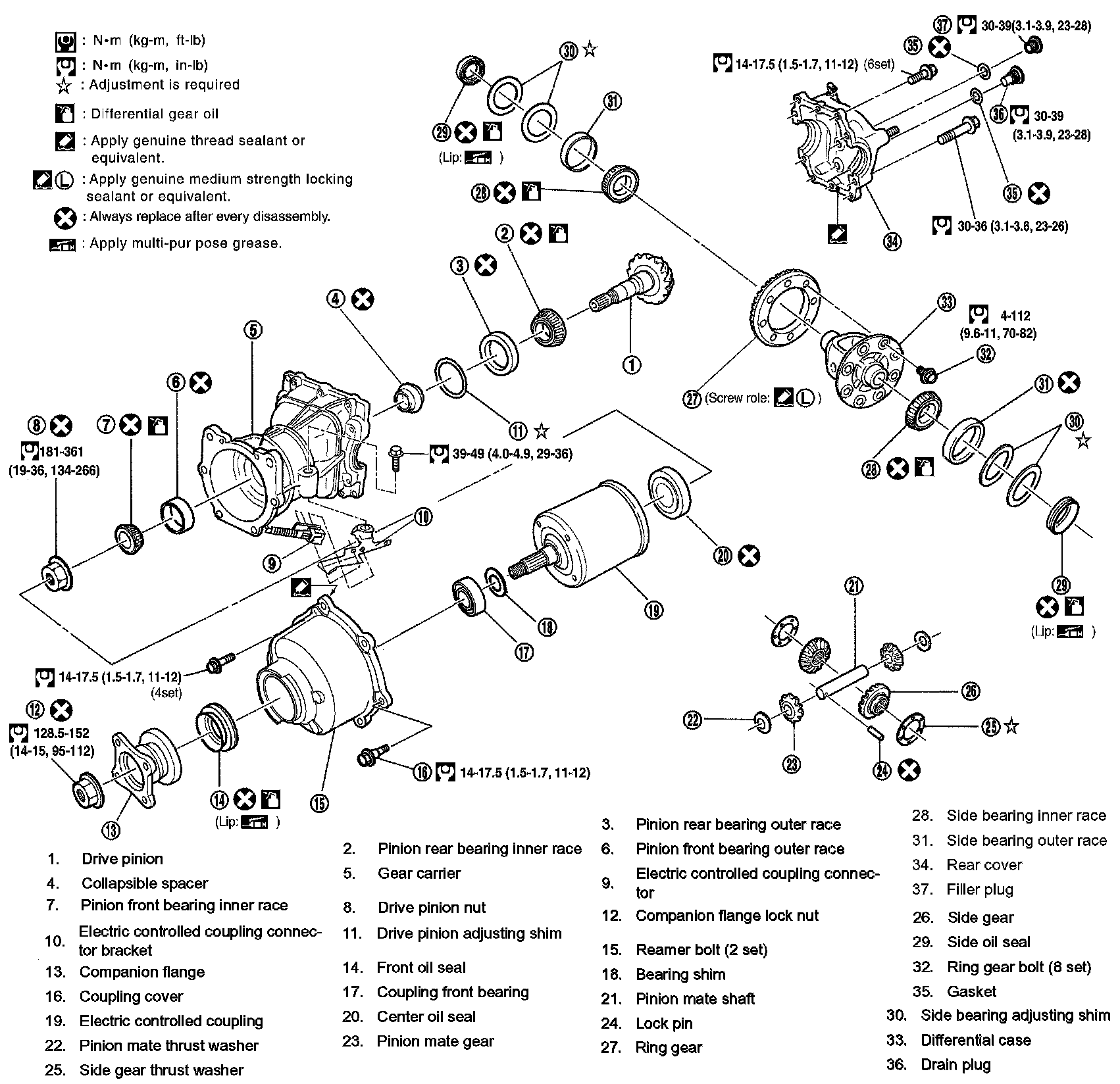

Differential Assembly

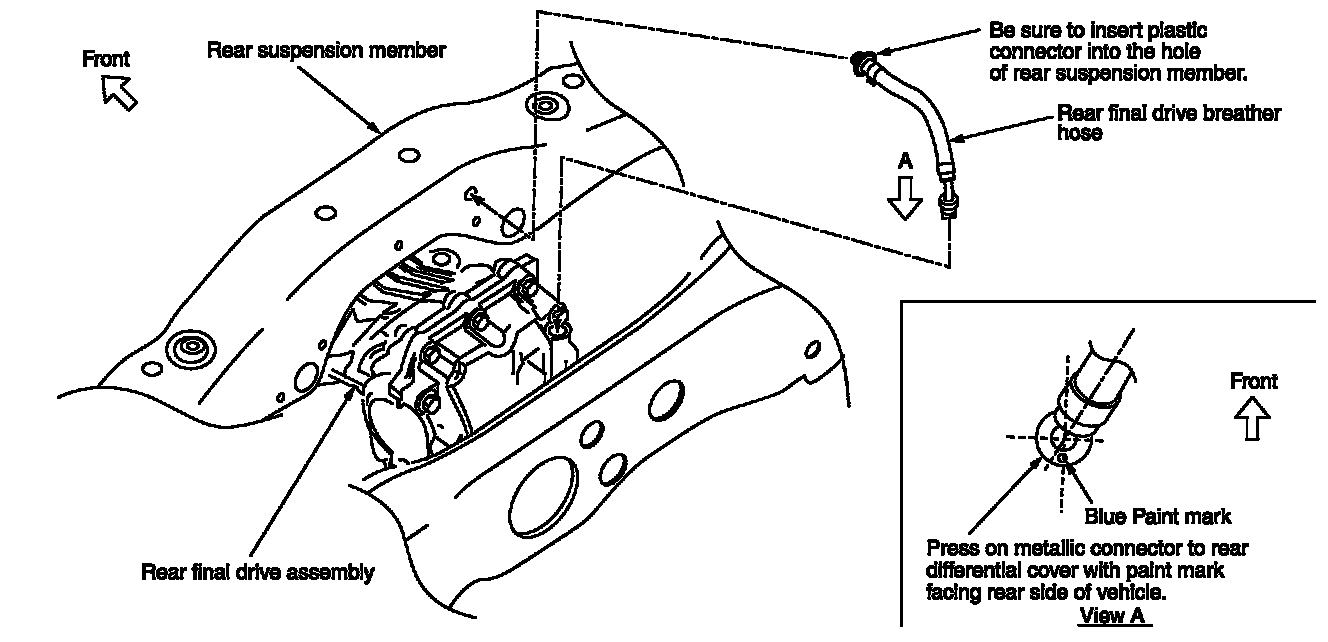

REAR FINAL DRIVE BREATHER HOSE:
REAR FINAL DRIVE / ELECTRIC CONTROLLED COUPLING BREATHER HOSE:

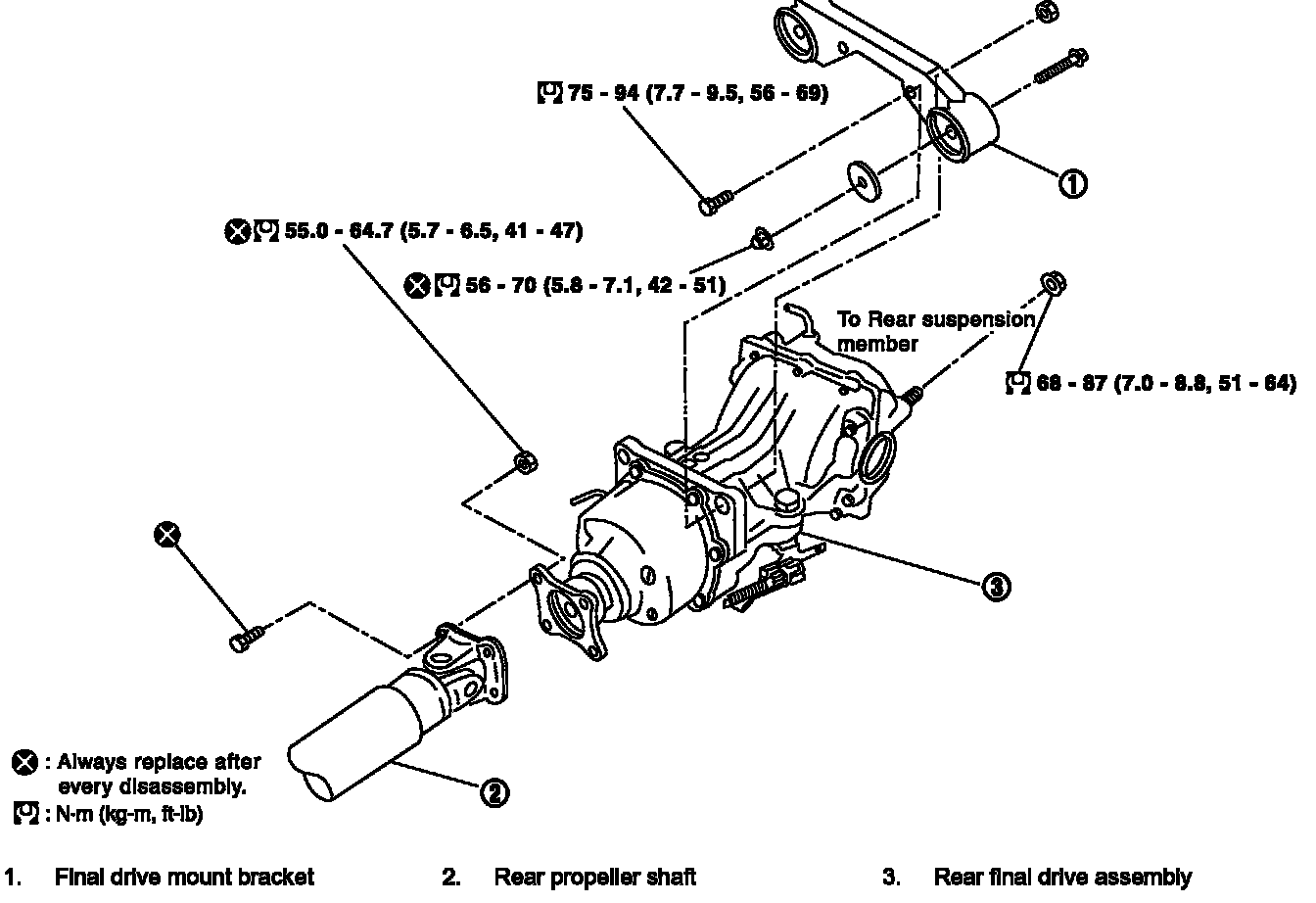

REAR FINAL DRIVE ASSEMBLY:
REAR FINAL DRIVE ASSEMBLY:
