Solar Sensor: Service and Repair

SUNLOAD SENSOR

Removal and Installation

REMOVAL

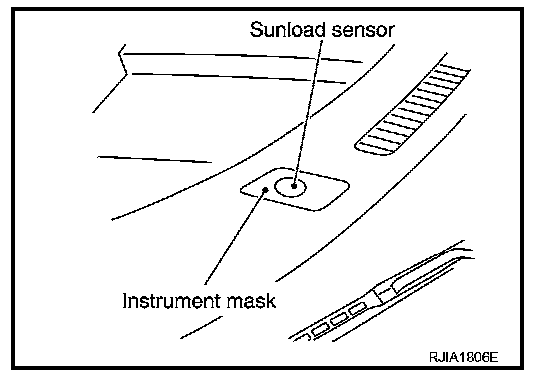

1. Remove instrument mask (right side).Refer to "Removal and Installation". Service and Repair

2. Disconnect sunload sensor connector, then remove sunload sensor.

INSTALLATION
Installation is basically the reverse order of removal.
