Power and Ground Distribution
>>
Power Distribution Module
>>
Locations
Power Distribution Module: Locations

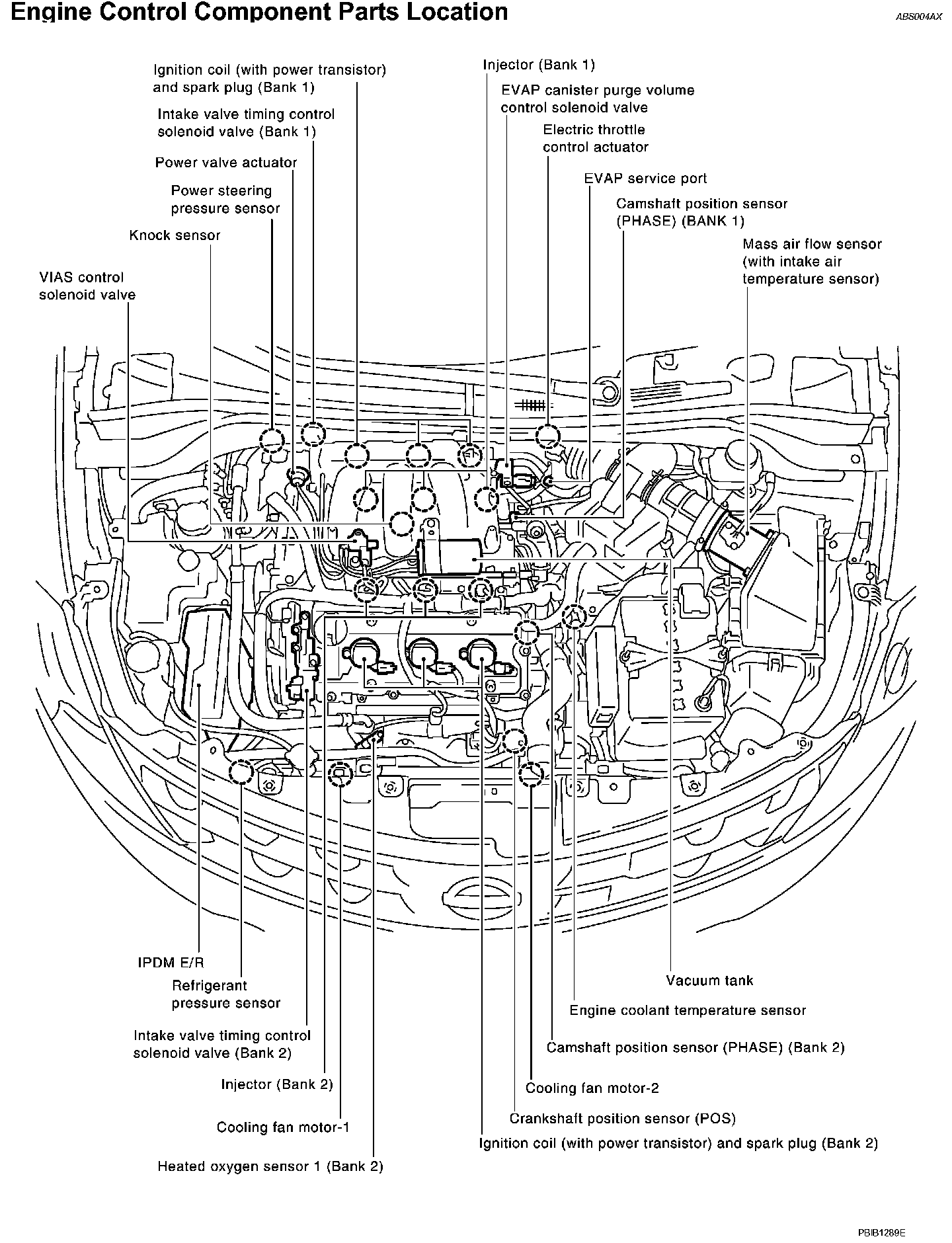

Engine Control Component Part Location:

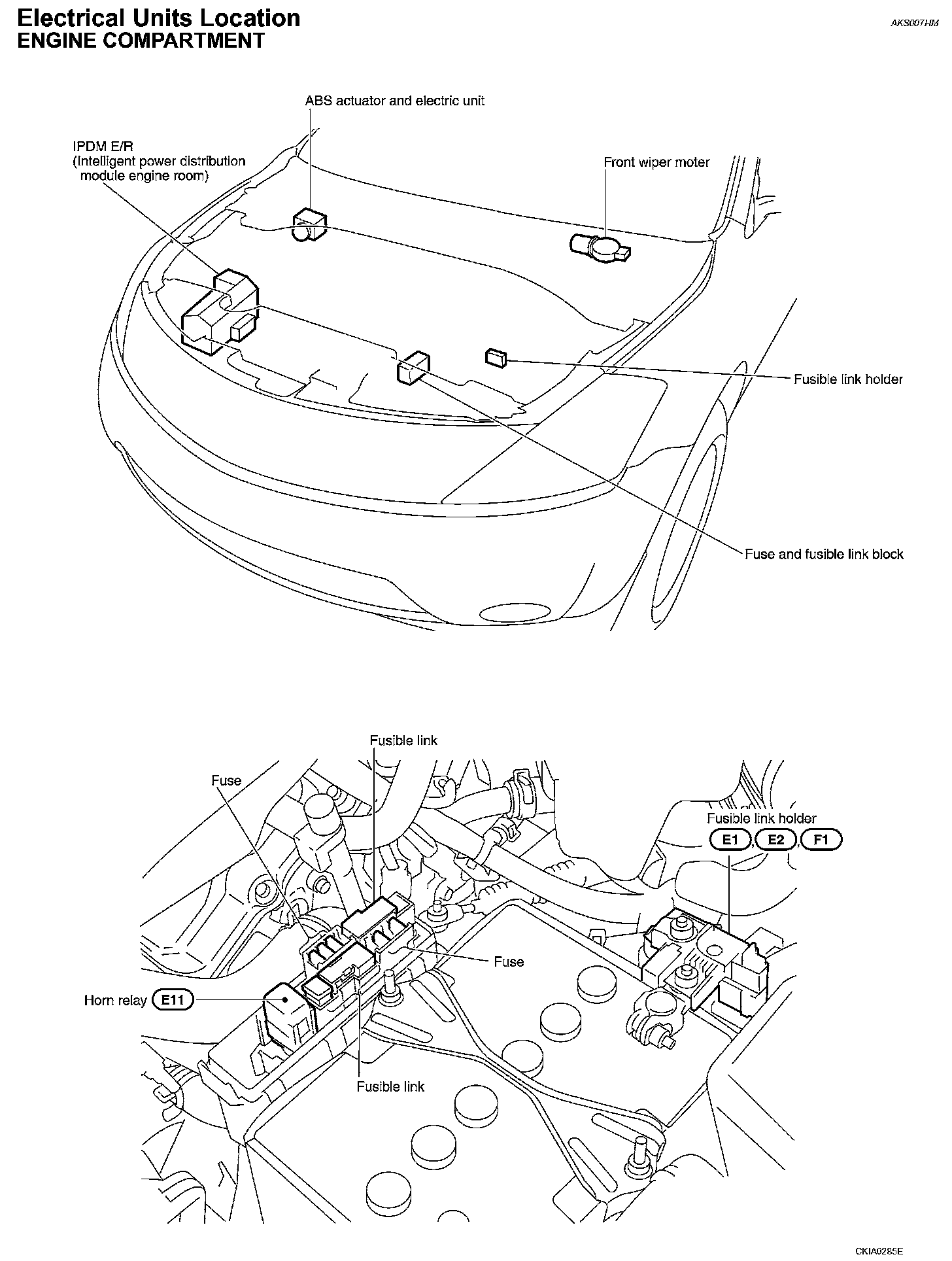

Electrical Units Location - Engine Compartment:
