Home >> Nissan-Datsun >> 2003 >> Murano AWD V6-3.5L (VQ35) >> Repair and Diagnosis >> Power and Ground Distribution >> Power Distribution Module >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Preliminary Check

Preliminary Check

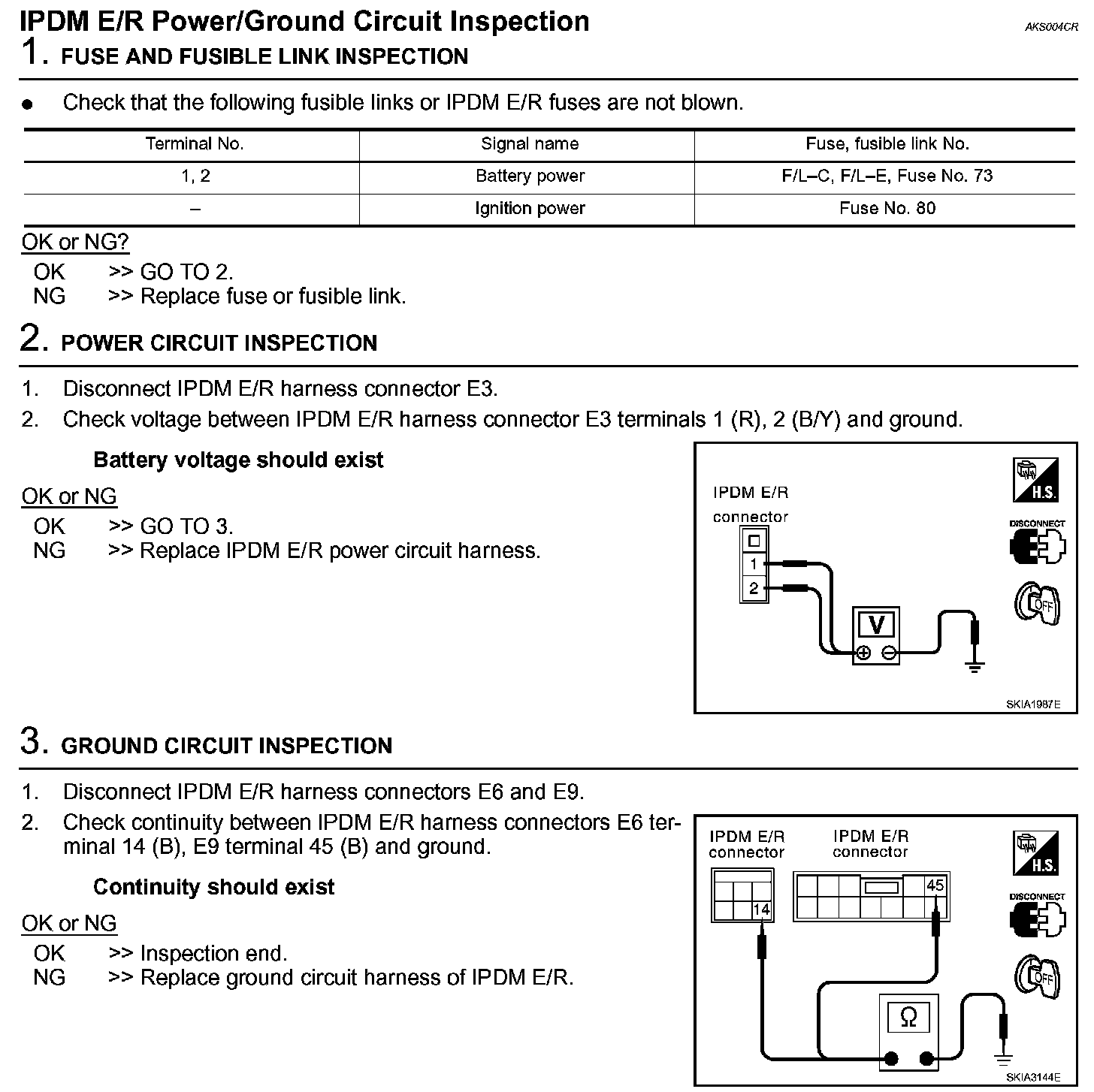

IPDM E/R Power/Ground Circuit Inspection (PG-45):
