Component Tests and General Diagnostics

POWER SUPPLY CIRCUIT FOR ECM


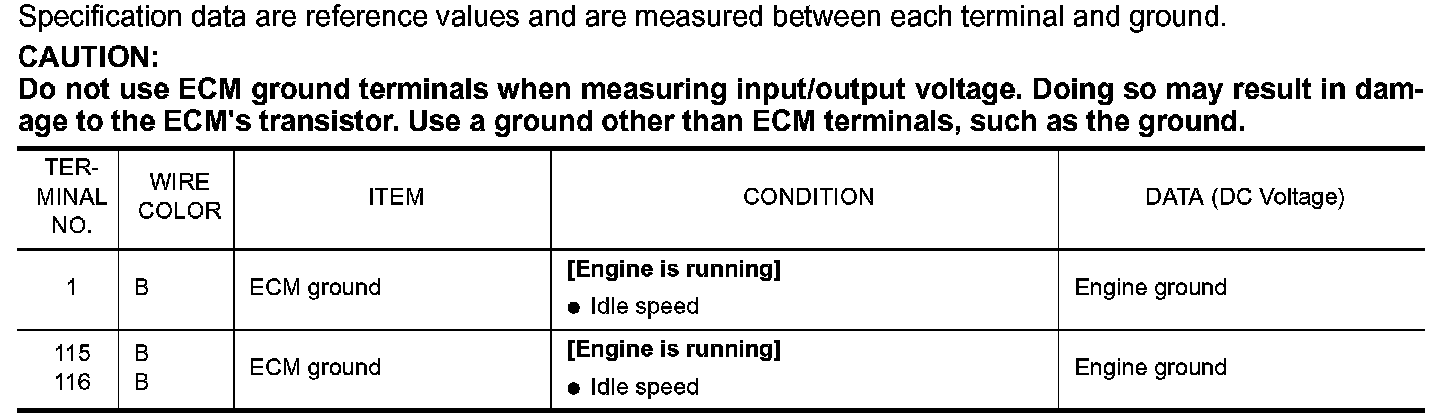

EC-MAIN-01:







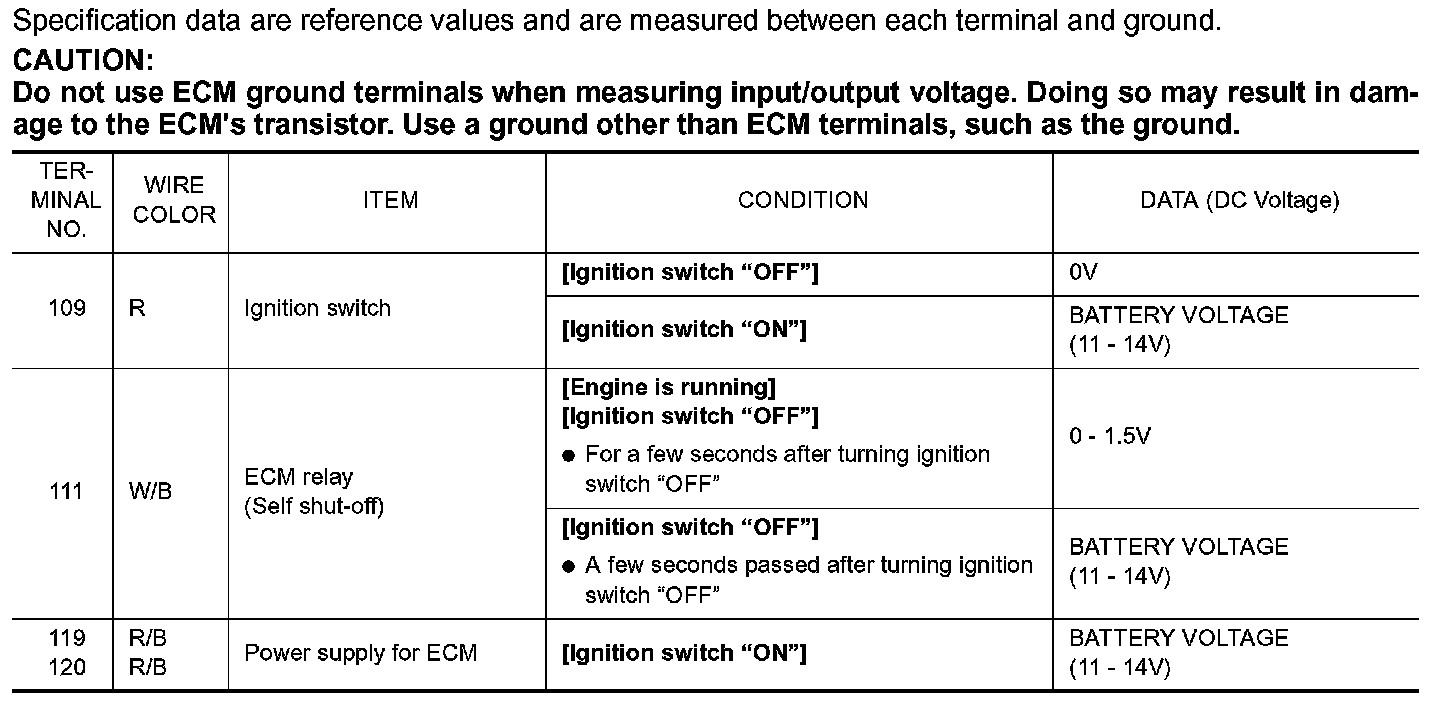

EC-MAIN-02:

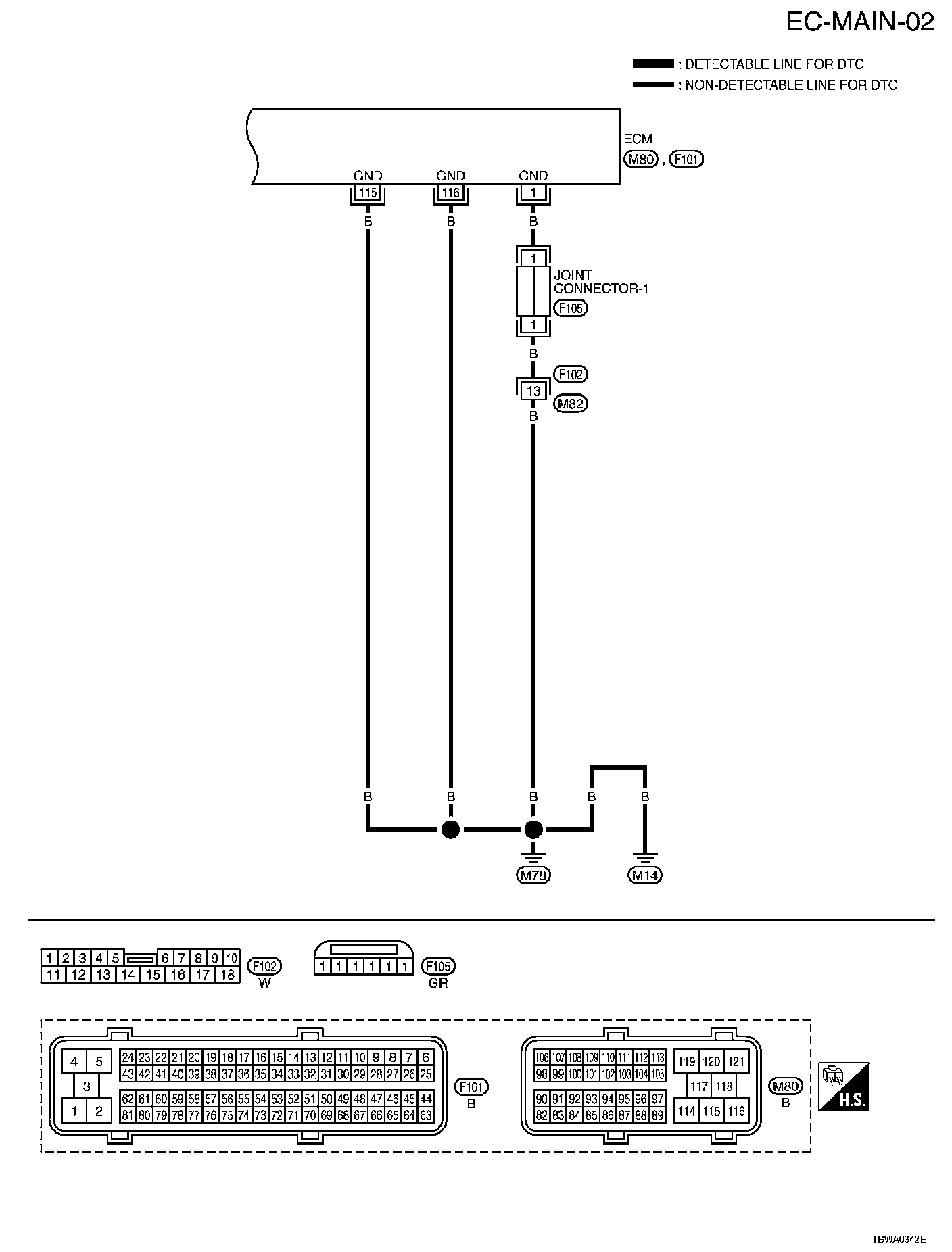

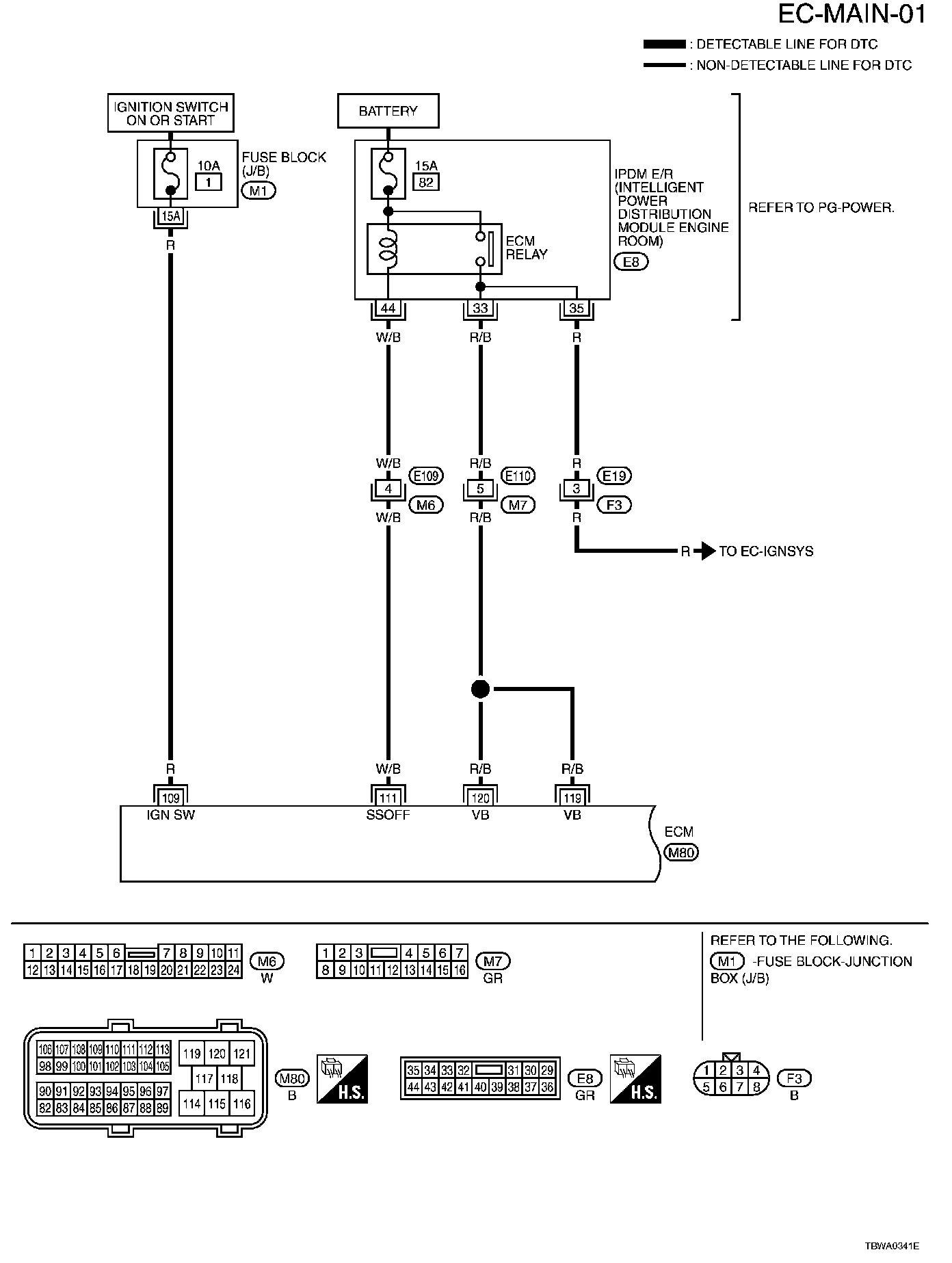

Wiring Diagram

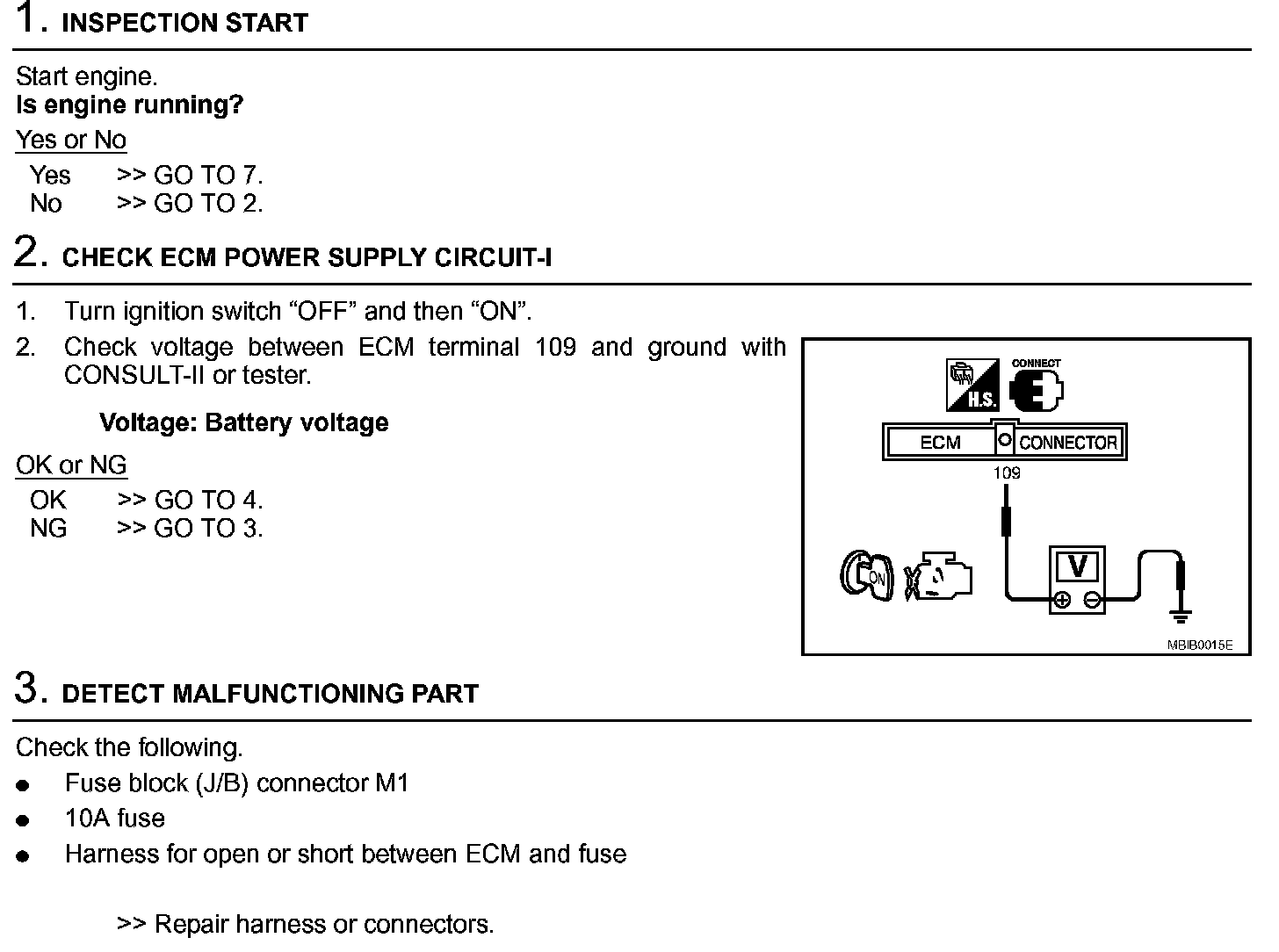

Diagnostic Procedure Step 1 - 3:

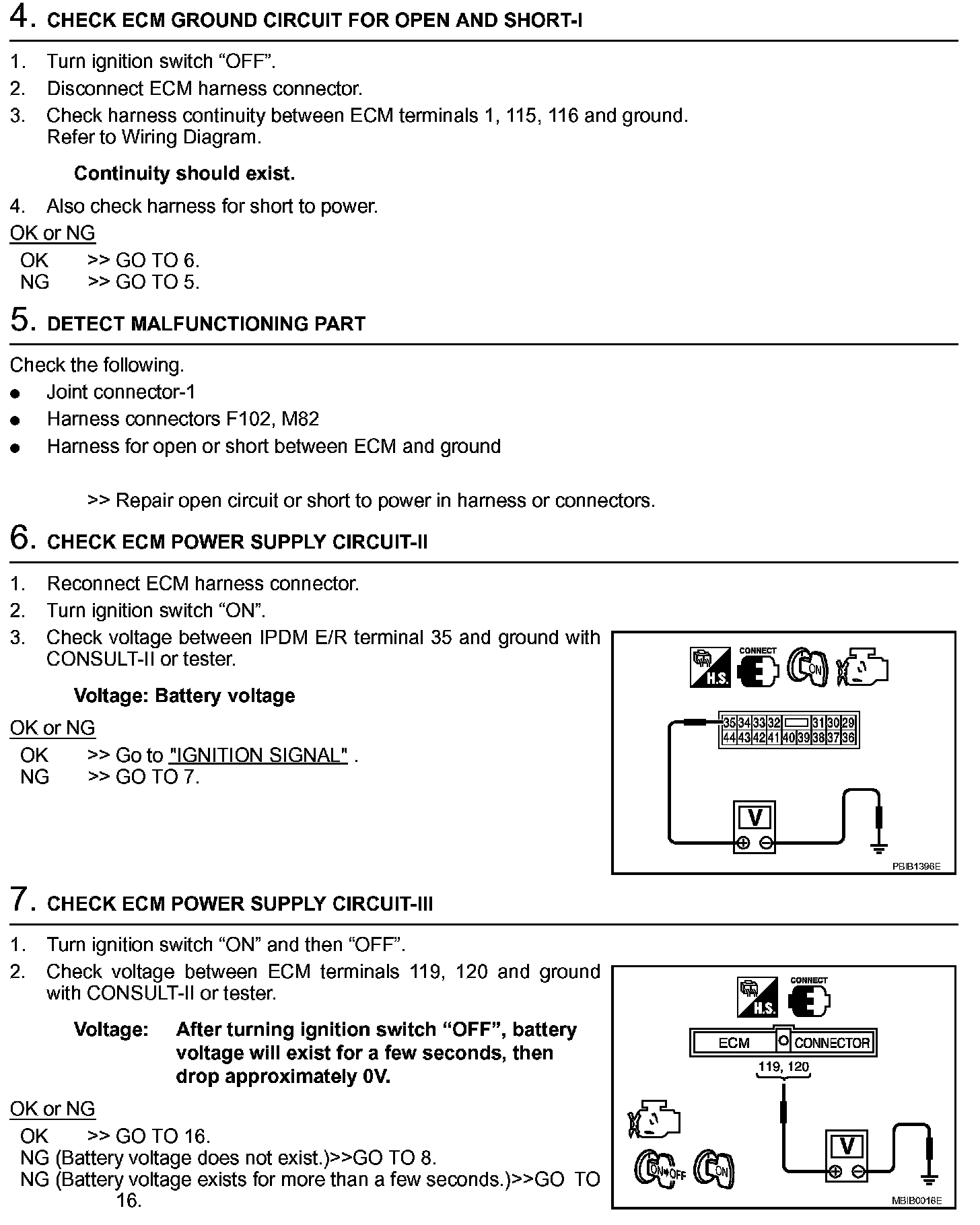

Diagnostic Procedure Step 4 - 7:

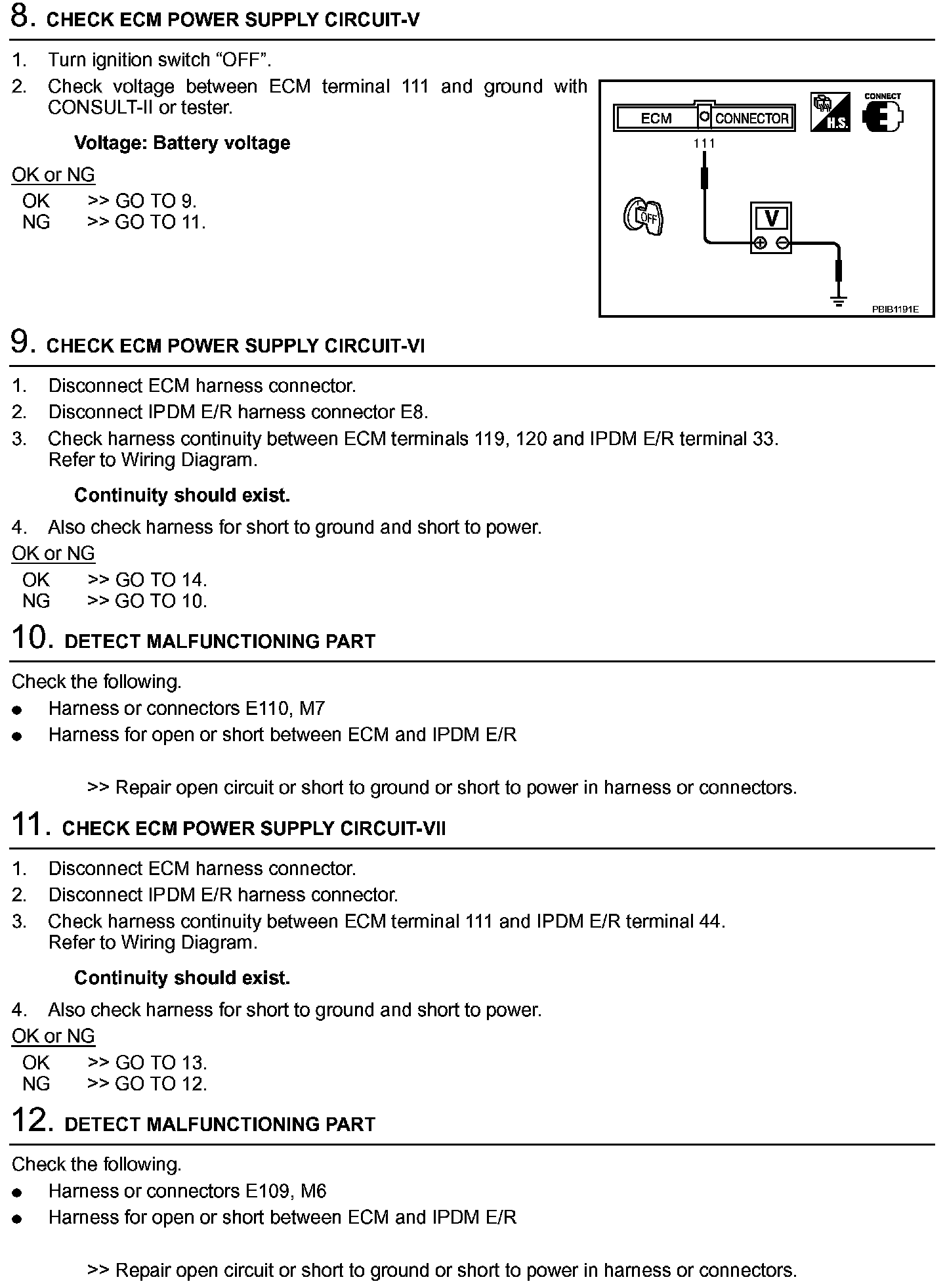

Diagnostic Procedure Step 8 - 12:

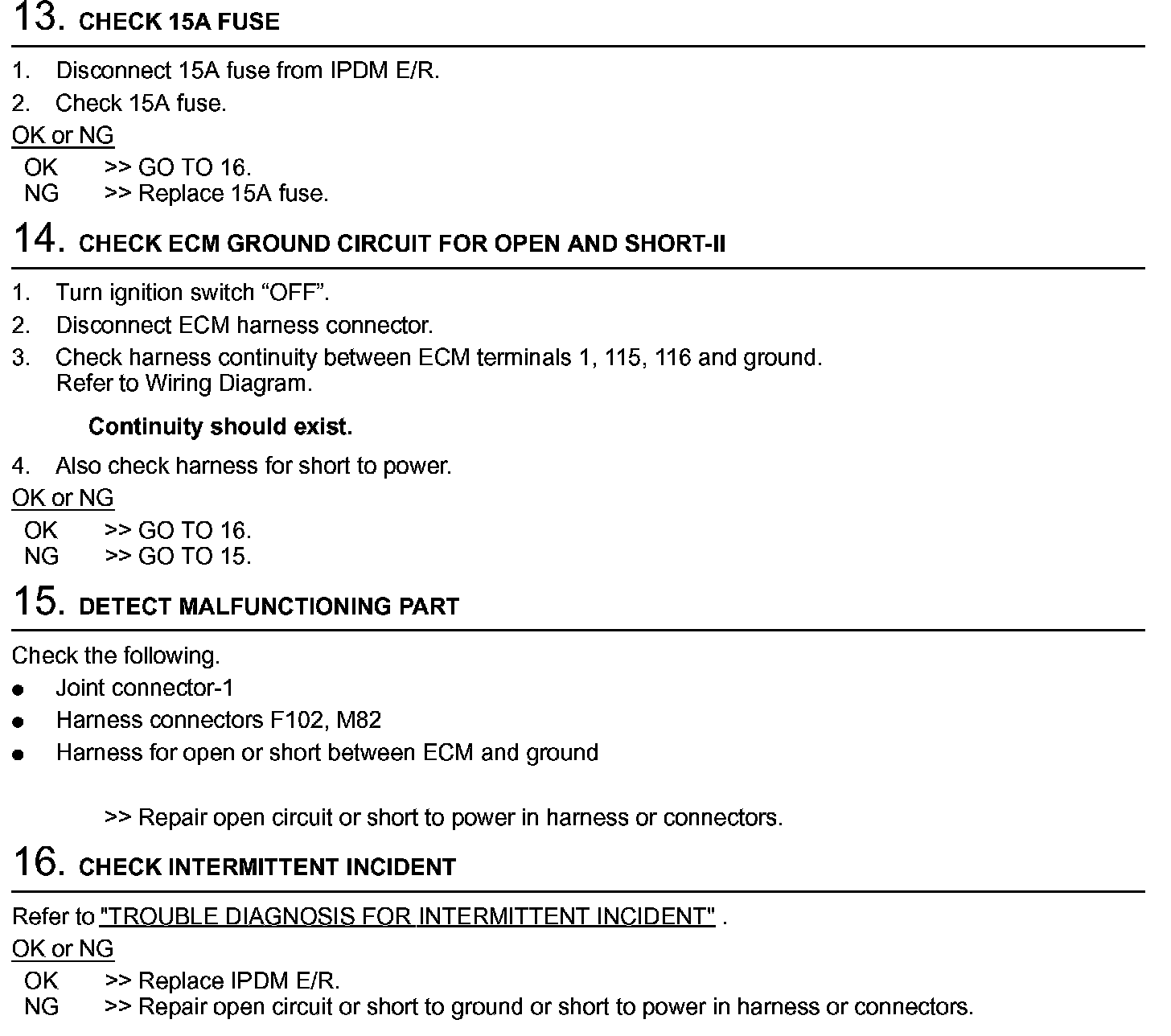

Diagnostic Procedure Step 13 - 16:




Diagnostic Procedure
