General Specifications

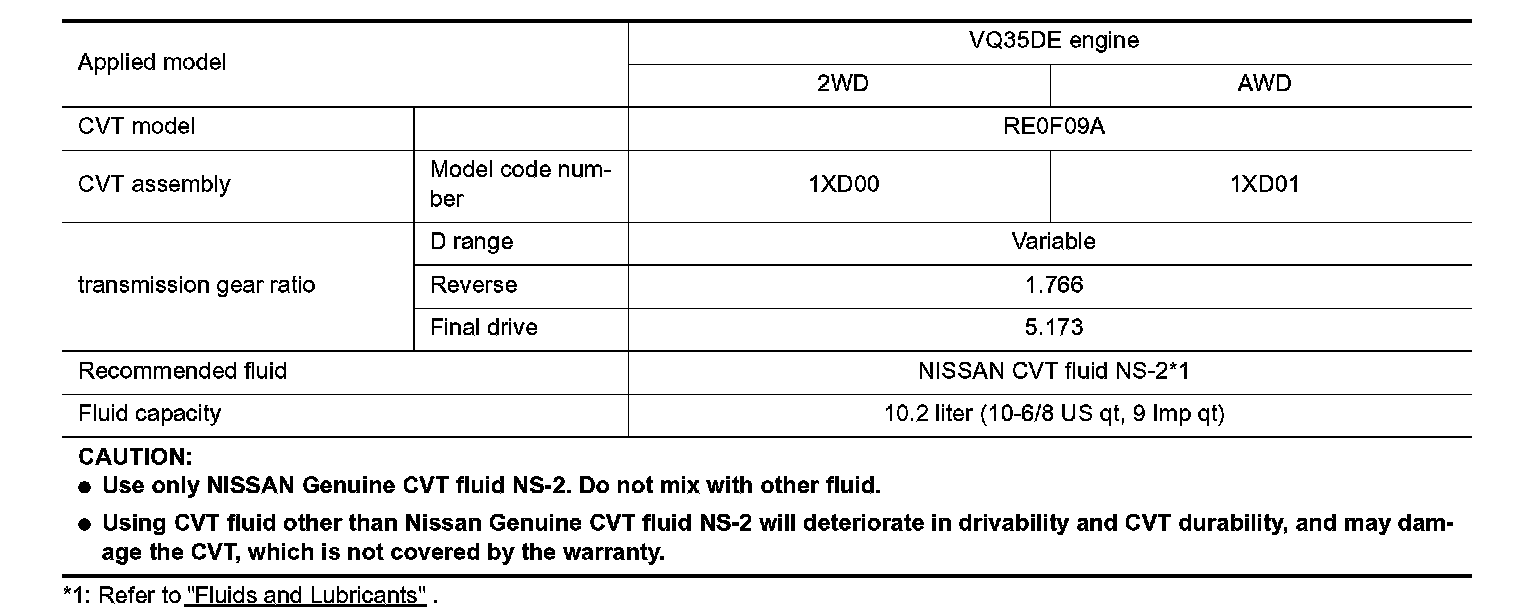

General Specifications





Stall Speed

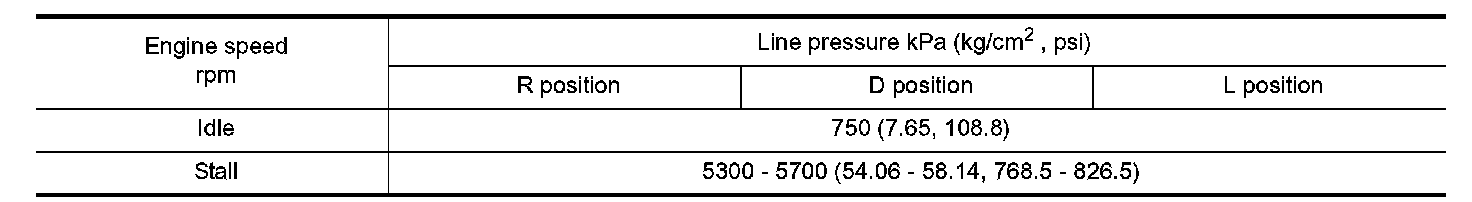

Line Pressure





Solenoid Valves

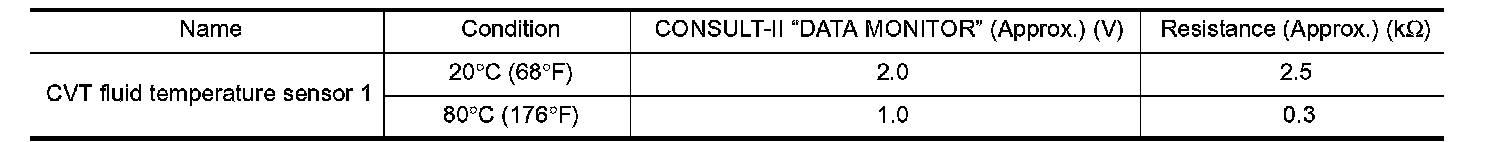

CVT fluid temperature sensor

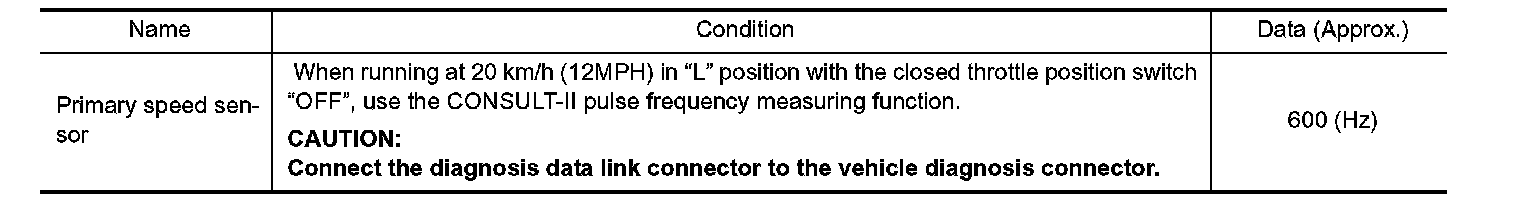

Primary Speed Sensor

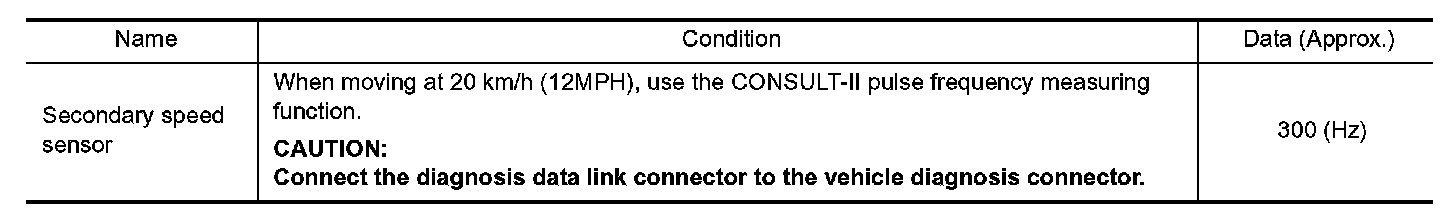

Secondary Speed Sensor

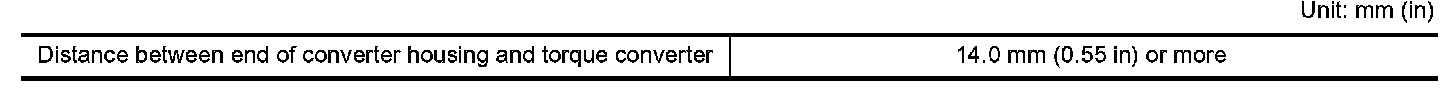

Removal and Installation
