Intake Manifold

INTAKE MANIFOLD COLLECTOR AND INTAKE MANIFOLD
Surface distortion
Intake manifold collector upper 0.1 mm (0.004 inch)
Intake manifold collector lower 0.1 mm (0.004 inch)
Intake manifold 0.1 mm (0.004 inch)

Tightening torque





Intake manifold
1) 24.9 - 9.8 Nm (0.50 - 1.0 kgf-cm, 4 - 7 ft. lbs.)
2) 26.5 - 31.4 Nm (2.7 - 3.2 kgf-cm, 20 - 23 ft. lbs.)

Intake Manifold Collector

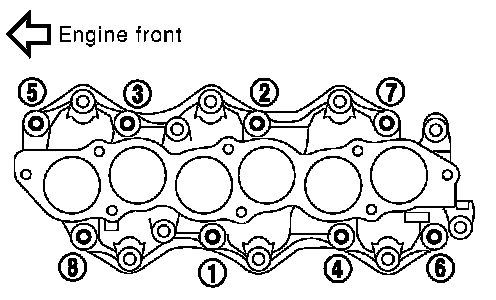

Intake Manifold Upper Collector / Torque Sequence:

Intake manifold collector (upper) 17.6 - 21.6 Nm (1.8 - 2.2 kgf-cm, 13 - 15 ft. lbs.)

Intake Manifold Lower Collector / Torque Sequence:

Intake manifold collector (lower) 17.6 - 21.6 Nm (1.8 - 2.2 kgf-cm, 13 - 15 ft. lbs.)
