Power Distribution Module: Service and Repair

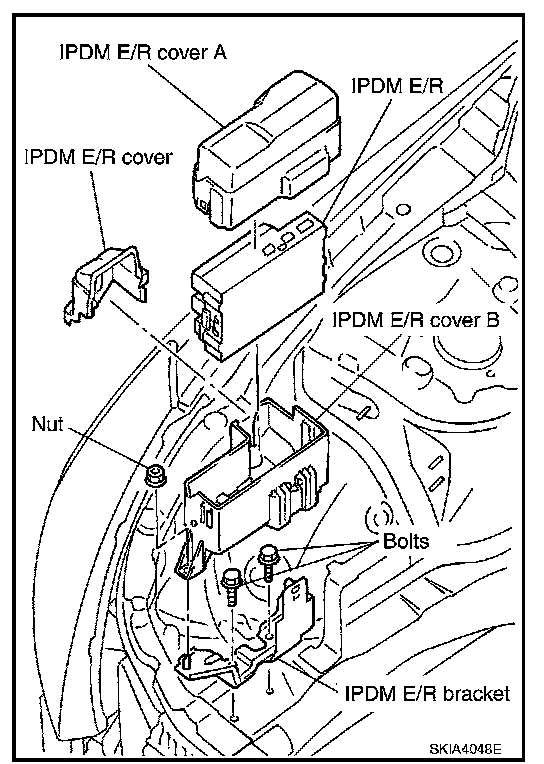

Removal and Installation of IPDM E/R

REMOVAL




1. Remove IPDM E/R cover A and IPDM E/R cover.
2. While spreading pawls on both side of IPDM E/R cover B, remove IPDM E/R from IPDM E/R cover B.
3. Remove harness connector from IPDM E/R.

INSTALLATION
Install in the revers order of removal.
