Engine Control Component Parts/Control Systems Application

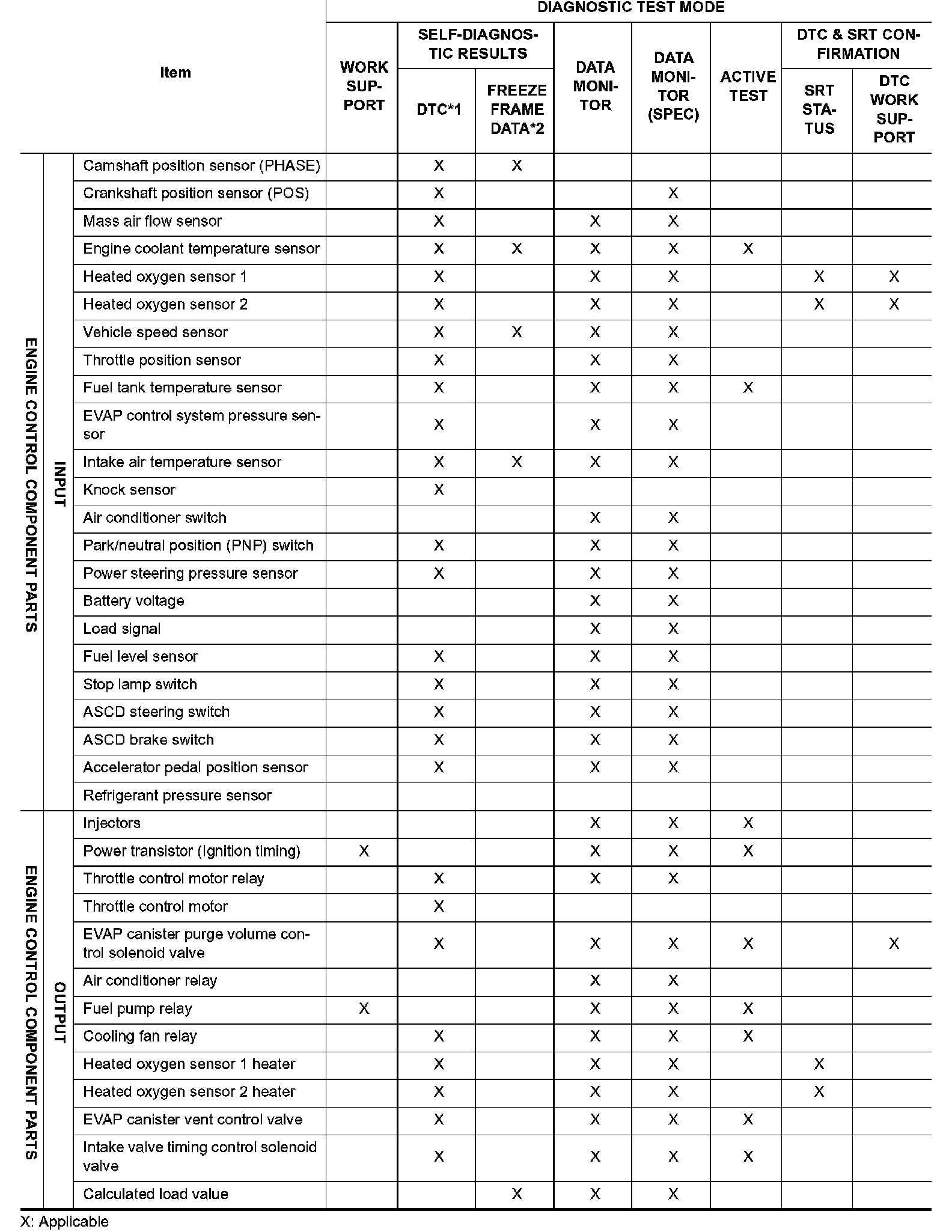

Engine Control Component Parts/Control Systems Application:
*1:
This item includes 1st trip DTCs.
*2:
This mode includes 1st trip freeze frame data or freeze frame data. The items appear on CONSULT-II screen in freeze frame data mode only if a 1st trip DTC or DTC is detected. For details, refer to "FREEZE FRAME DATA AND 1ST TRIP FREEZE FRAME DATA".
