Sensor Reference Graphs In Data Monitor Mode

The following are the major sensor reference graphs in "DATA MONITOR" mode.

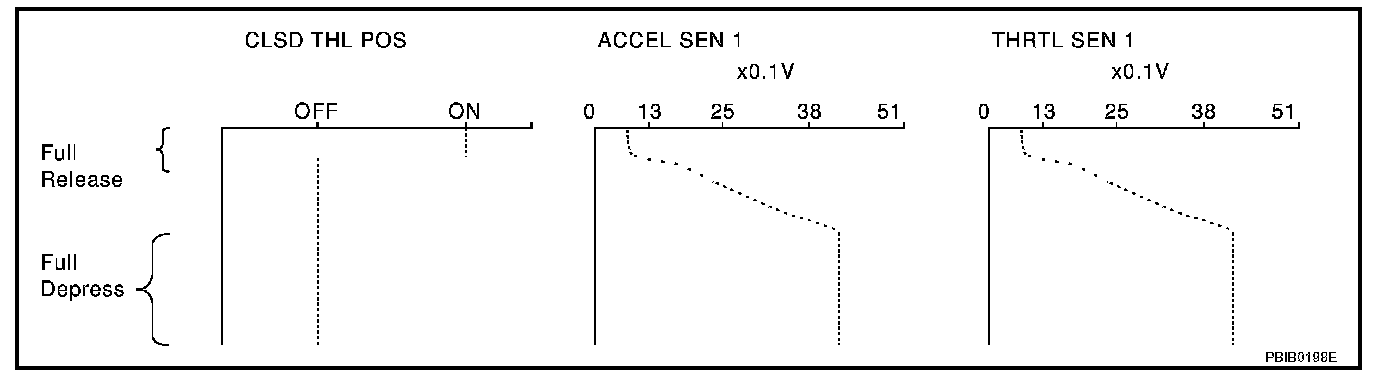

CLSD THL POS, ACCEL SEN1, THRTL SEN1
Below is the data for "CLSD THL POS", "ACCEL SEN1", and "THRTL SEN1" when depressing the accelerator pedal with the ignition switch "ON" and with selector lever in "D" position (A/T models) or with shift lever in "1st" position (M/T models).

The signal of "ACCEL SEN1" and "THRTL SEN1" should rise gradually without any intermittent drop or rise after "CLSD THL/P SW" is changed from "ON" to "OFF".

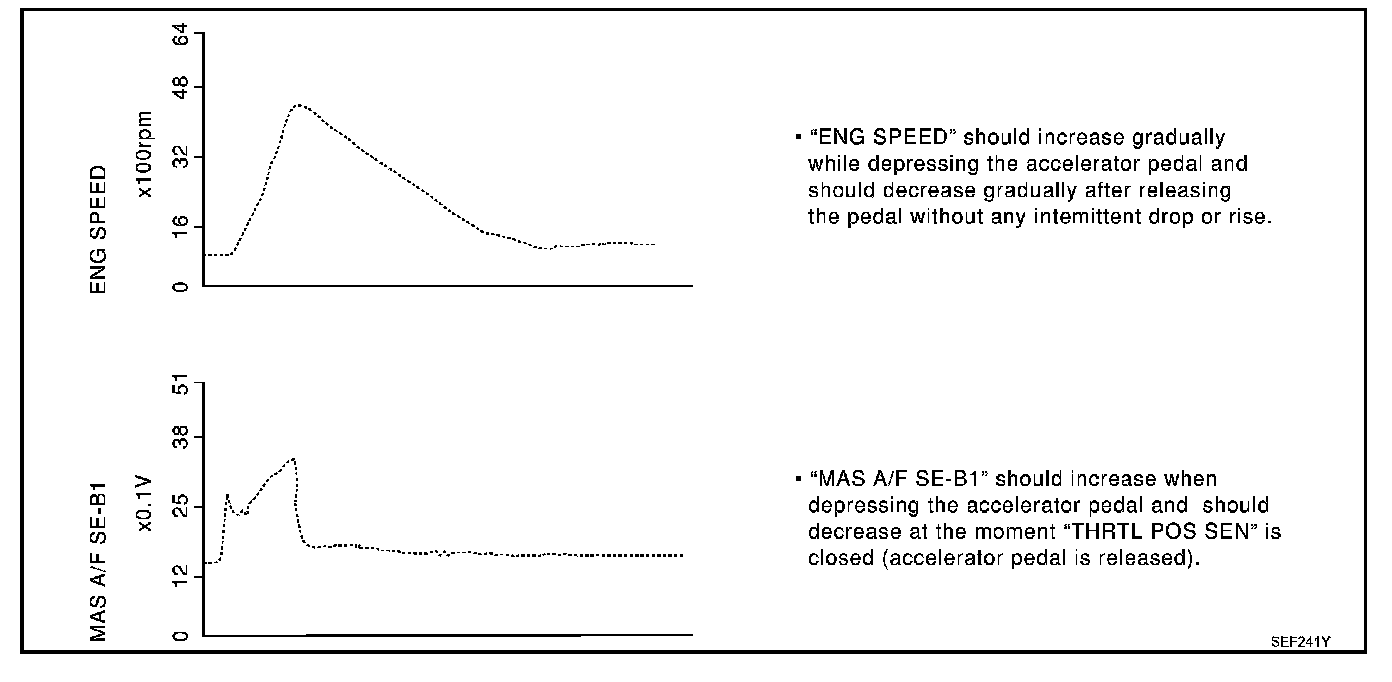

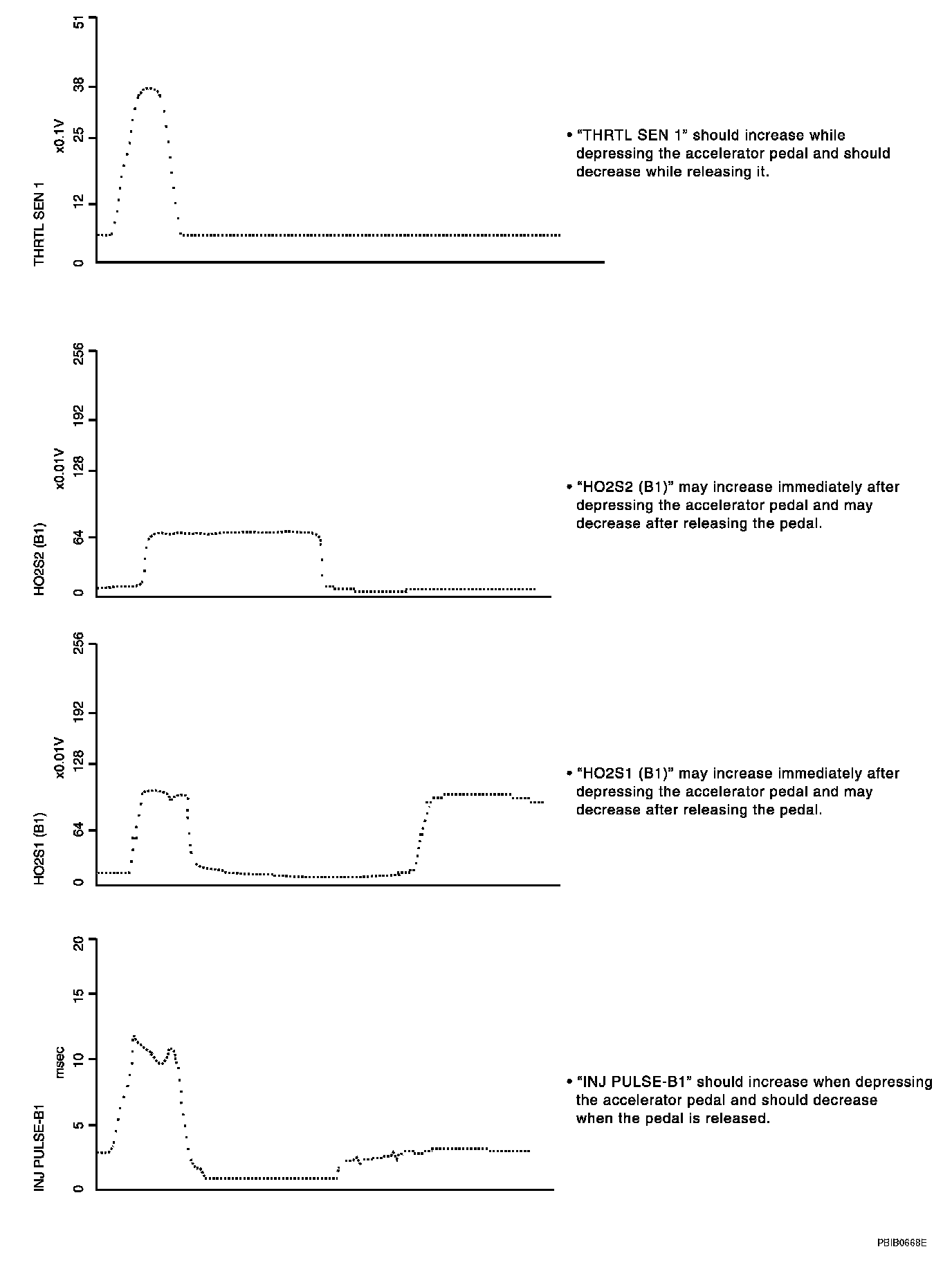

ENG SPEED, MAS A/F SE-B1, THRTL POS SEN, HO2S2 (B1), HO2S1 (B1), INJ PULSE-B1
Below is the data for "ENG SPEED", "MAS A/F SE-B1", "THRTL SEN1", "HO2S2 (B1)", "HO2S1 (B1)" and "INJ PULSE-B1" when revving engine quickly up to 4,800 rpm under no load after warming up engine to normal operating temperature.

Each value is for reference, the exact value may vary.
