Pinout Values and Diagnostic Parameters

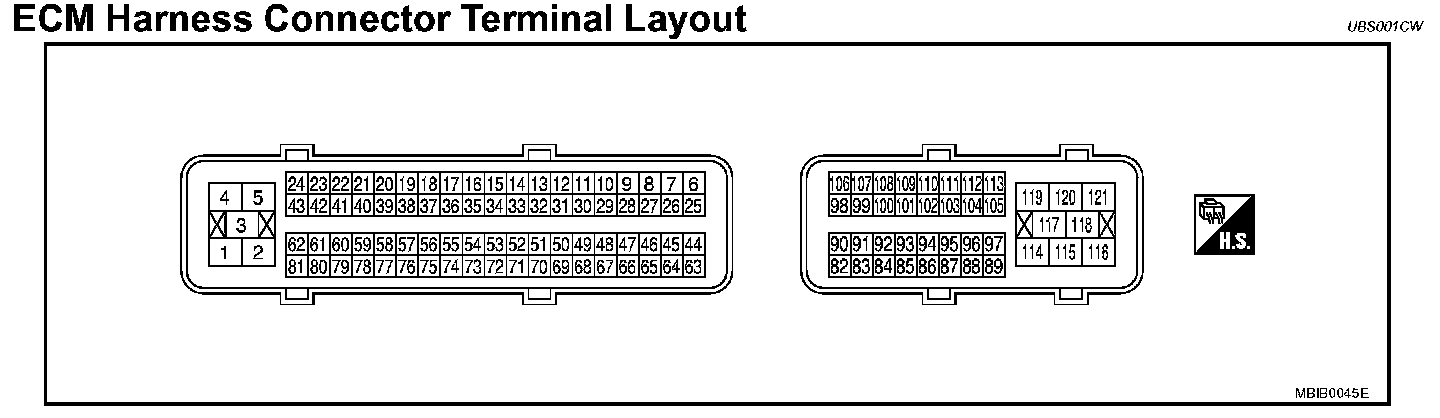

ECM Harness Connector Terminal Layout:




ECM Harness Connector Terminal Layout

ECM Terminals and Reference Value

PREPARATION

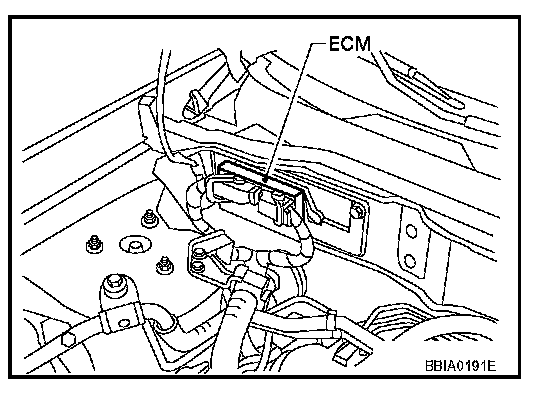

1. ECM is located in the right side of the cowl top (behind the strut tower).
2. Remove ECM harness connector.

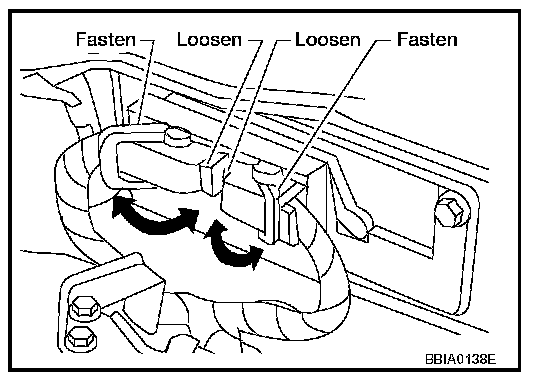

3. When disconnecting ECM harness connector, loosen it with levers as far as they will go as shown at right.
4. Connect a bread-out box (SST) and Y-cable adapter (SST) between the ECM and ECM harness connector.
- Use extreme care not to touch 2 pins at one time.
- Data is for comparison and may not be exact.

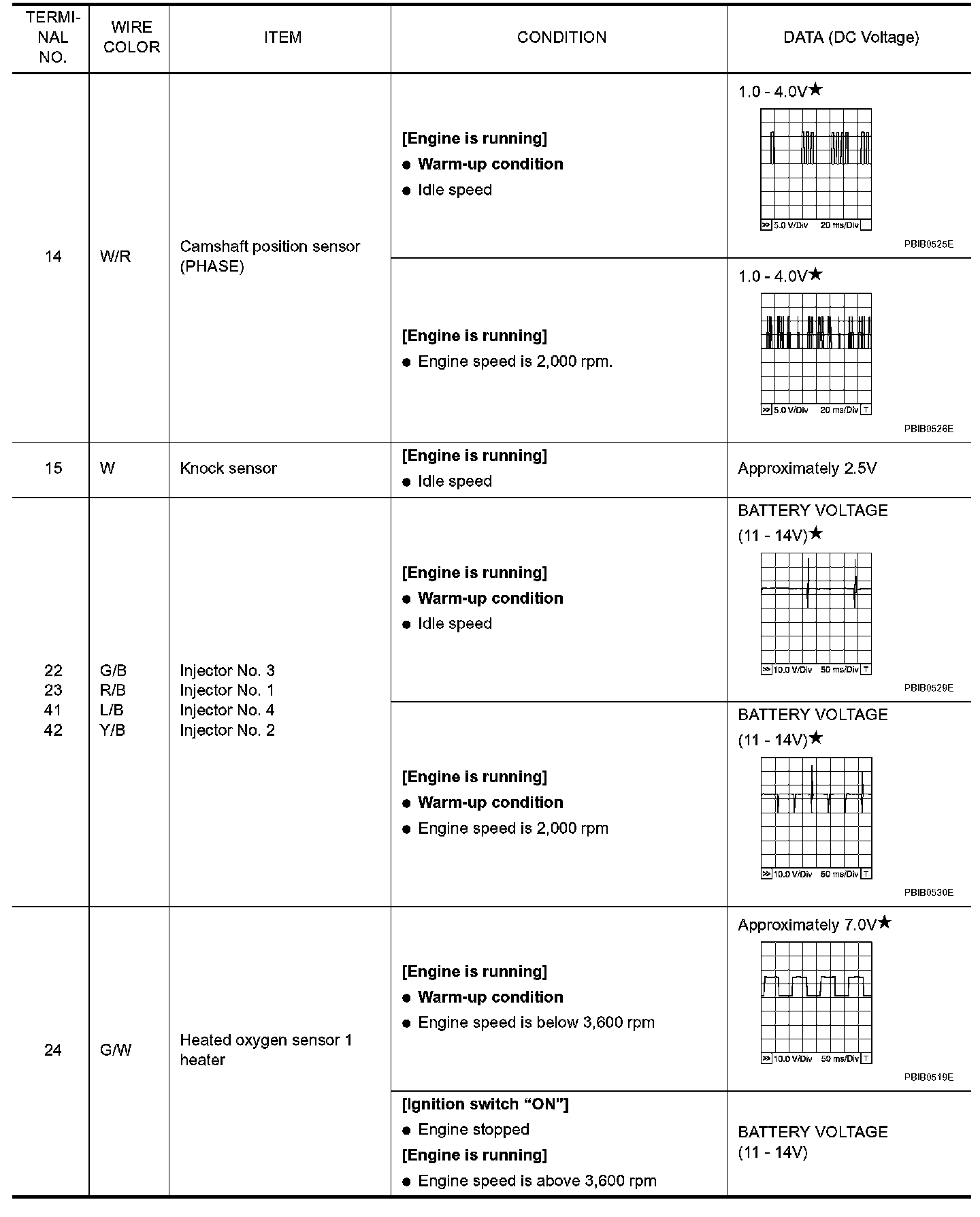

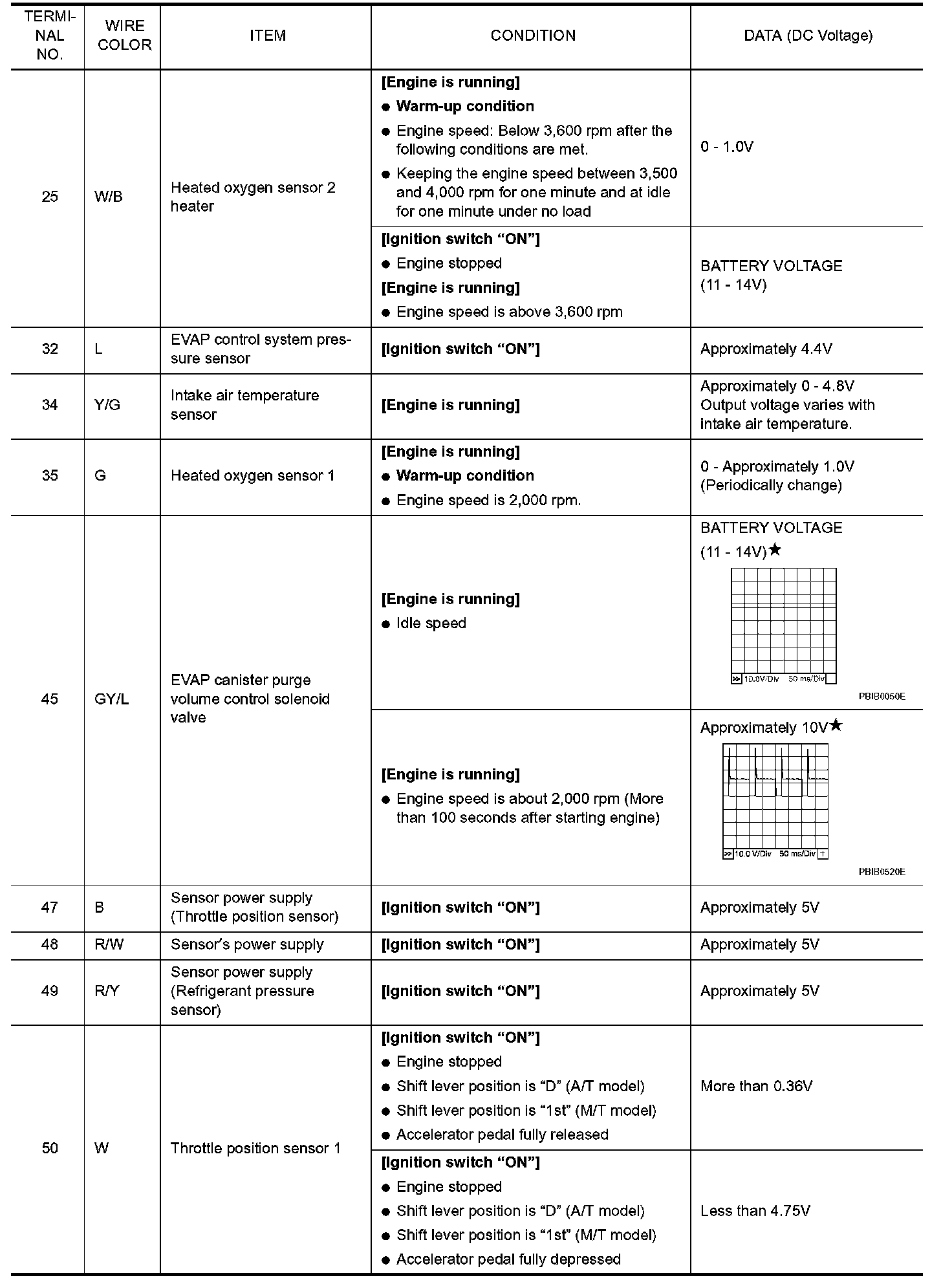

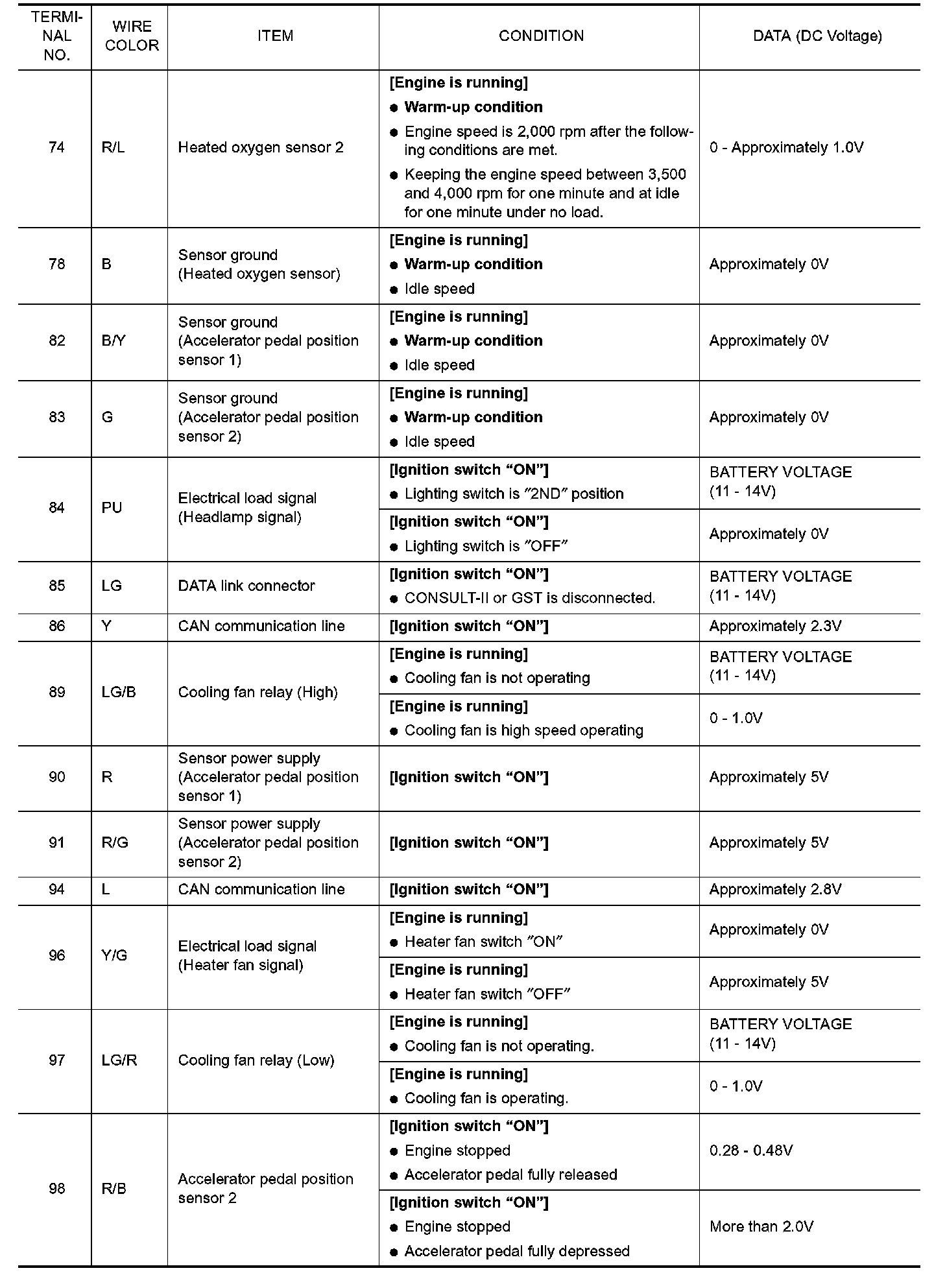

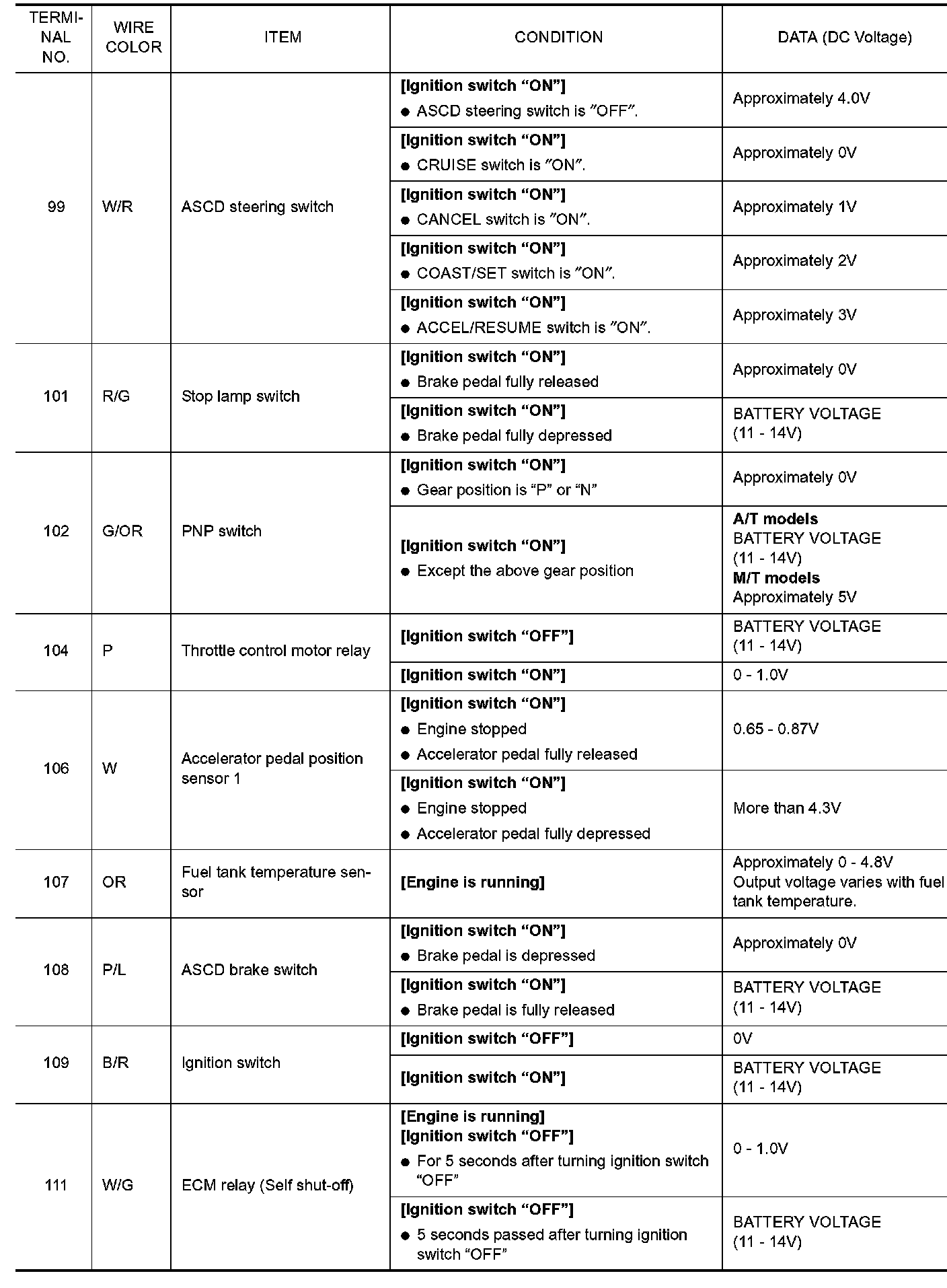

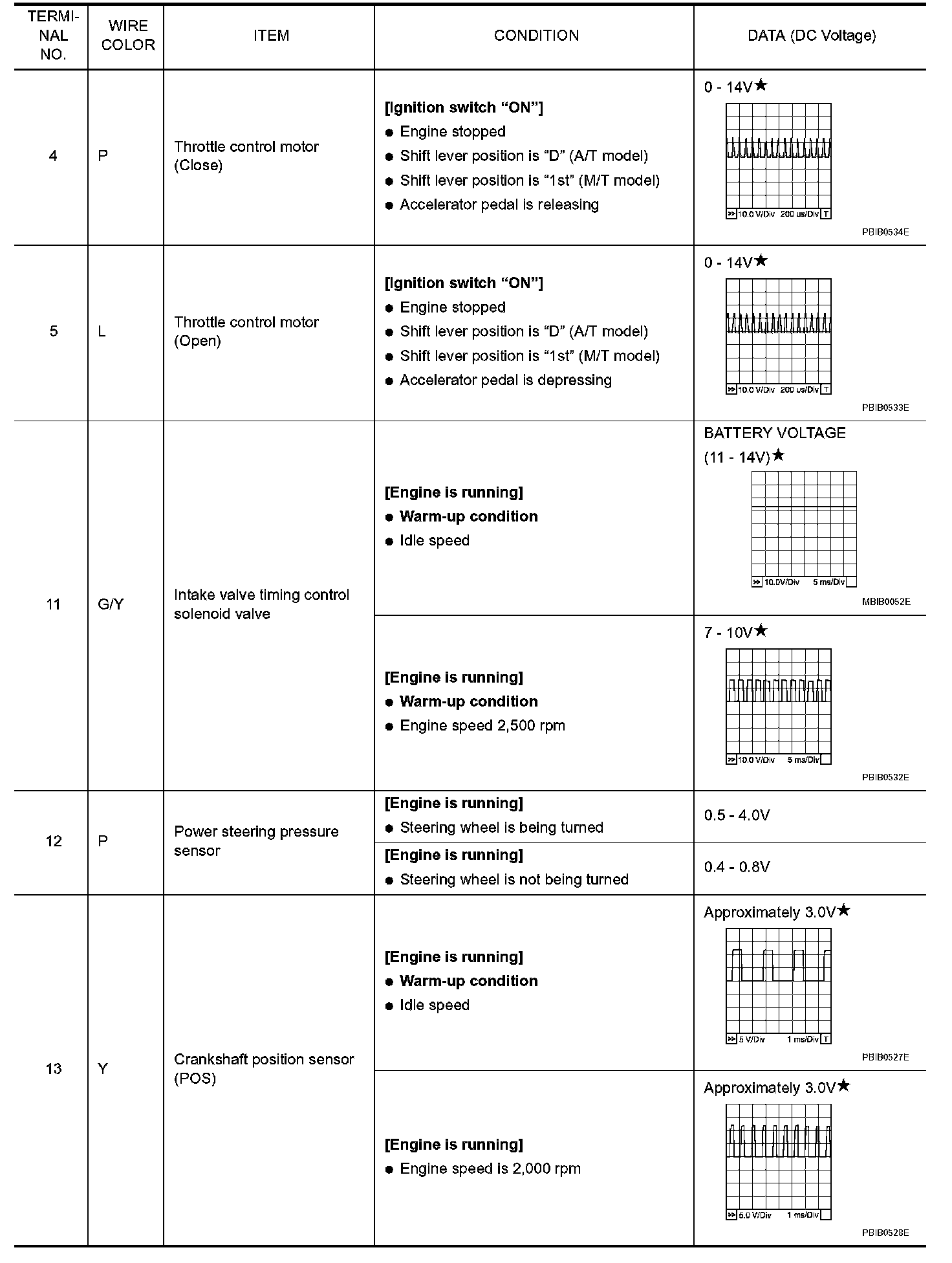

ECM Harness Connector Terminal Layout Part 1:




ECM Harness Connector Terminal Layout Part 2:




ECM Harness Connector Terminal Layout Part 3:




ECM Harness Connector Terminal Layout Part 4:




ECM Harness Connector Terminal Layout Part 5:




ECM Harness Connector Terminal Layout Part 6:




ECM Harness Connector Terminal Layout Part 7:




ECM Harness Connector Terminal Layout Part 8:

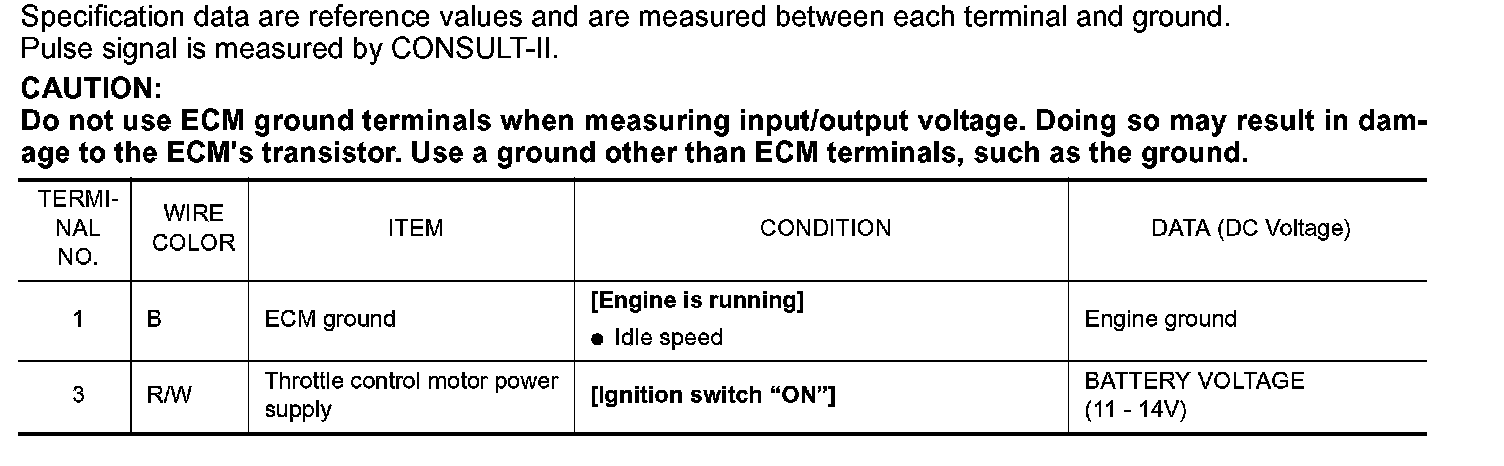

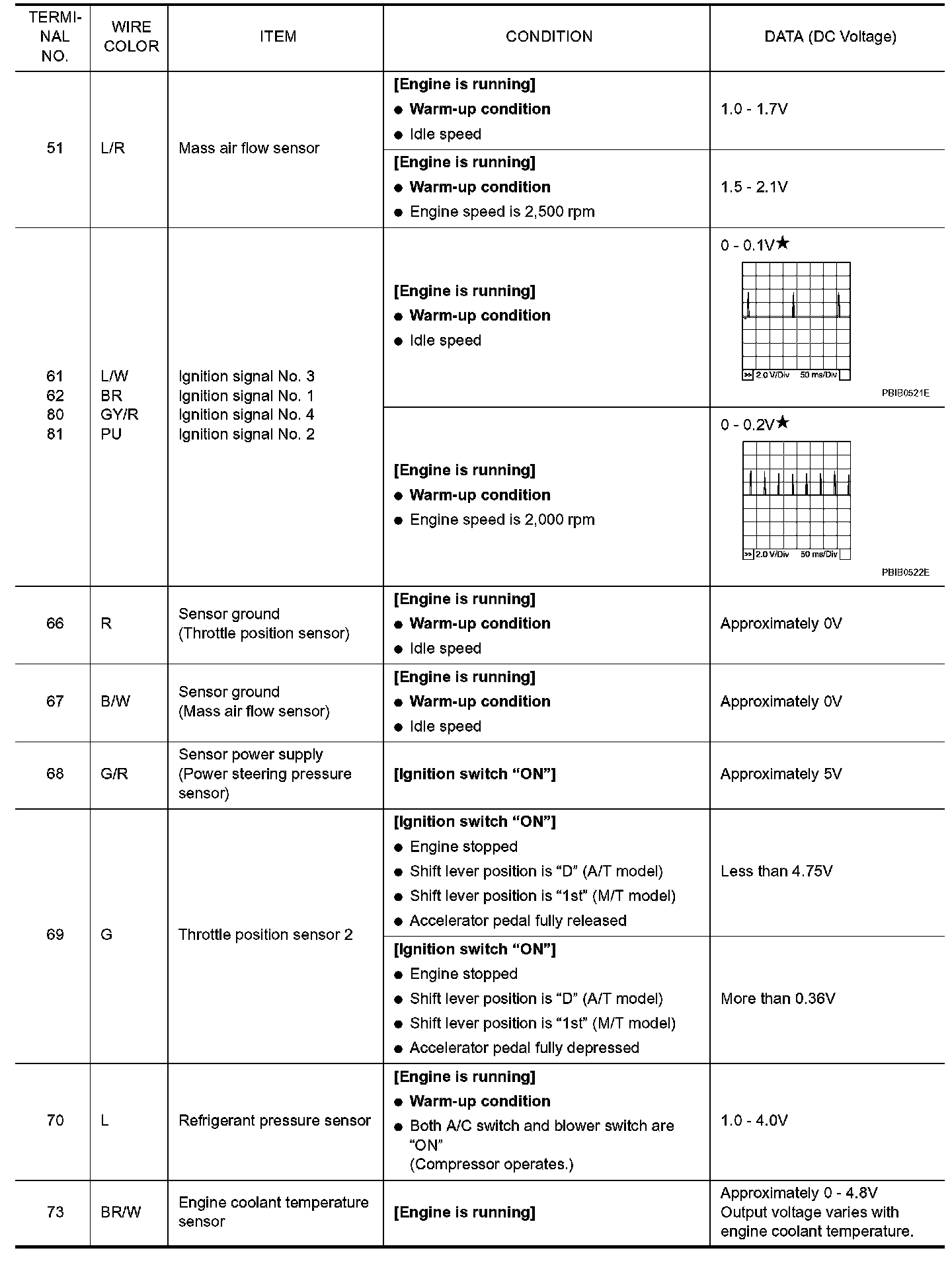

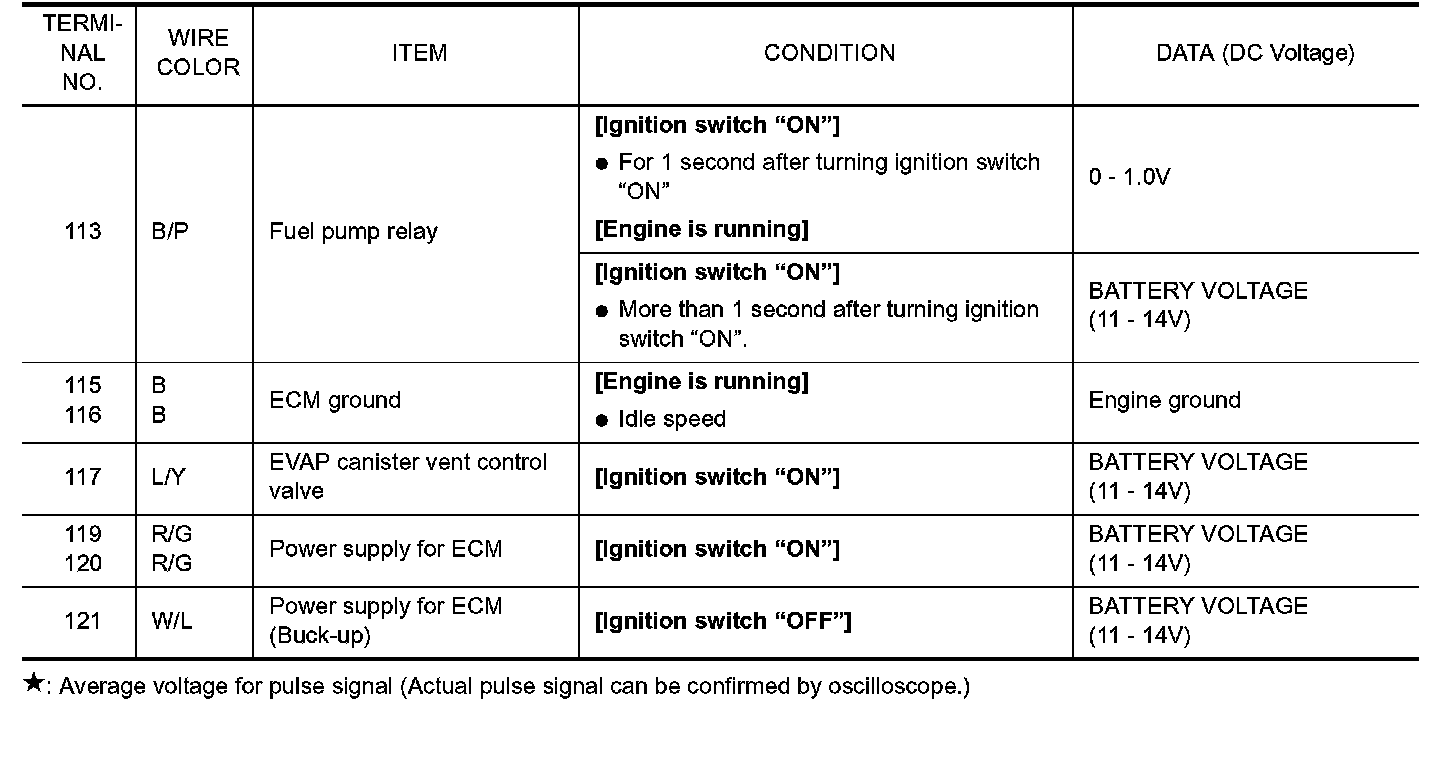

ECM Inspection Table
