Reading and Clearing Diagnostic Trouble Codes

Smart Entrance
1. Turn the ignition switch "OFF".

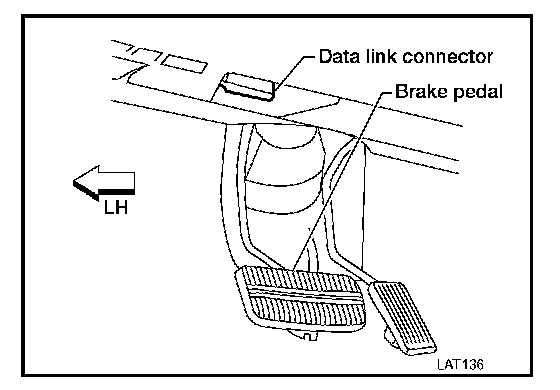

2. Connect "CONSULT-II" to the data link connector.

3. Turn ignition switch "ON".

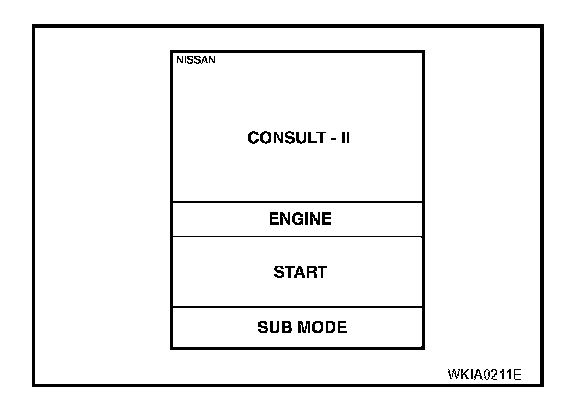

4. Touch "START".

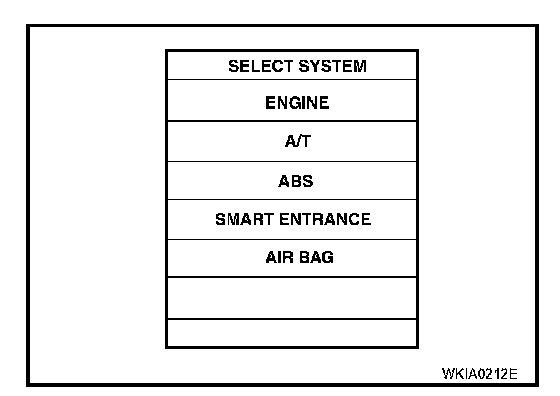

5. Touch "SMART ENTRANCE".

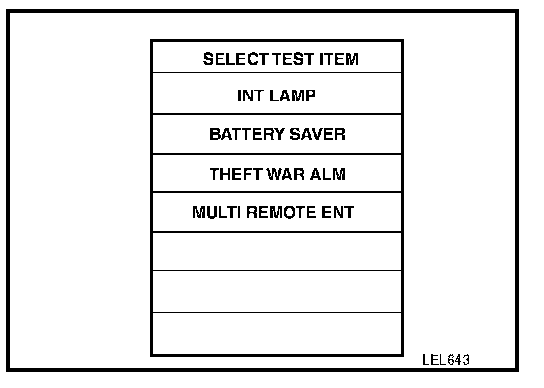

6. Perform each diagnostic item according to "DIAGNOSTIC ITEMS APPLICATION".

For additional information regarding this component, please refer to Audible Warning Device, Testing and Inspection. Testing and Inspection
