Vehicle Speed Sensor: Testing and Inspection

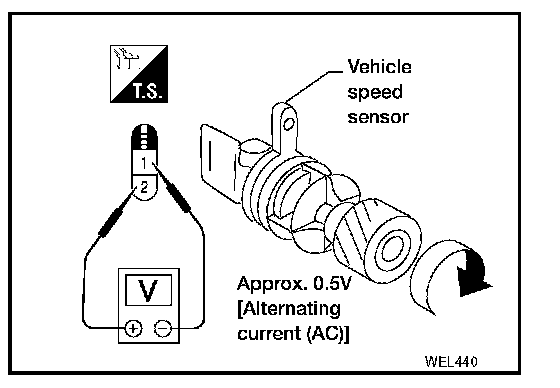

1. Remove vehicle speed sensor from transmission.

2. Turn vehicle speed sensor pinion quickly and measure voltage across terminals 1 and 2 (with QG18DE), or terminals + and - (with QR25DE).
