Ignition Timing: Testing and Inspection
BASIC SERVICE PROCEDUREIGNITION TIMING
Any of given two methods may be used.
Method A
1. Slide the harness protector of ignition coil No.1 to clear the wires.
2. Attach timing light to the wires as shown in the figure.

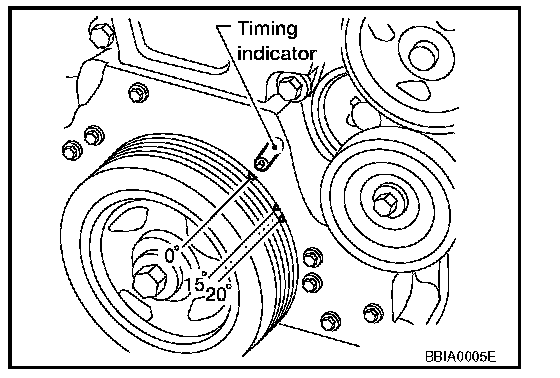

3. Check ignition timing.
Method B

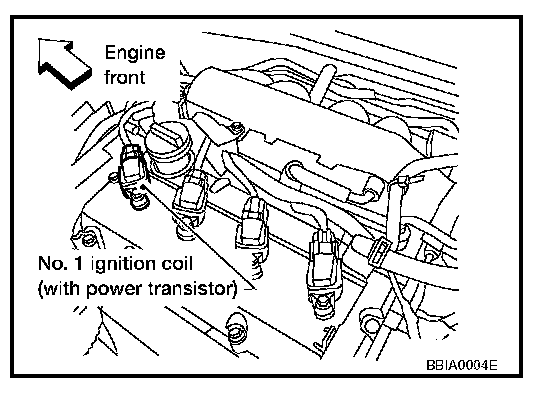

1. Remove No.1 ignition coil.

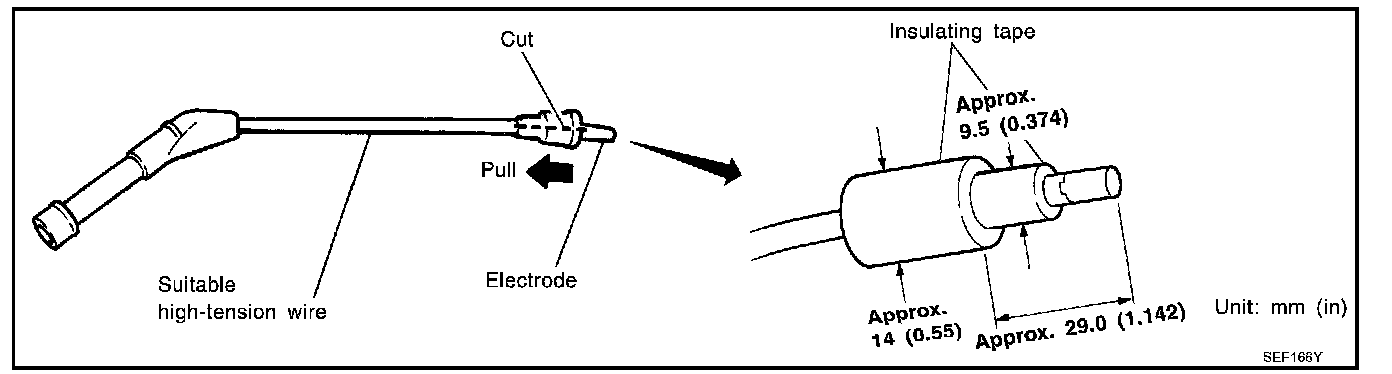

2. Connect No. 1 ignition coil and No. 1 spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.
3. Check ignition timing.
