General Specifications

CYLINDER HEAD - General Specs

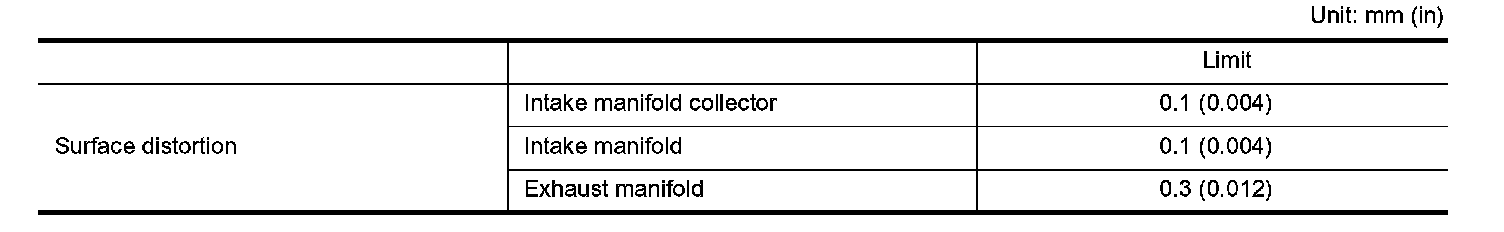

INTAKE MANIFOLD AND EXHAUST MANIFOLD DISTORTION - 2.5L (QG25DE):

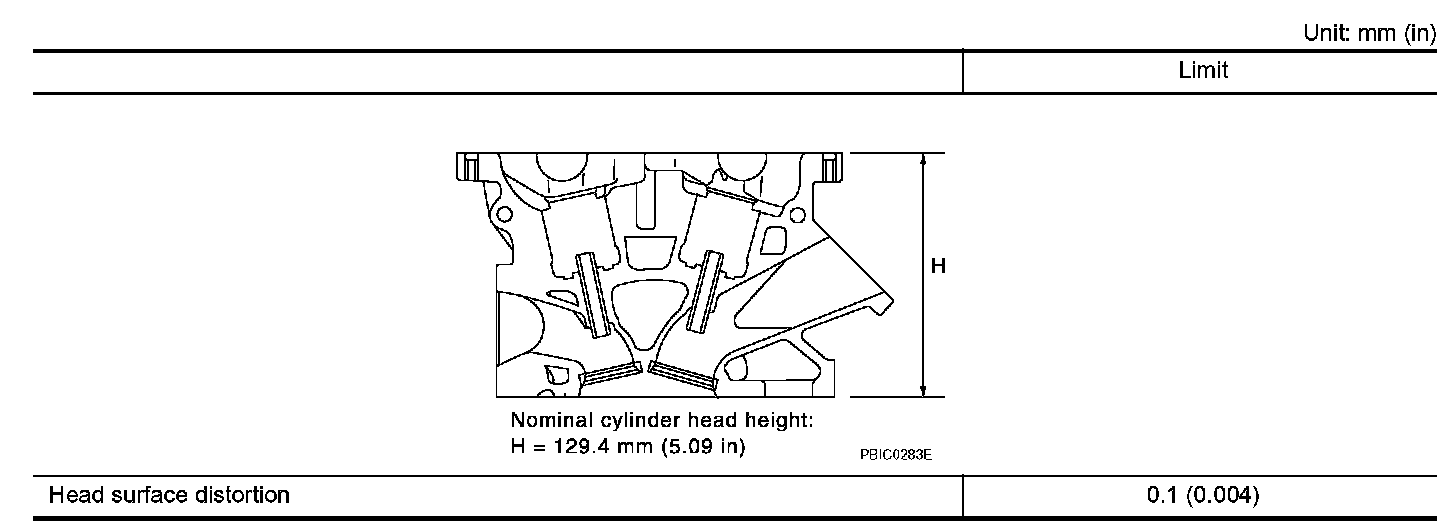

Cylinder Head Distortion - 2.5L (QG25DE):

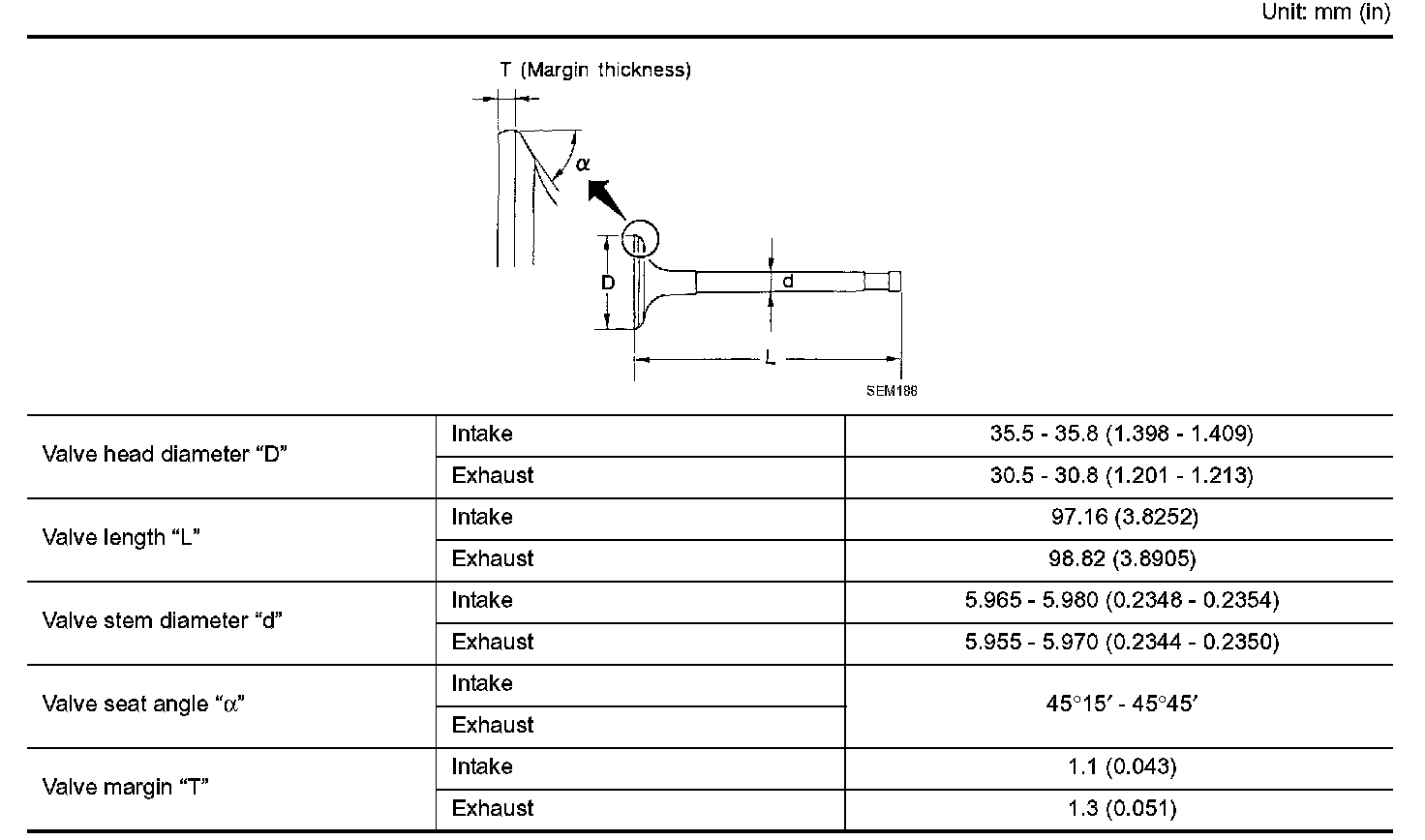

Valve Dimensions - 2.5L (QR25DE):

Valve Clearance - 2.5L (QR25DE):

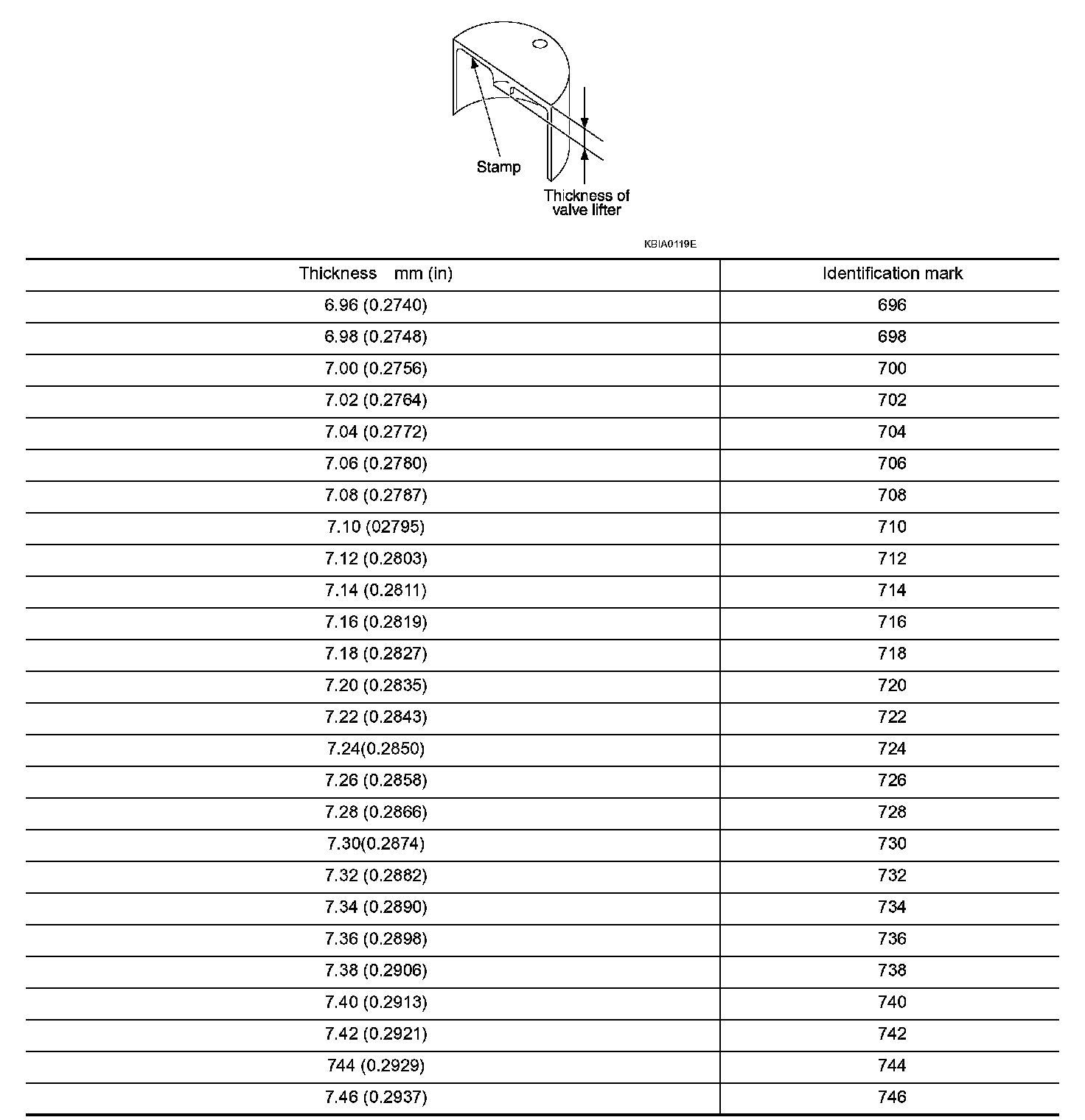

Available Valve Lifter - 2.5L (QG25DE):

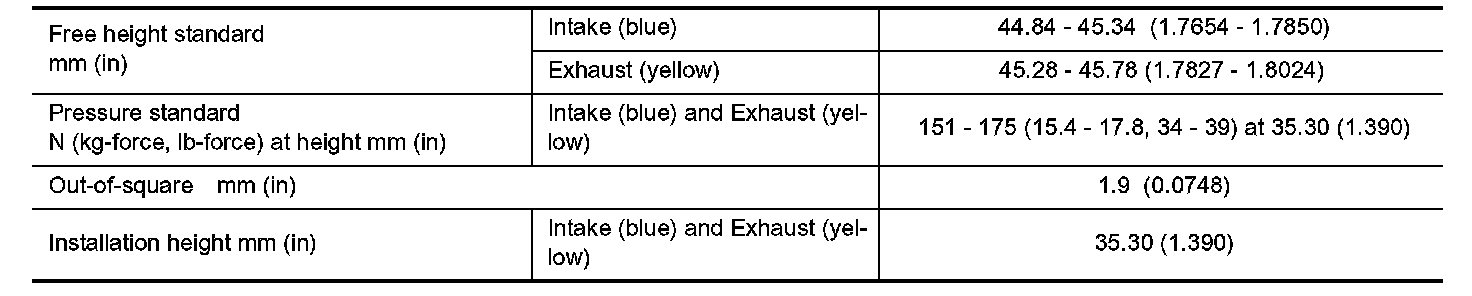

Valve Spring - 2.5L (QR25DE):

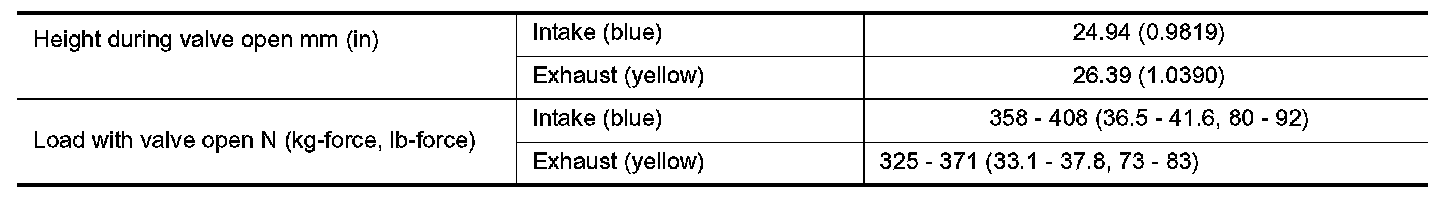

Valve Spring - 2.5L (QR25DE):

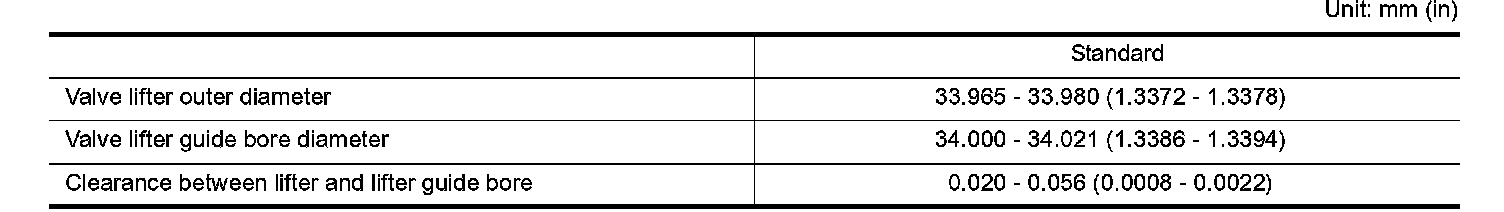

Valve Lifter - 2.5L (QR25DE):

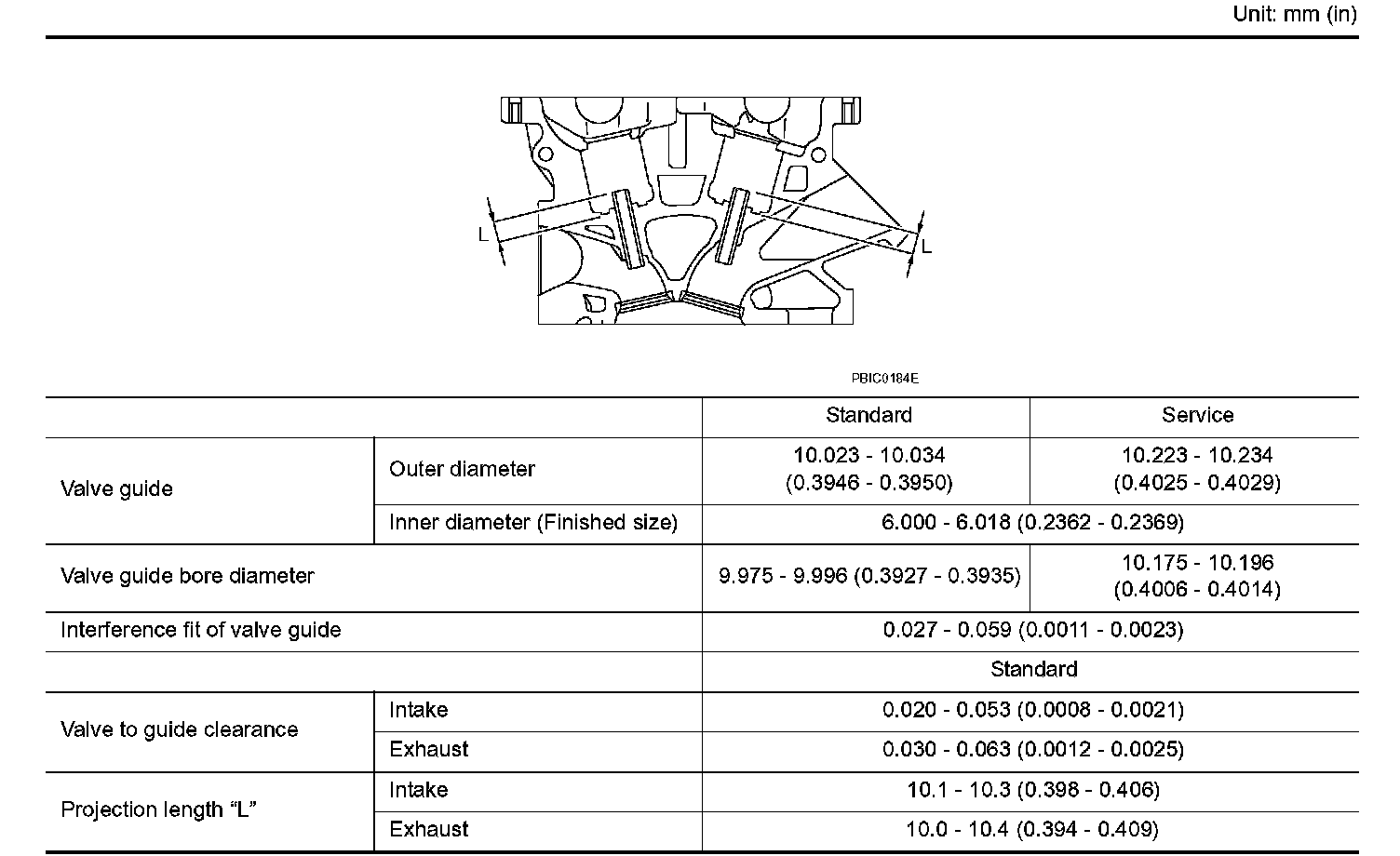

Valve Guide - 2.5L (QR25DE):

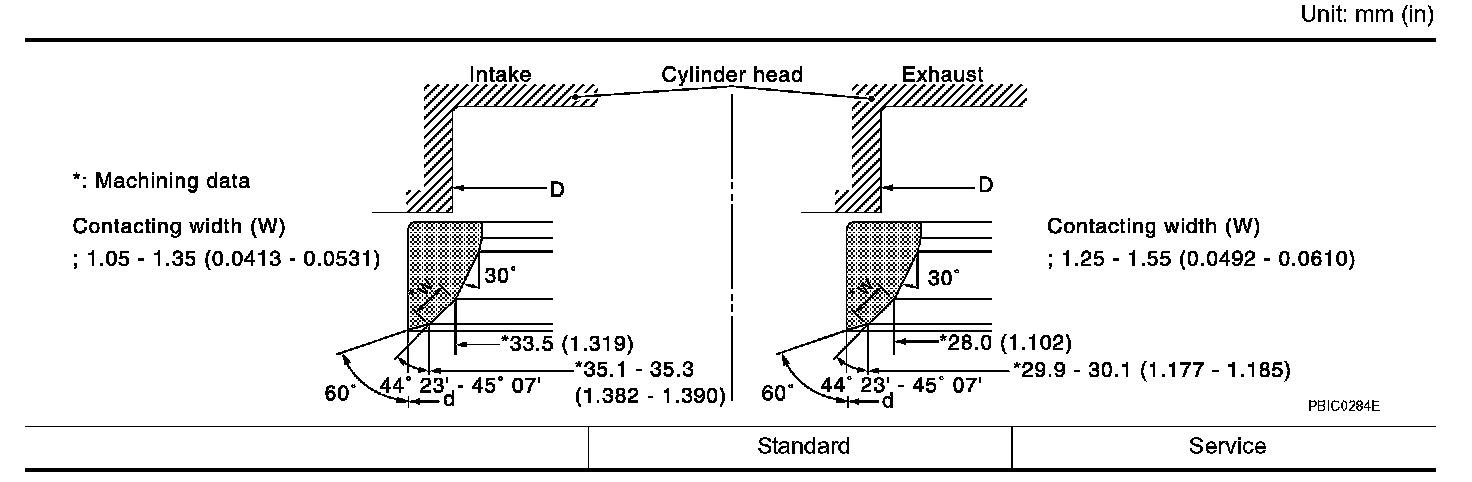

Valve Seat - 2.5L (QR25DE):

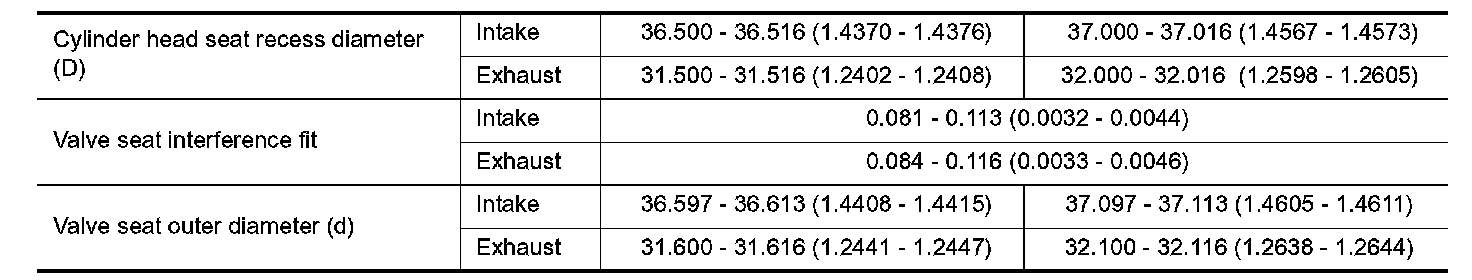

Valve Seat - 2.5L (QR25DE):

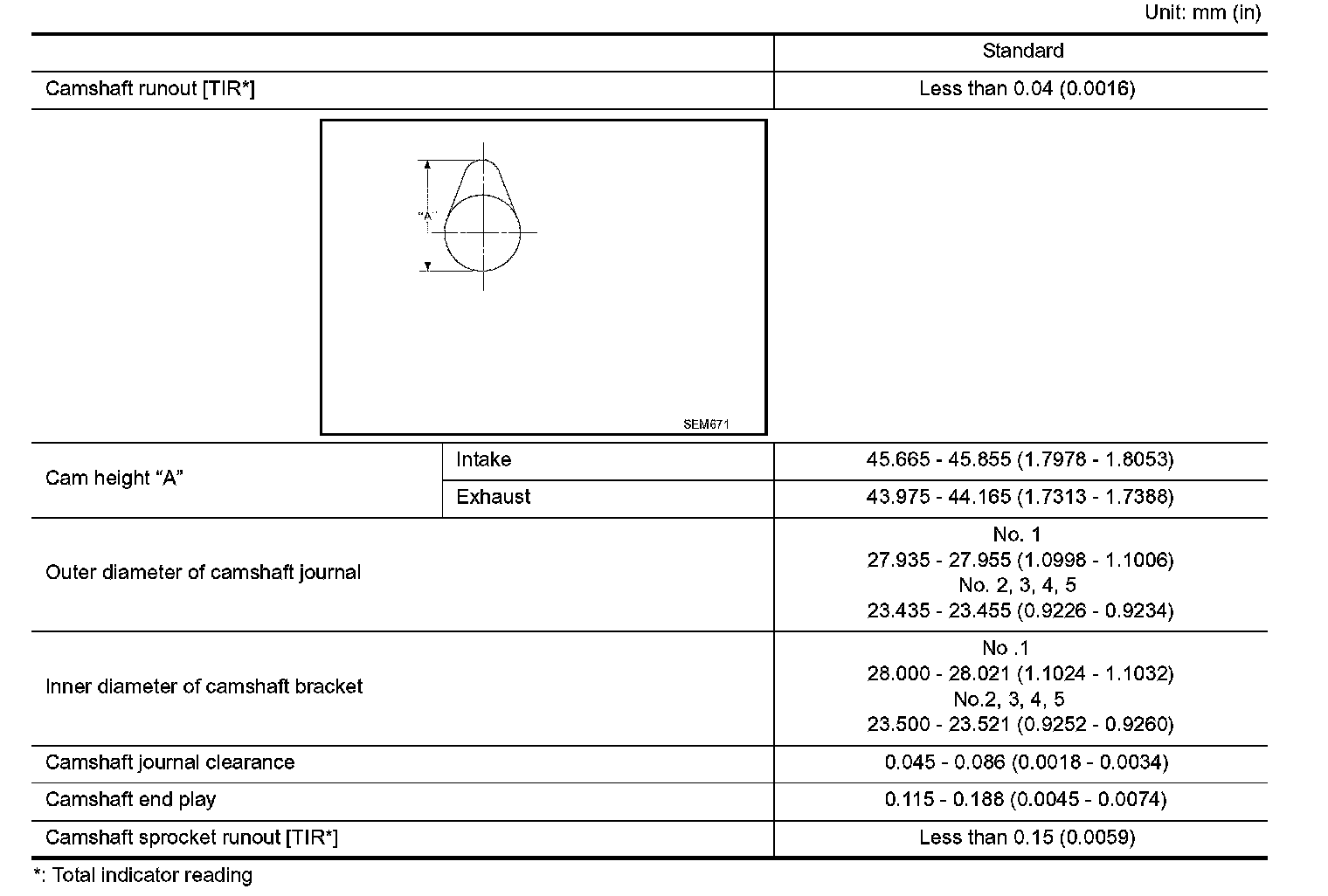

CAMSHAFT AND CAMSHAFT BEARING - 2.5L (QR25DE):
