System Specifications

Oil Pump:

Oil Pump
Body to outer rotor radial clearance 0.114 - 0.179 mm (0.0045 - 0.0070 in.)
Inner rotor to outer rotor tip clearance Less than 0.220 mm (0.0087 in.)
Body to inner rotor axial clearance 0.030 - 0.070 mm (0.0012 - 0.0028 in.)
Body to outer rotor axial clearance 0.060 - 0.110 mm (0.0024 - 0.0043 in.)
Inner rotor to brazed portion of housing clearance 0.035 - 0.070 mm (0.0014 - 0.0028 in.)

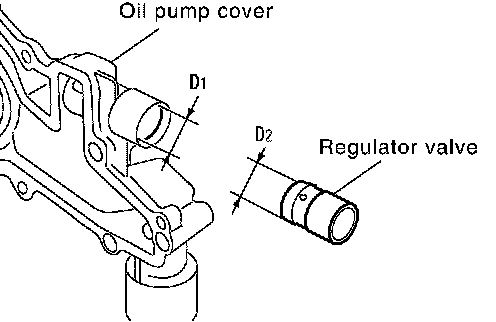

Regulator Valve Clearance.
(Clearance) = D1 (Valve hole diameter) - D2 (Outer diameter of valve):

Standard clearance:........................0.040 - 0.097 mm (0.0016 - 0.0038 inch)
