Automatic Speed Control Device (ASCD)

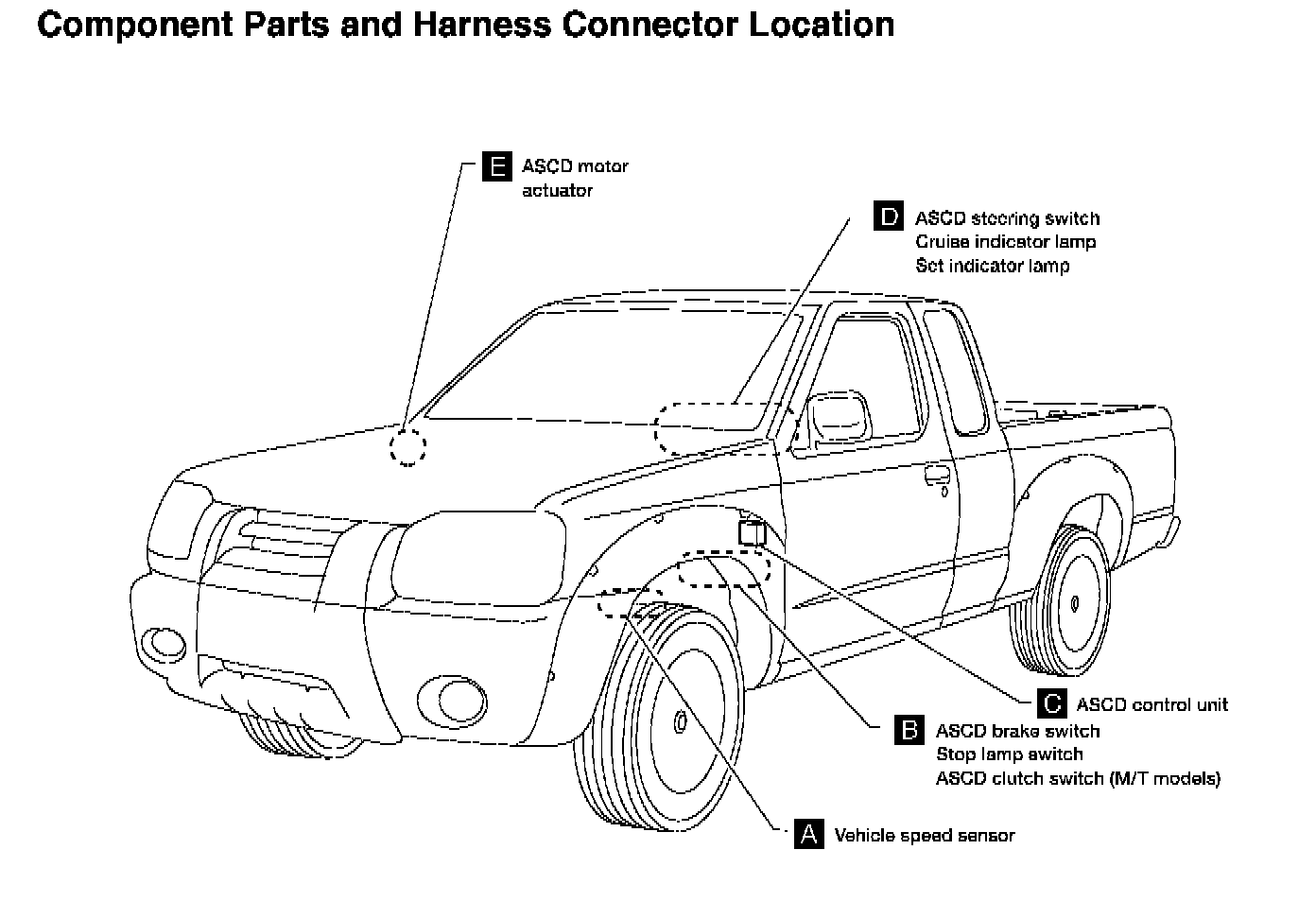

Component Parts And Connector Location Part 1:

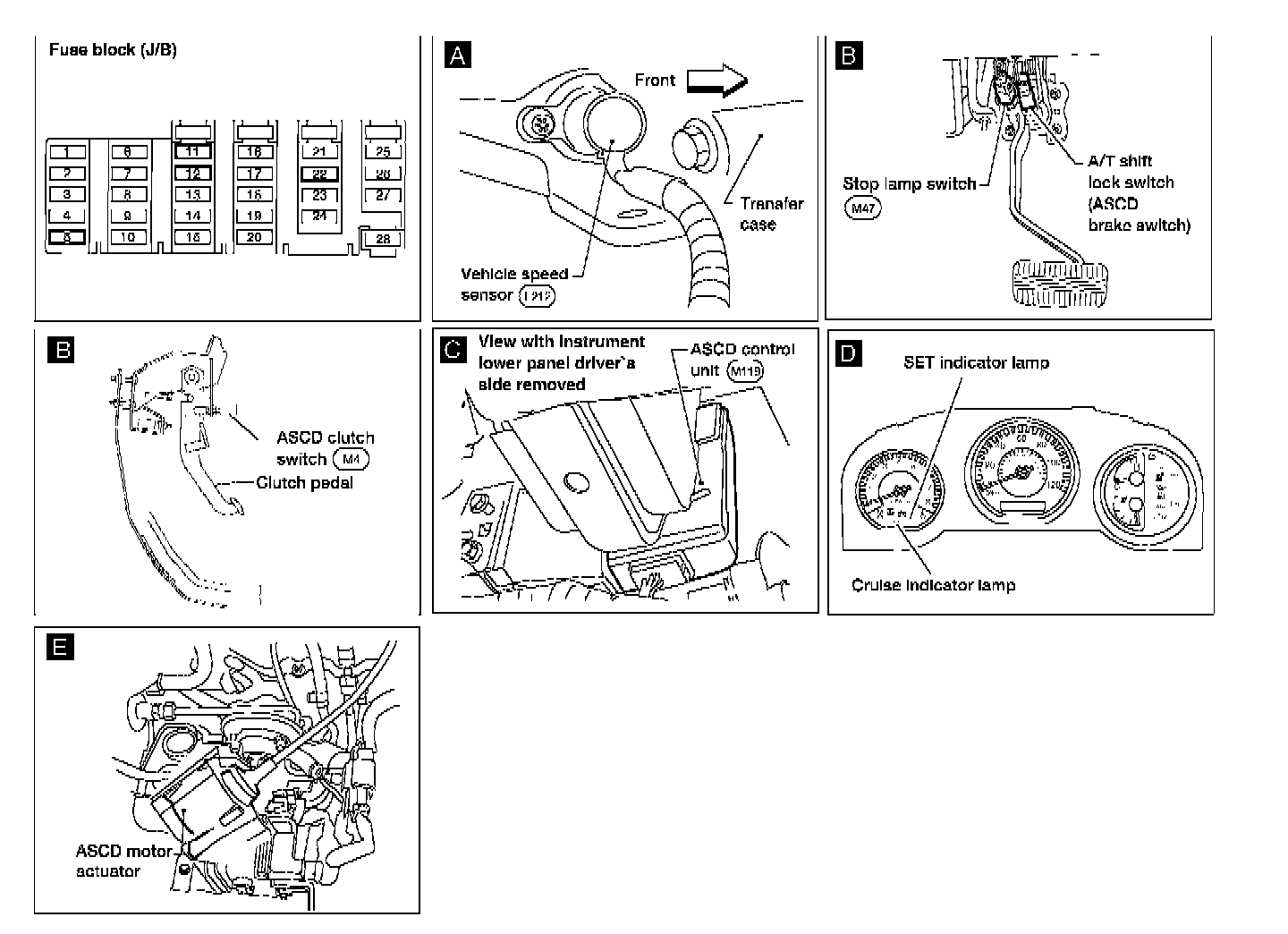

Component Parts And Connector Location Part 2:
