Drum Brake System
Drum Brake System

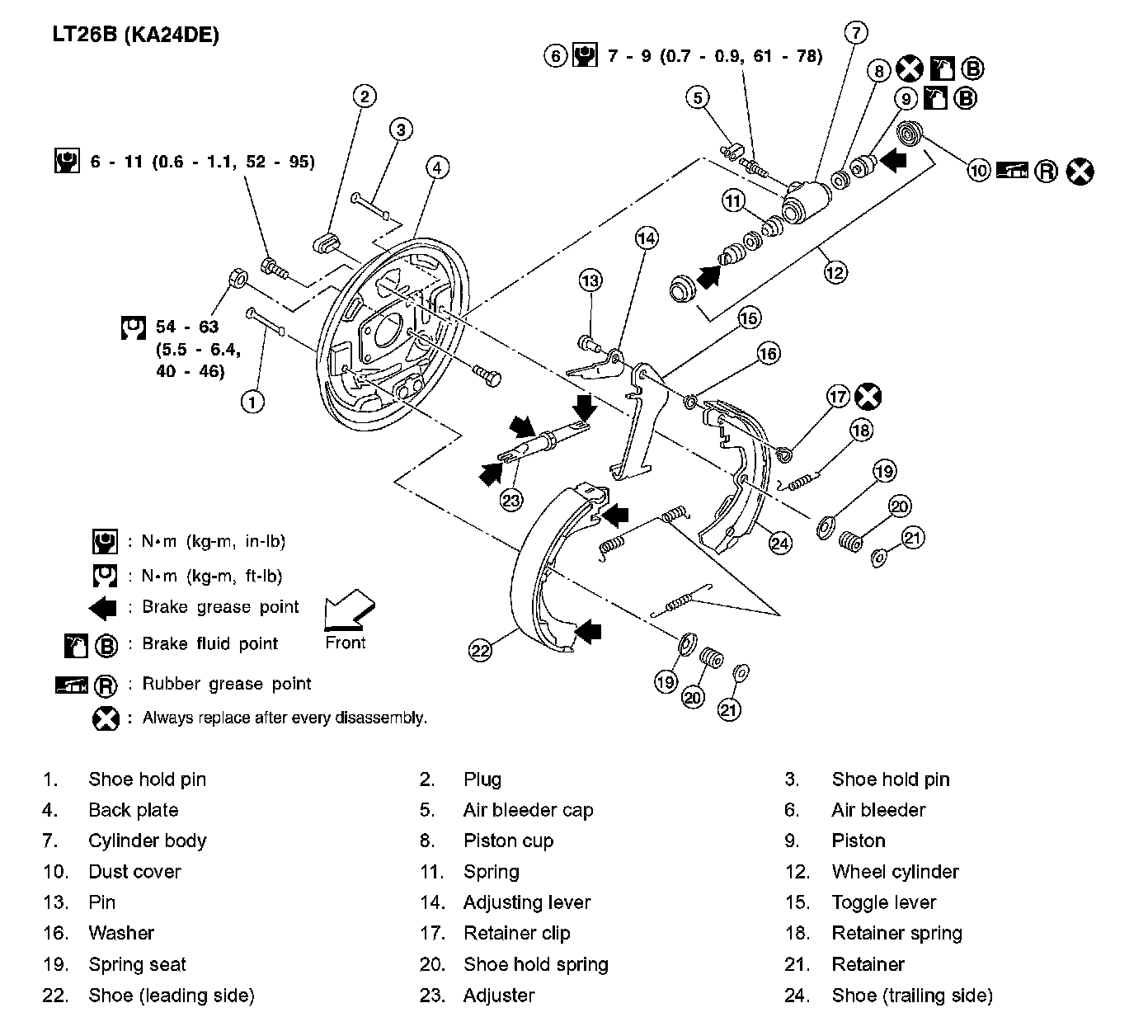

REAR DRUM BRAKE (2.4L KA24DE):
BRAKES / GENERAL SPECIFICATIONS:
REAR DRUM BRAKE:
