Control Module Connector




ECM Harness Connector Terminal Layout:

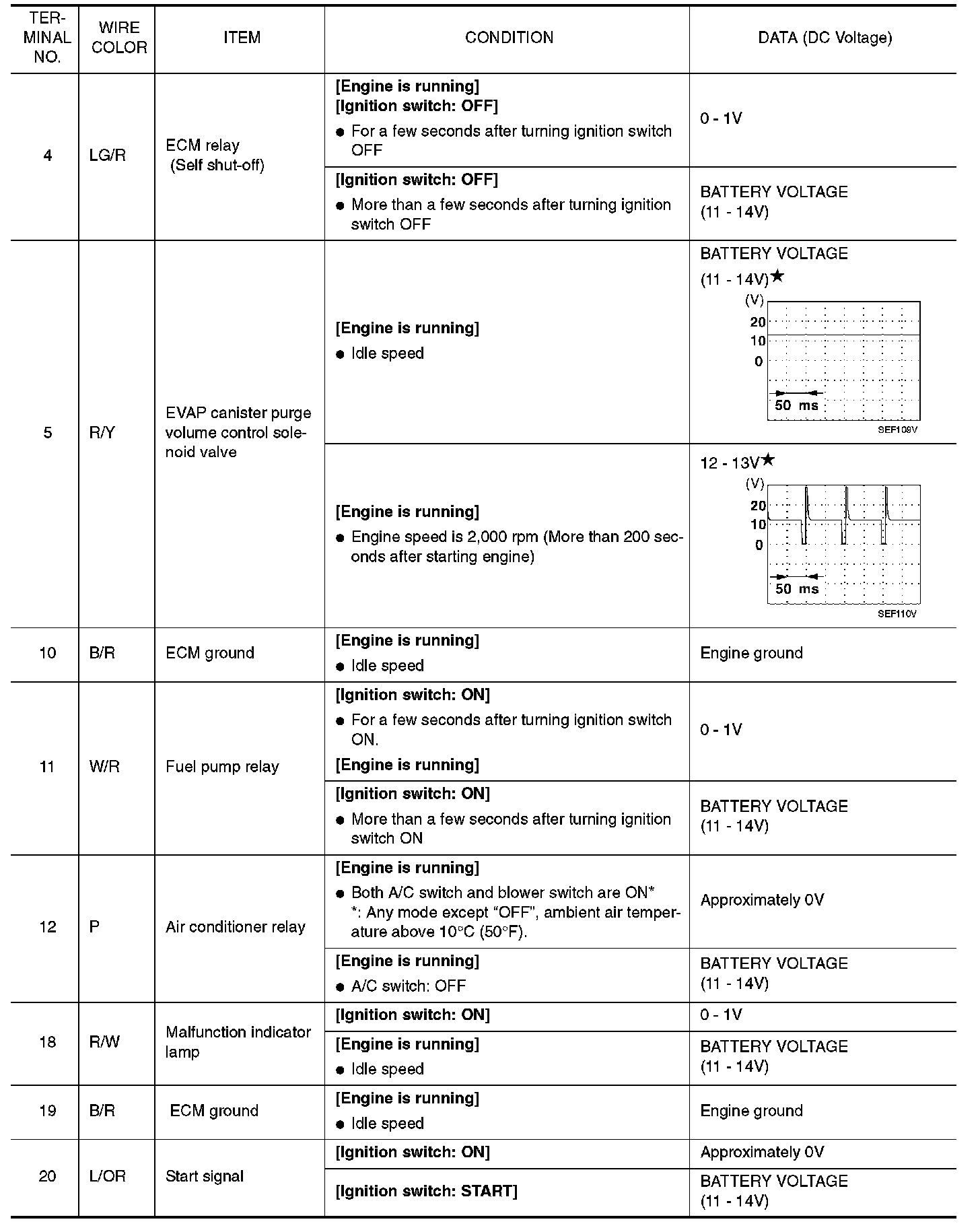

Part 1:

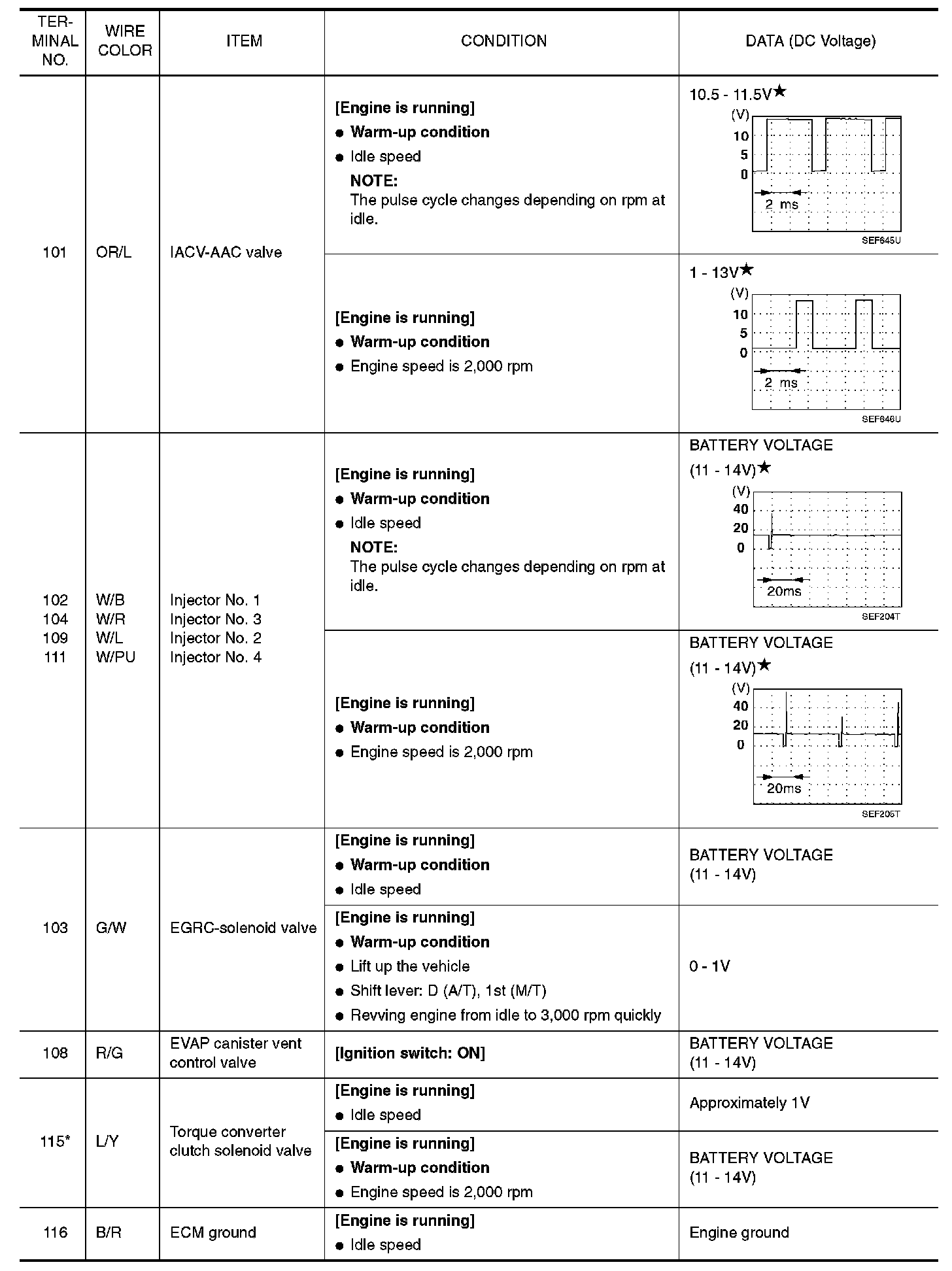

Part 2:

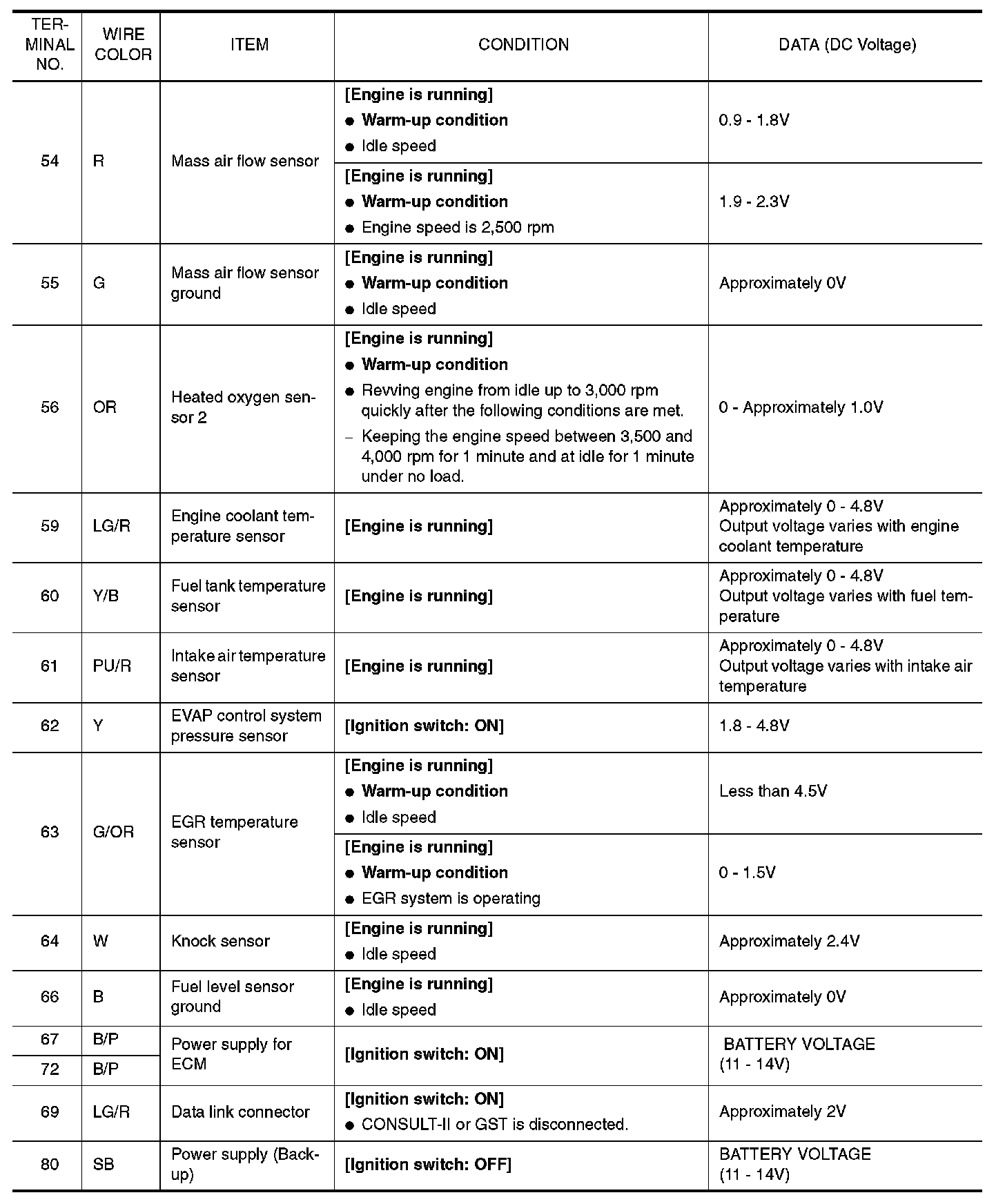

Part 3:

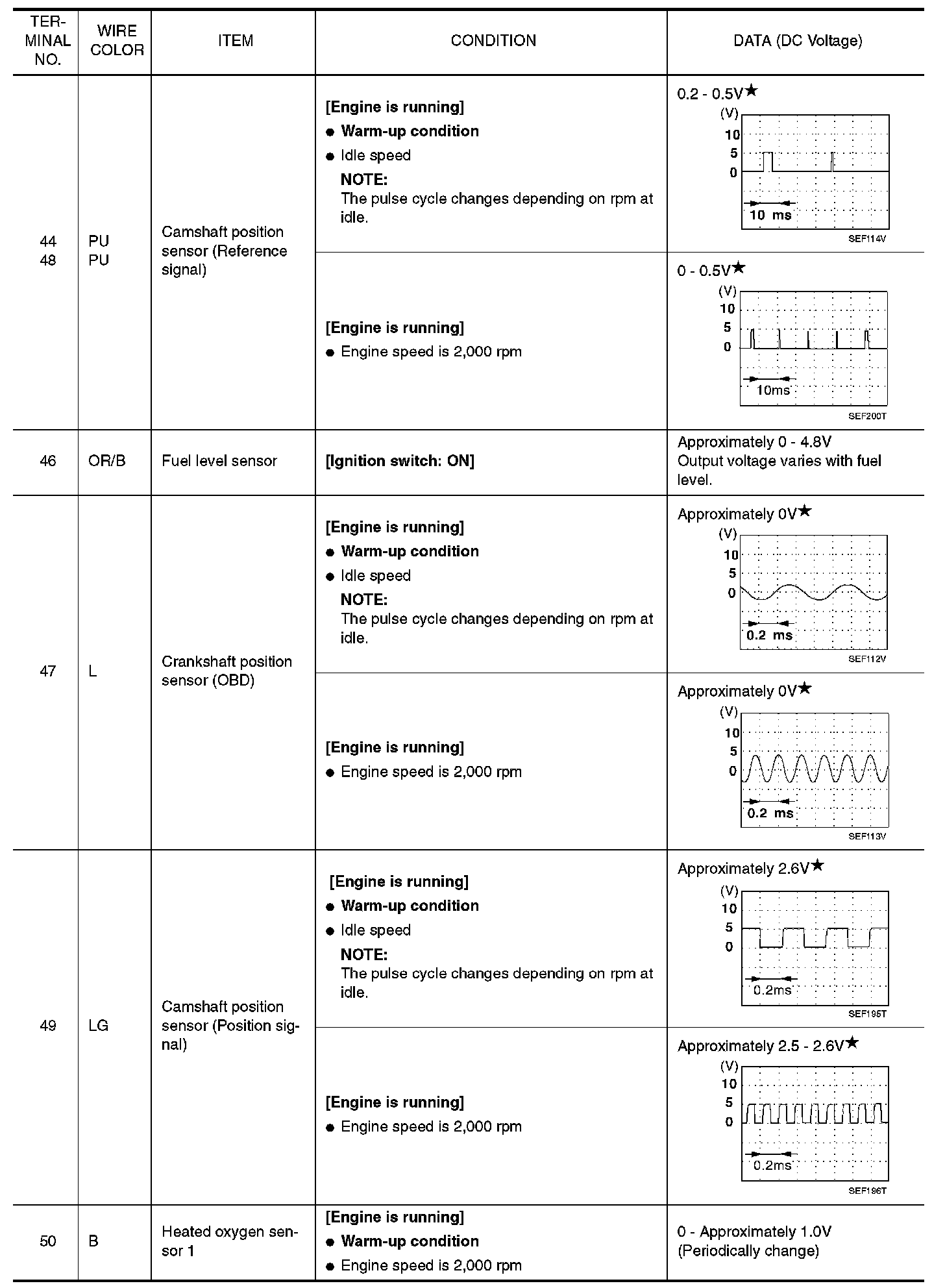

Part 4:

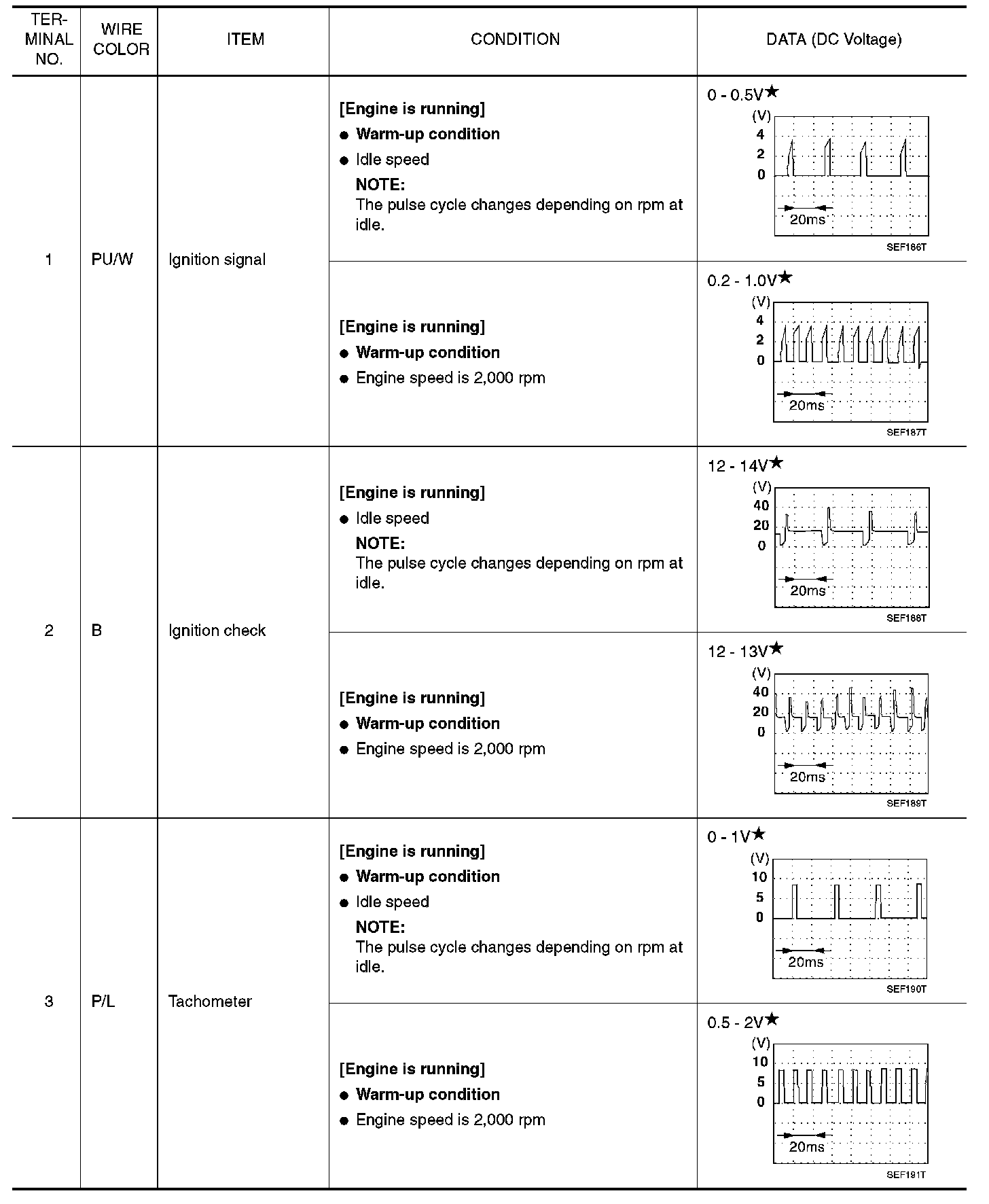

Part 5:





Part 6:





Part 7:
