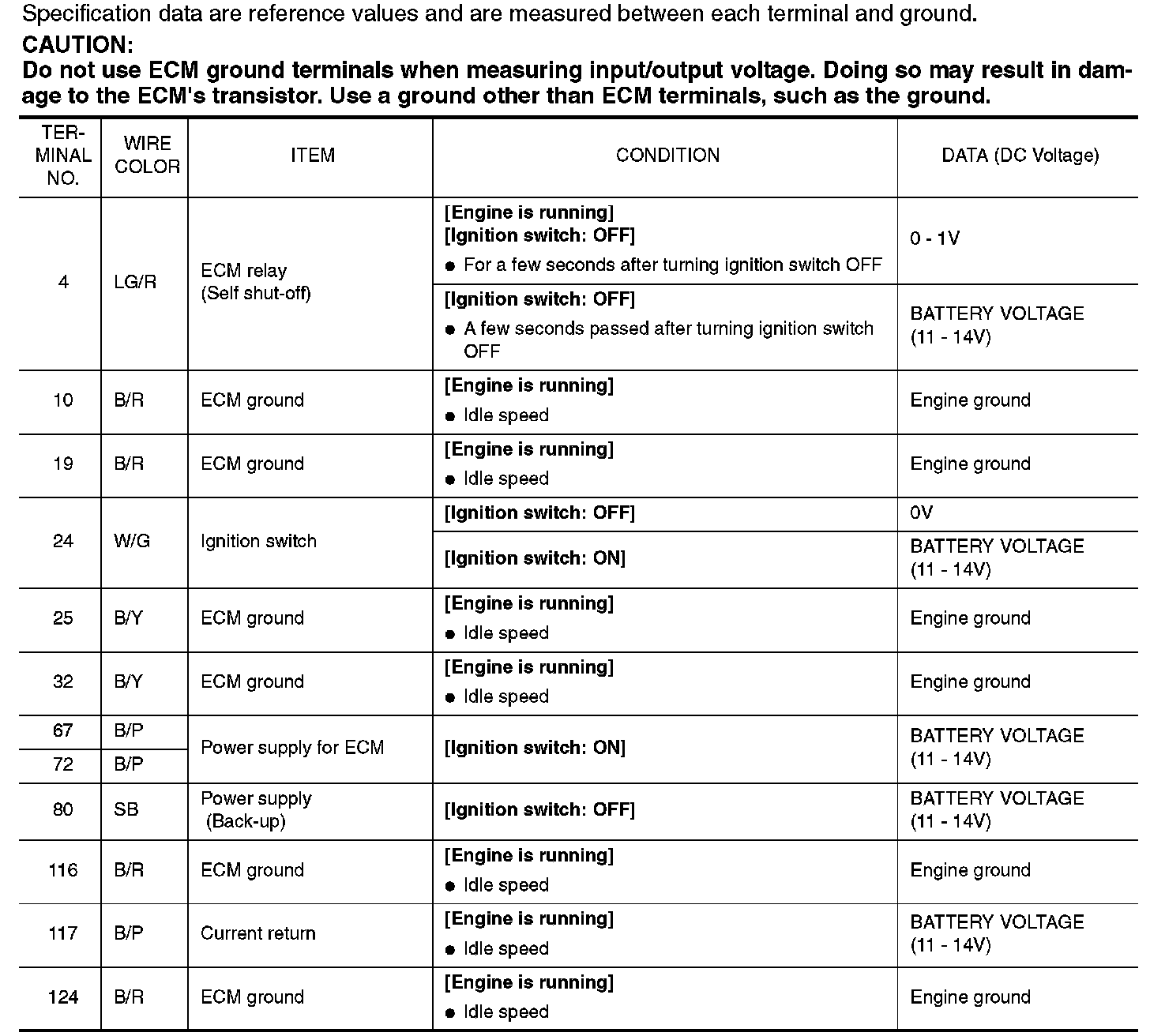

Component Tests and General Diagnostics

POWER SUPPLY CIRCUIT FOR ECM

EC-MAIN-01:

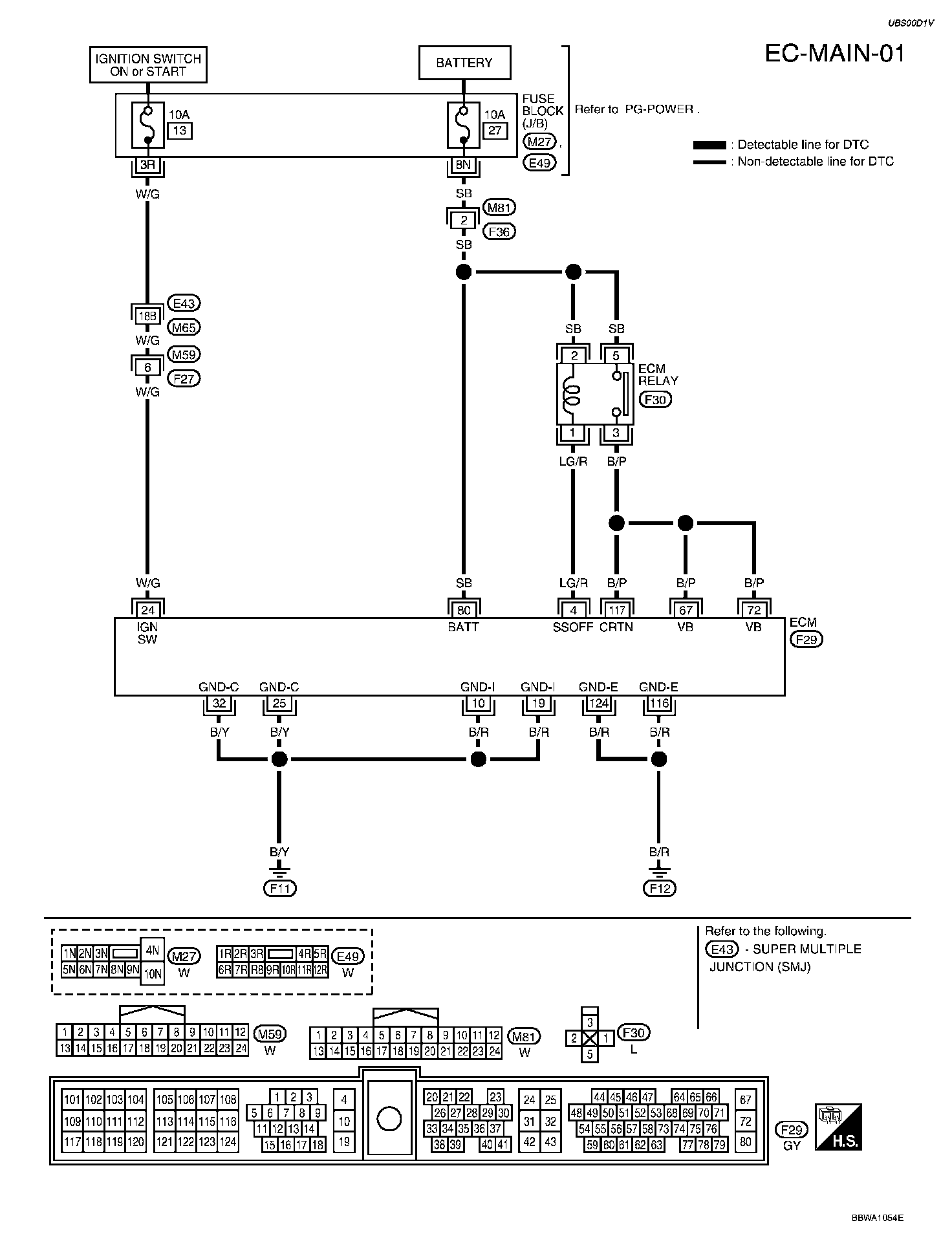

Wiring Diagram

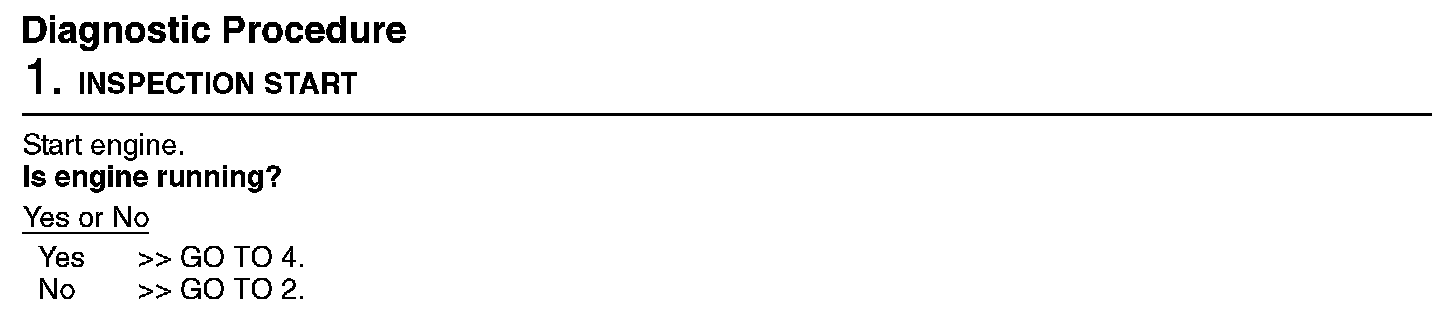

Diagnostic Procedure (Step 1):

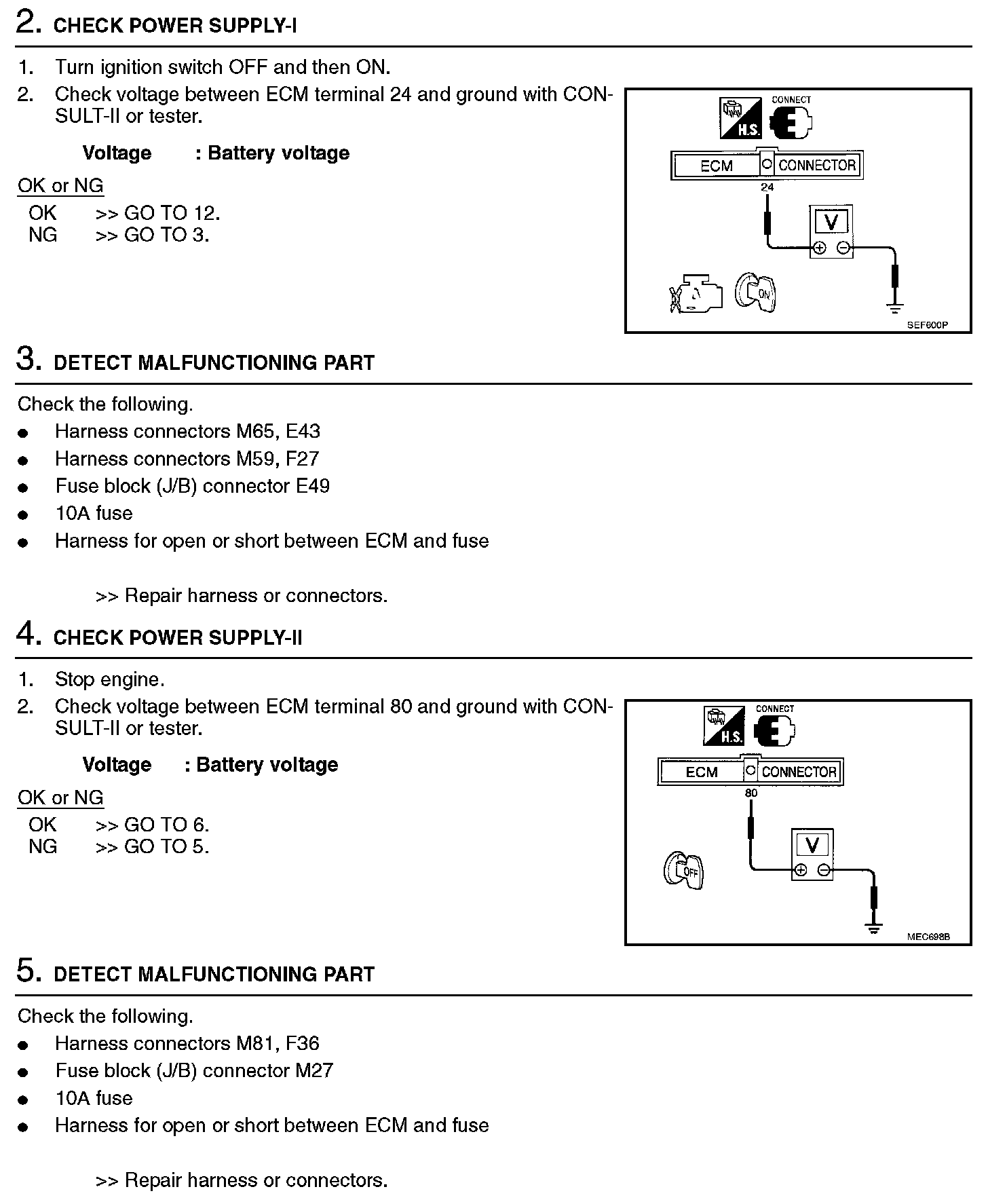

Diagnostic Procedure (Steps 2 - 5):

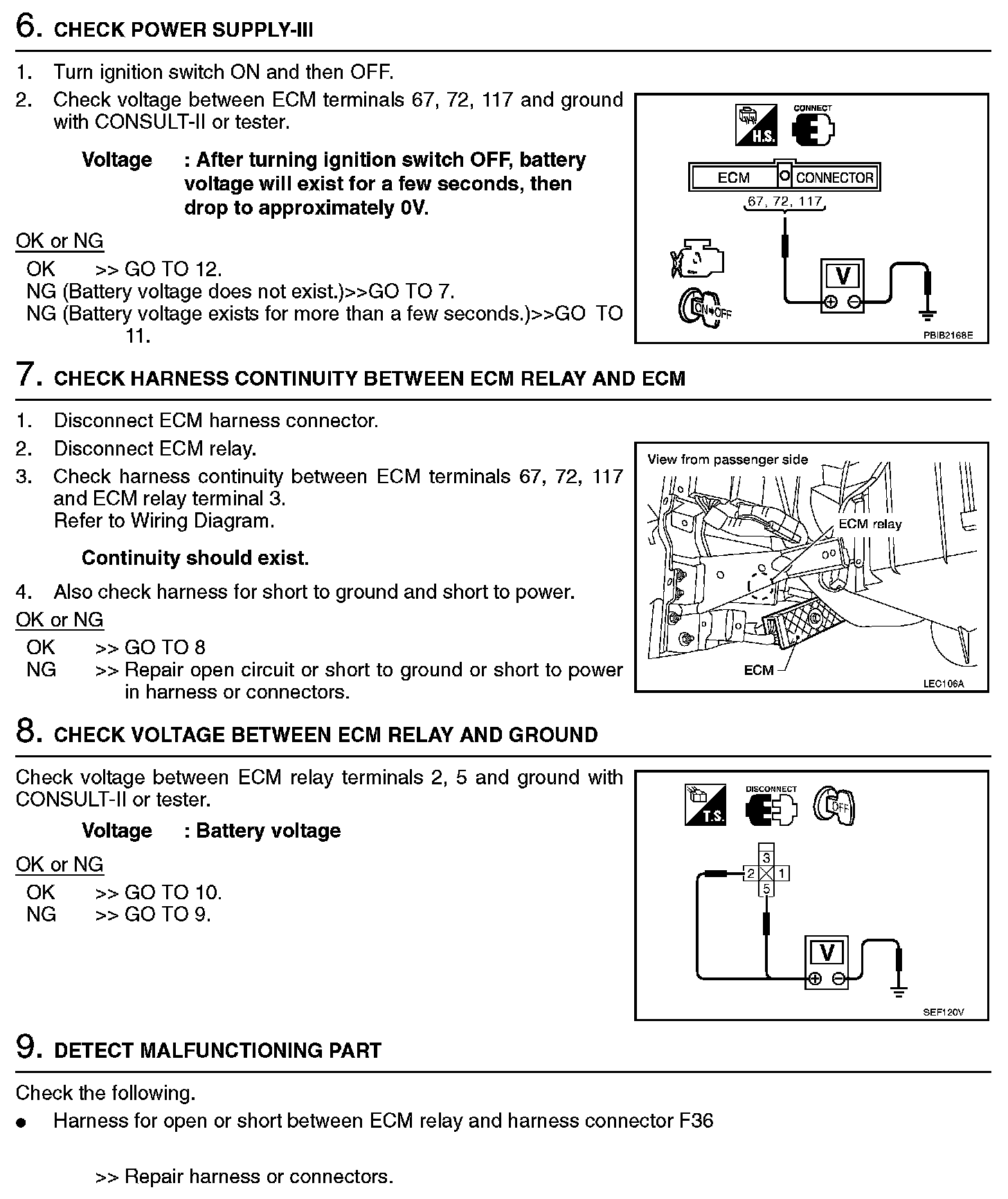

Diagnostic Procedure (Steps 6 - 9):

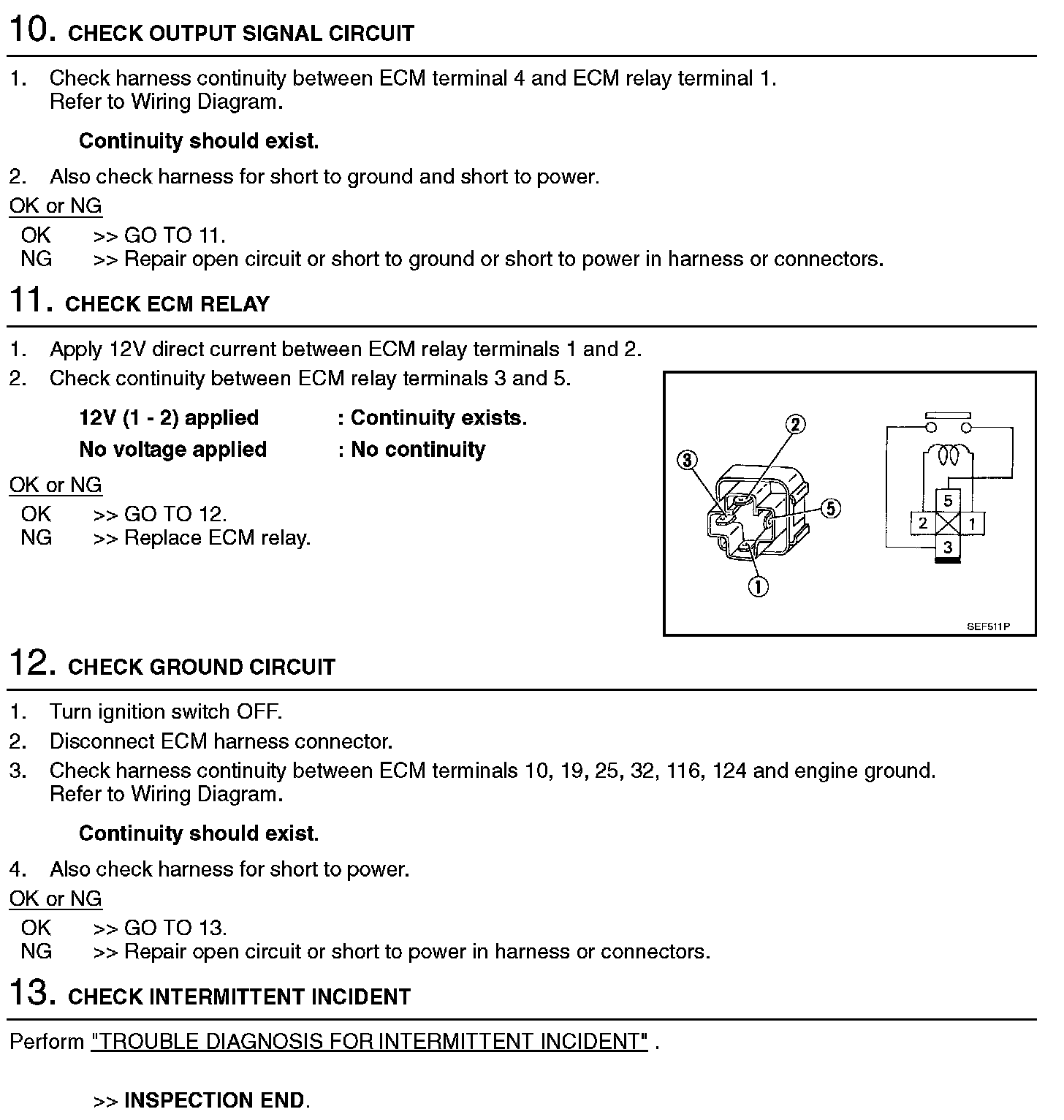

Diagnostic Procedure (Steps 10 - 13):

Diagnostic Procedure
