Fuel Level Sensor: Testing and Inspection
FUEL LEVEL SENSOR UNIT CHECK- For removal, refer to "FUEL PUMP; SERVICE AND REPAIR".
With KA24DE:

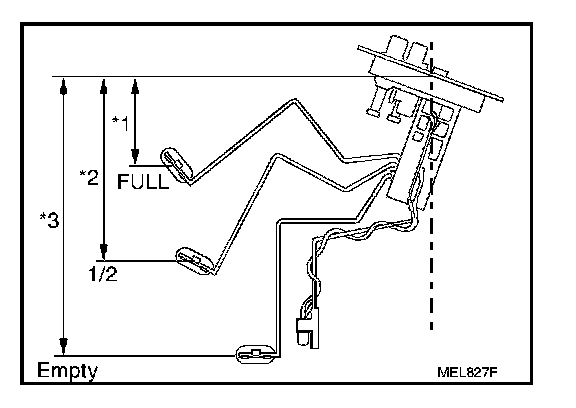

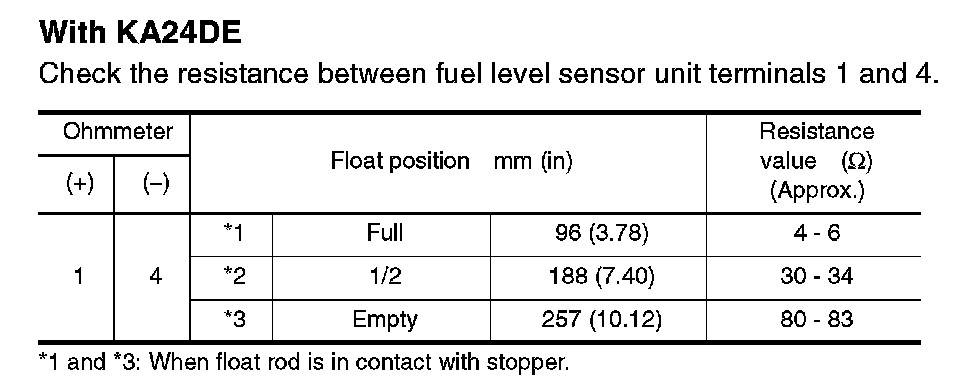

Check the resistance between fuel level sensor unit terminals 1 and 4.
- For removal, refer to "FUEL PUMP; SERVICE AND REPAIR".
Check the resistance between fuel level sensor unit terminals 1 and 4.
