Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2004
>>
Frontier 2WD L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Idle Up Control Valve
>>
Testing and Inspection
Idle Up Control Valve: Testing and Inspection

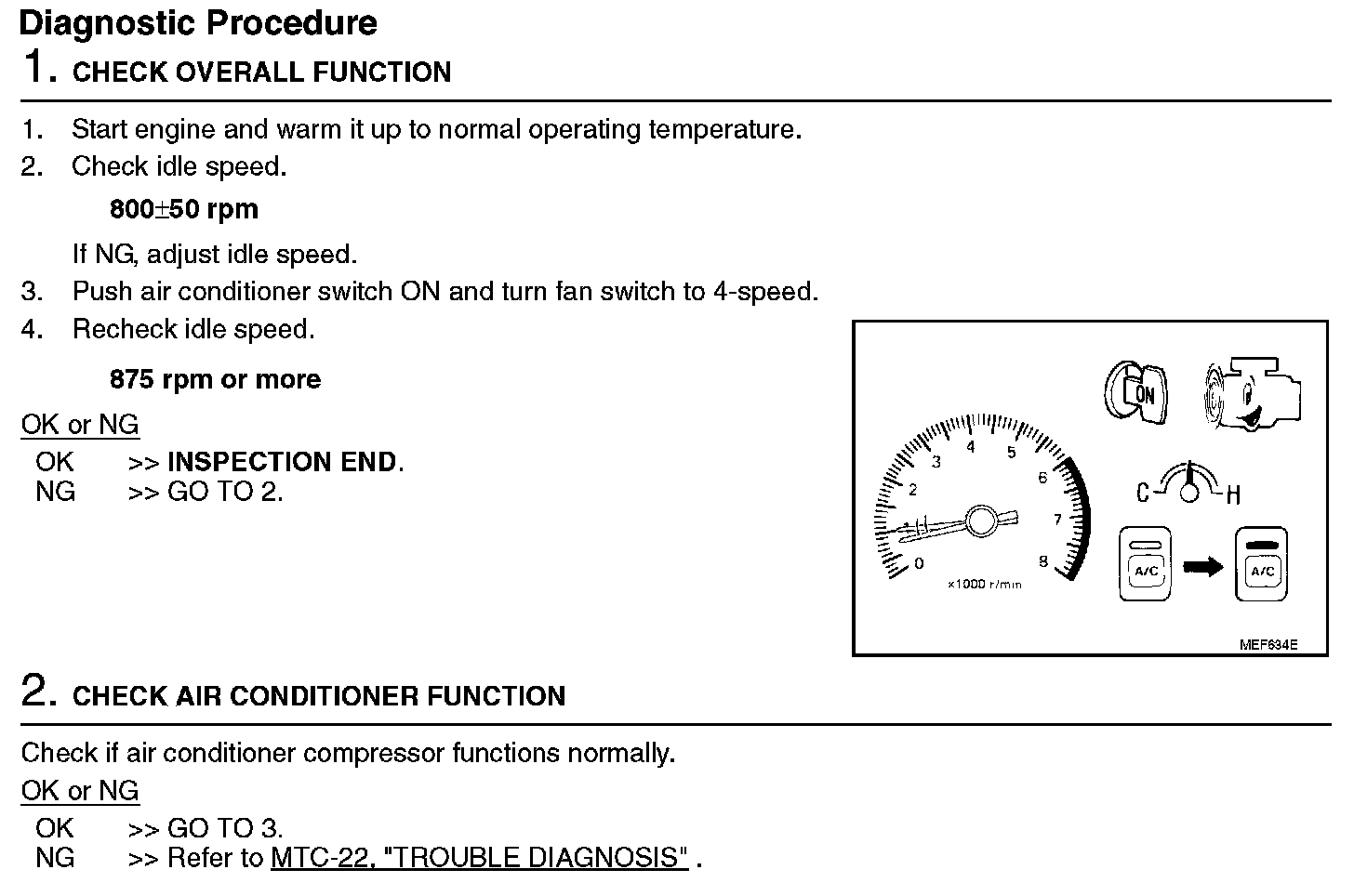

Diagnostic Procedure (Steps 1 - 2):

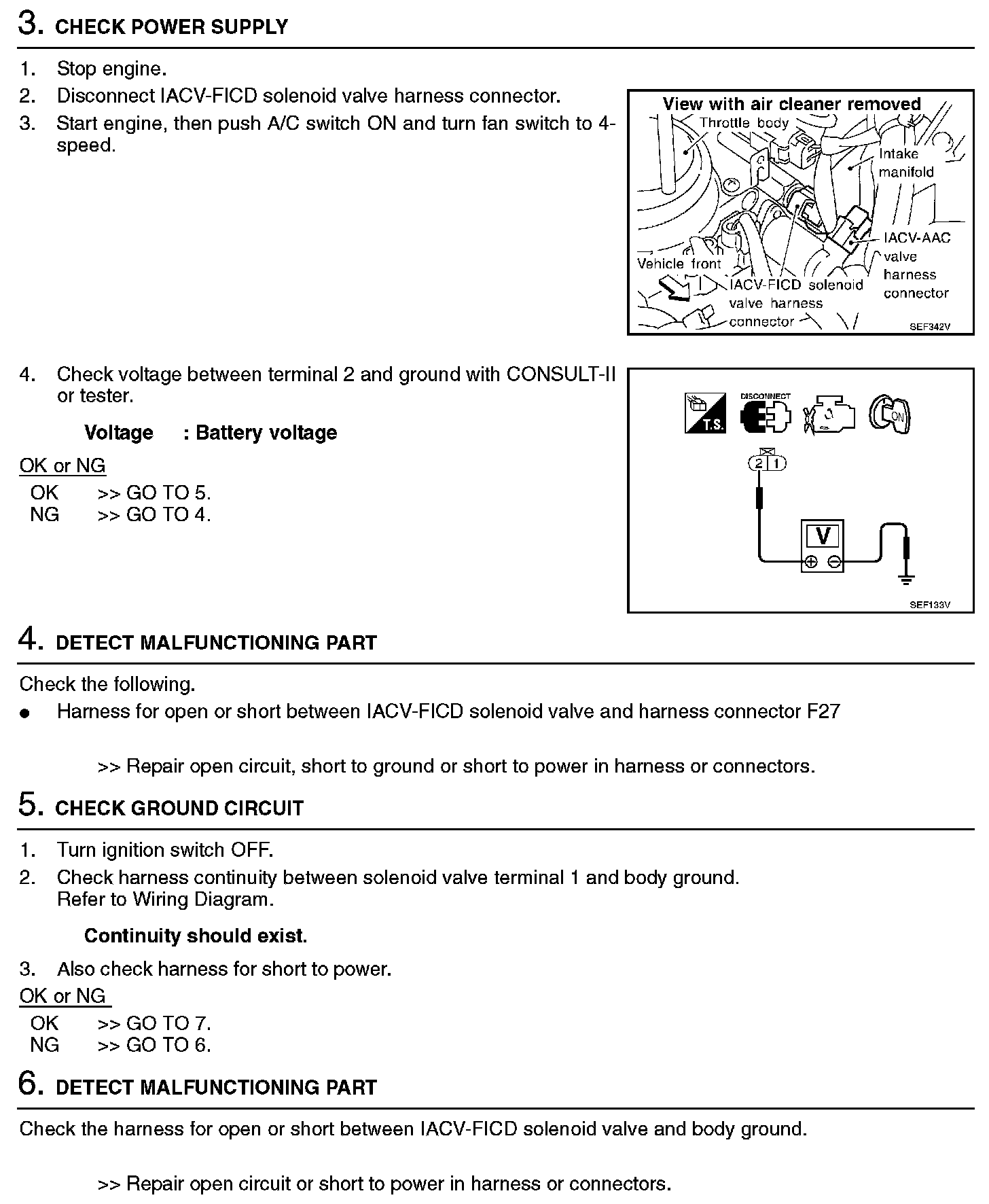

Diagnostic Procedure (Steps 3 - 6):

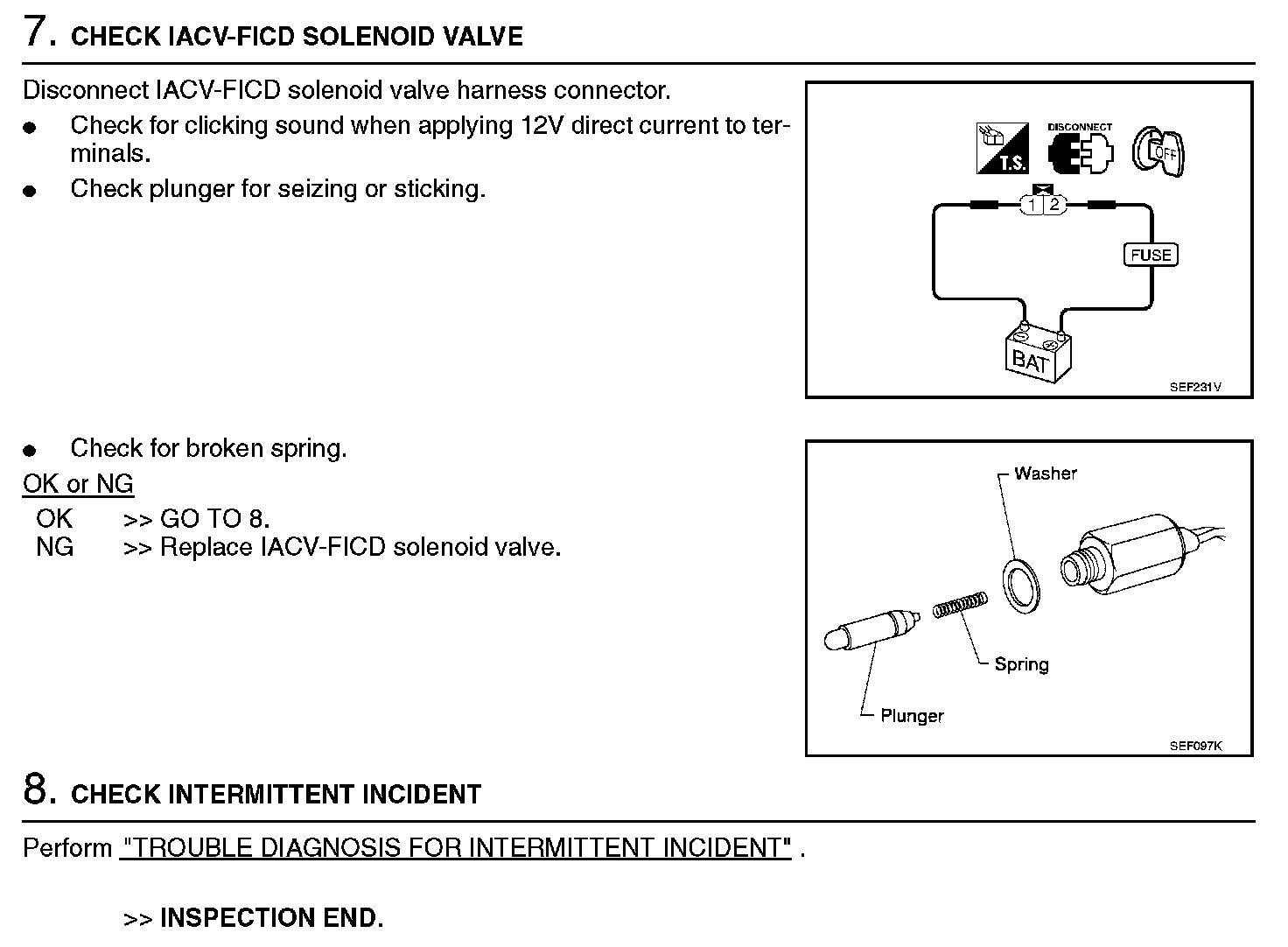

Diagnostic Procedure (Steps 7 - 8):
