Symptom Related Diagnostic Procedures

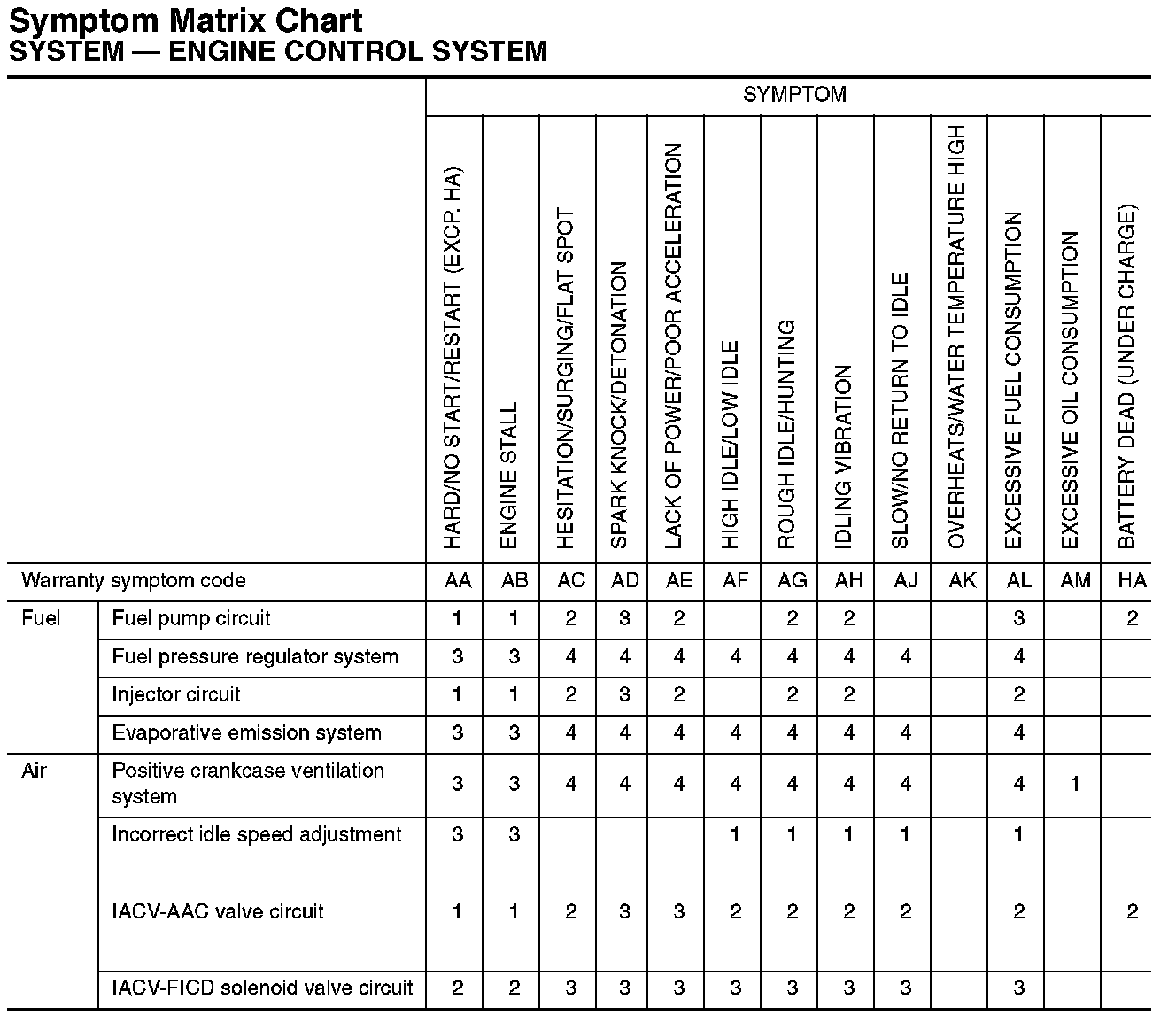

System - Engine Control System Part 1:

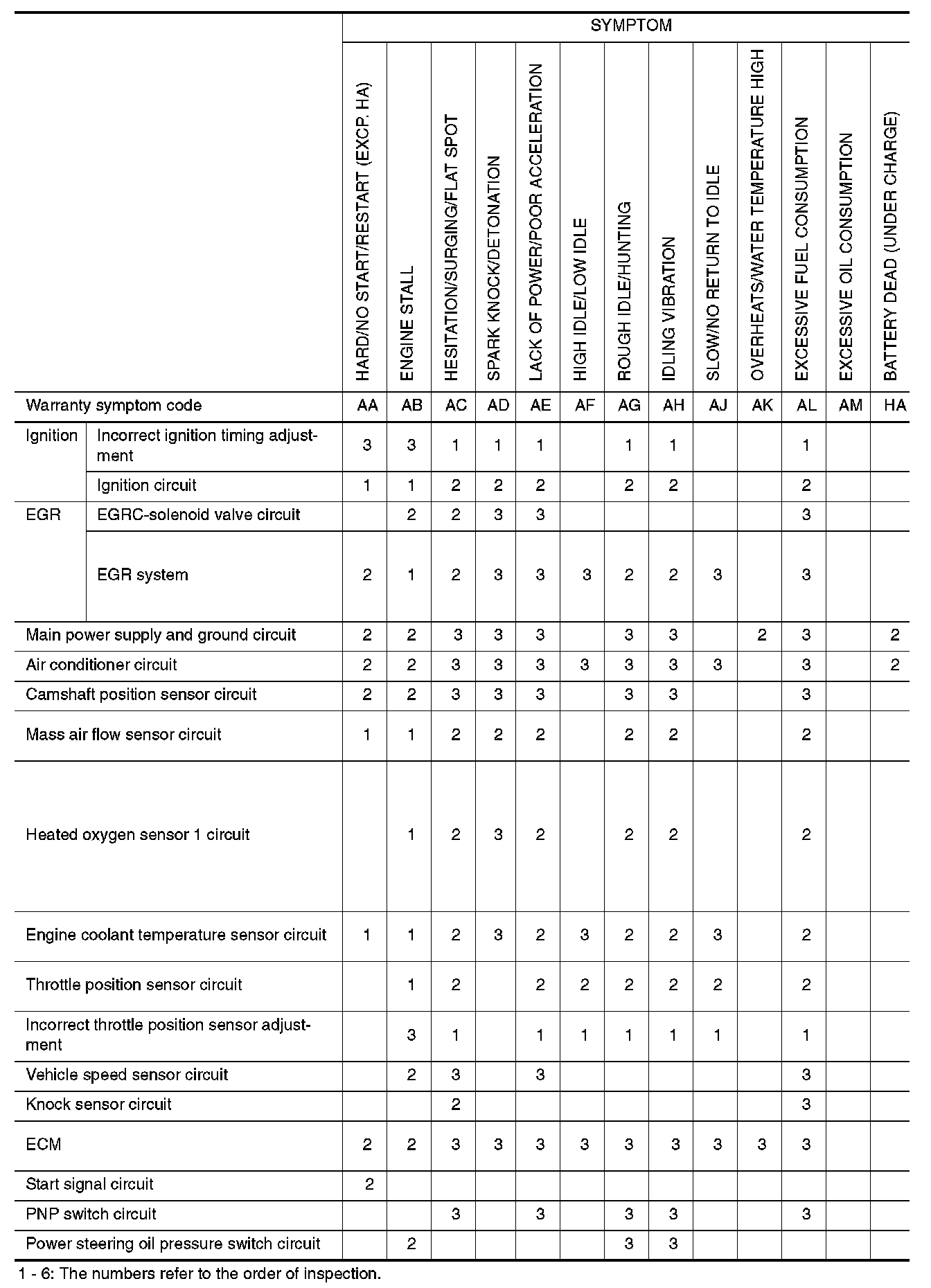

System - Engine Control System Part 2:

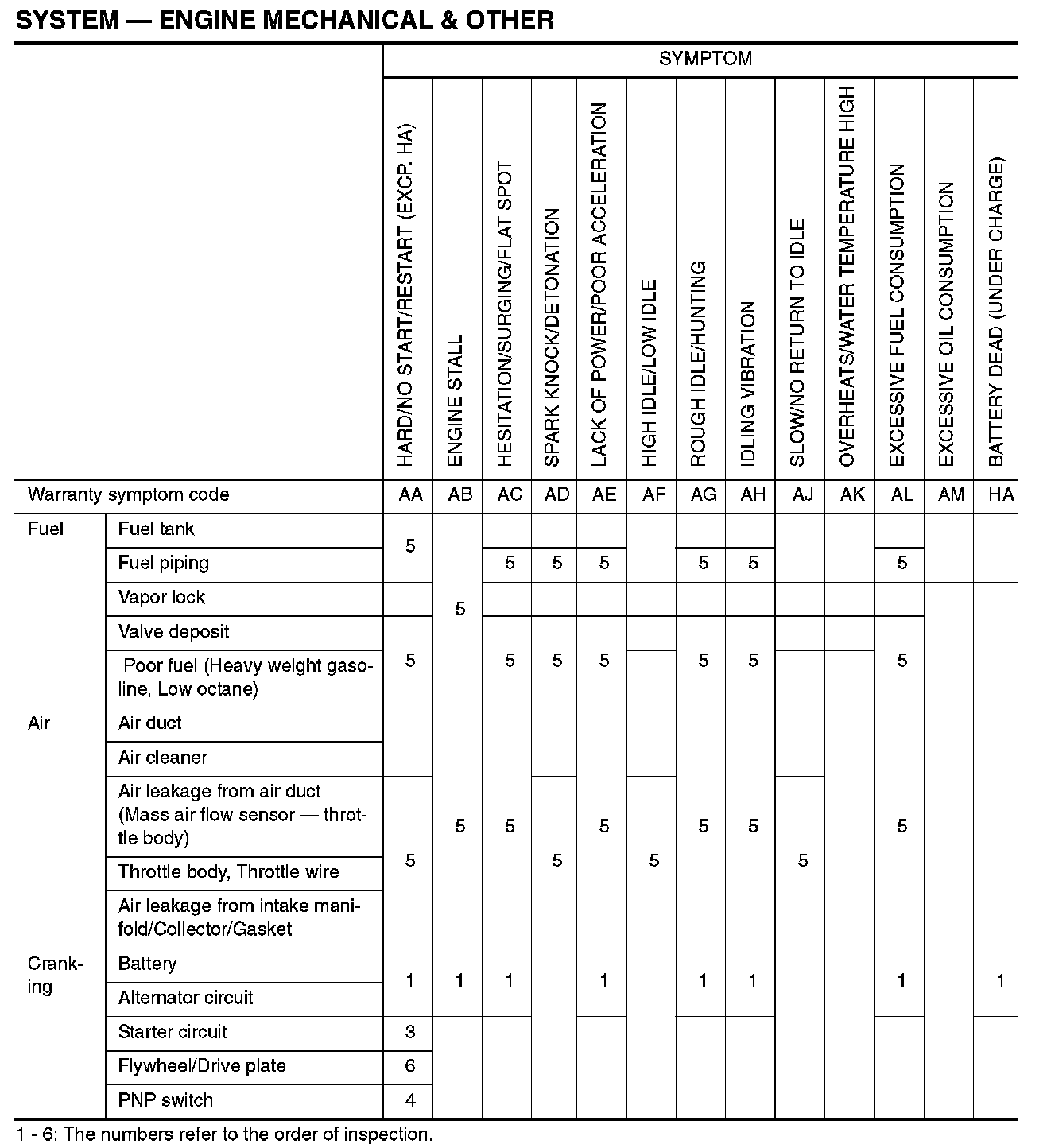

System - Engine Mechanical And Other Part 1:

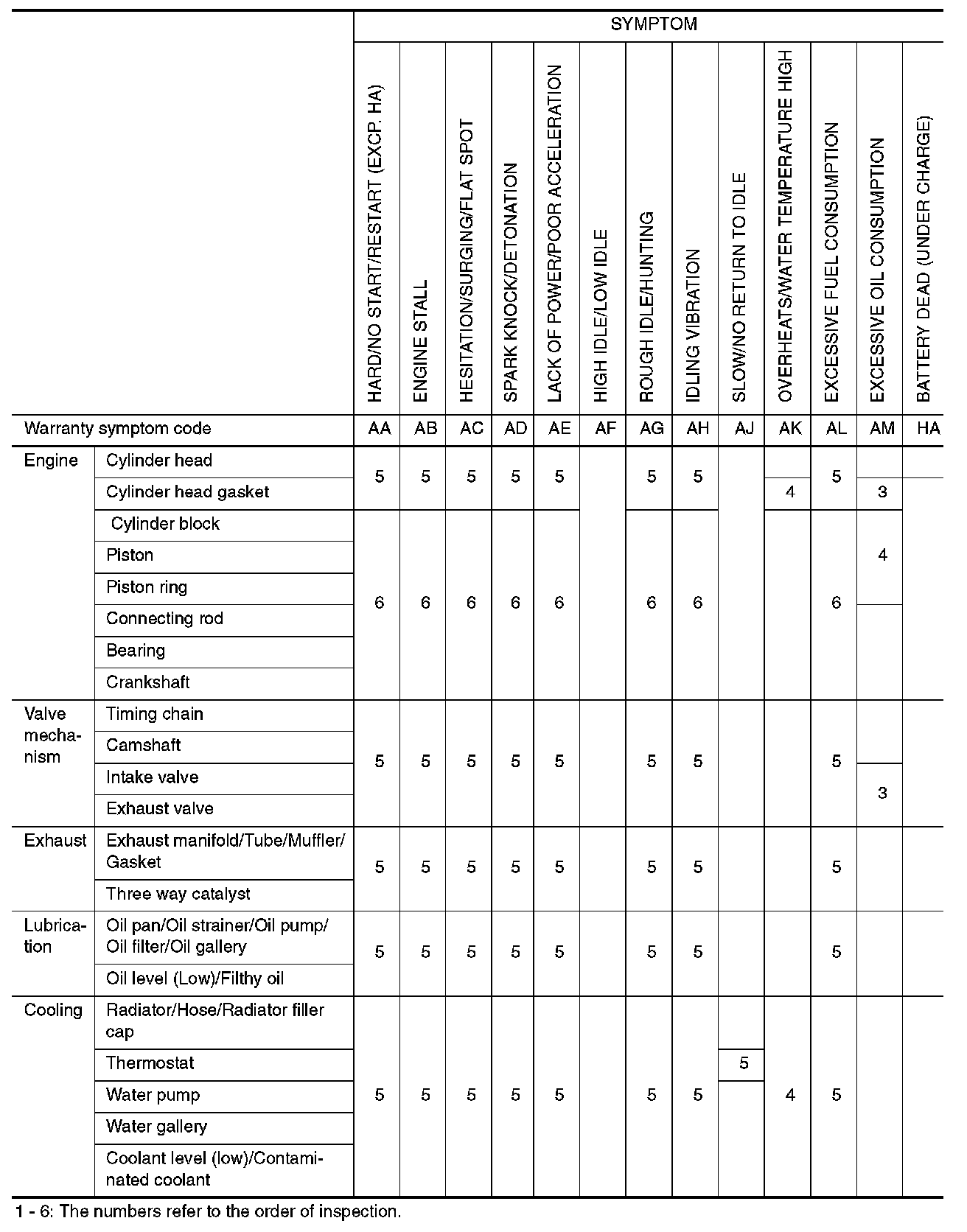

System - Engine Mechanical And Other Part 2:
