Alignment

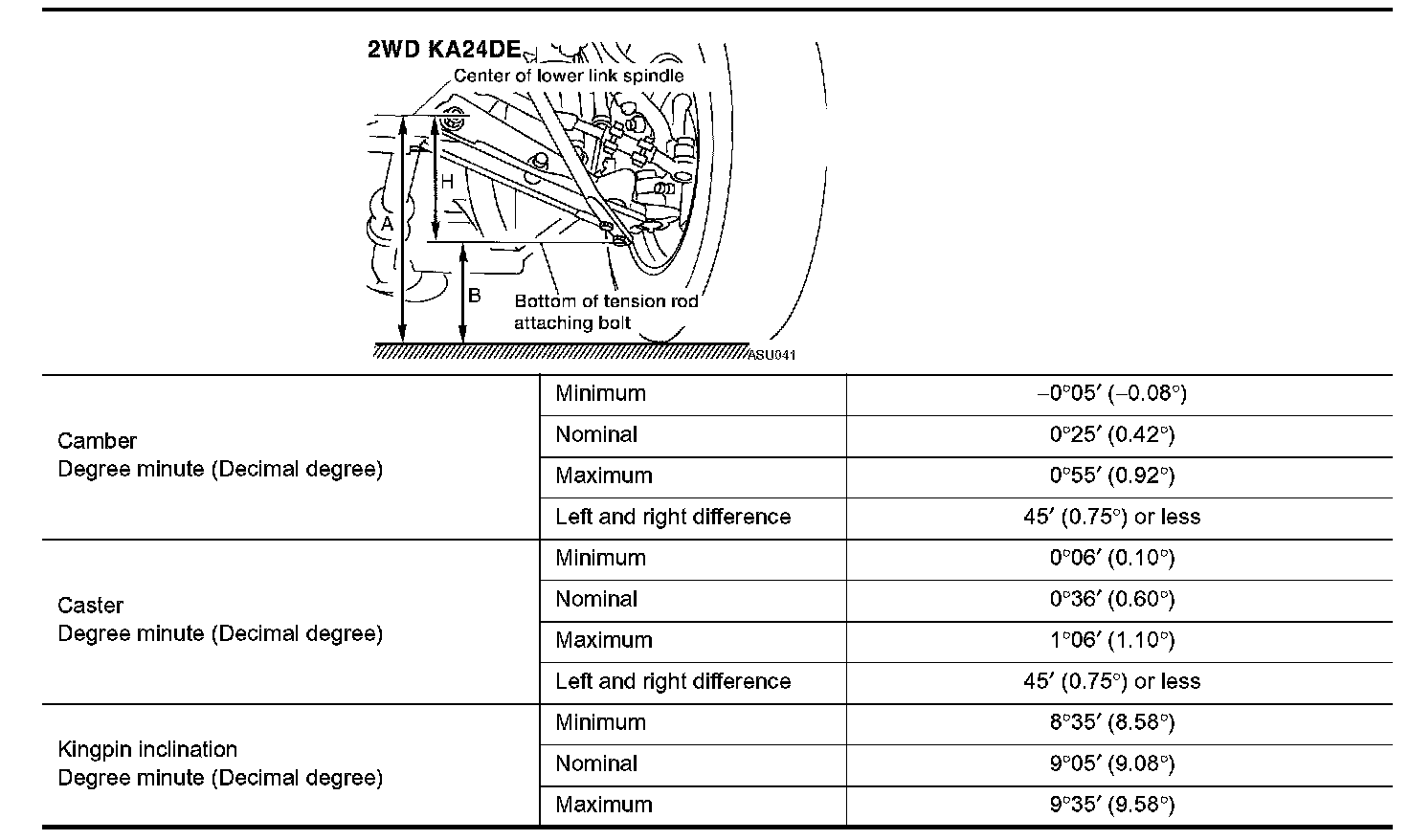

FRONT SUSPENSION - Wheel Alignment (Unladen) [2WD 2.4L KA24DE]:

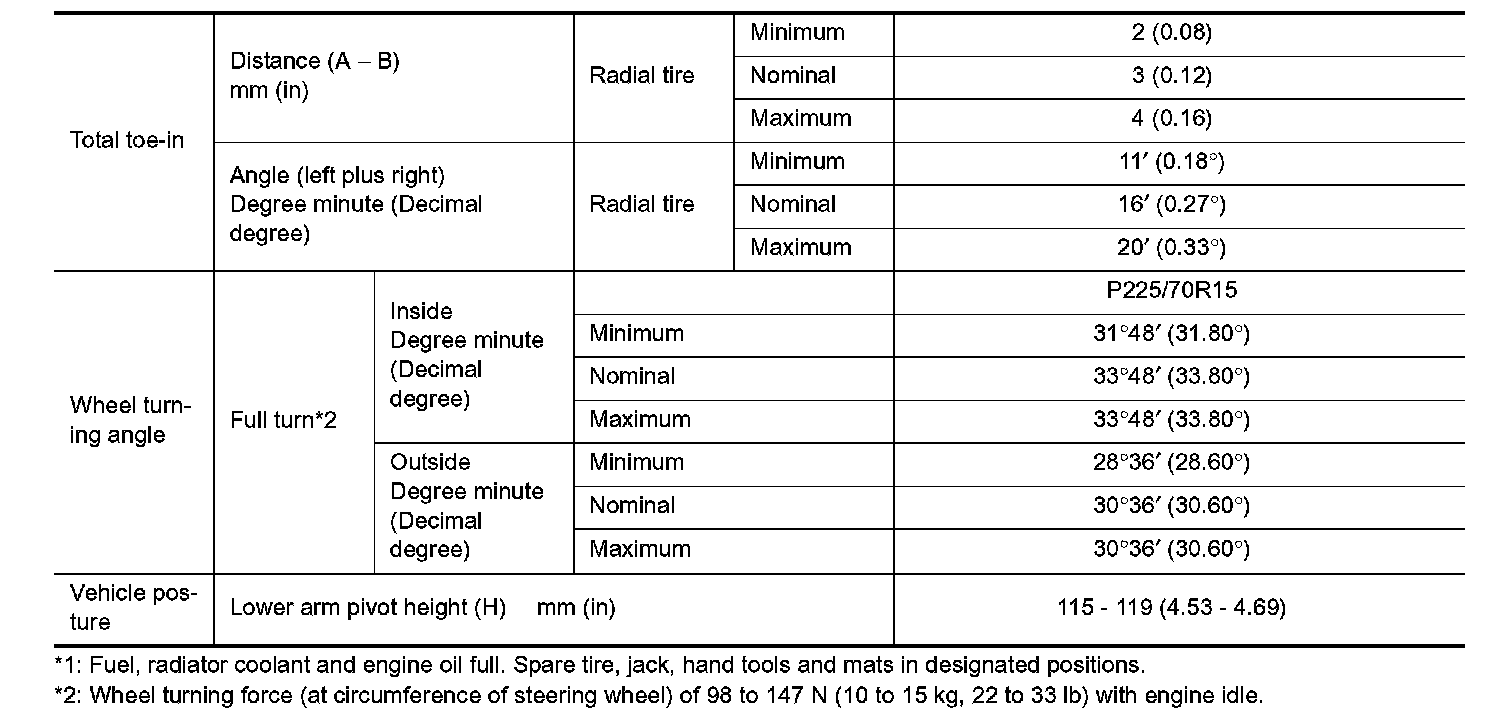

FRONT SUSPENSION - Wheel Alignment (Unladen) [2WD 2.4L KA24DE] cont....:
