System Specifications
GENERAL SPECIFICATIONS
2WD Models
4WD Model
RING GEAR RUNOUT

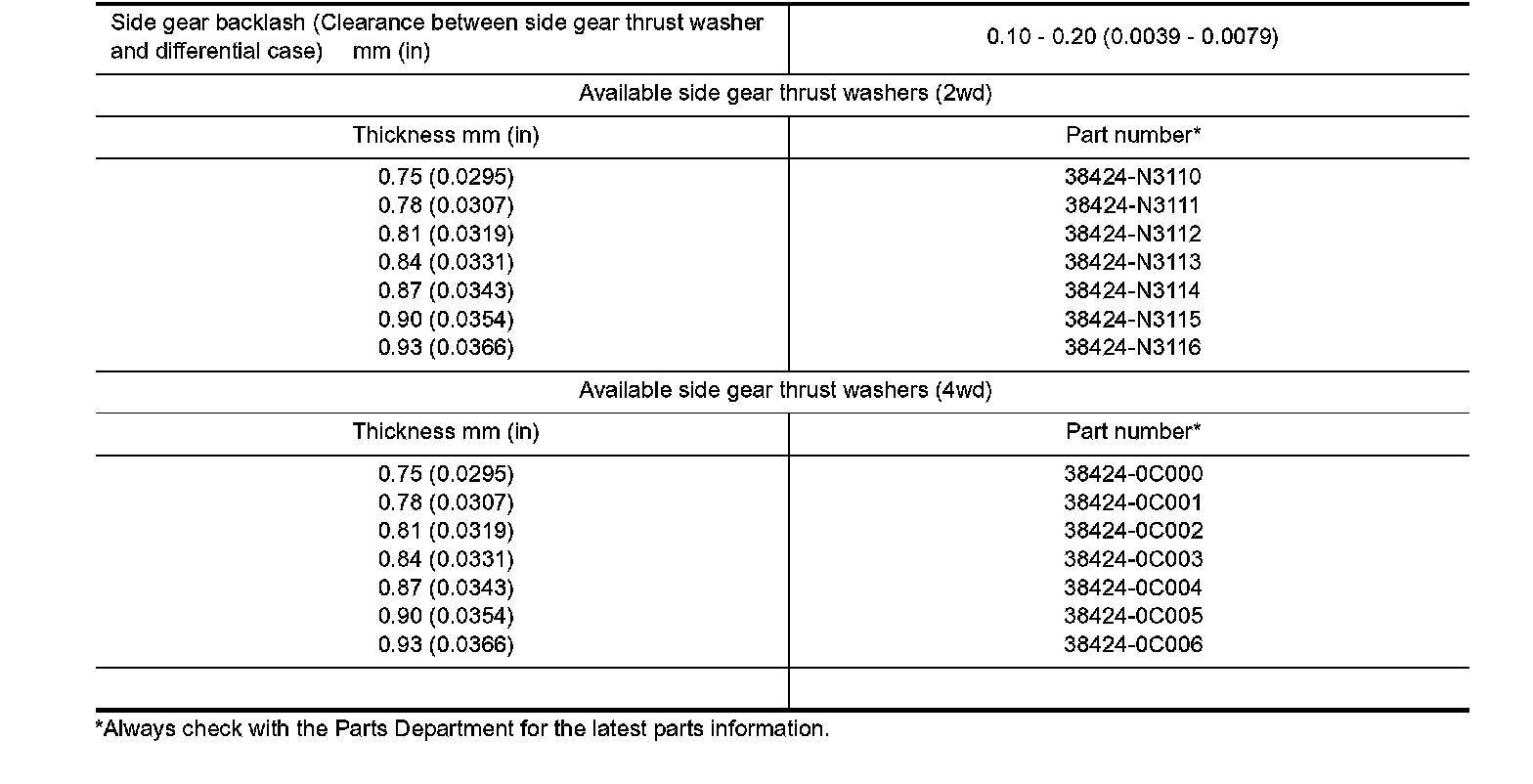

SIDE GEAR ADJUSTMENT (WITHOUT LSD)

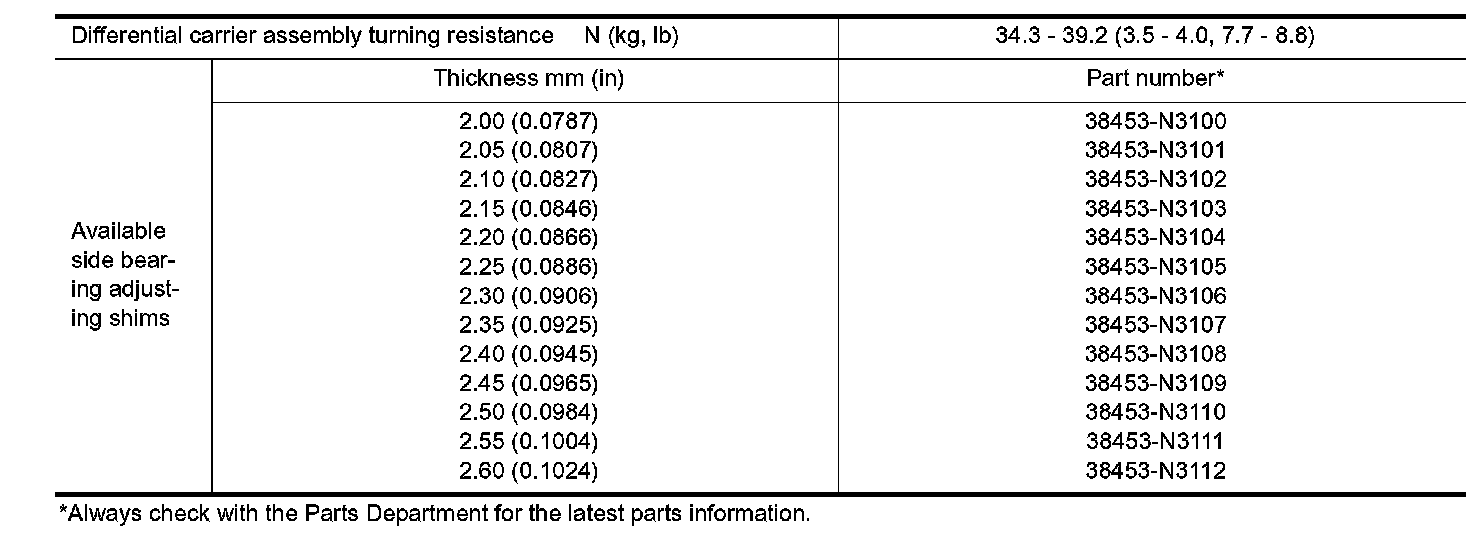

SIDE BEARING ADJUSTMENT

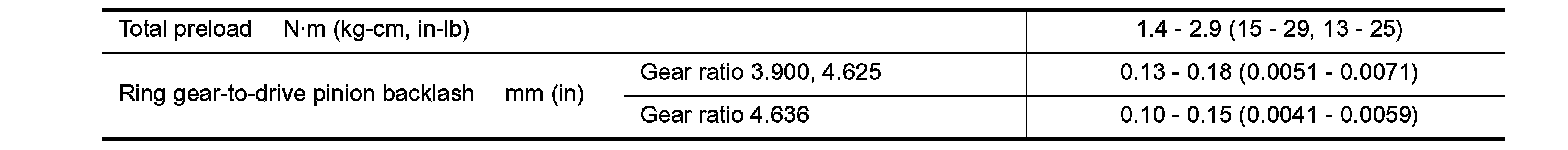

TOTAL PRELOAD ADJUSTMENT
DRIVE PINION HEIGHT ADJUSTMENT

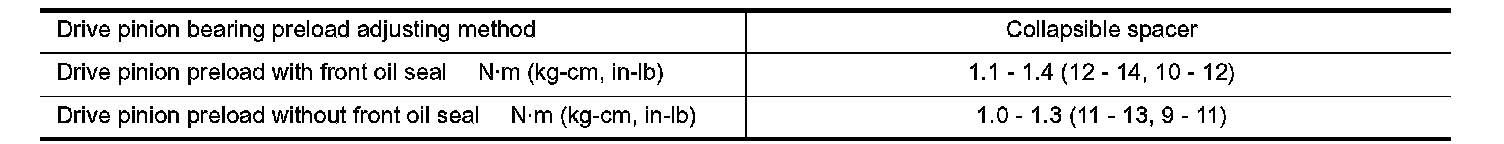

DRIVE PINION PRELOAD ADJUSTMENT

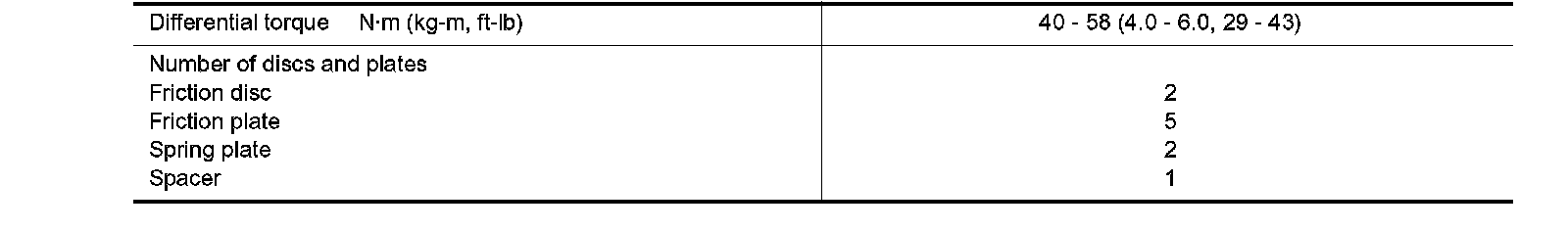

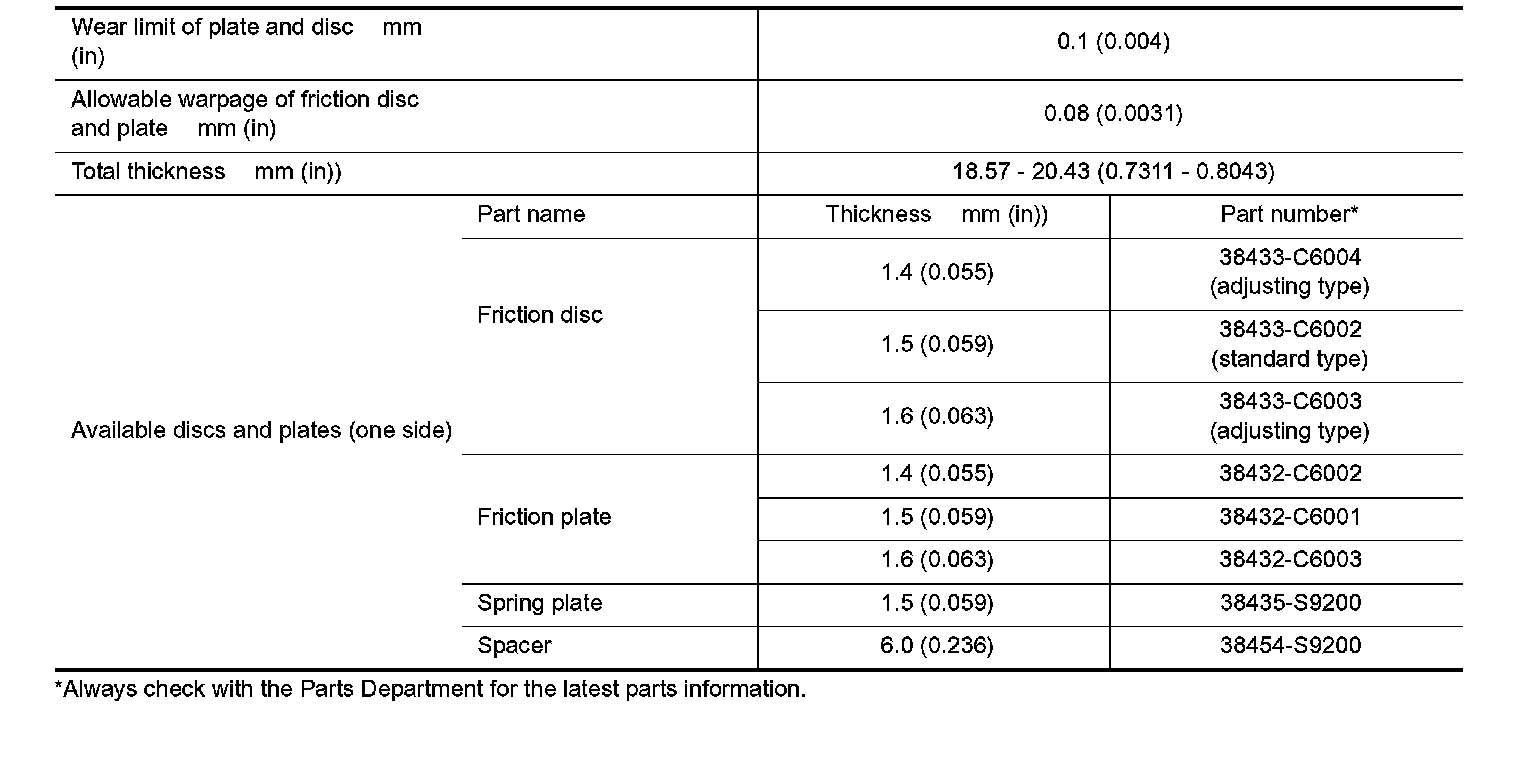

DIFFERENTIAL TORQUE ADJUSTMENT (WITH LSD)
