System Specifications

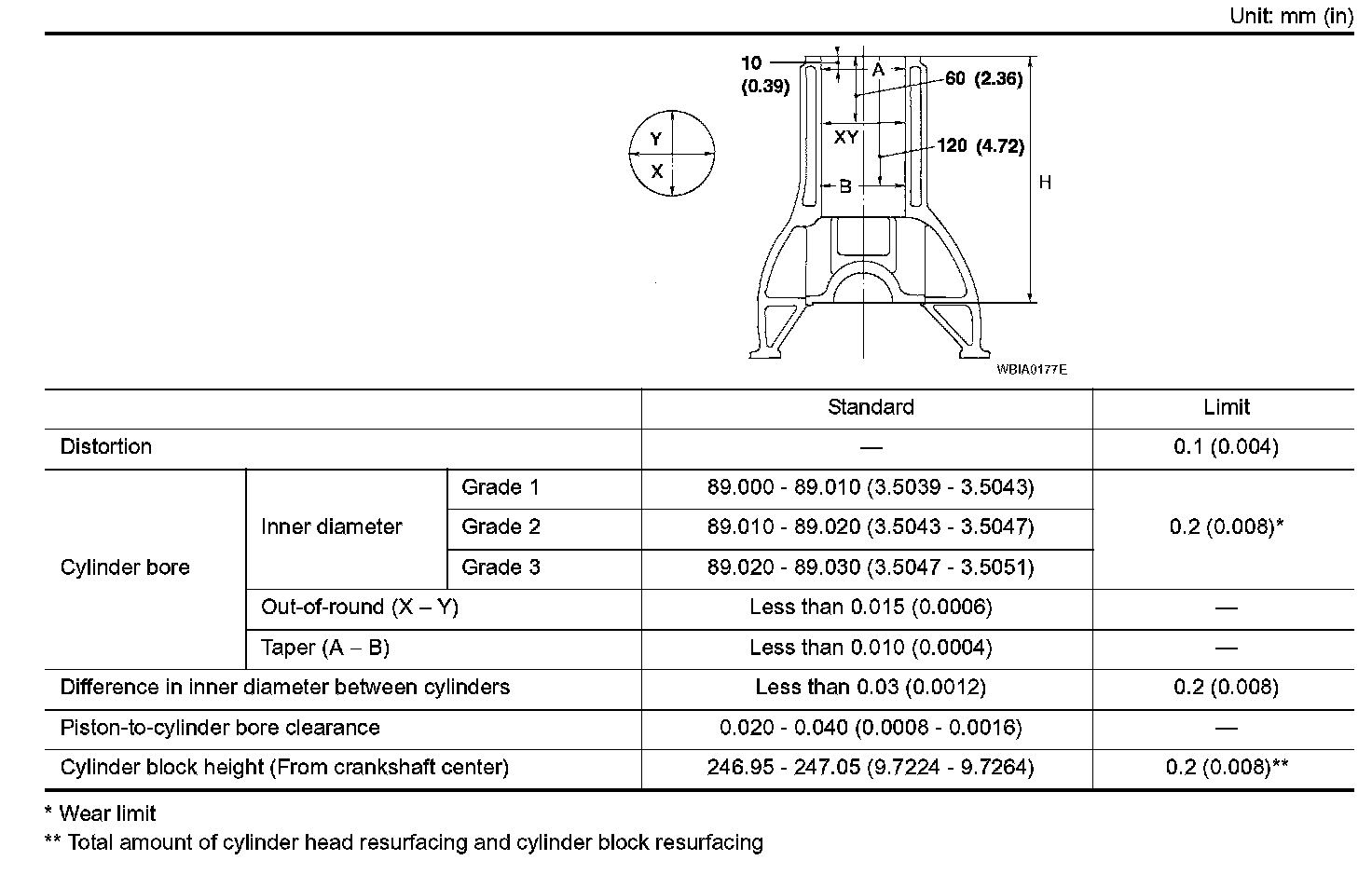

Cylinder Block

Piston, Piston Ring and Piston pin

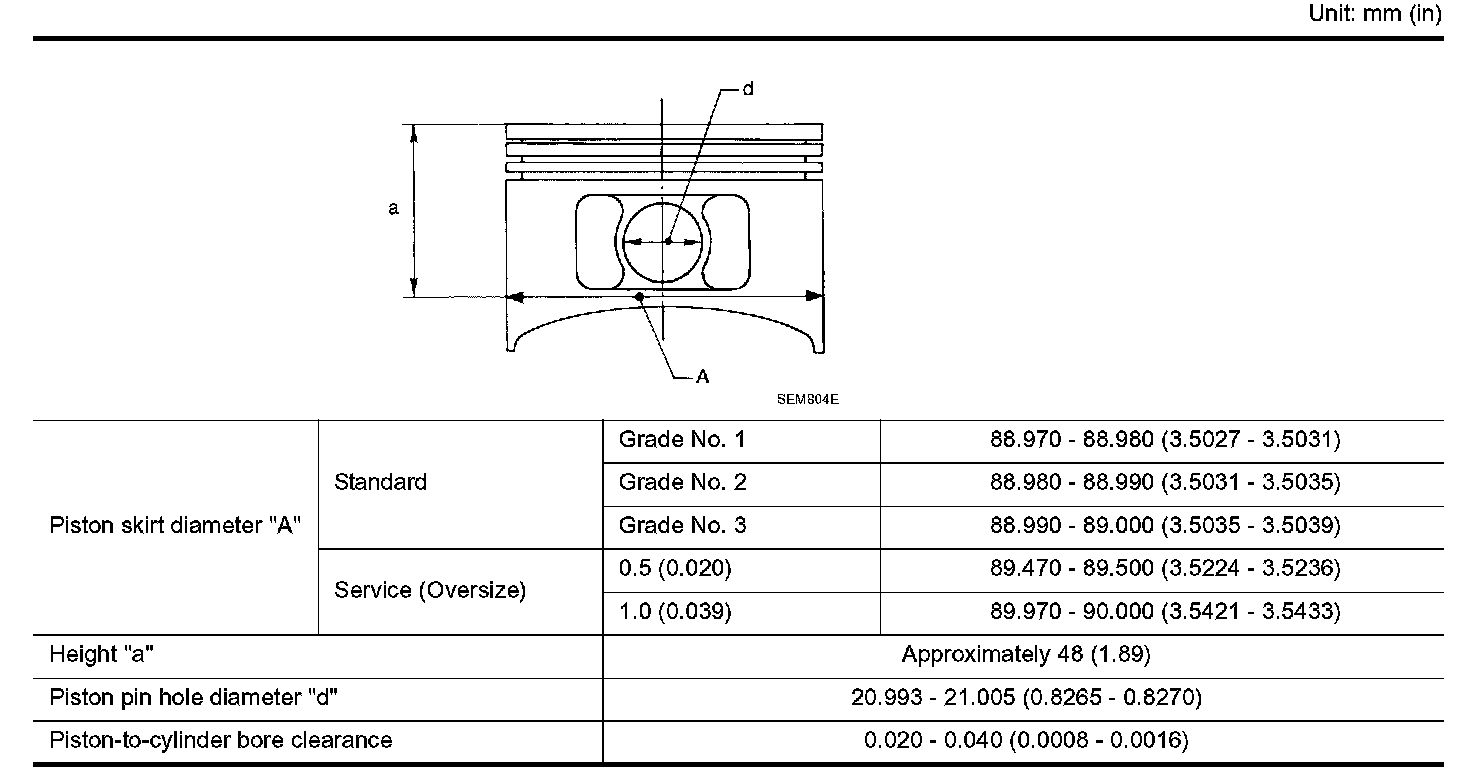

PISTON

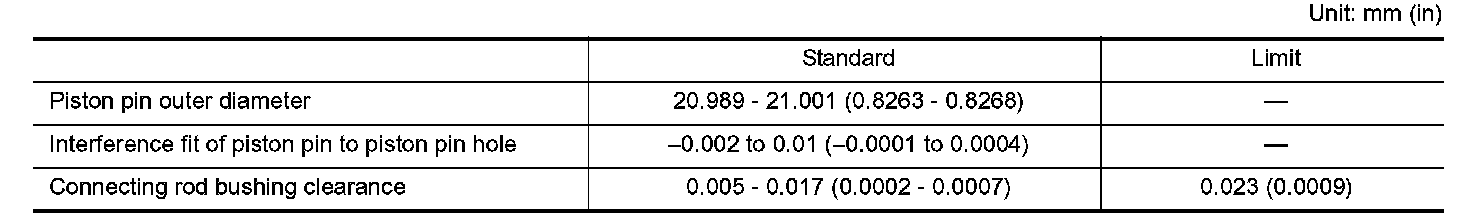

PISTON PIN





PISTON RING

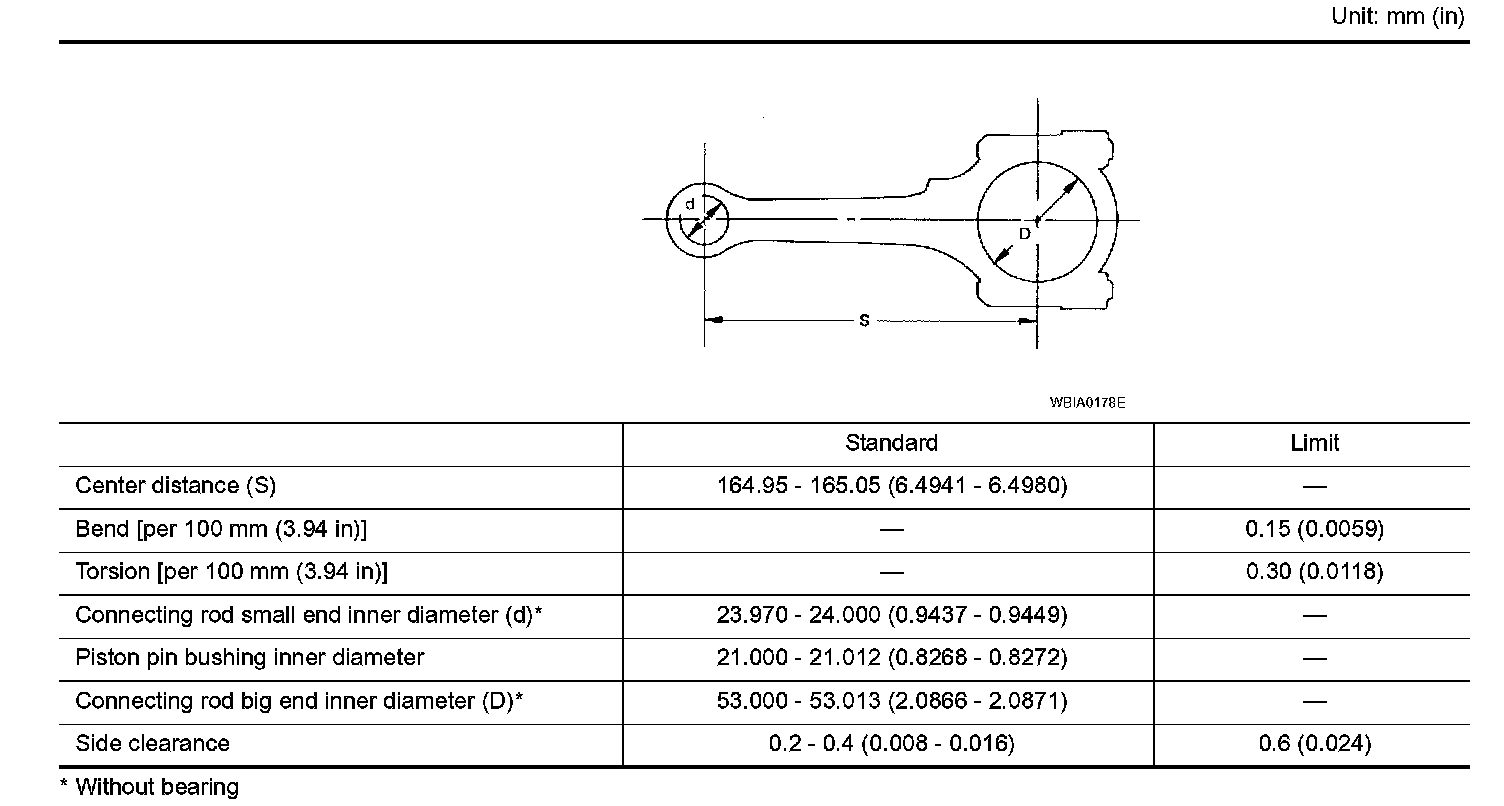

Connecting Rod








Crankshaft

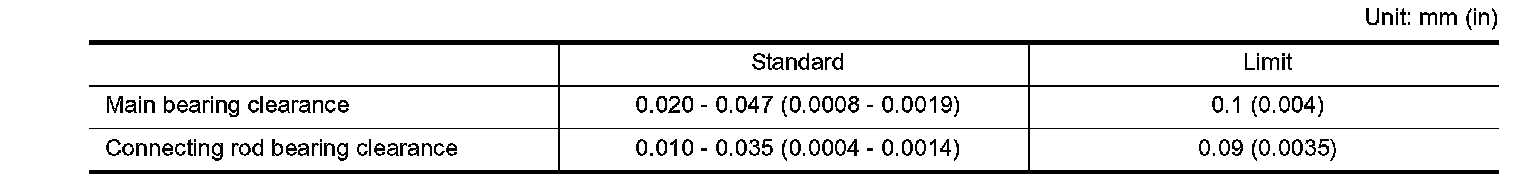

Bearing Clearance

Available Main Bearing





STANDARD

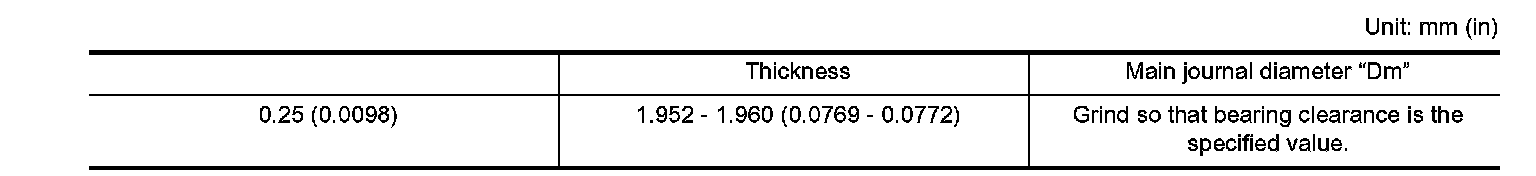

UNDERSIZE (SERVICE)

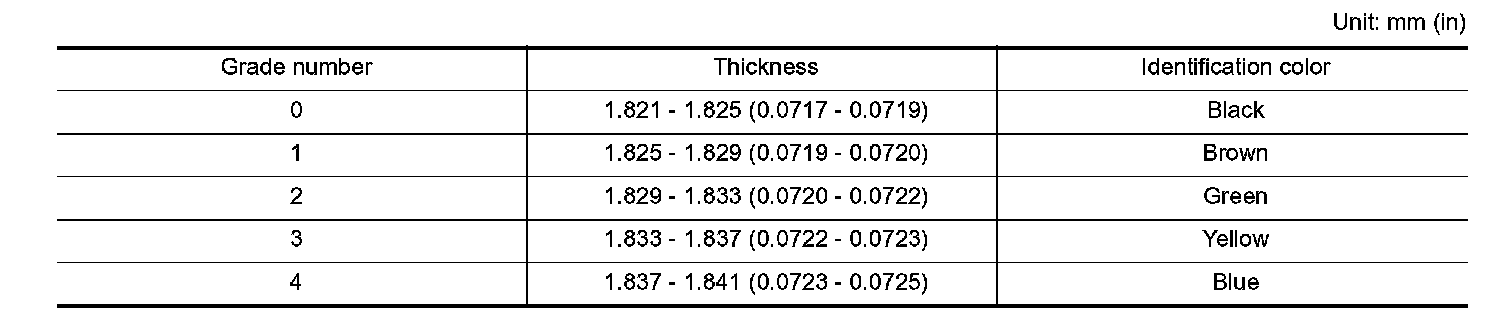

Available Connecting Rod Bearing





STANDARD

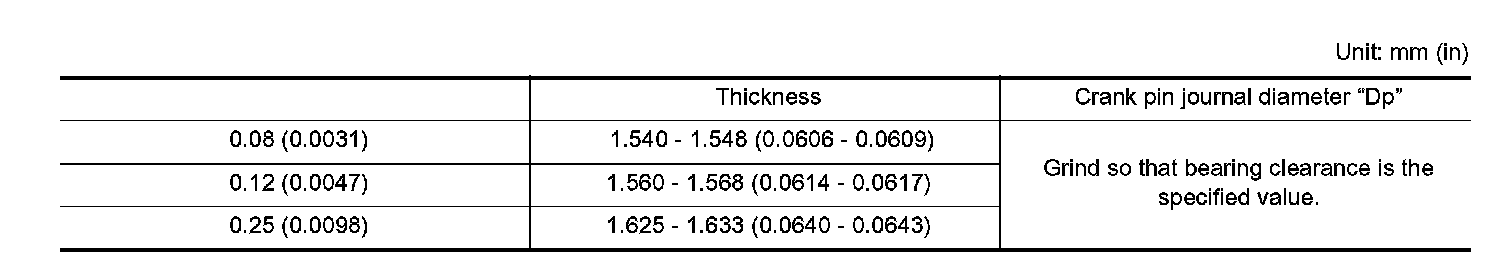

UNDERSIZE (SERVICE)

Connecting rod bearing nuts
Step 1: 14 - 16 Nm (1.4 - 1.6 kg-m, 10 - 12 ft. lbs.).
Step 2: 60° to 65° degrees clockwise [38 - 44 Nm (3.9 - 4.5 kg-m, 28 - 33 ft. lbs.)]

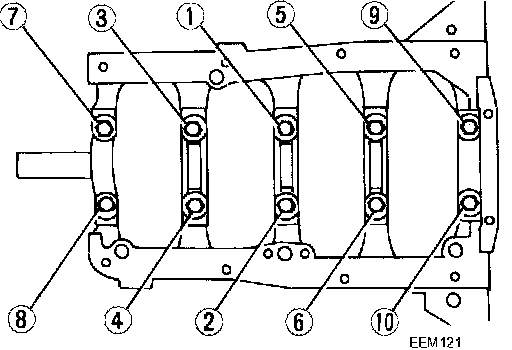

Main bearing cap bolts: 46 - 56 Nm (4.7 - 5.7 kg-m, 34 - 41 ft. lbs.)
