System Specifications

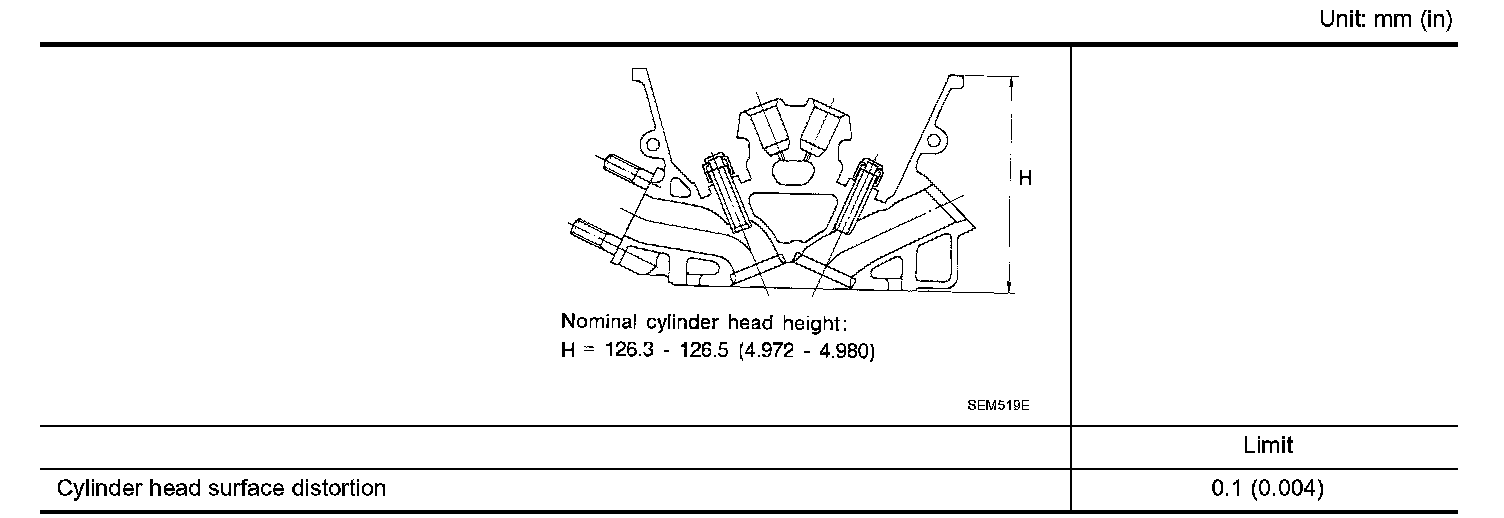

Cylinder Head

Valve

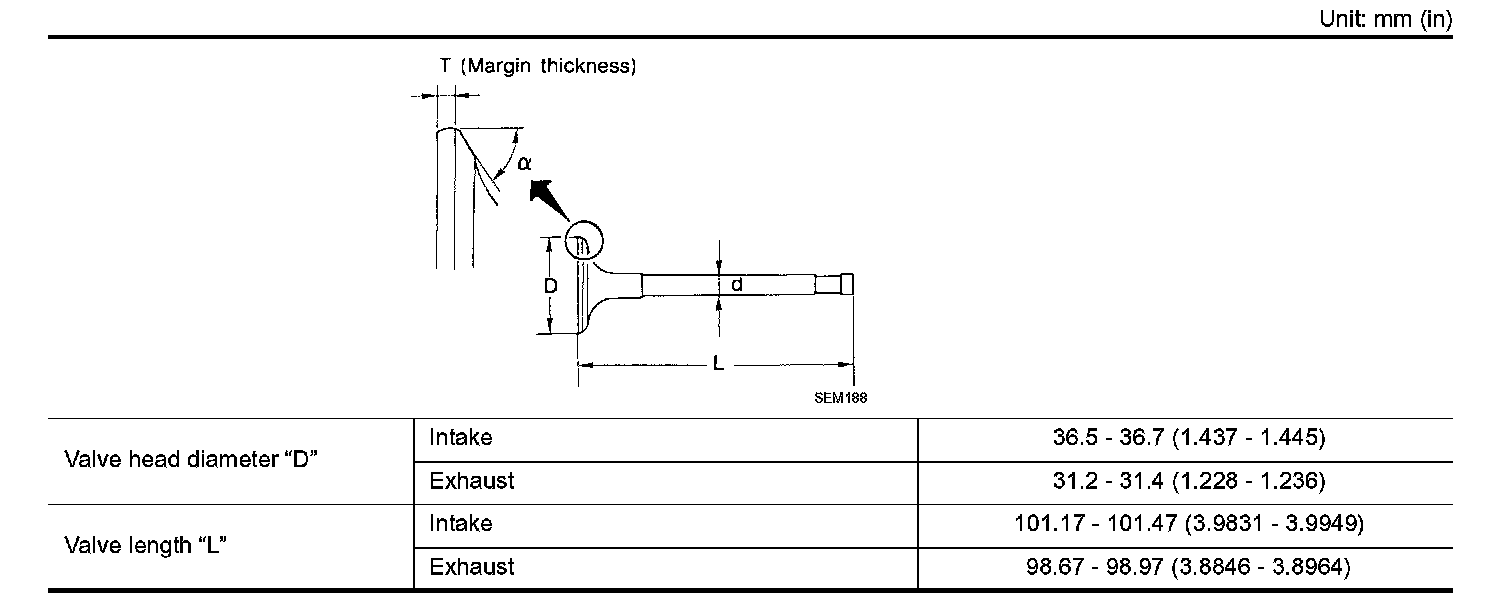

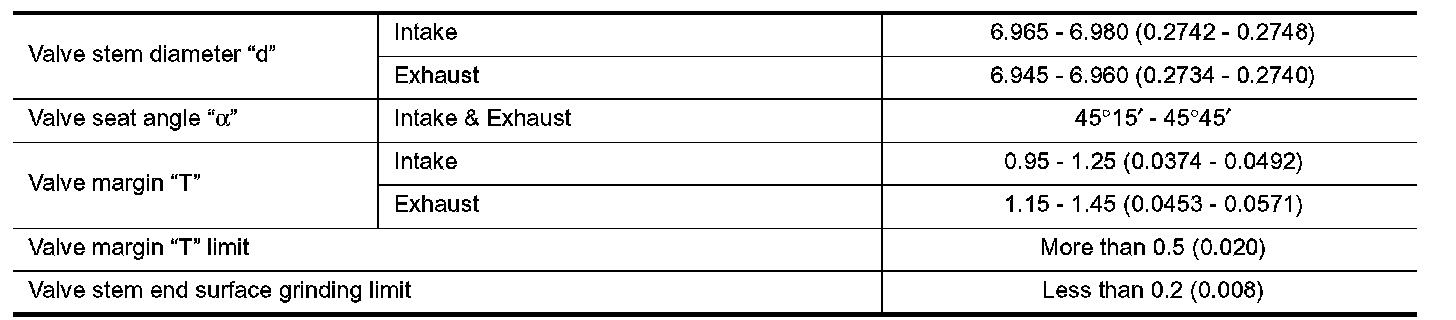

VALVE

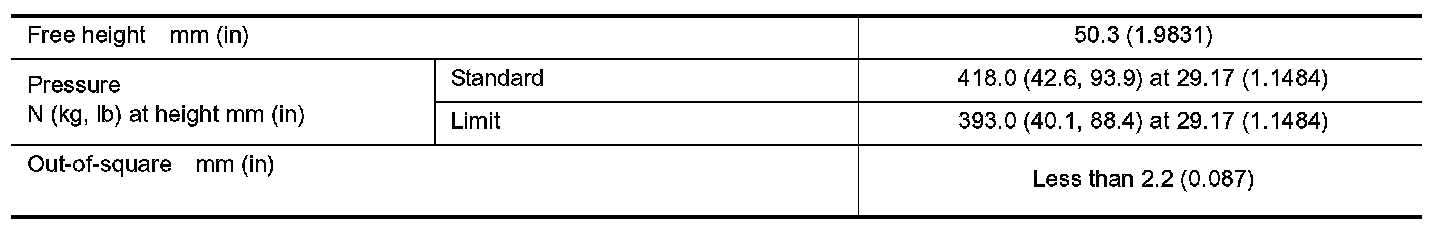

VALVE SPRING

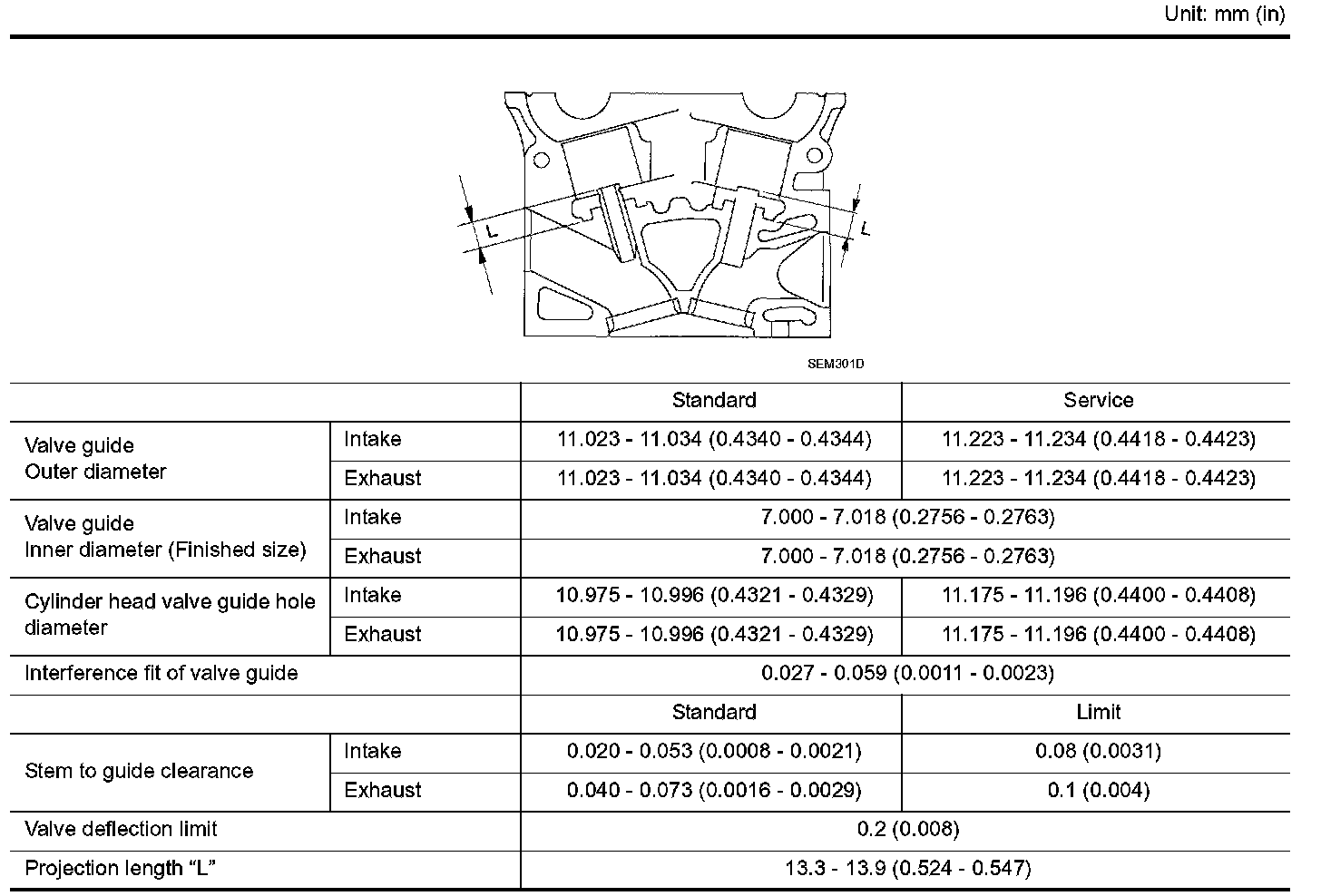

VALVE GUIDE

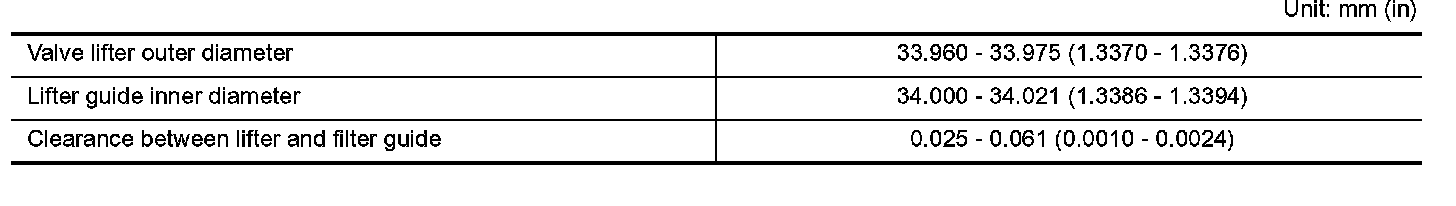

VALVE LIFTER

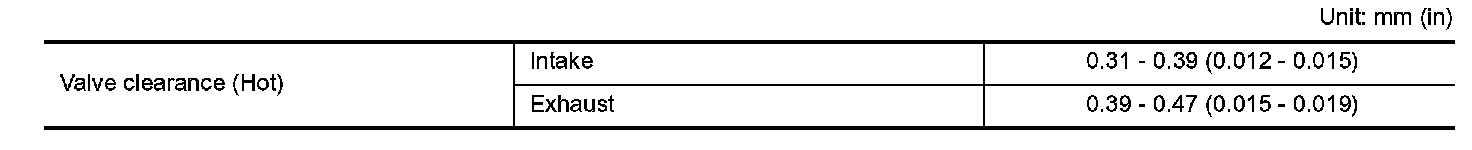

VALVE CLEARANCE ADJUSTMENT

Available Lifter:

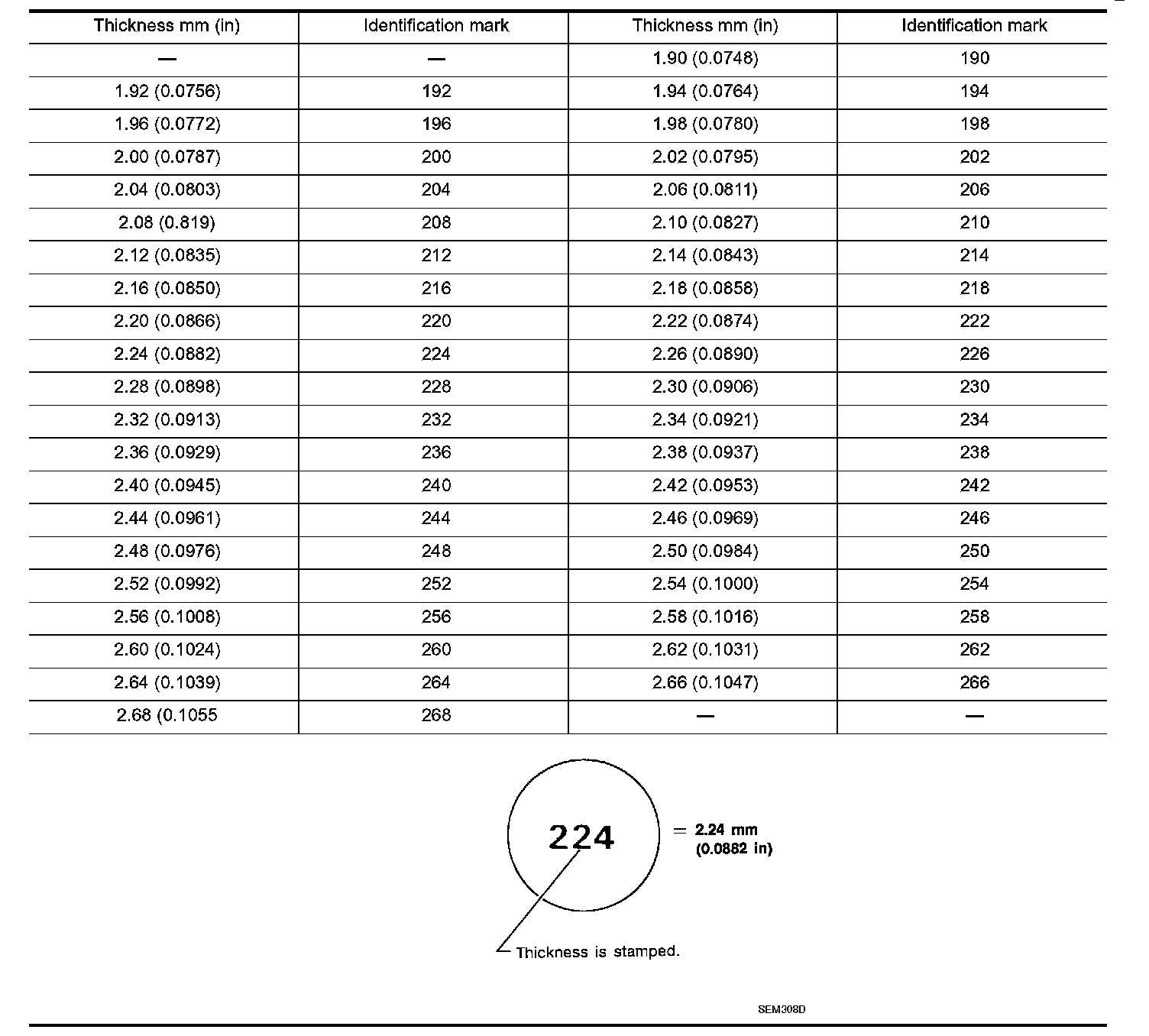

AVAILABLE SHIMS

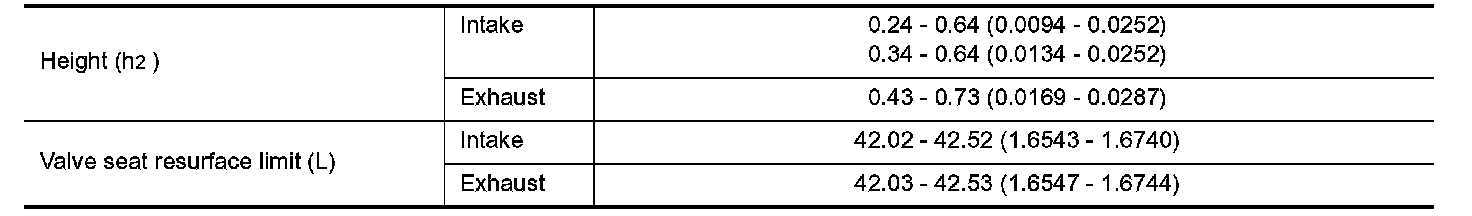

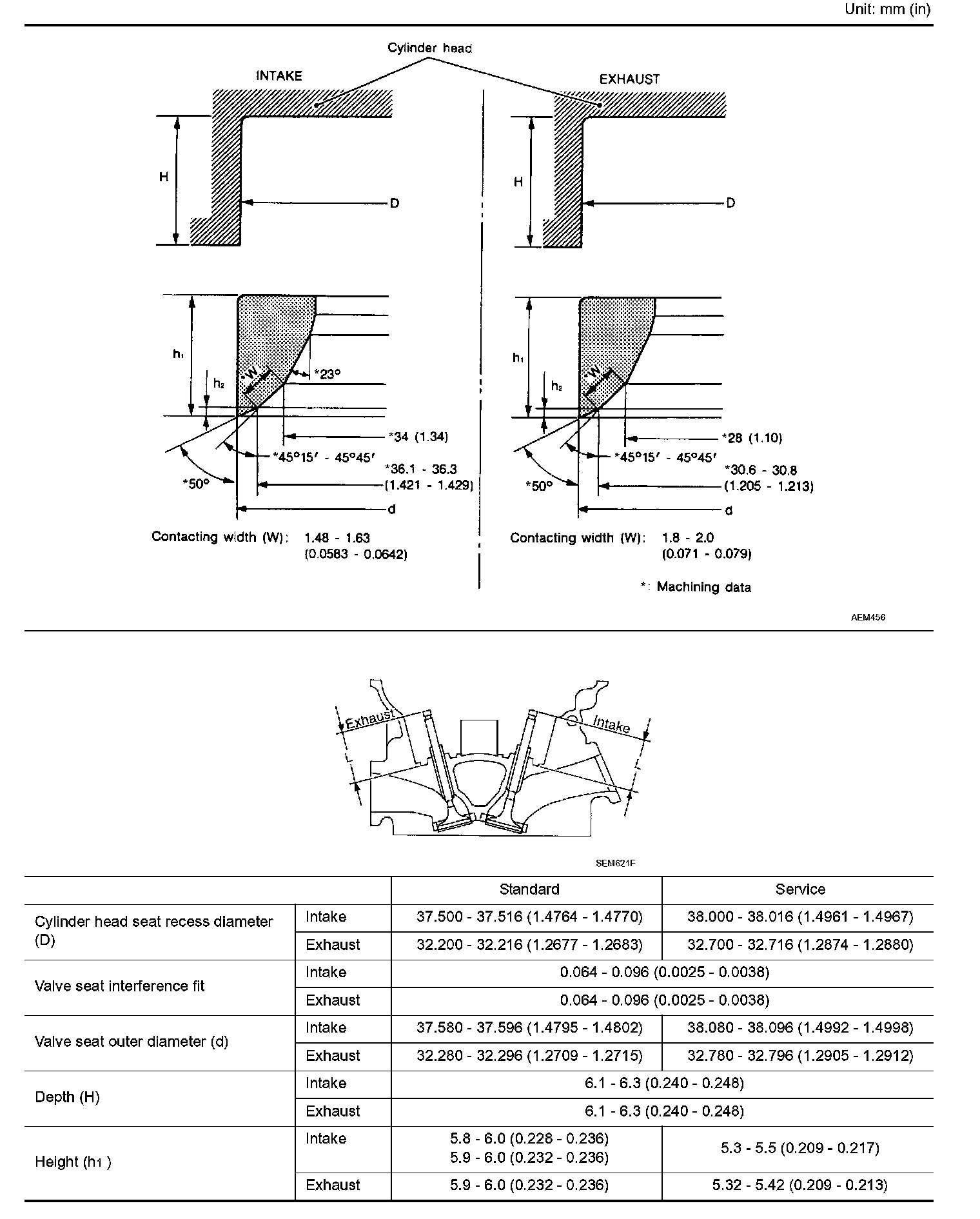

VALVE SEAT

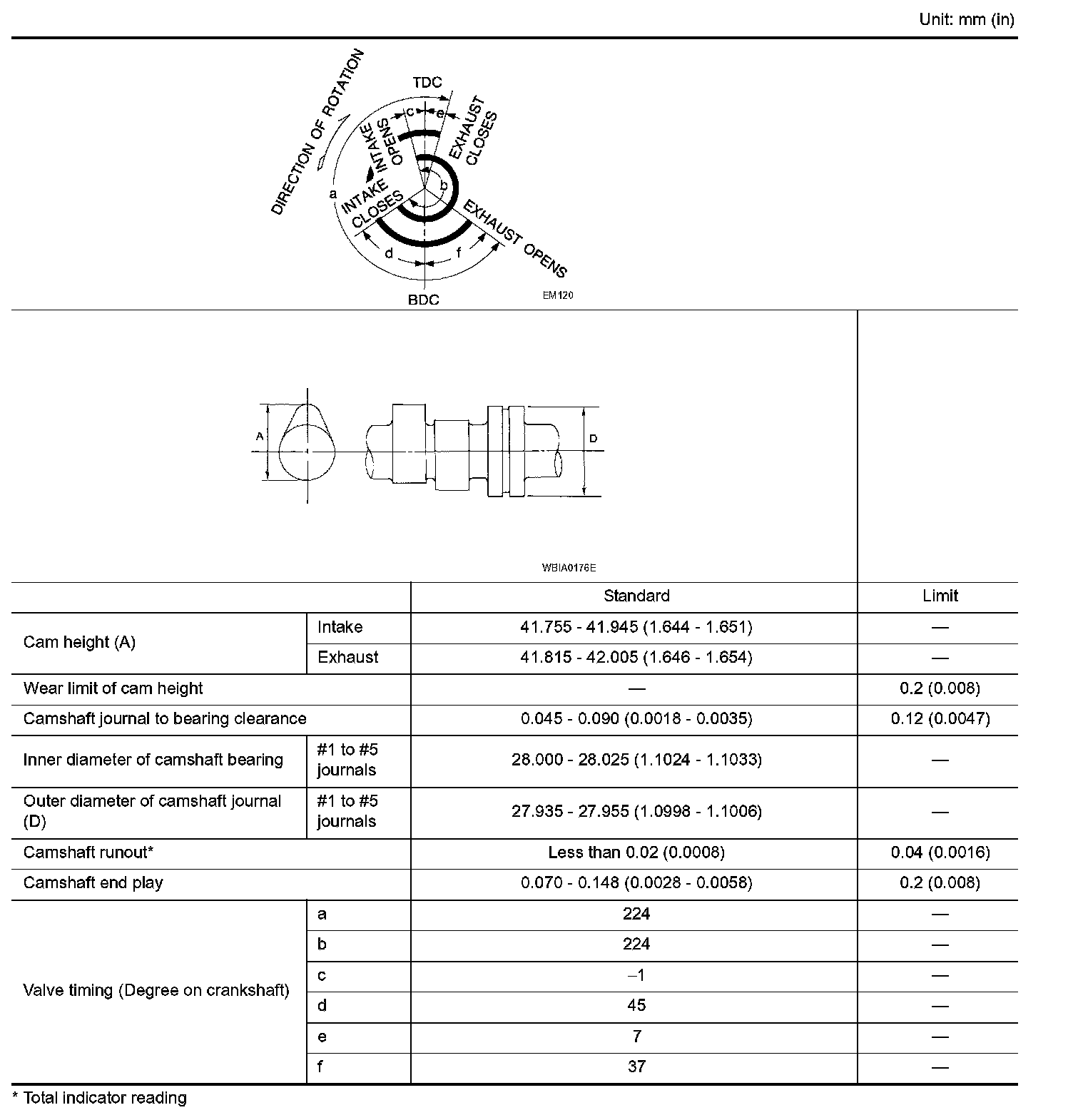

Camshaft and Camshaft Bearing

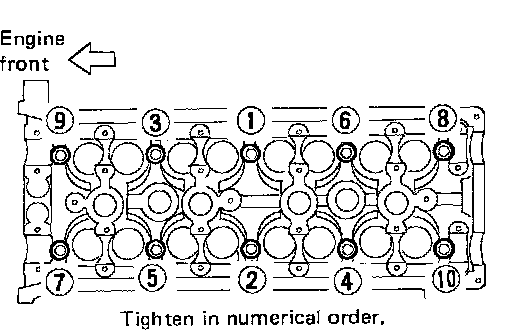

Cylinder head bolt tightening steps:
Step "a": 29 Nm (3.0 kg-m, 22 ft. lbs.)
Step "b": 79 Nm (8.1 kg-m, 59 ft. lbs.)
Step "c": Loosen all bolts completely.
Step "d": 25 - 34 Nm (2.5 - 3.5 kg-m, 18 - 25 ft. lbs.)
Step "e": 86° - 91° degrees clockwise
