P0444

DTC P0444 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

Description

SYSTEM DESCRIPTION




This system controls flow rate of fuel vapor from the EVAP canister. The opening of the vapor by-pass passage in the EVAP canister purge volume control solenoid valve changes to control the flow rate. The EVAP canister purge volume control solenoid valve repeats ON/OFF operation according to the signal sent from the ECM. The opening of the valve varies for optimum engine control. The optimum value stored in the ECM is determined by considering various engine conditions. When the engine is operating, the flow rate of fuel vapor from the EVAP canister is regulated as the air flow changes.

COMPONENT DESCRIPTION




The EVAP canister purge volume control solenoid valve uses a ON/ OFF duty to control the flow rate of fuel vapor from the EVAP canister. The EVAP canister purge volume control solenoid valve is moved by ON/OFF pulses from the ECM. The longer the ON pulse, the greater the amount of fuel vapor that will flow through the valve.

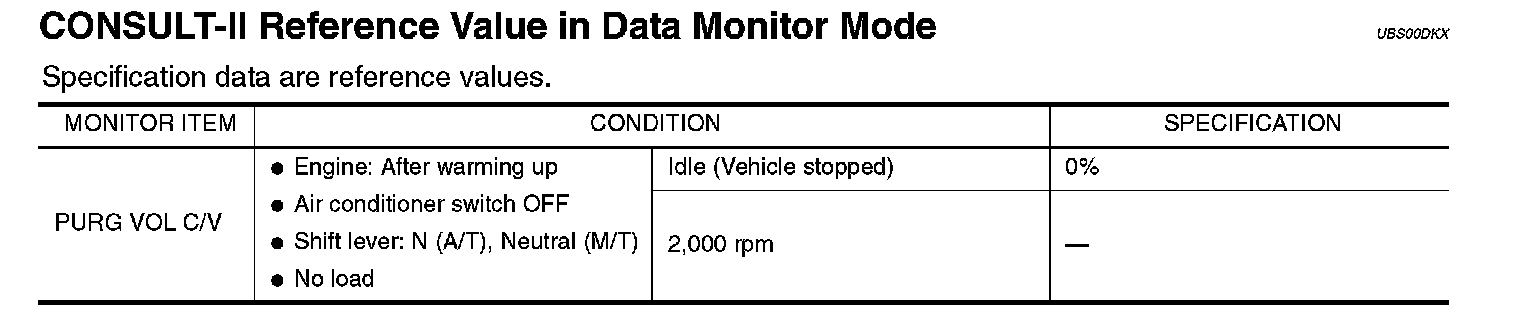

CONSULT-II Reference Value In Data Monitor Mode:

CONSULT-II Reference Value in Data Monitor Mode

On Board Diagnosis Logic:

On Board Diagnosis Logic

DTC Confirmation Procedure

NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 5 seconds before conducting the next test.

TESTING CONDITION: Before performing the following procedure, confirm battery voltage is more than 11 V at idle.

WITH CONSULT-II
1. Turn ignition switch ON.




2. Select "DATA MONITOR" mode with CONSULT-II.
3. Start engine and let it idle for at least 13 seconds.
4. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.

WITH GST
Follow the procedure "WITH CONSULT-II".

Wiring Diagram

EC-PGC/V-01:

Diagnostic Procedure

Diagnostic Procedure (Steps 1 - 3):

Diagnostic Procedure (Steps 4 - 6):

Diagnostic Procedure (Step 7):
