Fuel Level Sensor: Testing and Inspection

FUEL LEVEL SENSOR UNIT CHECK
- For removal, refer to "FUEL PUMP; SERVICE AND REPAIR".

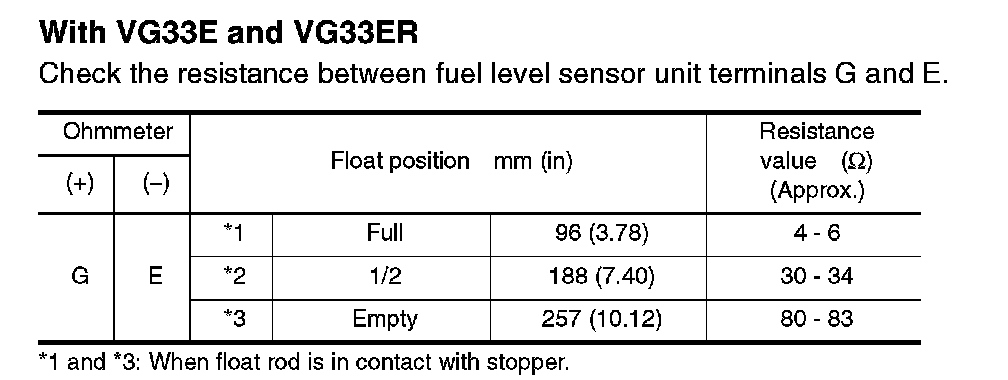

Check the resistance between fuel level sensor unit terminals G and E.
