Solar Sensor: Testing and Inspection

Sunload Sensor

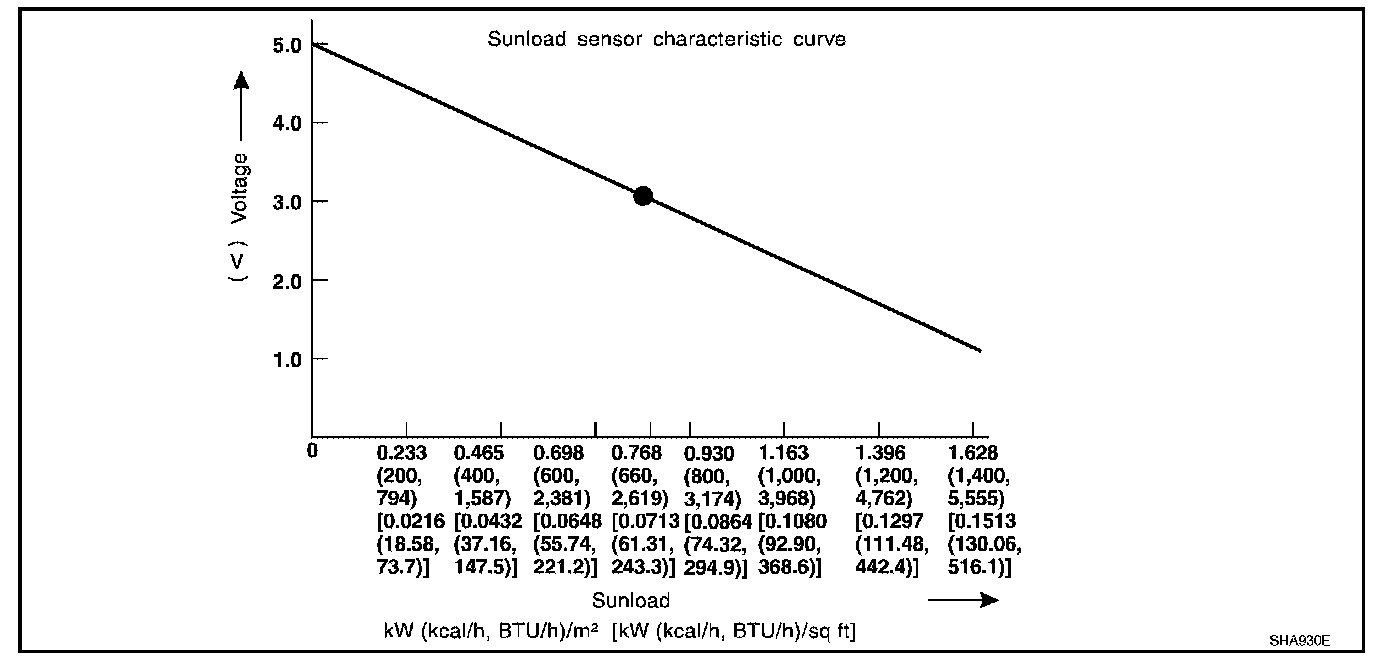

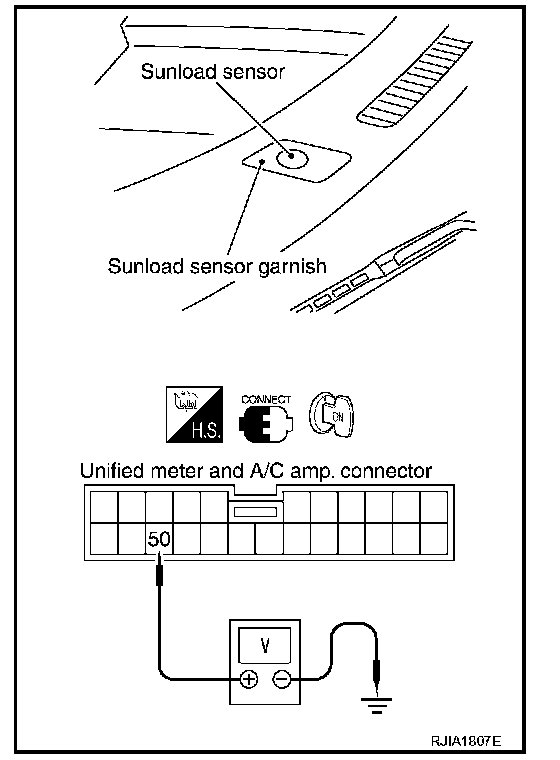

Measure voltage between unified meter and A/C amp. harness connector M89 terminal 50 (O) and ground.

If NG, replace unified meter and A/C amp.
- When checking sunload sensor, select a place where sun shines directly on it.
